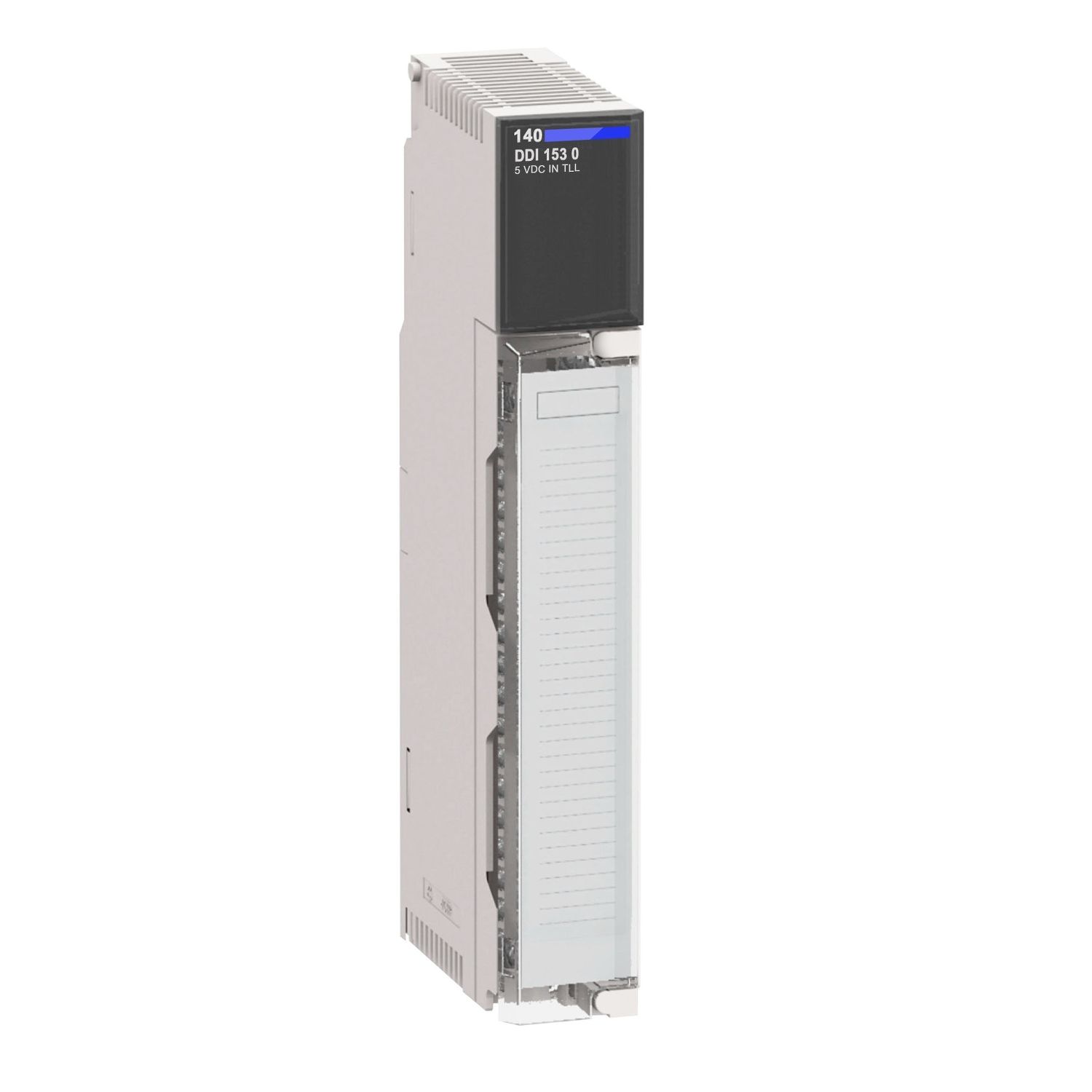

Picture of discrete input module Modicon Quantum - 32 I - 5 V DC
SKU:

140DDI15310

discrete input module Modicon Quantum - 32 I - 5 V DC

$3,896.00 INC GST
Available for Shipping : 02-Feb-2026
discrete input module Modicon Quantum - 32 I - 5 V DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 02-Feb-2026
User guide
Declaration of conformity
Catalog
Instruction sheet
CAD
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Discrete input number 32
Product or component type low voltage dc discrete input modules
Range of product Modicon Quantum automation platform
Complementary
Maximum leakage current 200 mA at Us = 5.5 V and Uin = 4 V
Module format standard
Protection type input protection
Absolute maximum input 5.5 V continuous, 15 V during 1.3 ms decaying pulse
Input impedance 7500 Ohm
Local signalling 32 LEDs (green) for input status, 1 LED (red) for external fault detected (F), 1 LED (green) for bus communication is present (Active)
Addressing requirement 2 input words
Bus current requirement 170 mA
Voltage state 1 guaranteed 0.8 V DC
Voltage state 0 guaranteed >= 4 V DC at 5.5 V supply voltage
Net weight 0.45 kg
Isolation between group 500 Vrms for 1 minute
Input voltage limits 4.5...5.5 V
Current state 1 guaranteed 4 mA
Marking CE
Response time <= 500 µs from state 1 to state 0, <= 250 µs from state 0 to state 1
Isolation between group and bus 1780 Vrms for 1 minute
Discrete input voltage 5 V TTL DC
Group of channels 4
Power dissipation 5 W
Logic input negative (source)
Environment
Operating altitude <= 5000 m
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Standards UL 508, CSA C22.2 No 142
Resistance to electromagnetic fields 10 V/m 80-2000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Product certifications cUL, FM Class 1 Division 2, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.3 cm
Package 1 Width 4.5 cm
Package 1 Length 31.2 cm
Package 1 Weight 423.0 g
