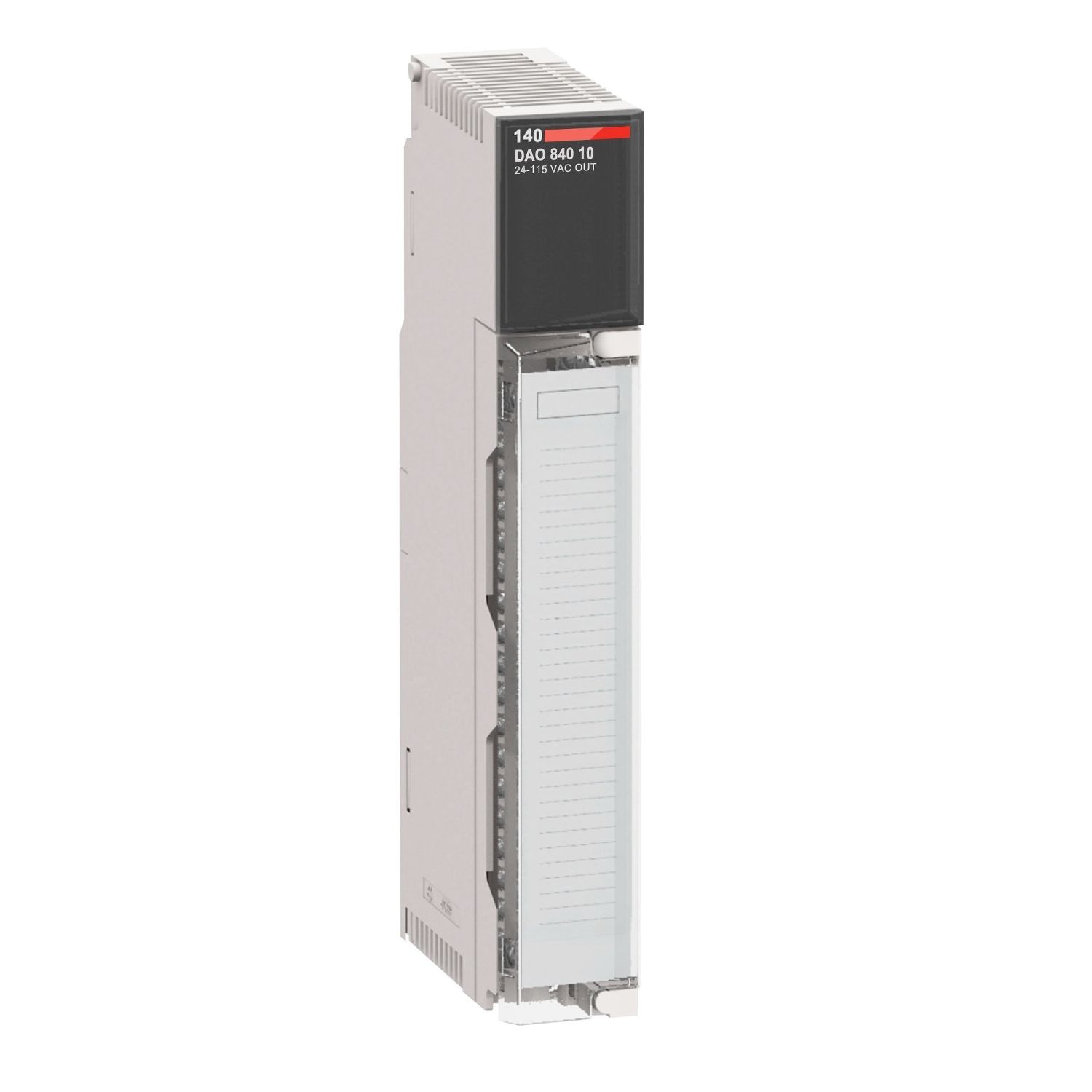

Picture of discrete output module Modicon Quantum - 16 O - 83..253 V AC
SKU:

140DAO84210

discrete output module Modicon Quantum - 16 O - 83..253 V AC

$2,816.88 INC GST
Availability: Please contact our sales team on 1300 724 622.
discrete output module Modicon Quantum - 16 O - 83..253 V AC
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Declaration of conformity
CAD
Catalog
Instruction sheet
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Discrete output number 16
Product or component type AC discrete output modules
Range of product Modicon Quantum automation platform
Complementary
Supply frequency 47...63 Hz
Module format standard
Protection type internal output protection by 5 A fuse, internal by RC filter
DV/dt 400 V/ms
Local signalling 16 LEDs (green) for input status, 1 LED (red) for external fault detected (F), 1 LED (green) for bus communication is present (Active)
Fault indication loss of field power, blown fuse
Addressing requirement 1 output word
Bus current requirement 350 mA
Absolute maximum output 400 Vrms 1 cycle AC, 300 Vrms for 10 s AC
Net weight 0.45 kg
Marking CE
Surge current 45 A during 1 cycle per group, 30 A during 2 cycles per group, 25 A during 3 cycles per group, 30 A during 1 cycle per point, 20 A during 2 cycles per point, 10 A during 3 cycles per point
Discrete output voltage 83...253 V AC
Response time <= 0.5 ms at state 1 to state 0, <= 0.5 ms at state 0 to state 1
Maximum voltage drop 1.5 V
Group of channels 4 groups of 4 channels
Maximum load current 4 A rms per group, 16 A rms per module, 4 A rms 85...132 V per output, 3 A rms 170...253 V per output, 2.5 mA rms 230 Vrms off state leakage per output, 2 mA rms 115 Vrms off state leakage per output
Power dissipation 1.85 + (1.1 V x total module load current)
Environment
Operating altitude <= 5000 m
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Electromagnetic compatibility susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 801-3, electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 801-2, electrostatic discharge immunity test - test level: 4 kV (contact discharge) conforming to IEC 801-2
Standards CSA C22.2 No 142, UL 508
Ambient air temperature for operation 0-60 °C
Product certifications FM Class 1 Division 2, cUL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 16.3 cm
Package 1 Width 4.5 cm
Package 1 Length 31.2 cm
Package 1 Weight 634.0 g
