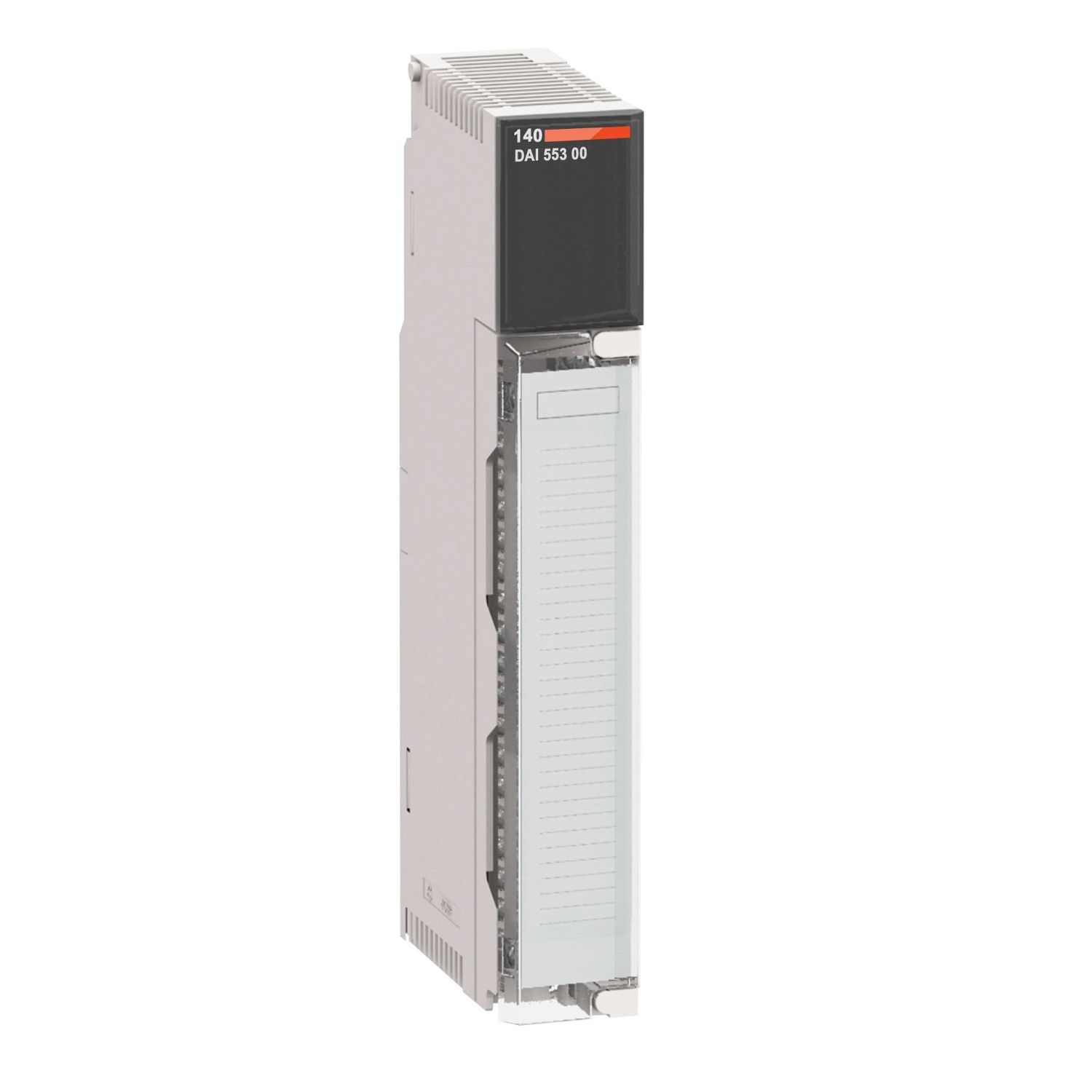

Picture of discrete input module Modicon Quantum - 32 I - 115 V AC
SKU:

140DAI55300

discrete input module Modicon Quantum - 32 I - 115 V AC

$4,082.71 INC GST
Availability: Please contact our sales team on 1300 724 622.
discrete input module Modicon Quantum - 32 I - 115 V AC
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
User guide
Catalog
CAD
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Discrete input number 32
Software name Concept, ProWORX 32, Unity Pro
Product or component type VAC discrete input modules
Range of product Modicon Quantum automation platform
Complementary
Input impedance 14400 Ohm capacitive at 47...53 Hz, 12000 Ohm capacitive at 57...63 Hz
Maximum leakage current 2.1 mA
Module format standard
Absolute maximum input 200 V 1 cycle, 156 V 10 s, 132 V continuous
Local signalling 32 LEDs (green) for input status, 1 LED (red) for external fault detected (F), 1 LED (green) for bus communication is present (Active)
Addressing requirement 2 input words
Bus current requirement 250 mA
Maximum power dissipation in W 10.9 W
Voltage state 1 guaranteed 85...132 V AC at 47...53 Hz, 79...132 V AC at 57...63 Hz
Voltage state 0 guaranteed 0...20 V AC at 47...53 Hz, 0...20 V AC at 57...63 Hz
Net weight 0.33 kg
Input current 13.2 mA at 47...53 Hz, 11.1 mA at 57...63 Hz
Marking CE
Network frequency limits 47-63 Hz
Isolation between group 1780 Vrms for 1 minute
Response time 7.3...12.3 ms On-Off, 4.9...0.75 ms x line cycle Off-On
Discrete input voltage 115 V AC
Isolation between group and bus 1780 Vrms for 1 minute
Group of channels 4
Environment
Operating altitude <= 5000 m
Resistance to electrostatic discharge 8 kV on air conforming to IEC 801-2, 4 kV contact conforming to IEC 801-2
Relative humidity 95-95 % without condensation
Ambient air temperature for storage -40-85 °C
Standards UL 508, CSA C22.2 No 142
Resistance to electromagnetic fields 10 V/m 80-2000 MHz conforming to IEC 801-3
Ambient air temperature for operation 0-60 °C
Product certifications FM Class 1 Division 2, cUL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 30.0 cm
Package 1 Width 4.5 cm
Package 1 Length 31.2 cm
Package 1 Weight 448.0 g
