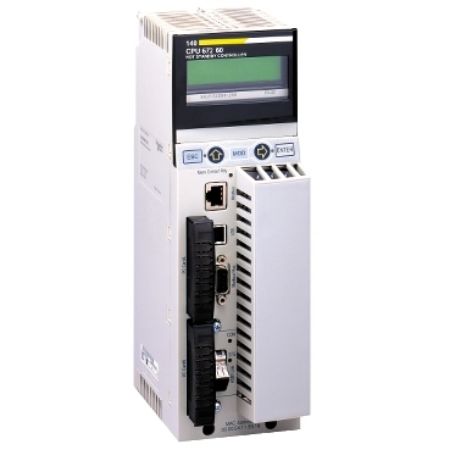

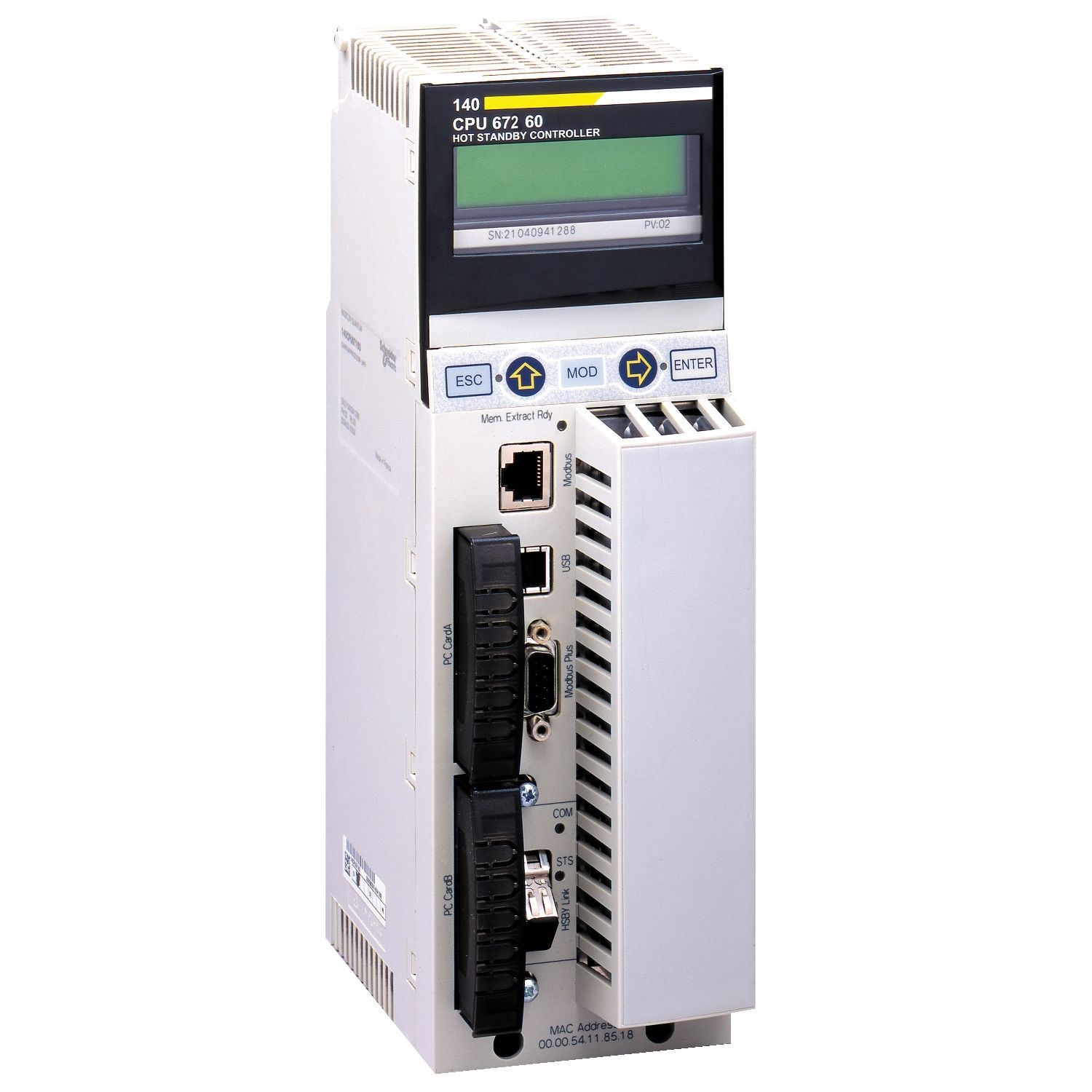

Picture of Unity Hot Standby processor with multimode Ethernet - 3072 kB - 266 MHz - coated
SKU:

140CPU67260C

Unity Hot Standby processor with multimode Ethernet - 3072 kB - 266 MHz - coated

$50,210.16 INC GST
Availability: Please contact our sales team on 1300 724 622.
Unity Hot Standby processor with multimode Ethernet - 3072 kB - 266 MHz - coated
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Range of product Modicon Quantum automation platform
Product or component type Unity processor
Complementary
Memory description internal RAM 3072 kB - 1536 kB for data, expandable 8 MB - file storage with PCMCIA card, expandable 7168 kB - program with PCMCIA card
Analogue I/O number 0 - local - forbidden in Hot Standby application, 1984 inputs,1984 outputs - remote, unlimited (31 drops of 28 slots max) - ethernet remote I/O, 500 inputs, 500 outputs - distributed - per network Modbus Plus
Number of instructions per ms 10.07 Kinst/ms 65 % Boolean and 35 % numerical, 10.28 Kinst/ms 100 % Boolean
Application structure 1 cyclic/periodic master task - , 4 auxiliary tasks - forbidden in Hot Standby application, 32 timer interrupt tasks - forbidden in Hot Standby application, 128 interrupt tasks - forbidden in Hot Standby application, 128 I/O interrupt tasks - forbidden in Hot Standby application, 1 periodic fast task - forbidden in Hot Standby application
Bus current requirement 2760 mA
Application specific I/O accurate time stamping, counter, high-speed interrupt inputs, serial link
Number of slots 6, 4, 2, 16, 10
Number of remote I/O station 31 - 2 rack(s) per ethernet X80 remote I/O, 31 - 2 rack(s) per ethernet Quantum remote I/O, 31 - 2 rack(s) per S908 remote I/O
Number of optional modules 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Clock frequency 266 MHz
Communication service Ethernet router
Mode of transmission multi mode
Checks process control, hot standby
Maximum number of connections 1 Modbus (RS232/485 Modbus/ASCII), 6 Profibus DP - local, 6 Modbus Plus - local, 6 Ethernet TCP/IP - local, 4 AS-Interface - remote, 2 AS-Interface - distributed, 1 USB
Switch function key switch memory port on/off
Local signalling 1 LED (yellow) for configuration status (STS), 1 LED (yellow) for Ethernet activity (COM)
Integrated connection type 1 optic fibre with Hot Standby, 1 USB with , 1 Modbus with , 1 Modbus Plus with
Discrete I/O number 0 - local - forbidden in Hot Standby application, unlimited (31 drops of 28 slots max) - ethernet remote I/O, 8000 inputs, 8000 outputs - distributed - per network Modbus Plus, 31744 inputs, 31744 outputs - remote
System overhead 1 ms for master task, 0.2 ms for fast task
Number of racks 2 - local rack(s)
Number of distributed I/O station 63 station(s) - 1 rack(s) - 3 Modbus Plus network(s)
Electrical connection 1 connector, connector type: MT-RJ (multimode fiber optic) for interconnecting primary and secondary PLCs up to 4 km, 1 connector, connector type: RJ45 for connecting Modbus bus, 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network
Environment
Protective treatment conformal coating Humiseal 1A33
Standards HazLoc
Product certifications ATEX zone 2, Misc (Marine), CSA, UL, GOST, CE, IEC-Ex
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.0 cm
Package 1 Width 18.5 cm
Package 1 Length 32.5 cm
Package 1 Weight 1.424 kg
