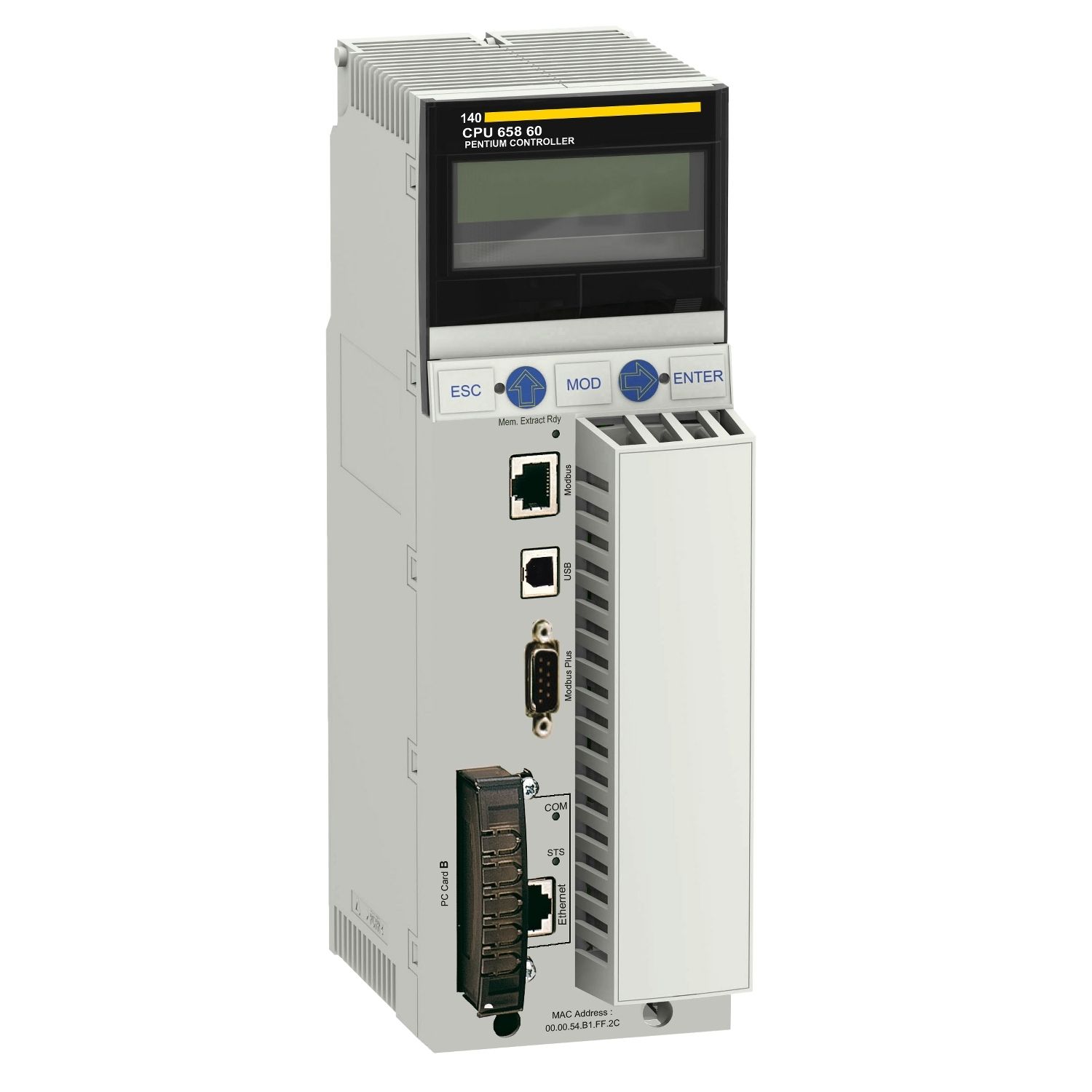

Picture of Unity processor Modicon Quantum - 11 MB - 266 MHz - coated
SKU:

140CPU65860C

Unity processor Modicon Quantum - 11 MB - 266 MHz - coated

$58,436.44 INC GST
Availability: Please contact our sales team on 1300 724 622.
Unity processor Modicon Quantum - 11 MB - 266 MHz - coated
Be the first to review this product
Manufacturer: Schneider Electric
Instruction sheet
Declaration of conformity
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Product or component type Unity processor
Range of product Modicon Quantum automation platform
Complementary
Checks process control
Memory description internal RAM 11264 kB - program and data, expandable 8 MB - file storage with PCMCIA card
Maximum number of connections 1 Modbus (RS232/485 Modbus/ASCII), 6 Profibus DP - local, 6 Modbus Plus - local, 6 Ethernet TCP/IP - local, 4 AS-Interface - remote, 2 AS-Interface - distributed, 1 USB
Analogue I/O number 1984 inputs,1984 outputs - remote, unlimited (31 drops of 28 slots max) - ethernet remote I/O, unlimited (26 slots max) - local, 500 inputs, 500 outputs - distributed - per network Modbus Plus
Switch function key switch memory port on/off
Number of instructions per ms 10.07 Kinst/ms 65 % Boolean and 35 % numerical, 10.28 Kinst/ms 100 % Boolean
Application structure 4 auxiliary tasks - , 32 timer interrupt tasks - , 128 interrupt tasks - , 128 I/O interrupt tasks - , 1 periodic fast task - , 1 cyclic/periodic master task -
Local signalling 1 LED (red) for Ethernet collision, 1 LED (green) for Ethernet activity (COM)
Bus current requirement 2760 mA
Application specific I/O serial link, high-speed interrupt inputs, accurate time stamping, counter
Number of slots 6, 10, 2, 4, 16
Integrated connection type 1 USB with , 1 Modbus with , 1 Ethernet TCP/IP with , 1 Modbus Plus with
Discrete I/O number 31744 inputs, 31744 outputs - S908 remote I/O, unlimited (31 drops of 28 slots max) - ethernet remote I/O, unlimited (26 slots max) - local, 8000 inputs, 8000 outputs - distributed - per network Modbus Plus
Number of remote I/O station 31 - 2 rack(s) per ethernet X80 remote I/O, 31 - 2 rack(s) per ethernet Quantum remote I/O, 31 - 2 rack(s) per S908 remote I/O
System overhead 1 ms for master task, 0.2 ms for fast task
Number of optional modules 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Clock frequency 266 MHz
Communication service Ethernet router
Number of racks 2 - local rack(s)
Number of distributed I/O station 63 station(s) - 1 rack(s) - 1 Modbus Plus network(s)
Electrical connection 1 connector, connector type: RJ45 for connecting Modbus bus, 1 connector, connector type: RJ45 for connecting Ethernet network, 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network
Environment
Protective treatment conformal coating Humiseal 1A33
Standards HazLoc
Product certifications UL, CE, GOST, Misc (Marine), CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.0 cm
Package 1 Width 18.5 cm
Package 1 Length 32.5 cm
Package 1 Weight 1.467 kg
