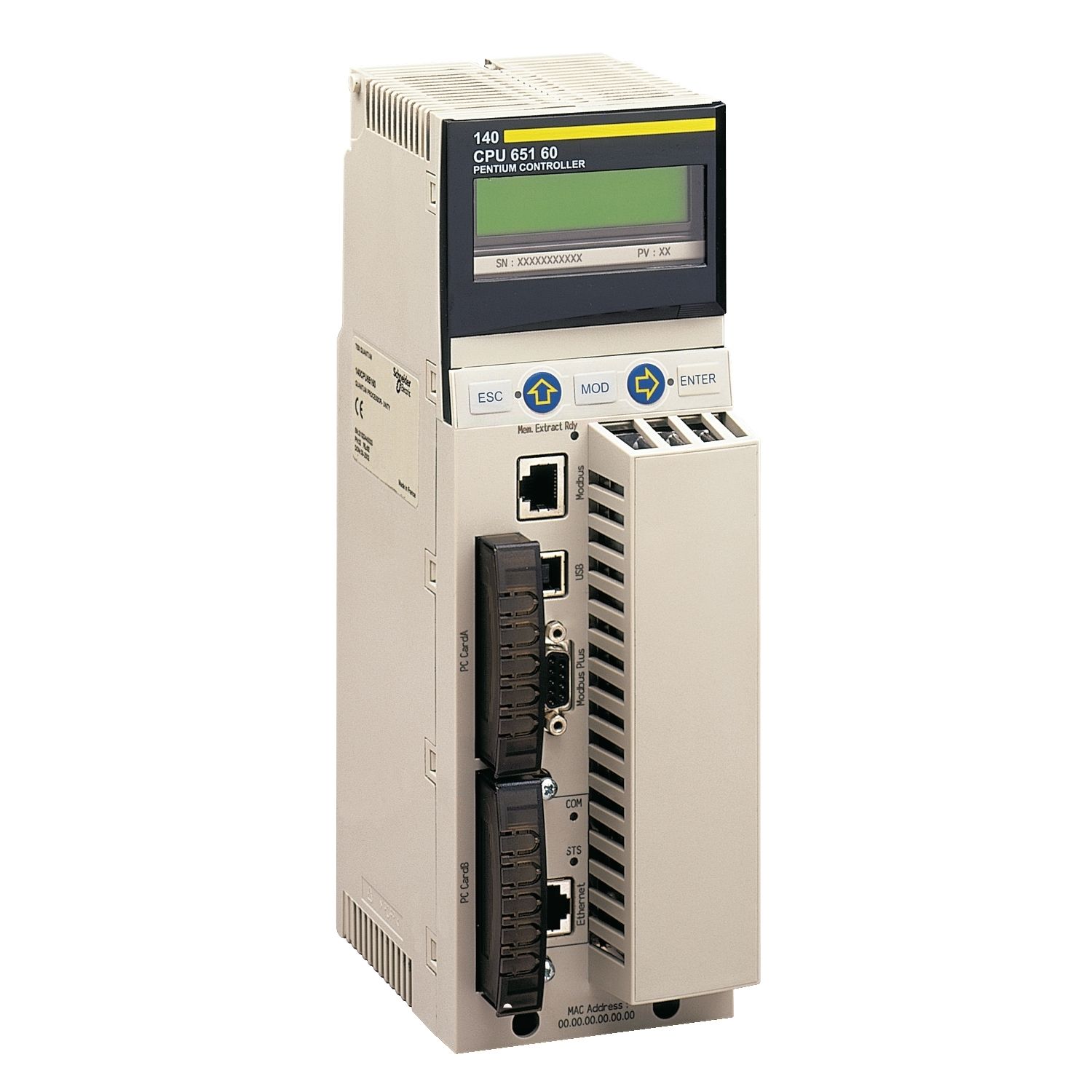

Picture of Unity processor, Modicon Quantum automation platform, Modbus Plus, 1024kB RAM, 266MHz
SKU:

140CPU65160

Unity processor, Modicon Quantum automation platform, Modbus Plus, 1024kB RAM, 266MHz

$40,115.68 INC GST
Availability: Please contact our sales team on 1300 724 622.
Unity processor, Modicon Quantum automation platform, Modbus Plus, 1024kB RAM, 266MHz
  • Quantum Profibus module is the interface module to Profibus-DP networks
  • The Quantum battery module provides RAM backup power for the Quantum expert module.
  • Complies with product warranty
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Declaration of conformity
Instruction sheet
Catalog
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Range of product Modicon Quantum automation platform
Product or component type Unity processor
Complementary
Memory description internal RAM 1024 kB, expandable 8 MB - file storage with PCMCIA card, expandable 7168 kB - program with PCMCIA card
Analogue I/O number unlimited (31 drops of 28 slots max) - ethernet remote I/O, unlimited (26 slots max) - local, 1984 inputs,1984 outputs - S908 remote I/O, 500 inputs, 500 outputs - distributed - per network Modbus Plus
Number of instructions per ms 10.07 Kinst/ms 65 % Boolean and 35 % numerical, 10.28 Kinst/ms 100 % Boolean
Application structure 4 auxiliary tasks - , 32 timer interrupt tasks - , 128 interrupt tasks - , 128 I/O interrupt tasks - , 1 periodic fast task - , 1 cyclic/periodic master task -
Bus current requirement 2760 mA
Application specific I/O counter, serial link, high-speed interrupt inputs, accurate time stamping
Number of slots 2, 10, 4, 6, 16
Number of remote I/O station 16 - 2 rack(s) per ethernet X80 remote I/O, 31 - 2 rack(s) per ethernet Quantum remote I/O, 31 - 2 rack(s) per S908 remote I/O
Number of optional modules 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Clock frequency 266 MHz
Communication service Ethernet router
Checks process control
Maximum number of connections 1 Modbus (RS232/485 Modbus/ASCII), 6 Profibus DP - local, 6 Modbus Plus - local, 6 Ethernet TCP/IP - local, 4 AS-Interface - remote, 2 AS-Interface - distributed, 1 USB
Switch function key switch memory port on/off
Local signalling 1 LED (red) for Ethernet collision, 1 LED (green) for Ethernet activity (COM)
Integrated connection type 1 USB with , 1 Modbus with , 1 Ethernet TCP/IP with , 1 Modbus Plus with
Discrete I/O number unlimited (31 drops of 28 slots max) - ethernet remote I/O, unlimited (26 slots max) - local, 8000 inputs, 8000 outputs - distributed - per network Modbus Plus, 31744 inputs, 31744 outputs - remote
System overhead 1 ms for master task, 0.2 ms for fast task
Number of racks 2 - local rack(s)
Number of distributed I/O station 63 station(s) - 1 rack(s) - 3 Modbus Plus network(s)
Electrical connection 1 connector, connector type: RJ45 for connecting Modbus bus, 1 connector, connector type: RJ45 for connecting Ethernet network, 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus network
Environment
Standards HazLoc
Product certifications GOST, CE, CSA, UL, Misc (Marine)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 11.0 cm
Package 1 Width 18.5 cm
Package 1 Length 32.5 cm
Package 1 Weight 1.46 kg
