SKU:

140ACO02000

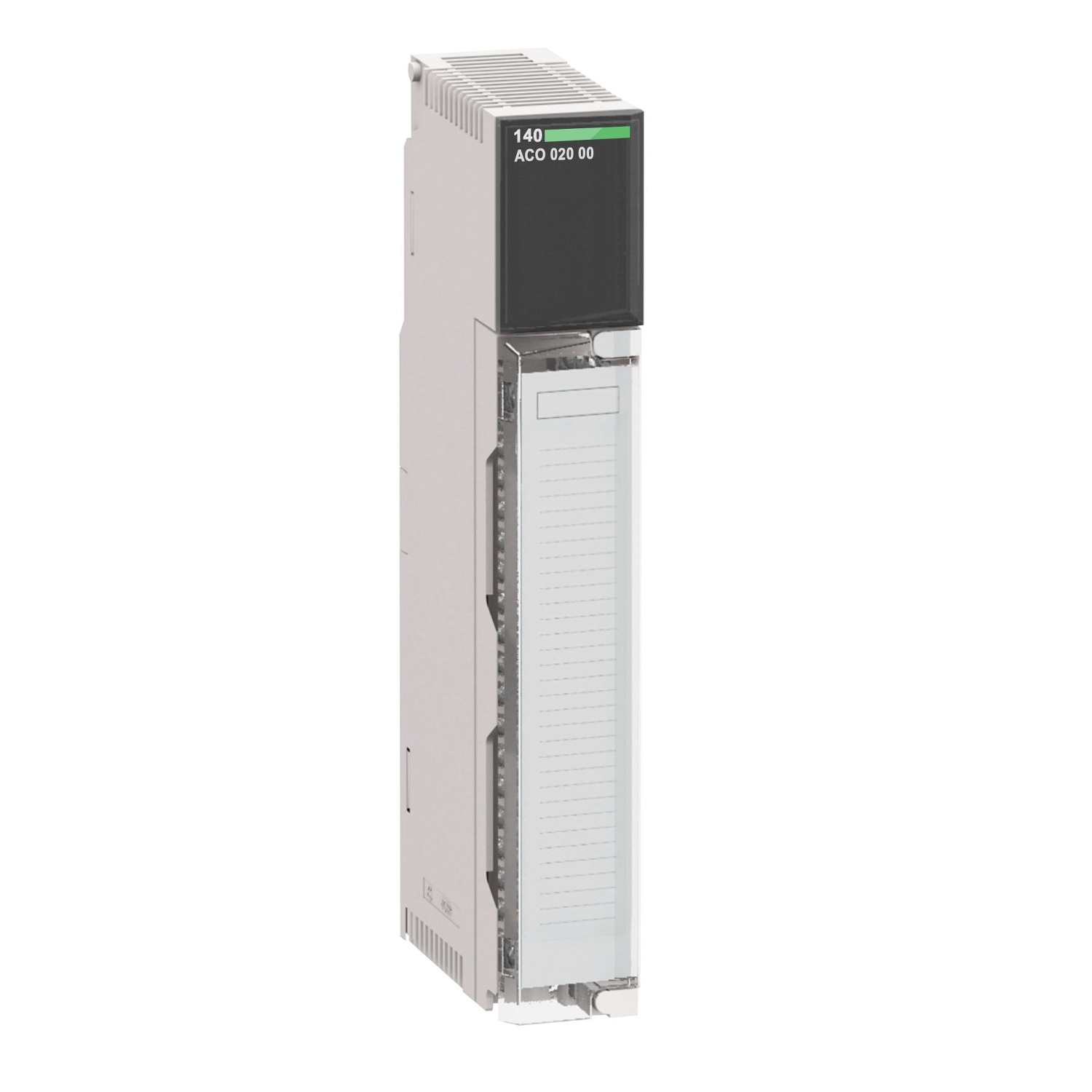

analog output module Modicon Quantum - 4 O - 4..20 mA, 12 bits bipolar current

$6,918.91 INC GST

Qty:

Availability: Please contact our sales team on 1300 724 622.

analog output module Modicon Quantum - 4 O - 4..20 mA, 12 bits bipolar current

Manufacturer: Schneider Electric

User guide

CAD

Declaration of conformity

Catalog

Instruction sheet

Product Page Link

Product Data Sheet

Attribute name	Attribute value
Main
Product or component type	analogue output module
Range of product	Modicon Quantum automation platform
Complementary
Update time	3 ms
Module format	standard
Local signalling	4 LEDs (red) for channel fault, 4 LEDs (green) for channel is turned on, 1 LED (red) for external fault, 1 LED (green) for bus communication is present (Active)
Addressing requirement	4 output words
Absolute accuracy error	+/- 0.20 % of full scale at 25 °C
Bus current requirement	480 mA
Analogue output number	4
Maximum power dissipation in W	5.3 W
External power requirement	12...30 V
Isolation between channels	750 V for 1 minute DC, 500 V 47...63 Hz AC
Analogue output range	4...20 mA 0...4096 counts, 12 bits bipolar current
Net weight	0.3 kg
Accuracy drift according to temperature	+/- 0.007 % of full scale/°C maximum, +/- 0.004 % of full scale/°C
Marking	CE
Linearity	+/- 1 LSB
Loop voltage	12-30 V DC
Setting time	900 µs to +/- 0.1 % of the final value
Maximum voltage drop	<30 V 20 mA
Fault type	open circuit 4...20 mA
Environment
Operating altitude	<= 5000 m
Relative humidity	95-95 % without condensation
Ambient air temperature for storage	-40-85 °C
Standards	UL 508, CSA C22.2 No 142
Resistance to electromagnetic fields	10 V/m 80-2000 MHz conforming to IEC 801-3
Ambient air temperature for operation	0-60 °C
Product certifications	cUL, FM Class 1 Division 2
Packing Units
Unit Type of Package 1	1
Number of Units in Package 1	1
Package 1 Height	4.8 cm
Package 1 Width	16.5 cm
Package 1 Length	31.5 cm
Package 1 Weight	457.0 g
