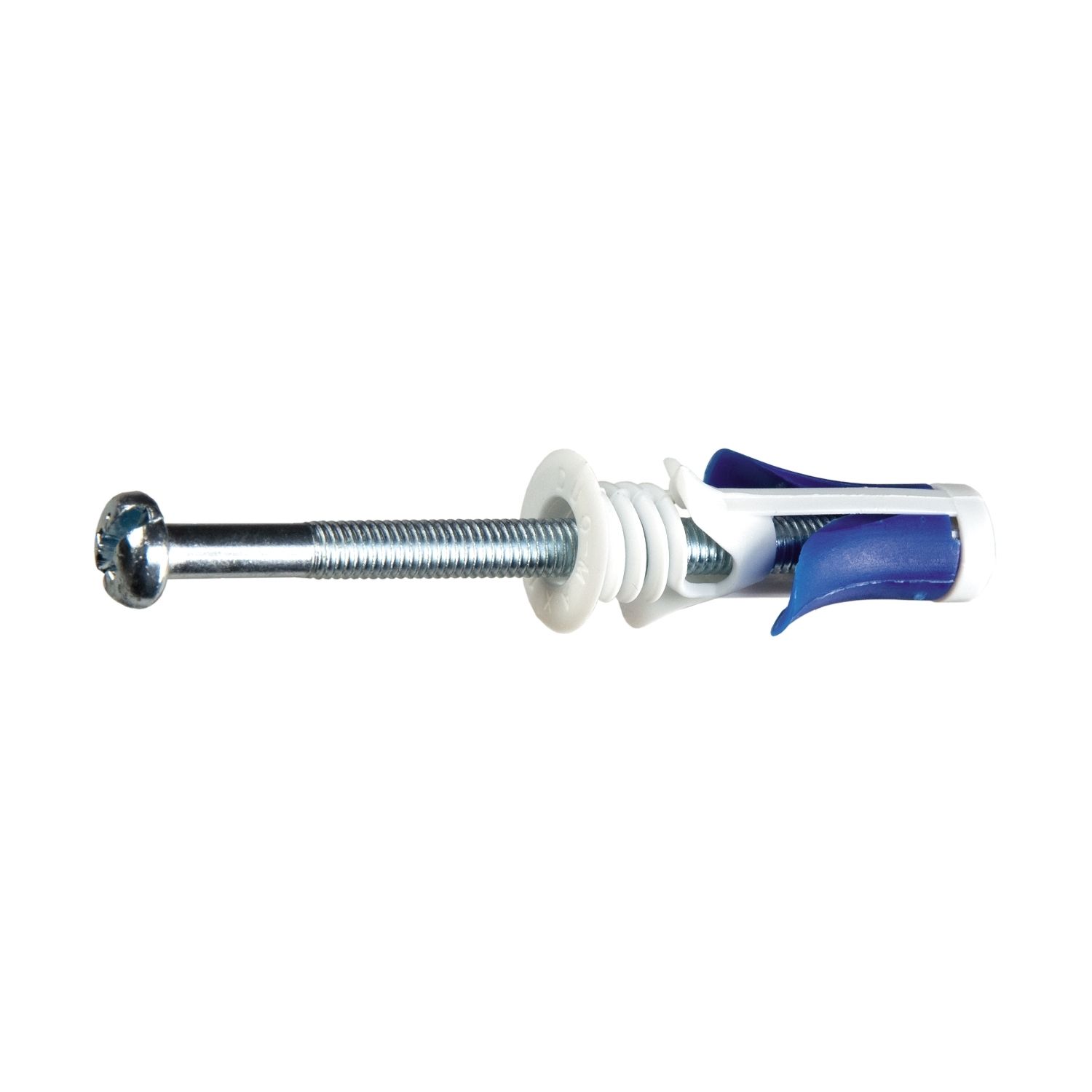

Picture of Thorsman installation material, TSP-10xM5, cavity fixing, with screw, set of 25
SKU:

1249002

Thorsman installation material, TSP-10xM5, cavity fixing, with screw, set of 25

$10.82 INC GST
This product has a minimum quantity of 25
Available for Shipping : 05-Jan-2026
Thorsman installation material, TSP-10xM5, cavity fixing, with screw, set of 25
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 05-Jan-2026
Catalog
Brochure
User guide
Product Page Link
Product Data Sheet

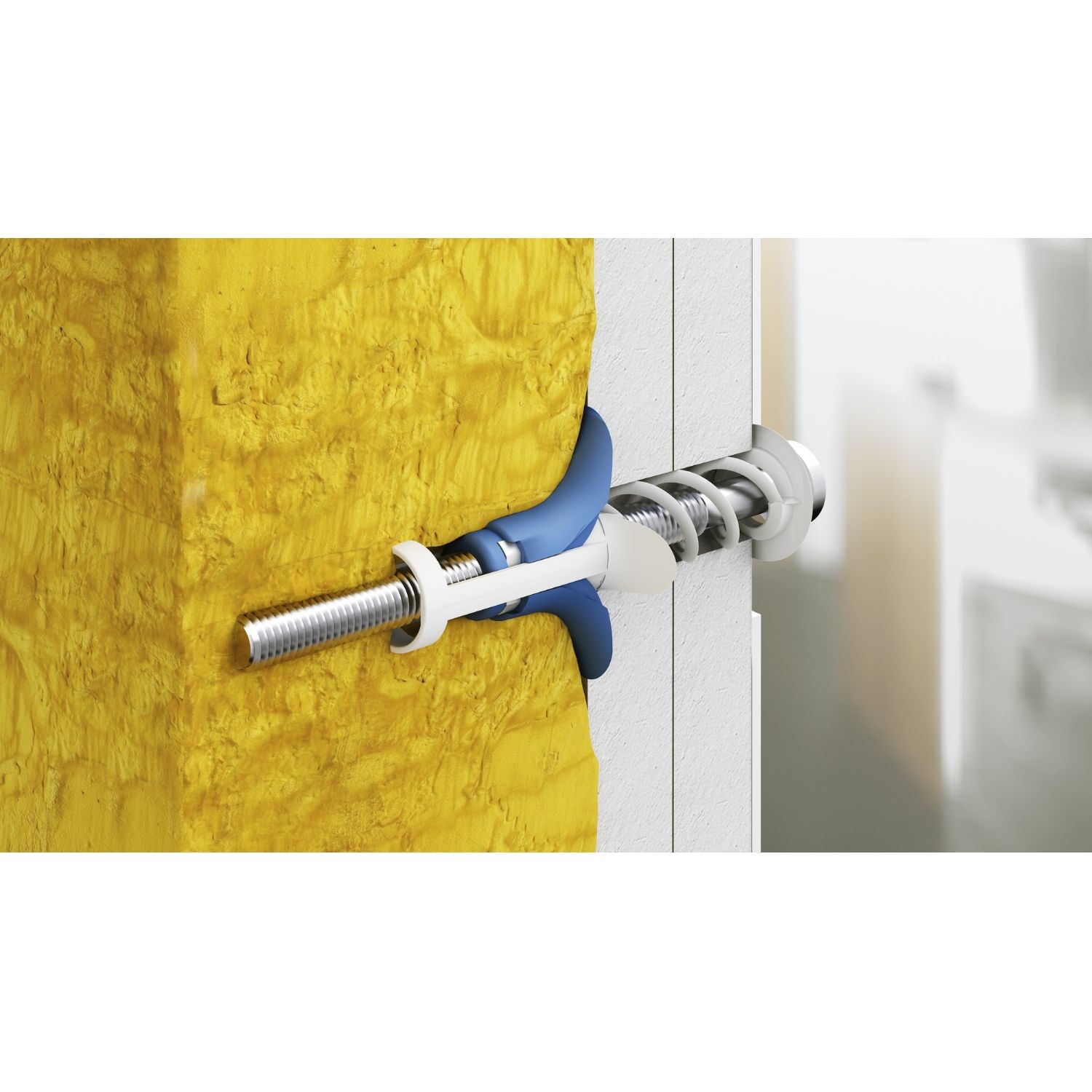

Cavity fixing 1249002 (set of 25 pieces) is supplied with a screw (M5, length: 75 mm) and does not require any special tool for installation This cavity fixing is to be used for installations in one or several layers of plasterboard and in other board materials Color: blue/white Material: PA (polyamide), Screw of electroplated steel Installation: Drill a hole with a diameter of 10 mm and push in DUOMAX cavity fixing with the aid of the screw. Remove the screw and mount the fixture

Products specifications

Attribute name Attribute value
Main
Screw length 75 mm
Device short name TSP
Mounting support board material - thickness: 3-40 mm, wall mounted
Colour tint blue/white
Provided equipment screw
Device application 3-40 mm board material
Drilling diameter 10 mm
Thread type M5
Product or component type cavity fixing
Range of product Thorsman
Screw diameter 5 mm
Complementary
Quantity per set set of 25
Net weight 0.00196 kg
Environment
Environmental characteristic corrosion resistance
Length 77 mm
Thickness 0-24 mm fixture 2 x 13 mm board, 0-37 mm fixture 13 mm board
Material spring: PA (polyamide), collar: PA (polyamide), screw: steel electroplated
Practical load capacity pull-out load: 150 N for 2 x 13 mm board 6 ), shear: 400 N for 2 x 13 mm board 4.5 ), pull-out load: 75 N for 13 mm board 6 ), shear: 250 N for 13 mm board 4.5 )
Diameter 20 mm
Ambient air temperature for operation -40-80 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.000 cm
Package 1 Width 1.000 cm
Package 1 Length 8.000 cm
Package 1 Weight 12.000 g
Unit Type of Package 2 2
Number of Units in Package 2 25
Package 2 Height 5.800 cm
Package 2 Width 7.800 cm
Package 2 Length 12.000 cm
Package 2 Weight 338.000 g
Unit Type of Package 3 3
Number of Units in Package 3 42750
Package 3 Height 100.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 556.293 kg
