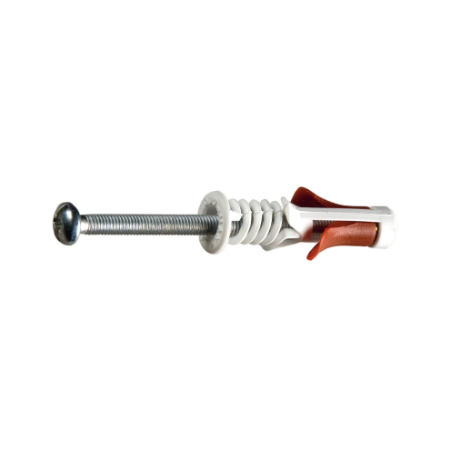

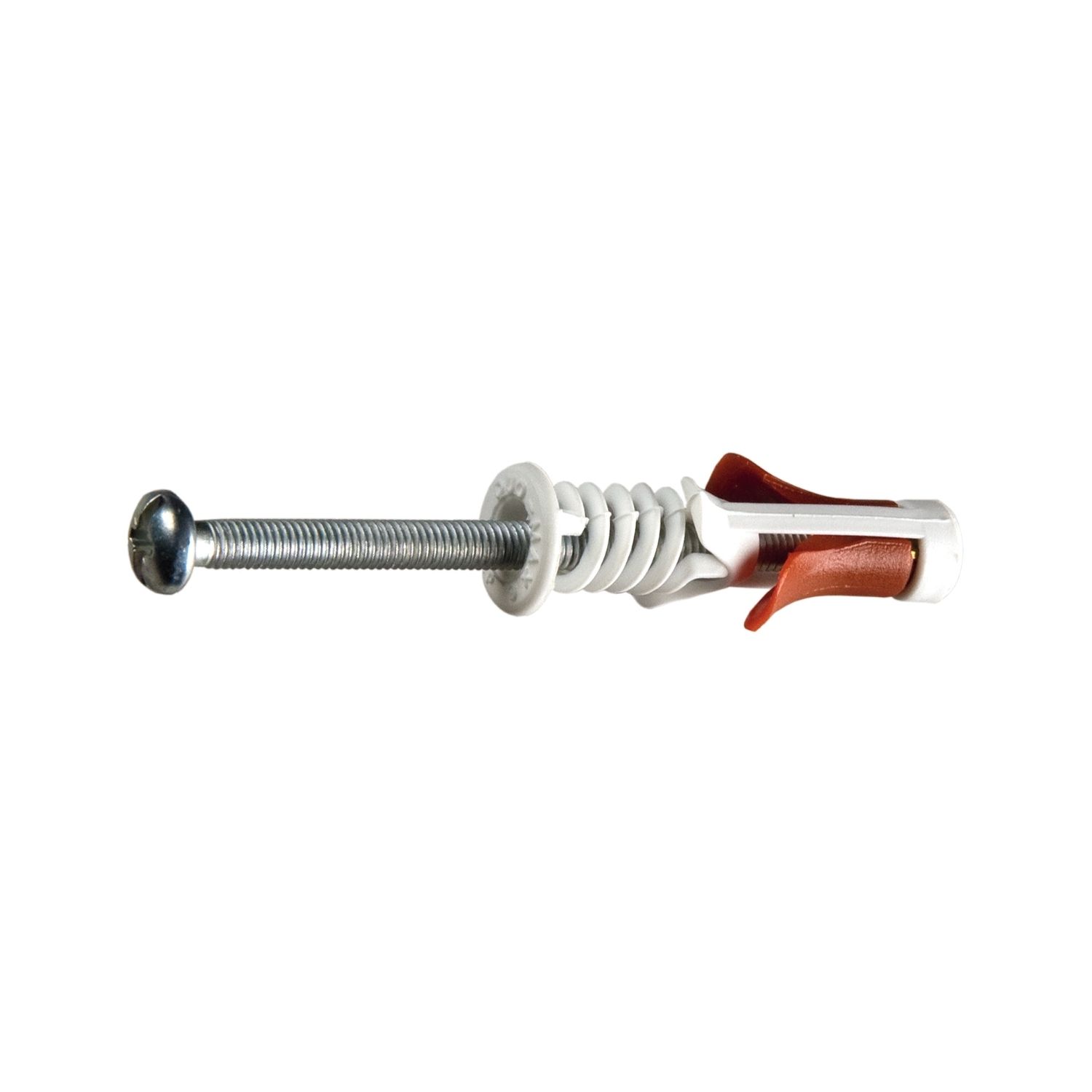

Picture of Thorsman installation material, TSP-6xM3, cavity fixing, with screw, set of 25
SKU:

1240001

Thorsman installation material, TSP-6xM3, cavity fixing, with screw, set of 25

$4.03 INC GST
This product has a minimum quantity of 25
Available for Shipping : 05-Jan-2026
Thorsman installation material, TSP-6xM3, cavity fixing, with screw, set of 25
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 05-Jan-2026
Catalog
Brochure
User guide
Product Page Link
Product Data Sheet
Cavity fixing 1240001 (set of 25 pieces) is supplied with a screw (M3, length: 50 mm) and does not require any special tool for installation This cavity fixing is to be used for installations in one or several layers of plasterboard and in other board materials Color: red/white Material: PA (polyamide), Screw of electroplated steel Installation: Drill a hole with a diameter of 6 mm and push in DUOMAX cavity fixing with the aid of the screw. Remove the screw and mount the fixture

Products specifications

Attribute name Attribute value
Main
Screw length 50 mm
Device short name TSP
Mounting support board material - thickness: 3-26 mm, wall mounted
Colour tint red/white
Provided equipment screw
Device application 3-26 mm board material
Drilling diameter 6 mm
Thread type M3
Product or component type cavity fixing
Range of product Thorsman
Screw diameter 3 mm
Complementary
Quantity per set set of 25
Net weight 0.0028 kg
Environment
Environmental characteristic corrosion resistance
Length 52 mm
Thickness 0-7 mm fixture 2 x 13 mm board, 0-20 mm fixture 13 mm board
Material spring: PA (polyamide), collar: PA (polyamide), screw: steel electroplated
Practical load capacity pull-out load: 90 N for 2 x 13 mm board 6 ), shear: 240 N for 2 x 13 mm board 4.5 ), pull-out load: 70 N for 13 mm board 6 ), shear: 180 N for 13 mm board 4.5 )
Diameter 11 mm
Ambient air temperature for operation -40-80 °C
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.900 cm
Package 1 Width 0.900 cm
Package 1 Length 5.300 cm
Package 1 Weight 3.000 g
Unit Type of Package 2 2
Number of Units in Package 2 25
Package 2 Height 4.600 cm
Package 2 Width 6.800 cm
Package 2 Length 10.400 cm
Package 2 Weight 90.000 g
Unit Type of Package 3 3
Number of Units in Package 3 99500
Package 3 Height 98.000 cm
Package 3 Width 80.000 cm
Package 3 Length 120.000 cm
Package 3 Weight 333.186 kg
