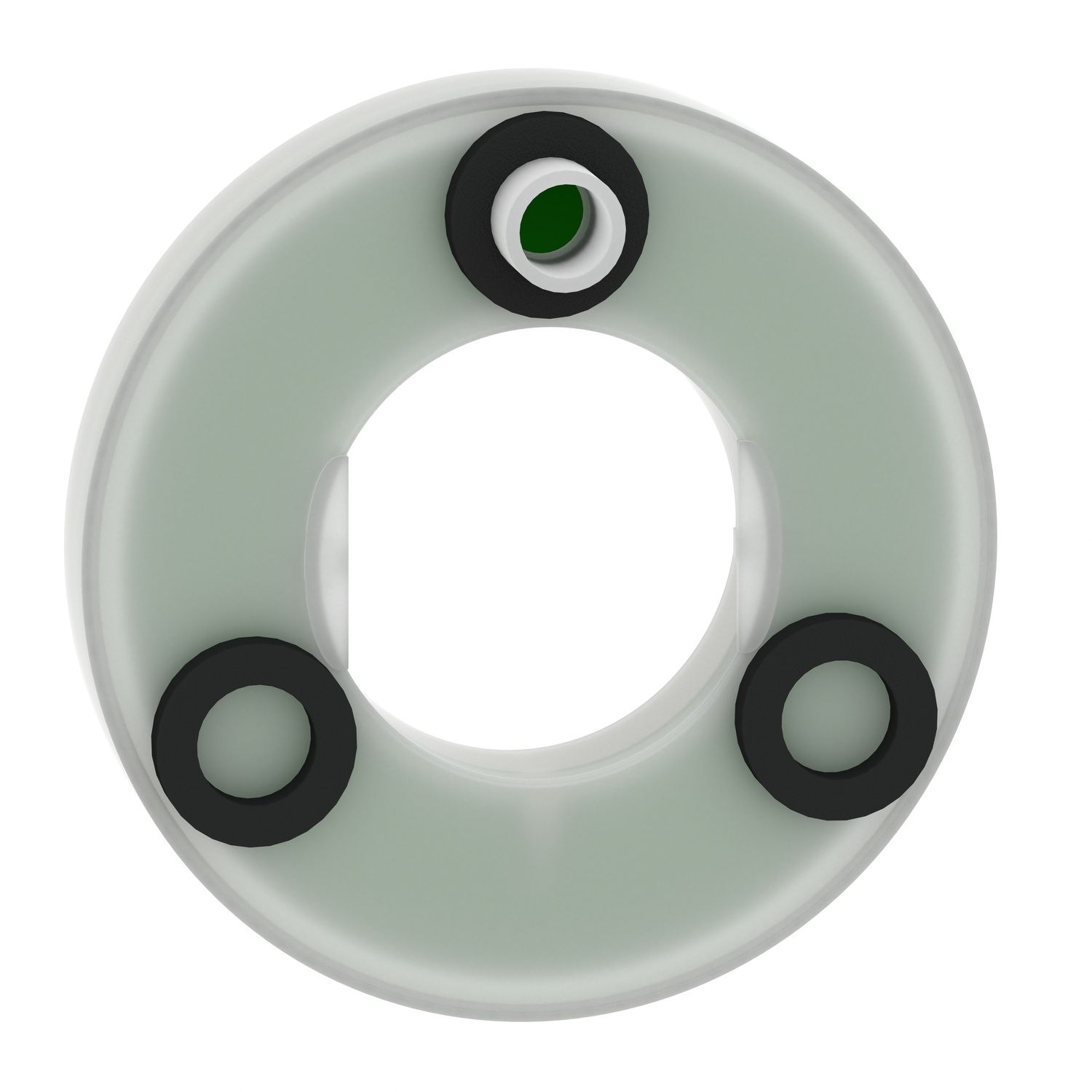

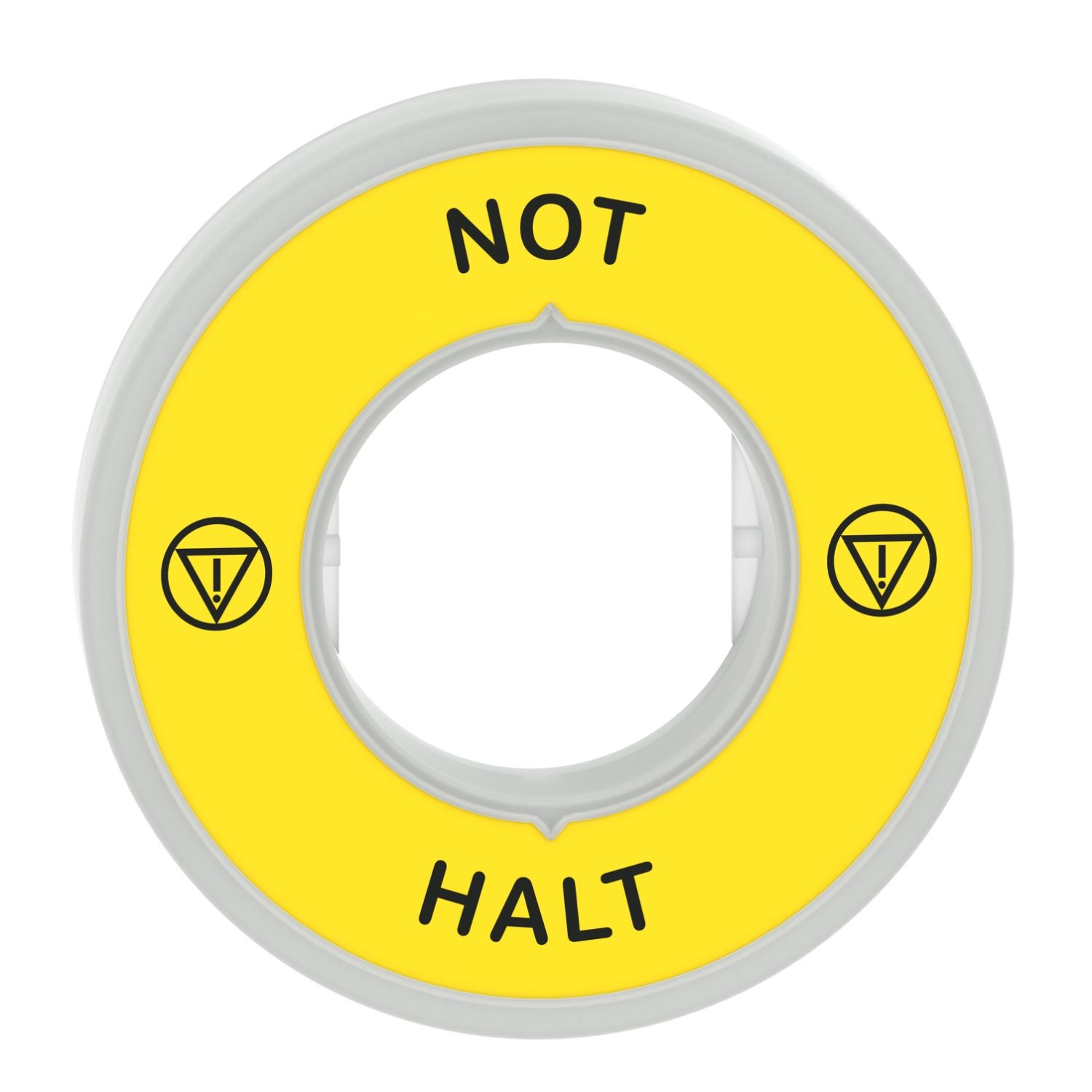

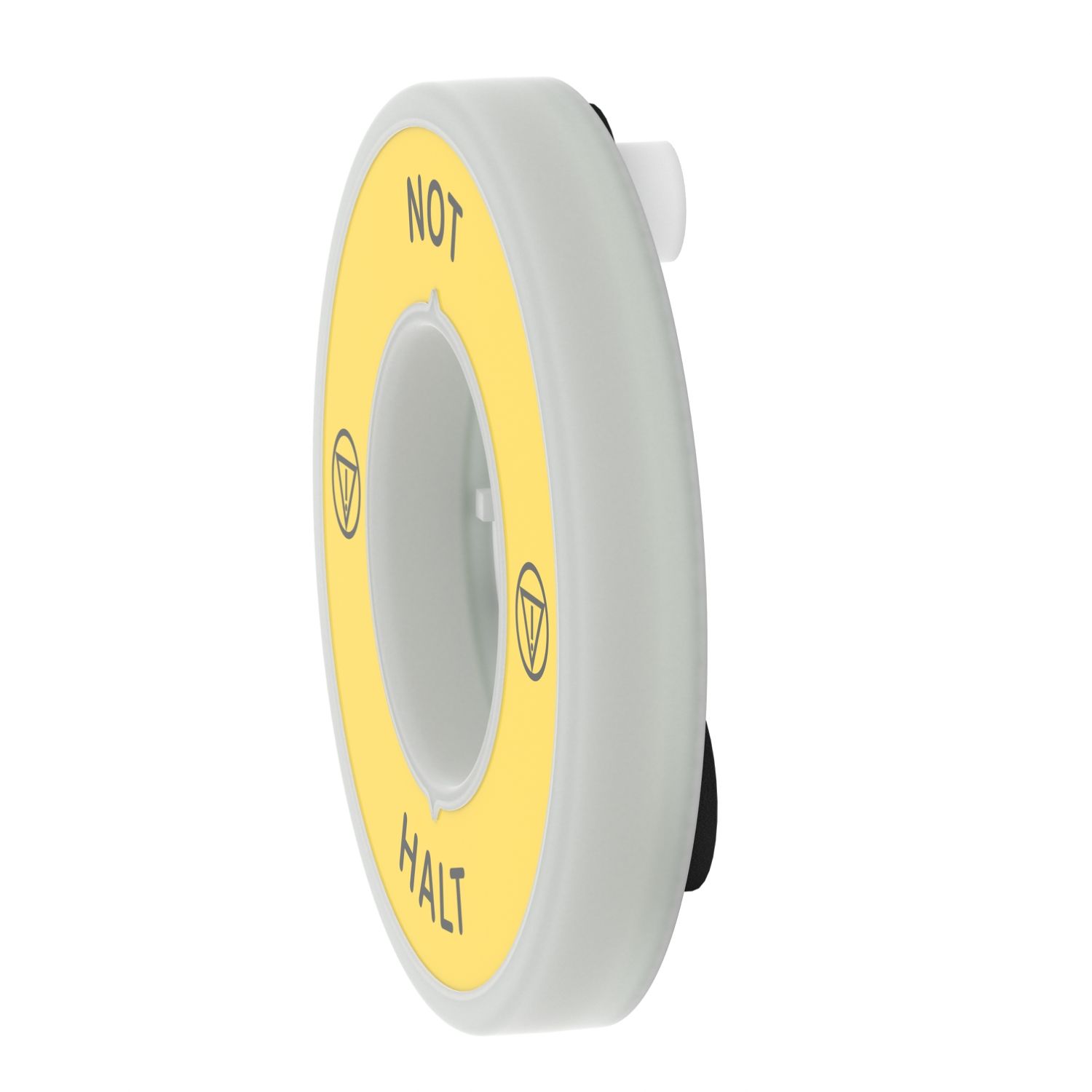

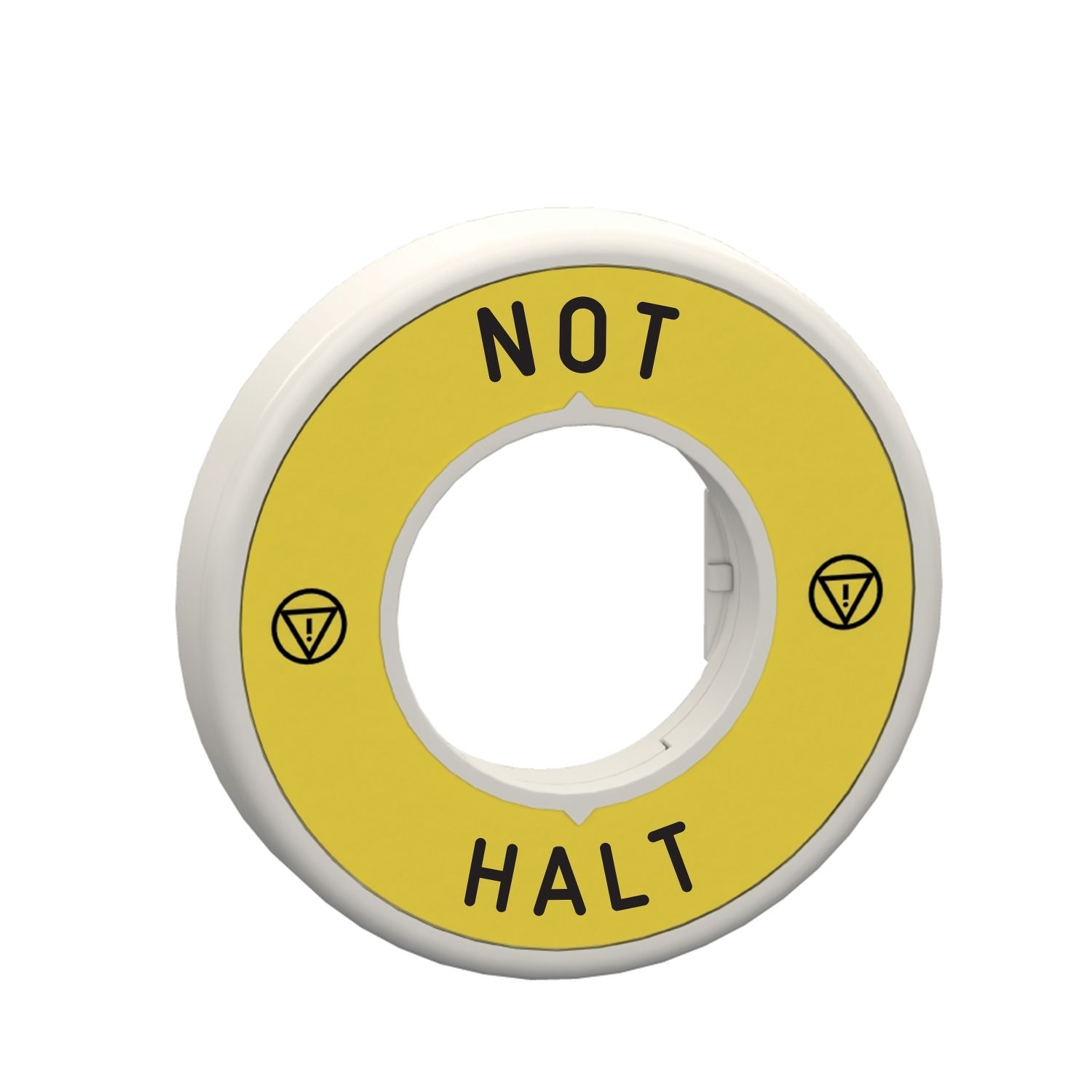

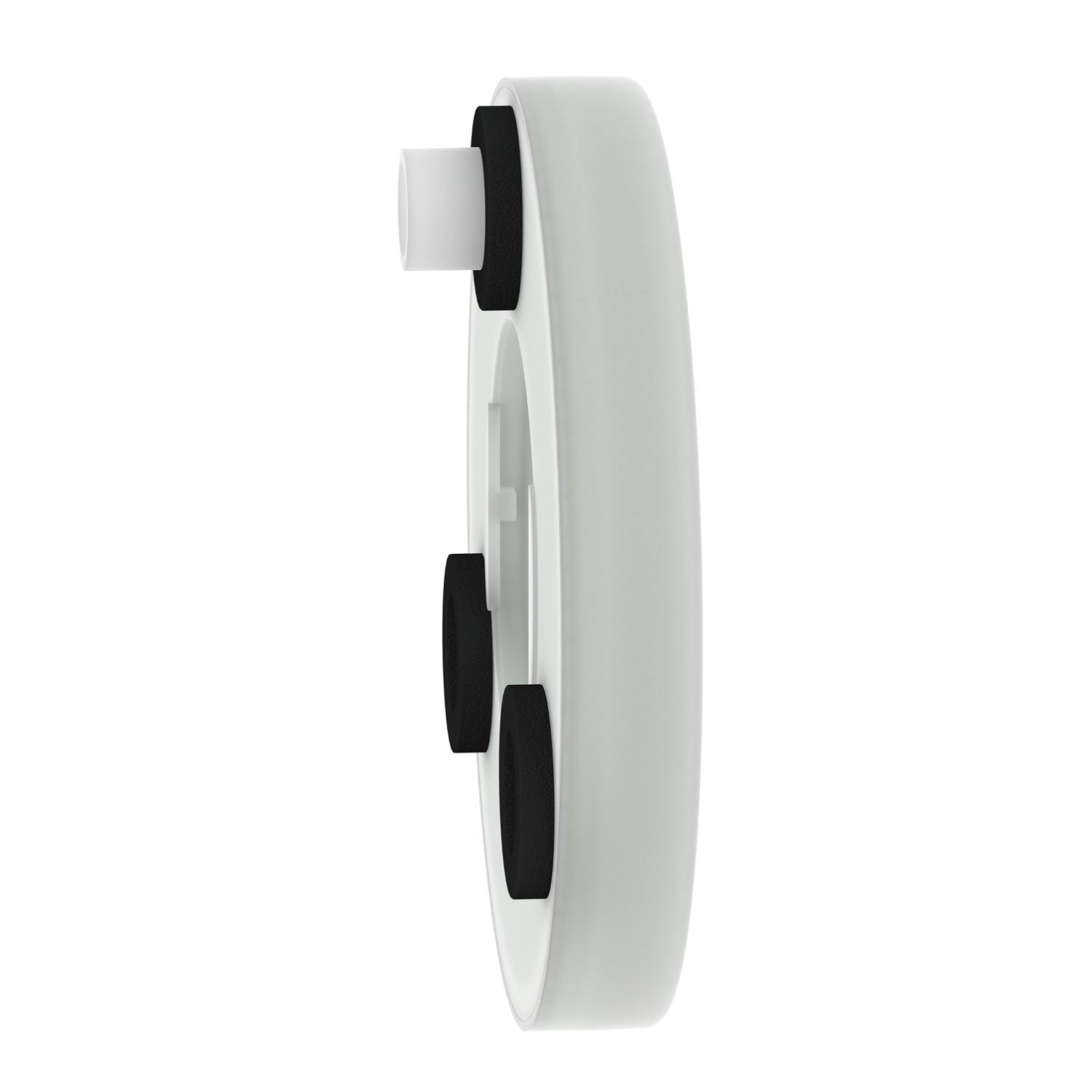

Picture of Illuminated marked legend ring, Harmony XB5, 60mm, plastic, yellow, red fixed integral LED, marked NOT HALT, 230...240V AC
Picture of Illuminated marked legend ring, Harmony XB5, 60mm, plastic, yellow, red fixed integral LED, marked NOT HALT, 230...240V AC
Picture of Illuminated marked legend ring, Harmony XB5, 60mm, plastic, yellow, red fixed integral LED, marked NOT HALT, 230...240V AC
Picture of Illuminated marked legend ring, Harmony XB5, 60mm, plastic, yellow, red fixed integral LED, marked NOT HALT, 230...240V AC
Picture of Illuminated marked legend ring, Harmony XB5, 60mm, plastic, yellow, red fixed integral LED, marked NOT HALT, 230...240V AC
Picture of Illuminated marked legend ring, Harmony XB5, 60mm, plastic, yellow, red fixed integral LED, marked NOT HALT, 230...240V AC
Picture of Illuminated marked legend ring, Harmony XB5, 60mm, plastic, yellow, red fixed integral LED, marked NOT HALT, 230...240V AC
Picture of Illuminated marked legend ring, Harmony XB5, 60mm, plastic, yellow, red fixed integral LED, marked NOT HALT, 230...240V AC
Picture of Illuminated marked legend ring, Harmony XB5, 60mm, plastic, yellow, red fixed integral LED, marked NOT HALT, 230...240V AC
SKU:

ZBY9W2M230

Illuminated marked legend ring, Harmony XB5, 60mm, plastic, yellow, red fixed integral LED, marked NOT HALT, 230...240V AC

Old price: $103.73 INC GST
$80.91 INC GST
Available for Shipping : 03-Feb-2026
Product Selector
Illuminated marked legend ring, Harmony XB5, 60mm, plastic, yellow, red fixed integral LED, marked NOT HALT, 230...240V AC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 03-Feb-2026
Environmental Disclosure

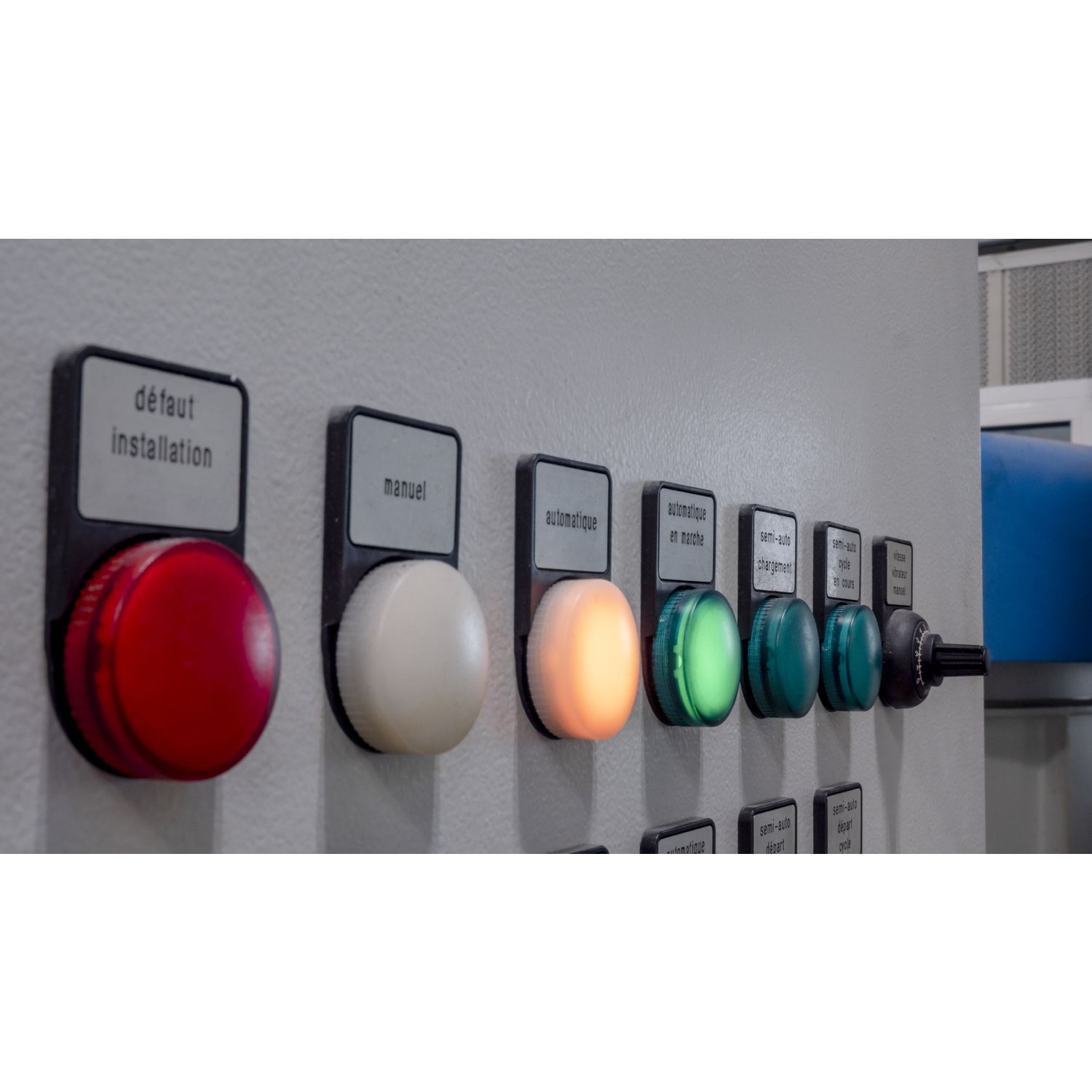

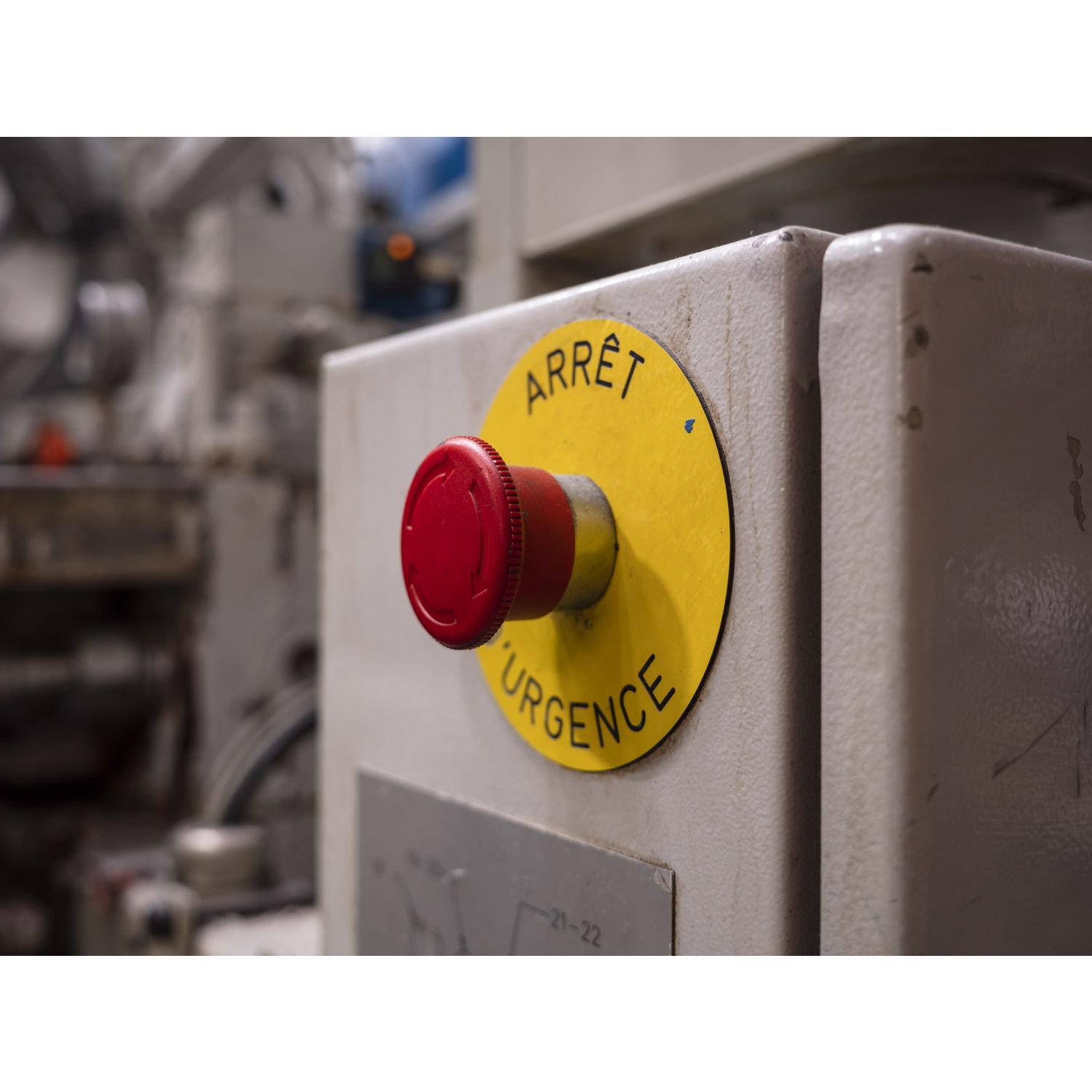

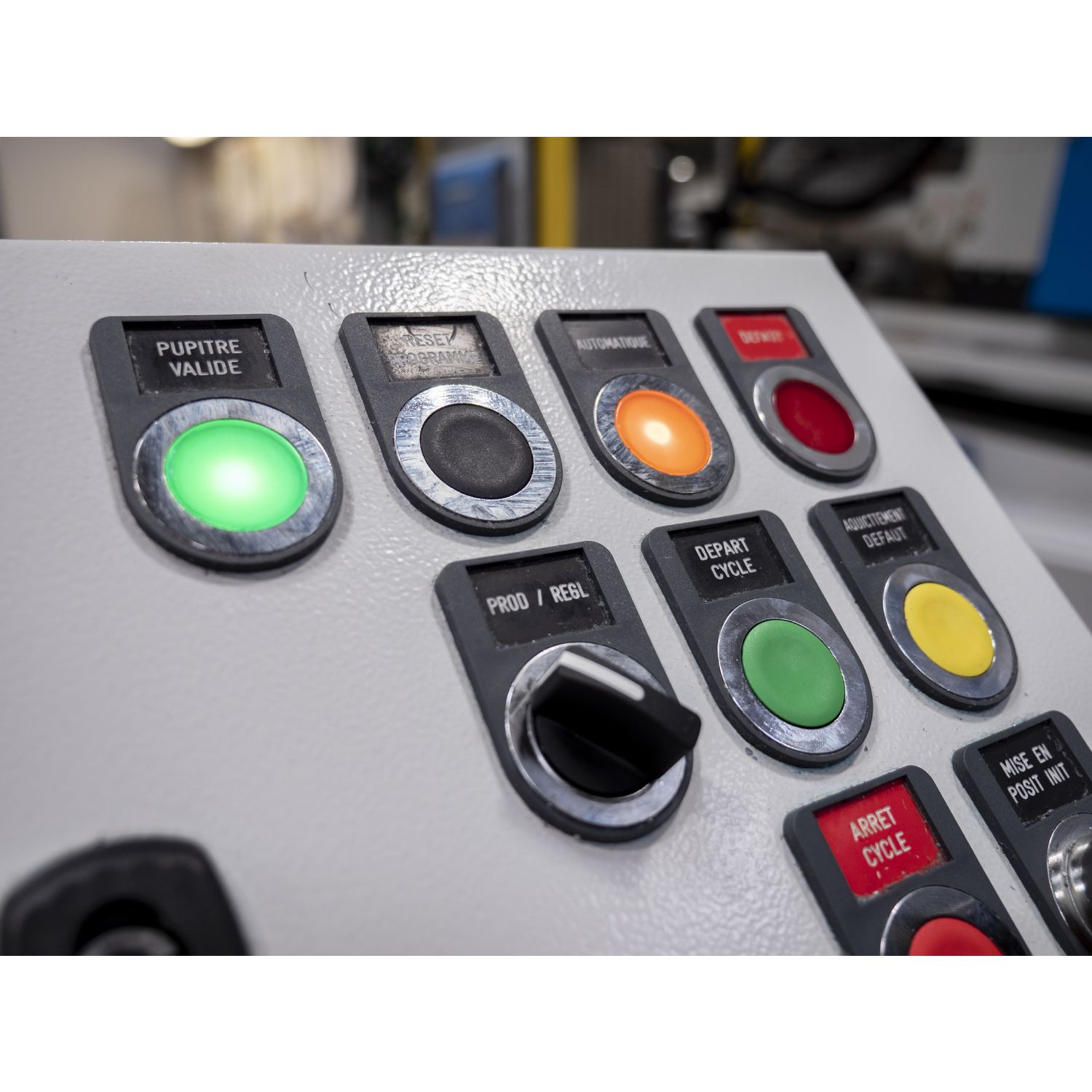

Image of product in real life situation
Circularity Profile
Catalog
Declaration of conformity
Instruction sheet
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This circular legend provides clear labelling of your emergency stop devices. It is supplied ready engraved with a marking relevant to machine operation and is compatible with any standard 60mm Harmony emergency stop or switching off unit.

Products specifications

Attribute name Attribute value
Main
Bulb base integral LED
[Us] rated supply voltage 230...240 V AC at 50/60 Hz, 230 V
Light source colour red
Sale per indivisible quantity 1
Device presentation intermediate ring
Cap/operator or lens colour red
Shape of signaling unit head round
Product or component type illuminated marked legend ring
Light source protected LED
Range of product Harmony
Operator additional information with illuminated ring
Complementary
Accessory / separate part destination emergency stop mushroom head push-button
Width 9.3 mm
Compatibility code XB5, XB4
Label dimensions Ø 60 mm
Supply voltage limits 195-264 V AC
Signalling type steady
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
Surge withstand 1 kV conforming to IEC 61000-4-5
Service life 100000 h at rated voltage and 25 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Electrical insulation class class II conforming to IEC 61140
Current consumption 14 mA
Net weight 0.016 kg
Material plastic
Marking black NOT-HALT on yellow background
User language German
Height 60 mm
Environment
Electromagnetic emission class B conforming to IEC 55011
Resistance to fast transients 2 kV conforming to IEC 61000-4-4
Protective treatment TH
Resistance to electrostatic discharge 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 4 kV on contact (on metal parts) conforming to IEC 61000-4-2
Ambient air temperature for storage -40-70 °C
IP degree of protection Type 4X conforming to UL 50E, Type 4 conforming to UL 50E, Type 12 conforming to UL 50E, Type 13 conforming to UL 50E, IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Vibration resistance 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, JIS C8201-5-1, IEC 60947-1, UL 508, IEC 60947-5-4, IEC 60947-5-1, CSA C22.2 No 14
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation -40-70 °C
IK degree of protection IK05 conforming to IEC 62262
Product certifications CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.59 cm
Package 1 Width 6 cm
Package 1 Length 6 cm
Package 1 Weight 15.9 g
Unit Type of Package 2 2
Number of Units in Package 2 50
Package 2 Height 15 cm
Package 2 Width 15 cm
Package 2 Length 40 cm
Package 2 Weight 995 g
Unit Type of Package 3 3
Number of Units in Package 3 1600
Package 3 Height 70 cm
Package 3 Width 60 cm
Package 3 Length 80 cm
Package 3 Weight 33.94 kg
