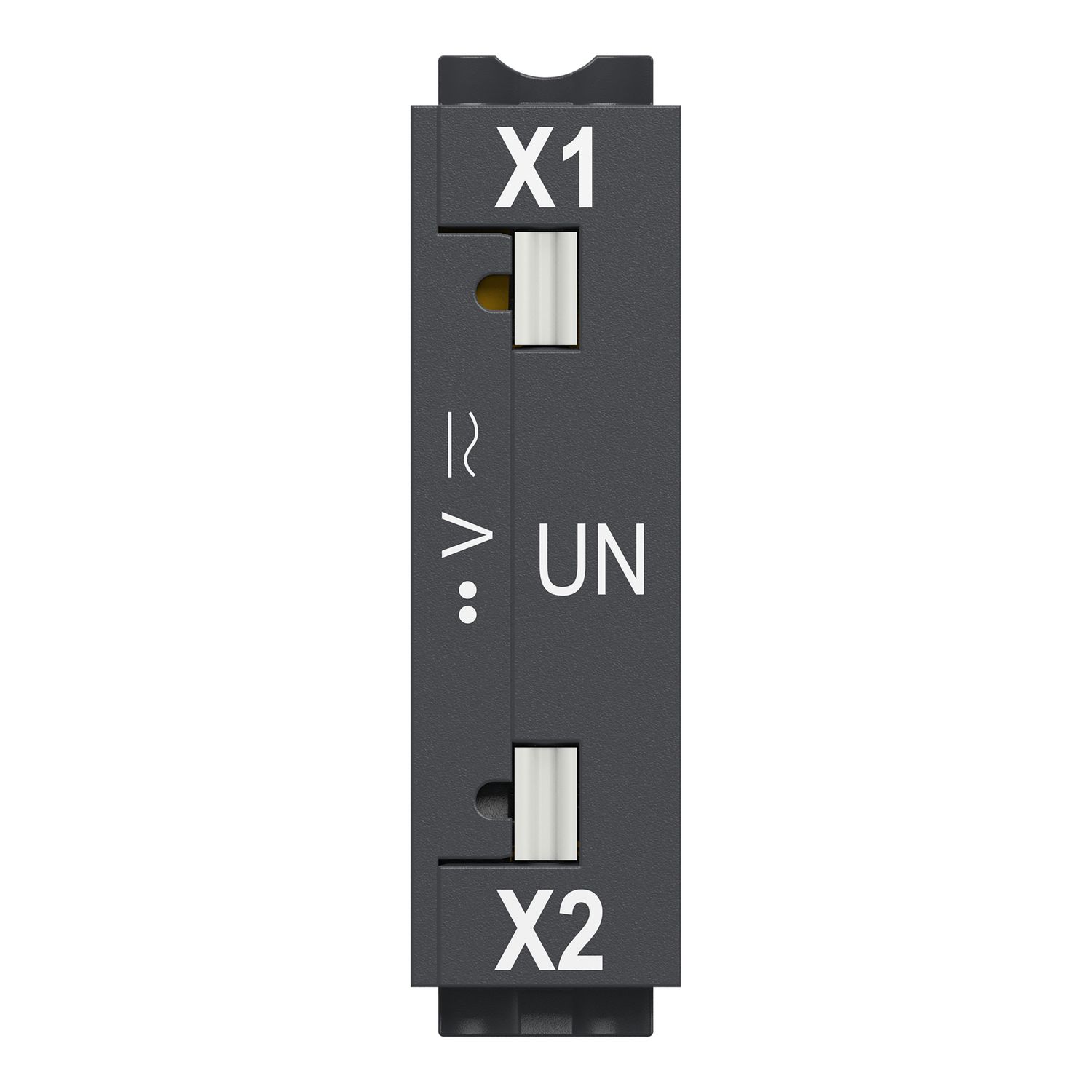

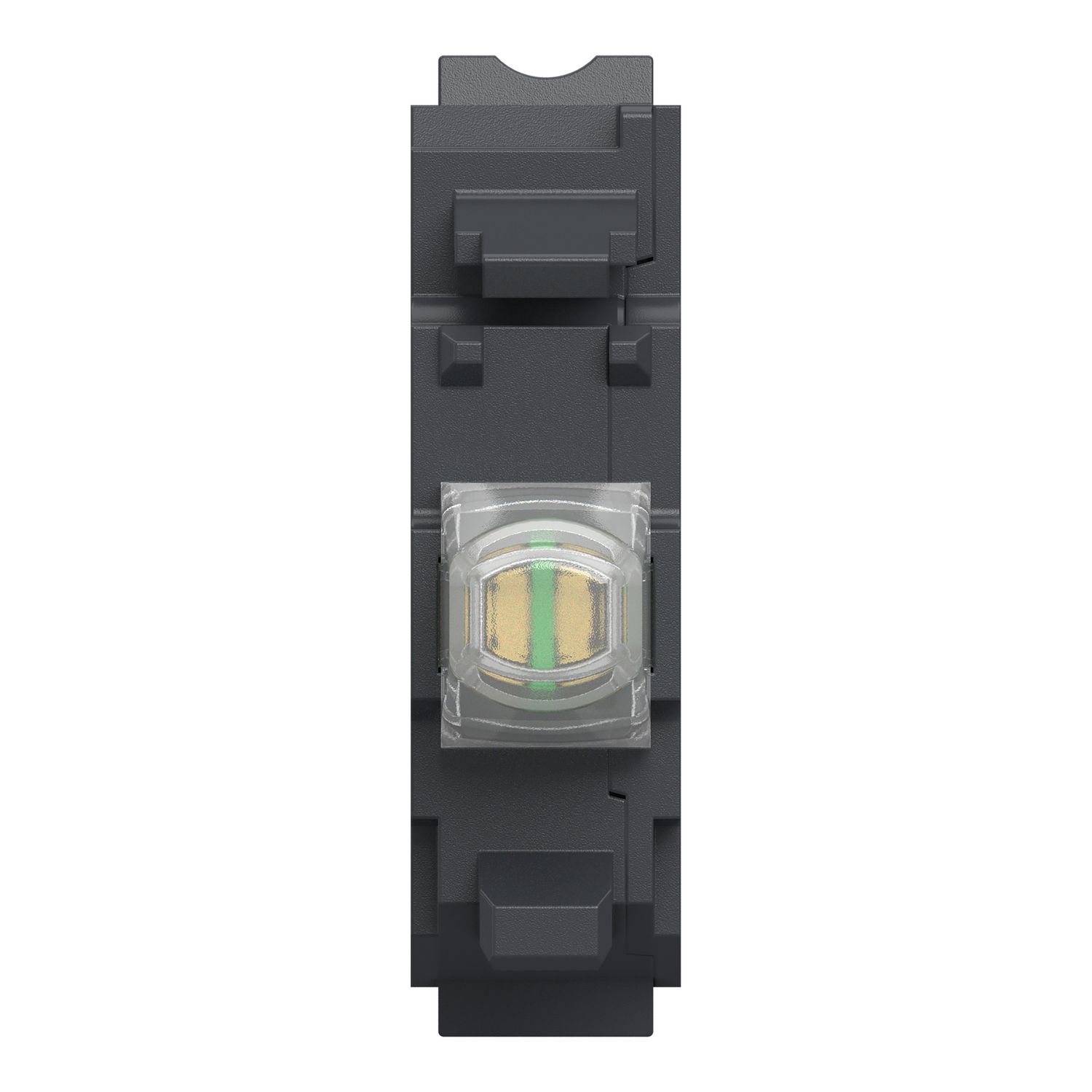

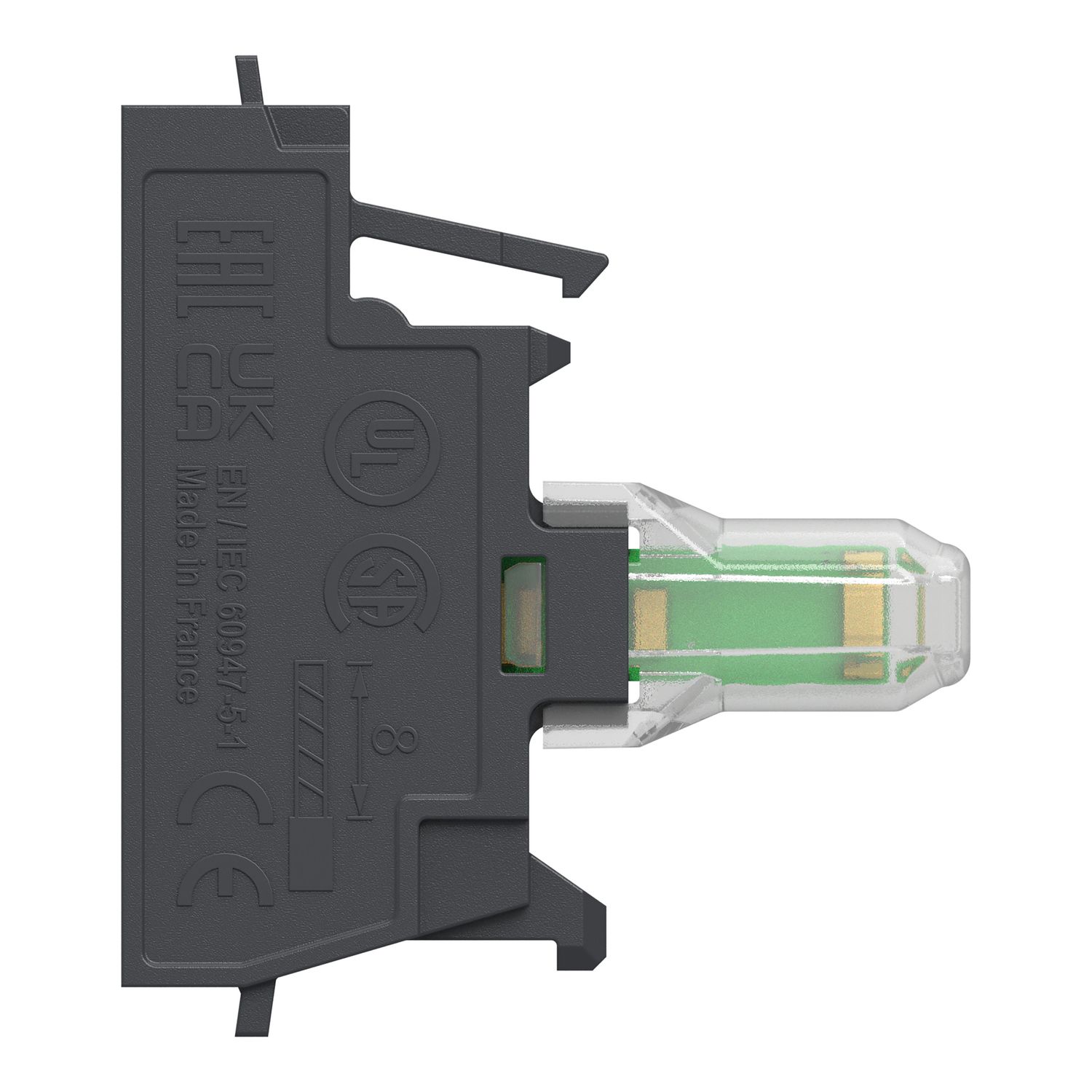

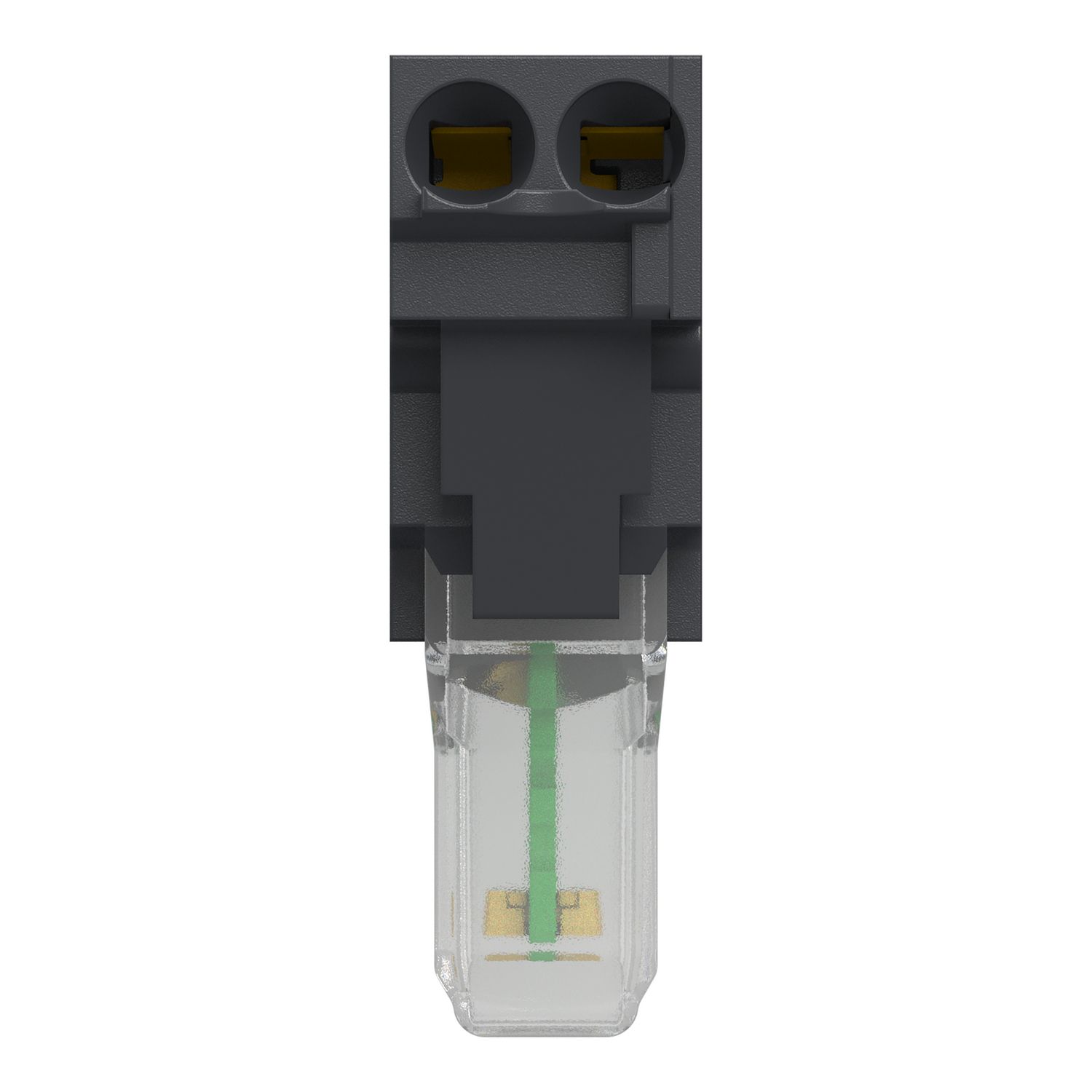

Picture of Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, 230…240V AC, compact push in terminals

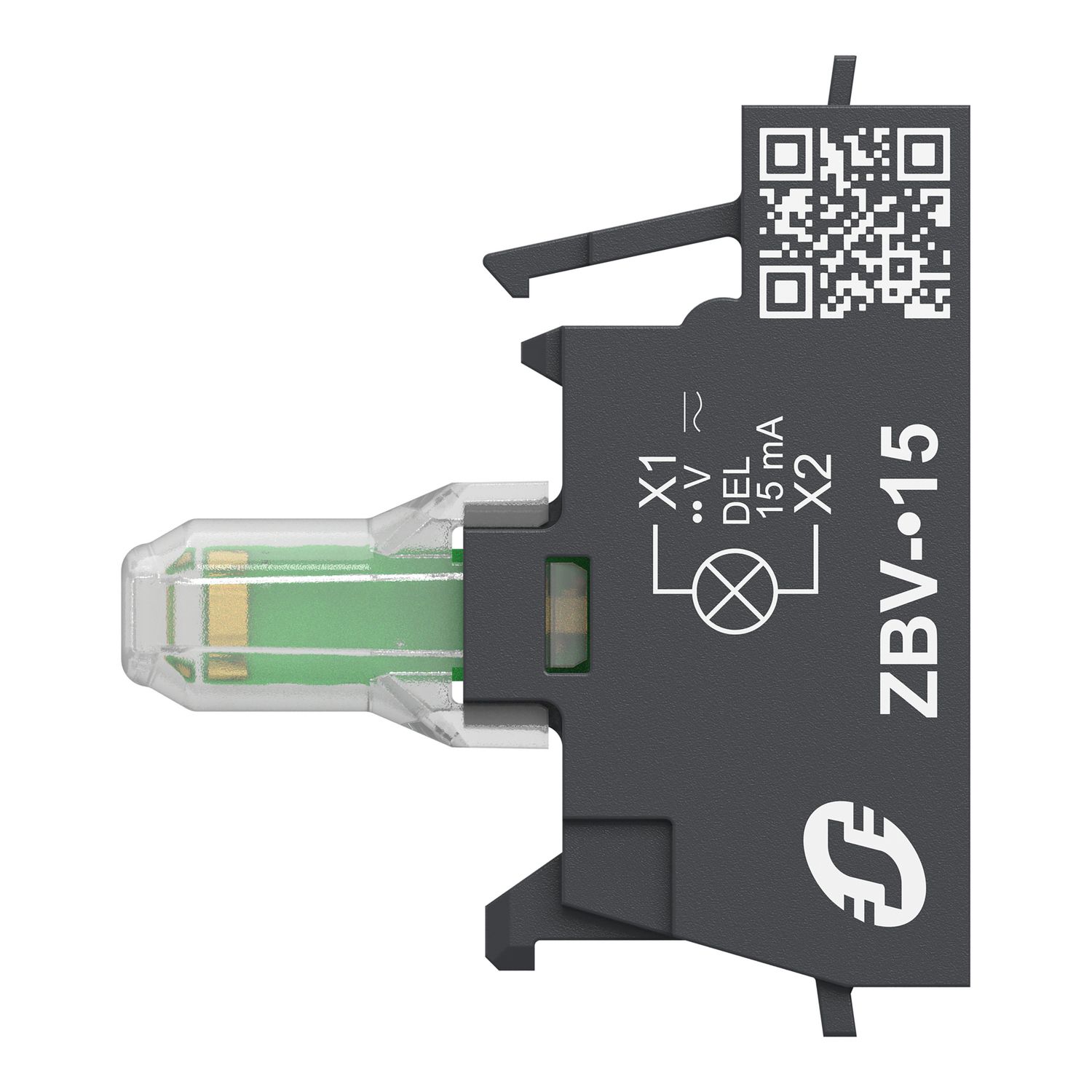

Picture of Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, 230…240V AC, compact push in terminals

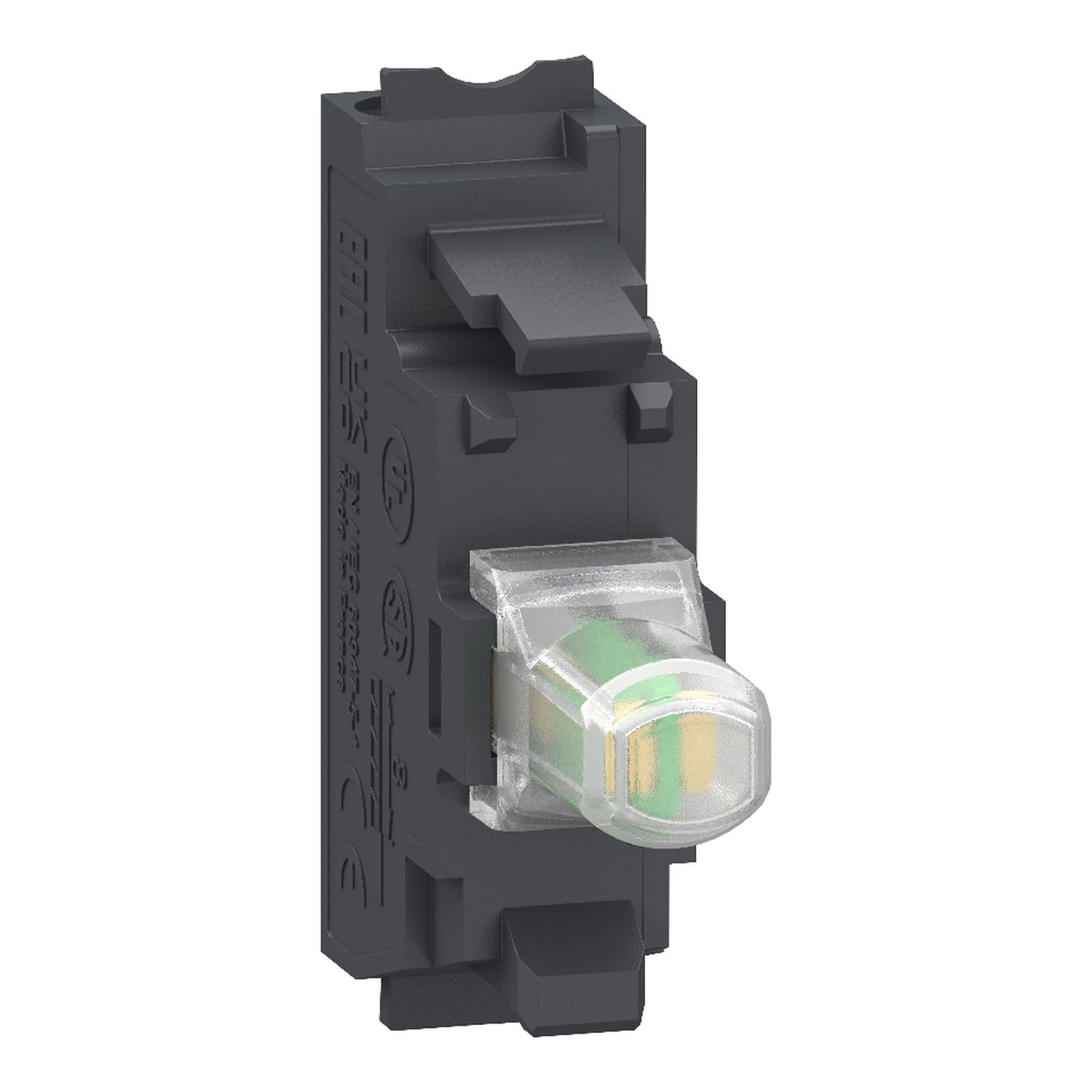

Picture of Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, 230…240V AC, compact push in terminals

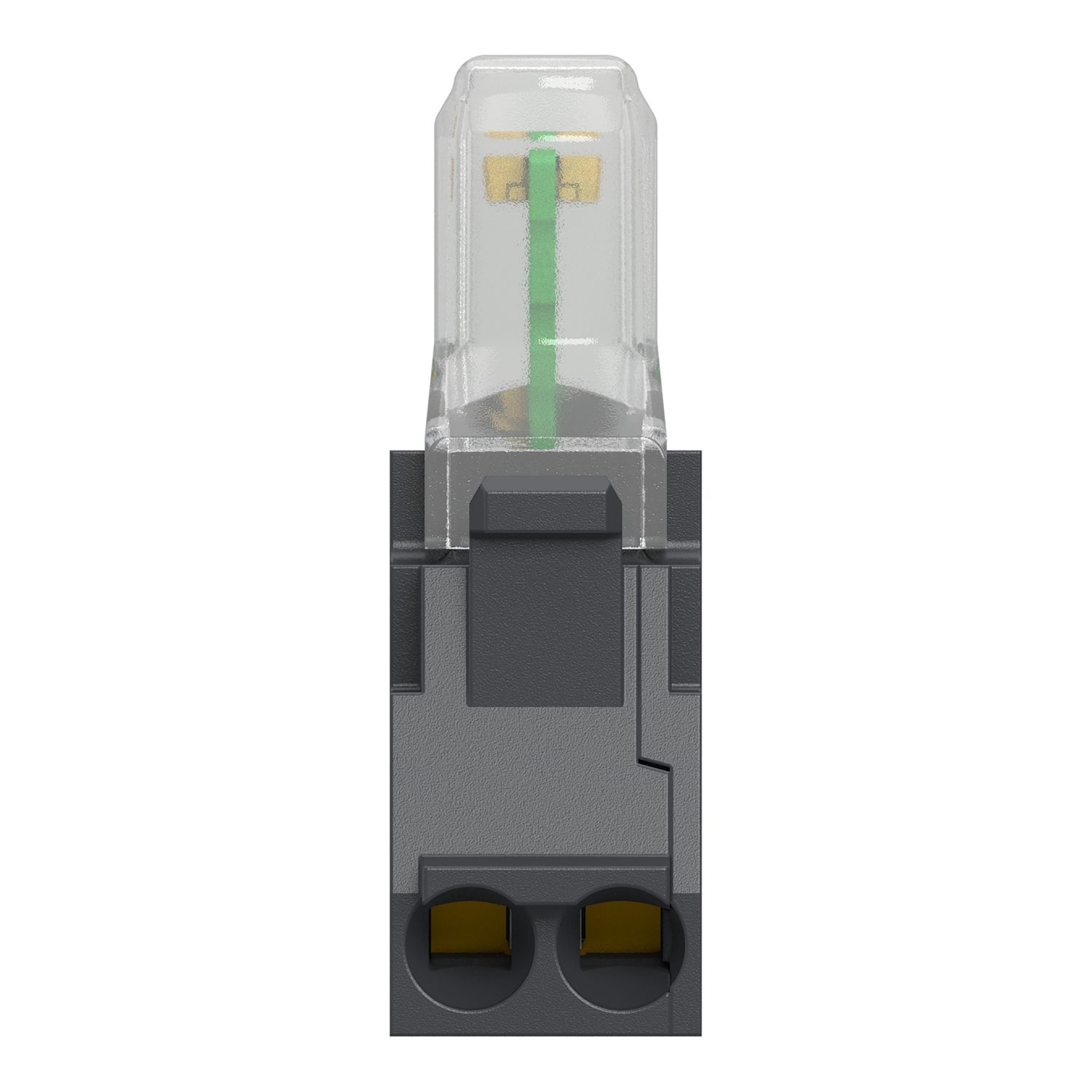

Picture of Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, 230…240V AC, compact push in terminals
SKU:

ZBVM15

Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, 230…240V AC, compact push in terminals

Old price: $76.01 INC GST
$59.29 INC GST
Available for Shipping : 10-Dec-2025
Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, 230…240V AC, compact push in terminals
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 10-Dec-2025

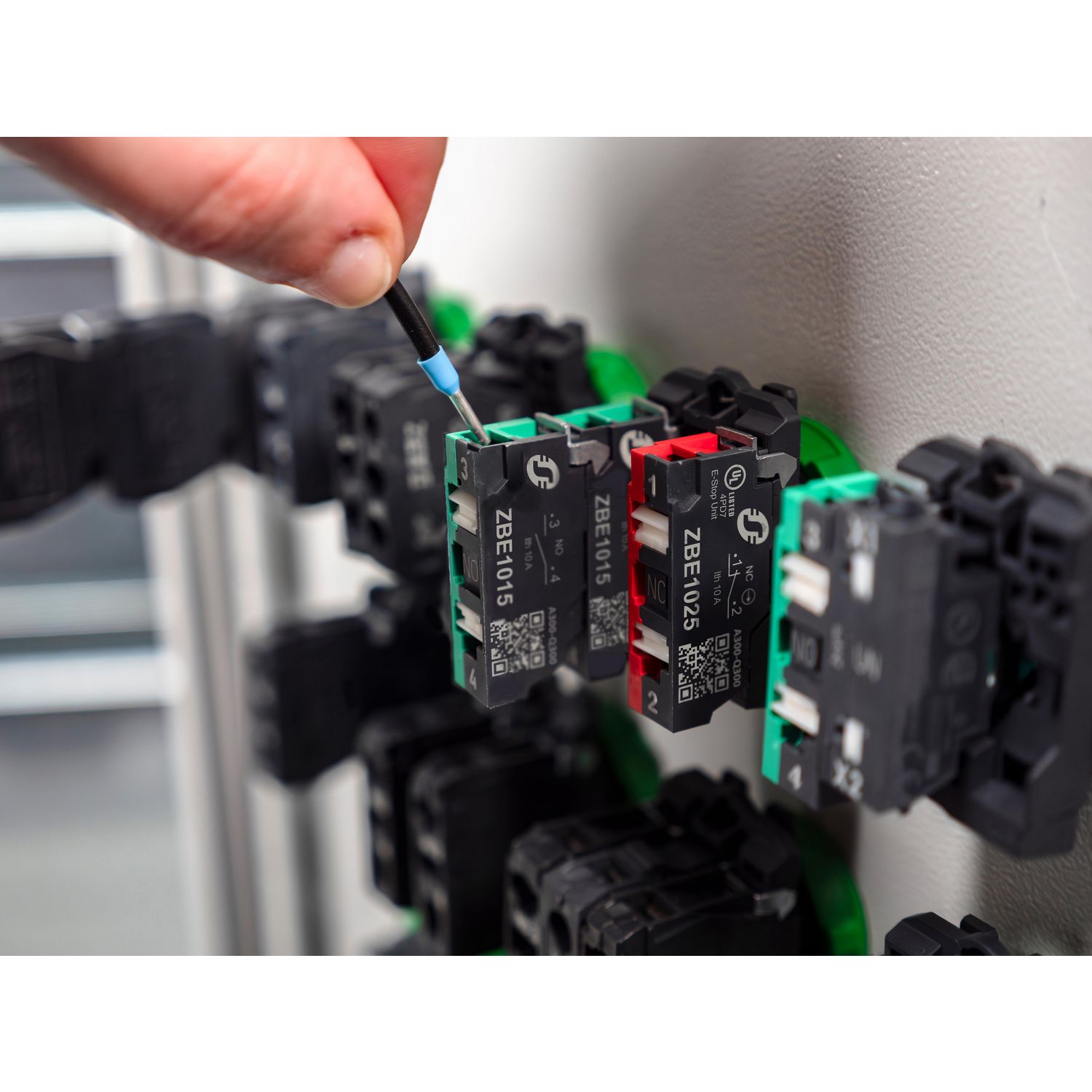

Image of product in real life situation
Instruction sheet
Brochure
CAD
Declaration of conformity
Environmental Disclosure
Circularity Profile
Image of product in real life situation
Catalog
Product Page Link
Product Data Sheet
This Harmony ZB, white light block operates with an integral LED. It is supplied with 230V to 240V AC and uses spring terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZBV
Light source colour white
Sale per indivisible quantity 5
Light block supply direct
Range of product Harmony XB4, Harmony XB5
Bulb base integral LED
[Us] rated supply voltage 230...240 V AC at 50/60 Hz
Signalling type steady
Connections - terminals push-in, >= 1 x 0.34 mm² without wire end ferrule conforming to EN 60947-1, push-in, <= 2 x 1.5 mm² with wire end ferrule conforming to EN 60947-1
Product or component type light block
Light source universal LED
Complementary
Shape of screw head compatible with flat Ø 4 mm screwdriver
Compatibility code ZBV
Supply voltage limits 195-264 V AC
Surge withstand 2 kV common mode, 1 kV differential mode conforming to IEC 61000-4-5
Device presentation basic element
CAD overall height 14.8 mm
Electrical composition code PF1, P2, P1, MF1, M10, M6, M5, M4, M3, M2, M1
CAD overall depth 9.8 mm
CAD overall width 35.6 mm
Service life 100000 h at rated voltage and 25 °C
Current consumption 14 mA
Net weight 0.012 kg
Mounting of block front mounting
Environment
Protective treatment TH
Resistance to electrostatic discharge 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 4 kV on contact (on metal parts) conforming to IEC 61000-4-2
Ambient air temperature for storage -40-70 °C
IP degree of protection IP20 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
[Us] rated supply voltage 230...240 V
Electromagnetic emission class B conforming to IEC 55011
Standards JIS C8201-1, JIS C8201-5-1, IEC 60947-5-1, CSA C22.2 No 14, UL 508, IEC 60947-1
Product certifications UL listed, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.000 cm
Package 1 Width 4.000 cm
Package 1 Length 4.500 cm
Package 1 Weight 9.000 g
Unit Type of Package 2 2
Number of Units in Package 2 4
Package 2 Height 5.700 cm
Package 2 Width 4.200 cm
Package 2 Length 5.200 cm
Package 2 Weight 43.000 g
Unit Type of Package 3 3
Number of Units in Package 3 640
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 7.306 kg
