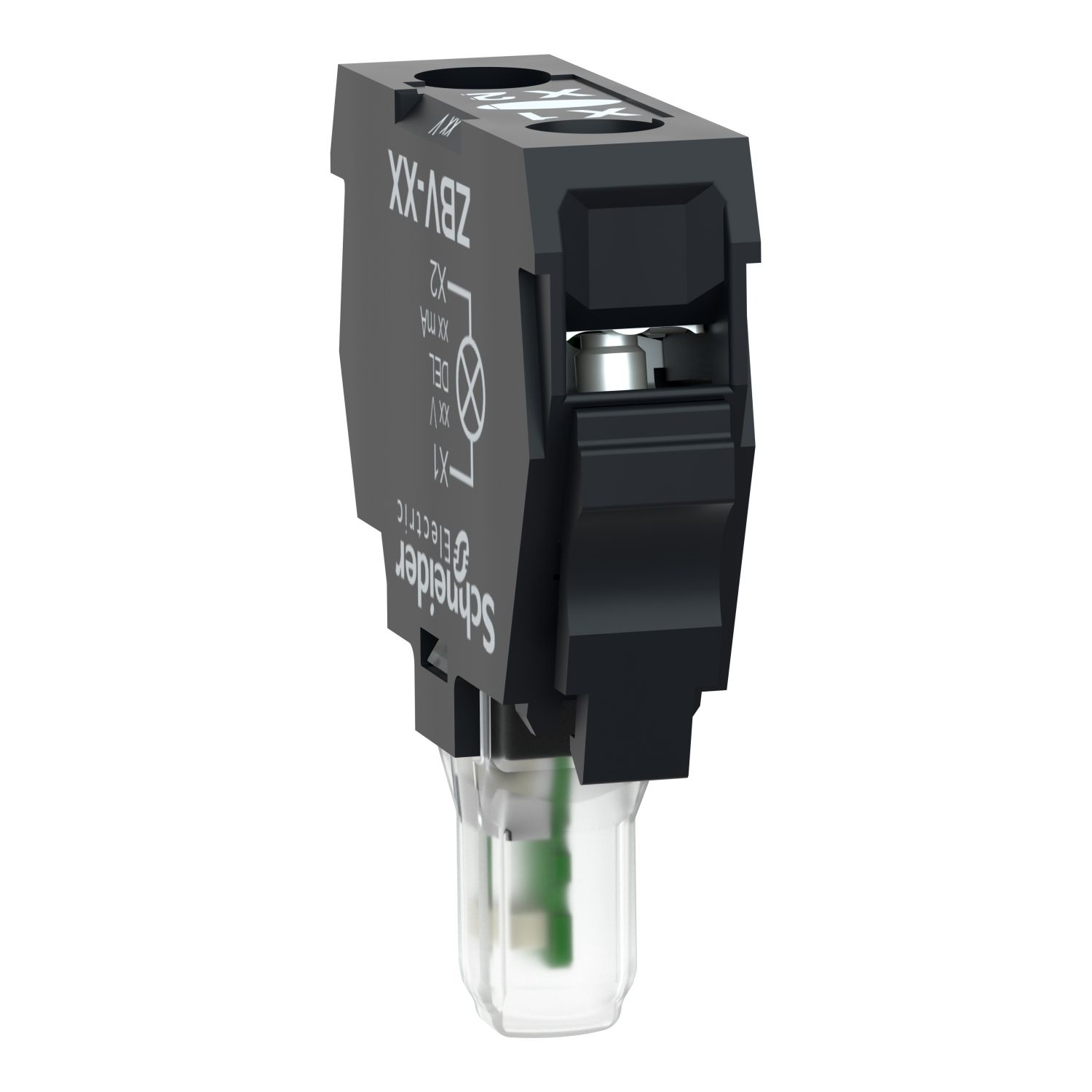

Picture of Light block, Harmony XB4 XB5, white, for head 22mm, universal LED, screw clamp terminals, 12V AC DC

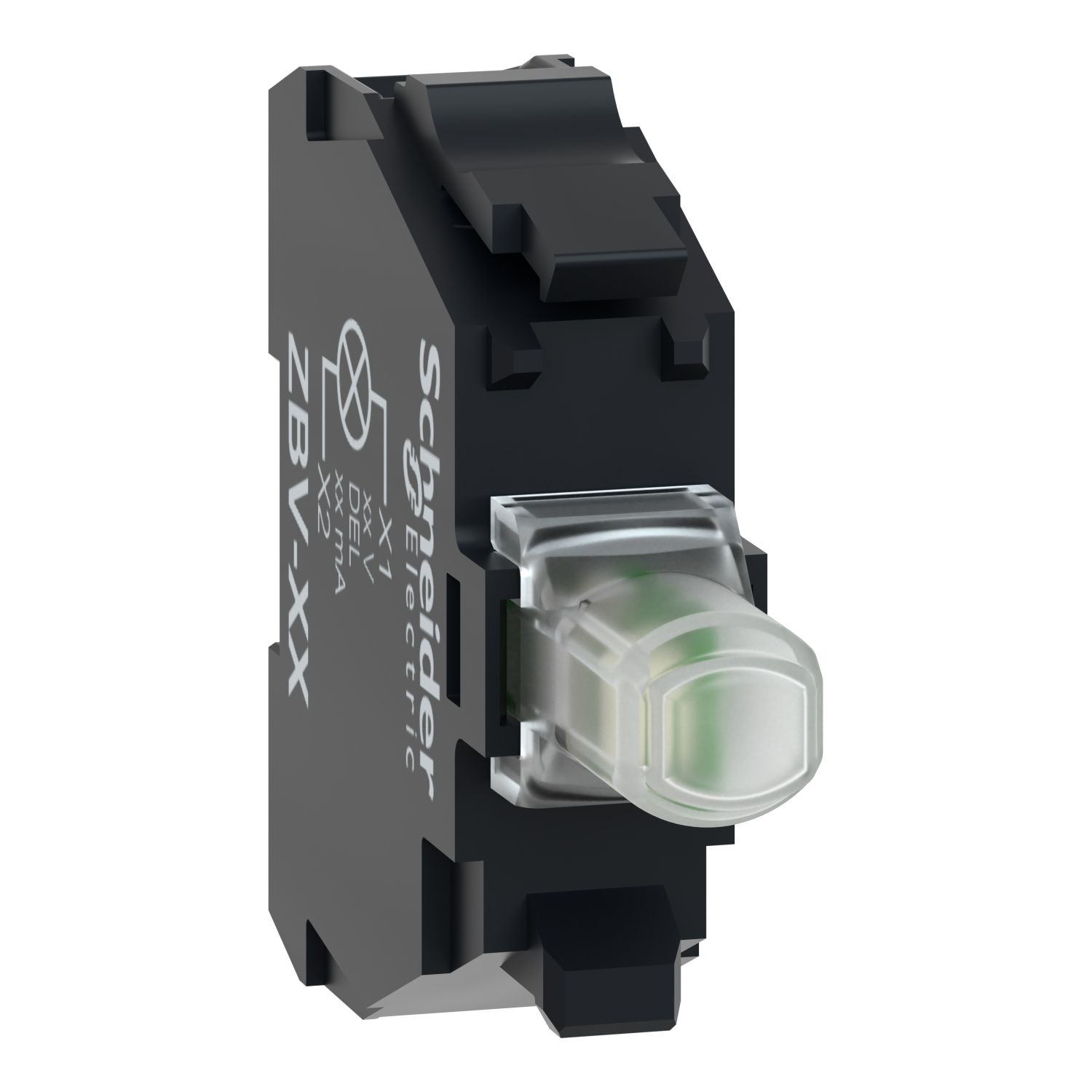

Picture of Light block, Harmony XB4 XB5, white, for head 22mm, universal LED, screw clamp terminals, 12V AC DC

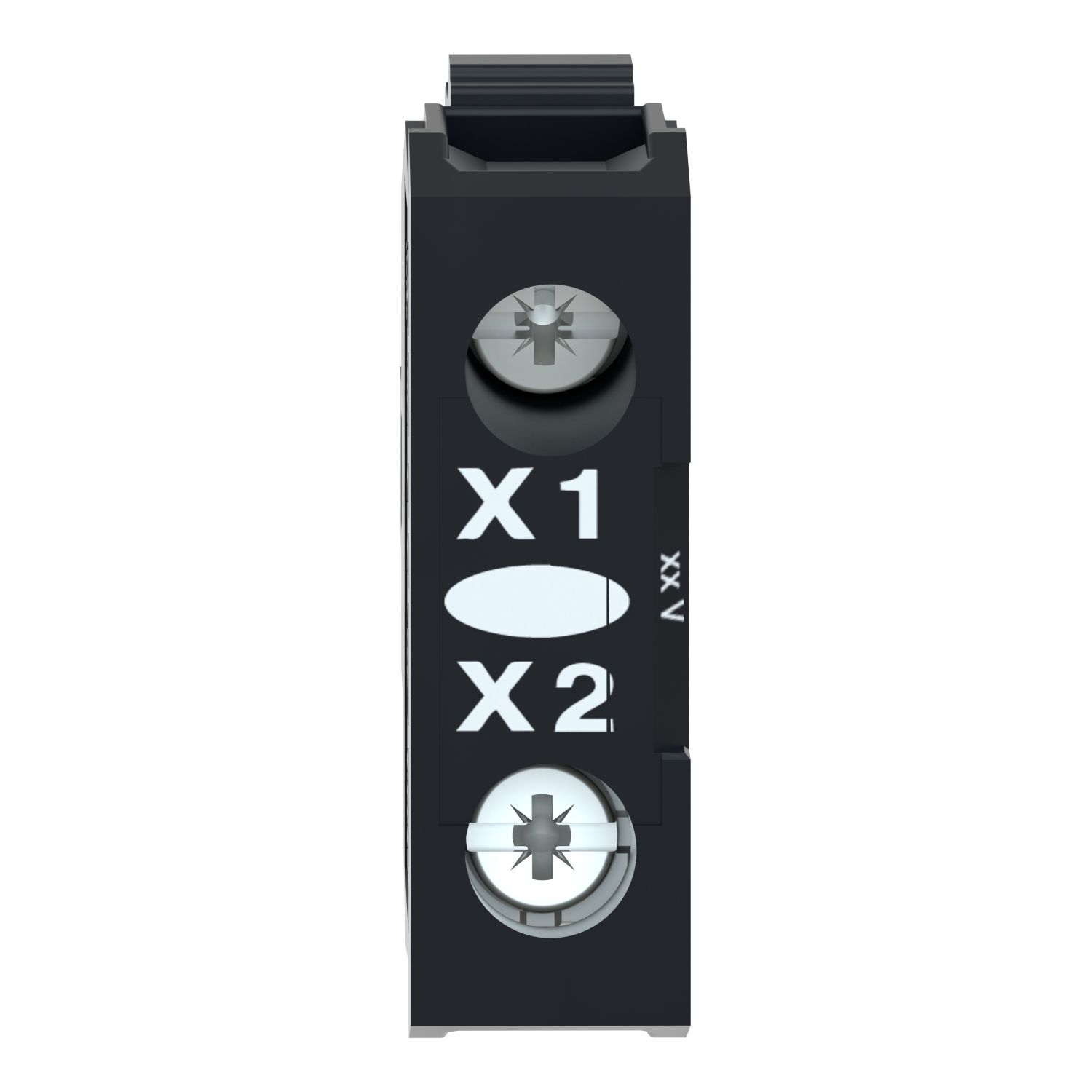

Picture of Light block, Harmony XB4 XB5, white, for head 22mm, universal LED, screw clamp terminals, 12V AC DC

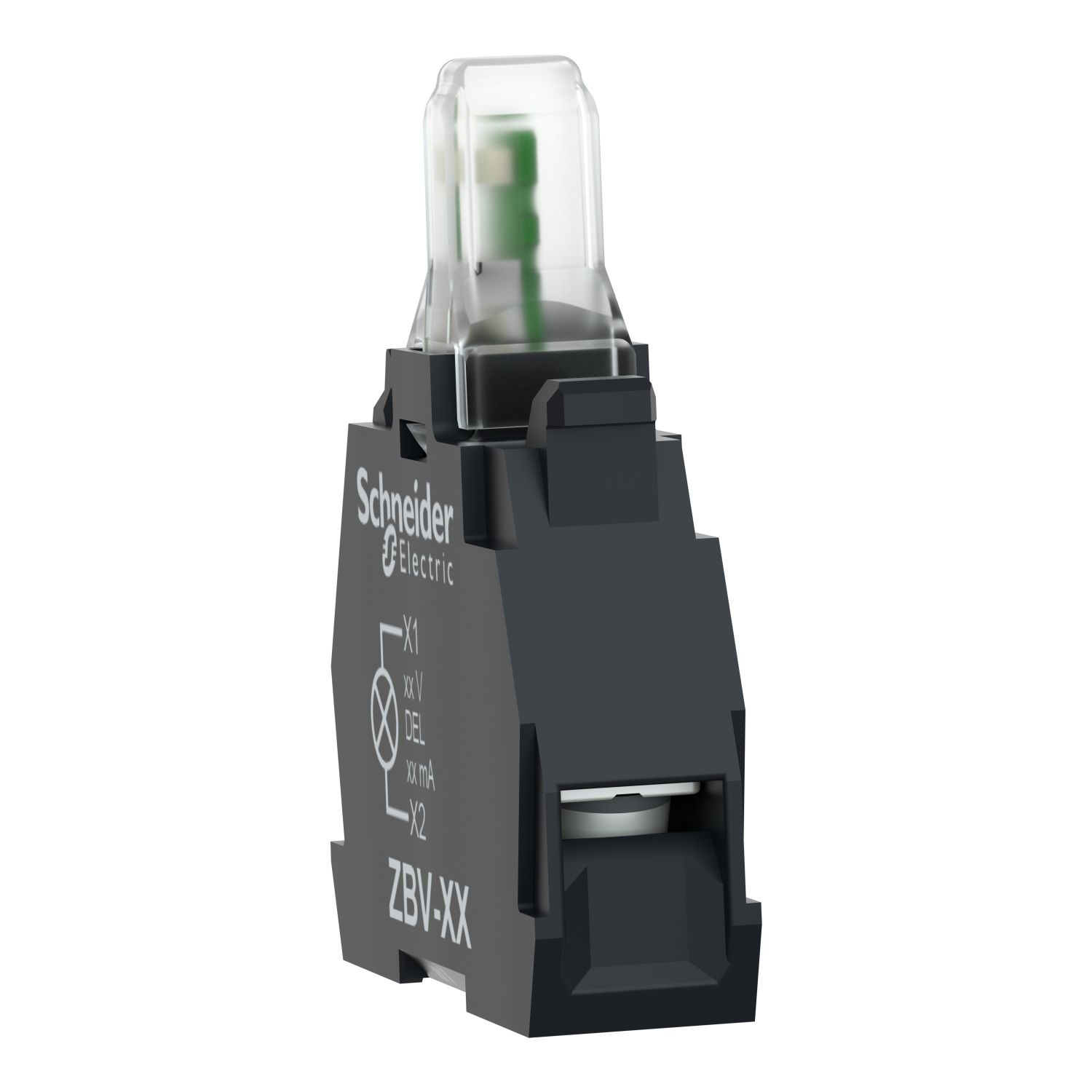

Picture of Light block, Harmony XB4 XB5, white, for head 22mm, universal LED, screw clamp terminals, 12V AC DC

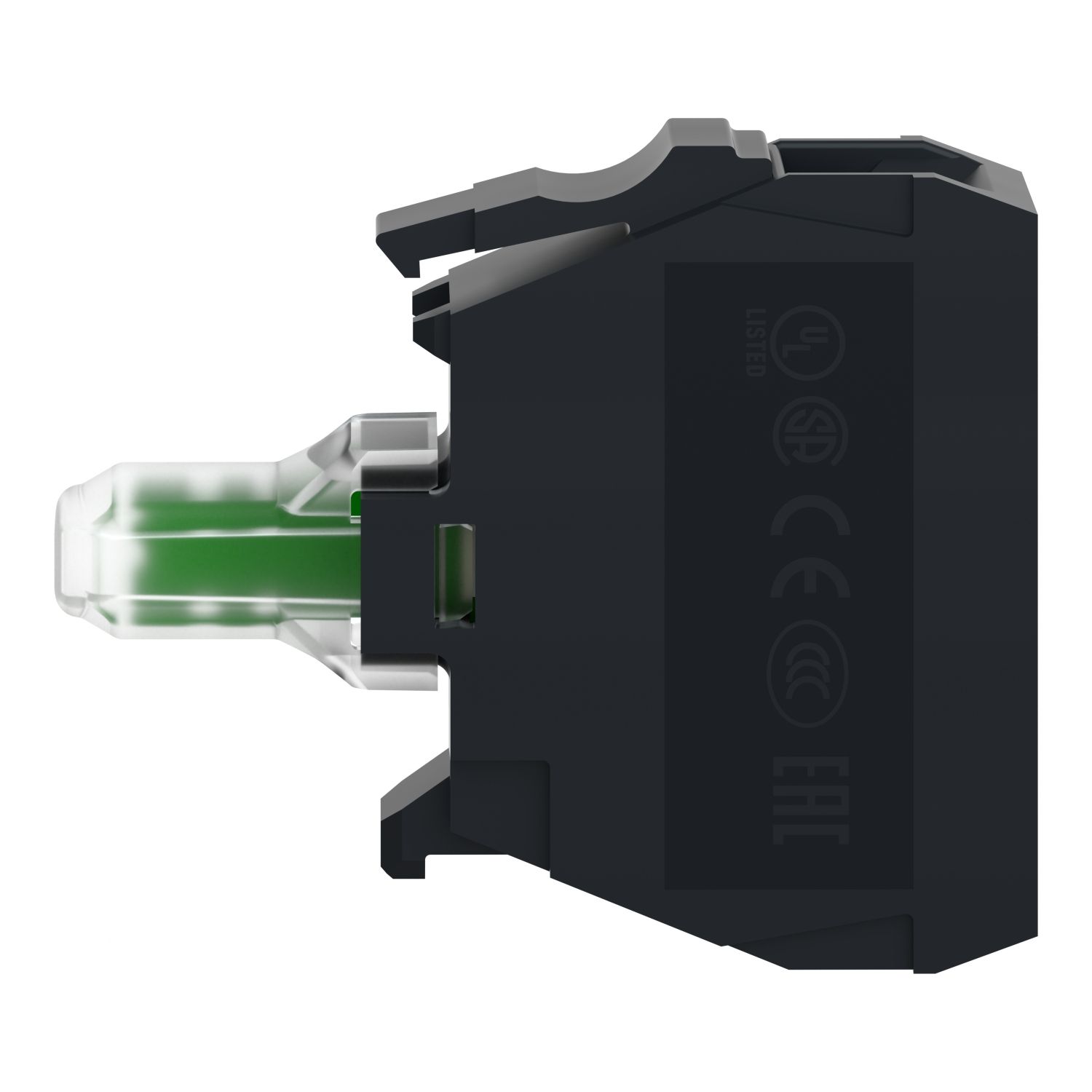

Picture of Light block, Harmony XB4 XB5, white, for head 22mm, universal LED, screw clamp terminals, 12V AC DC

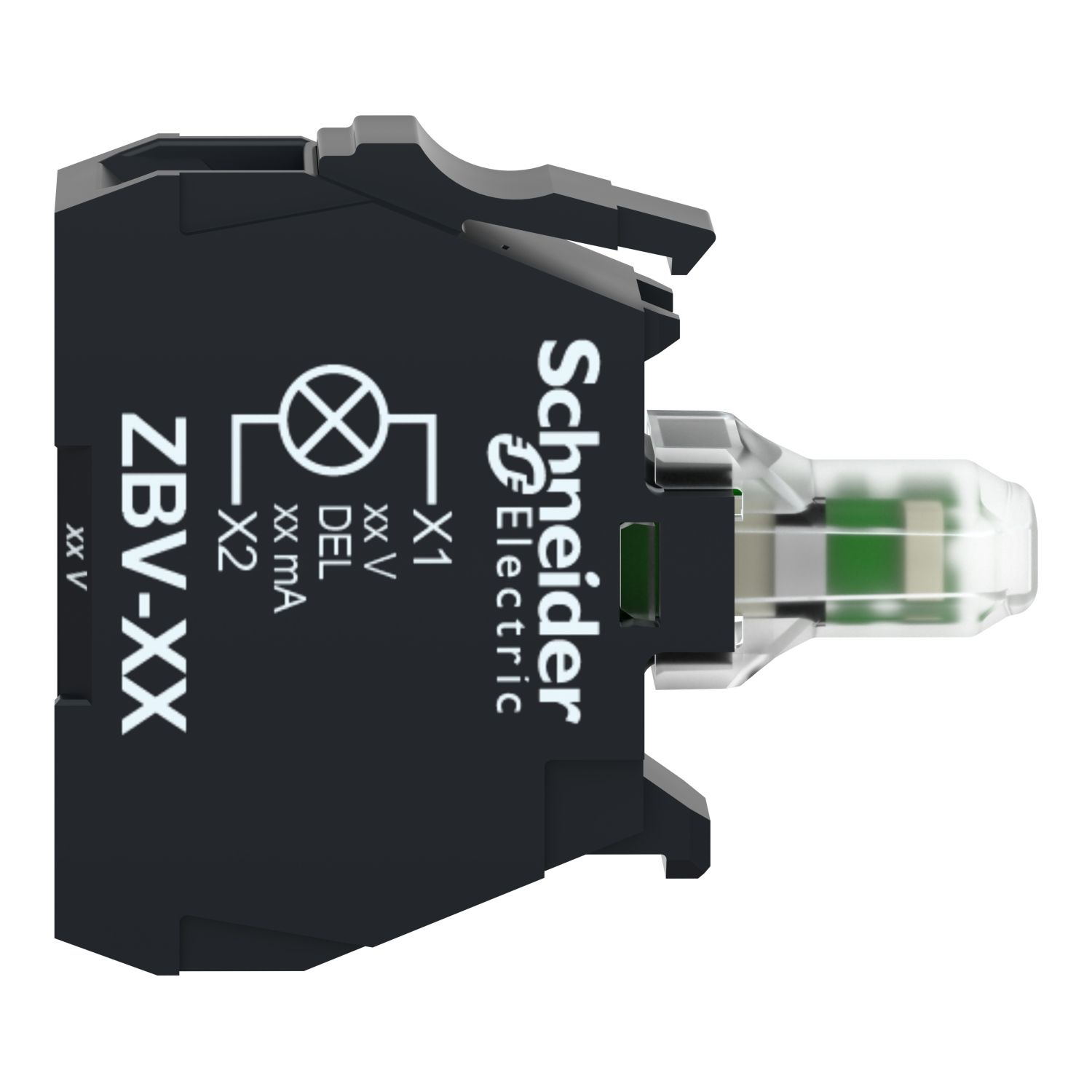

Picture of Light block, Harmony XB4 XB5, white, for head 22mm, universal LED, screw clamp terminals, 12V AC DC
Picture of Light block, Harmony XB4 XB5, white, for head 22mm, universal LED, screw clamp terminals, 12V AC DC

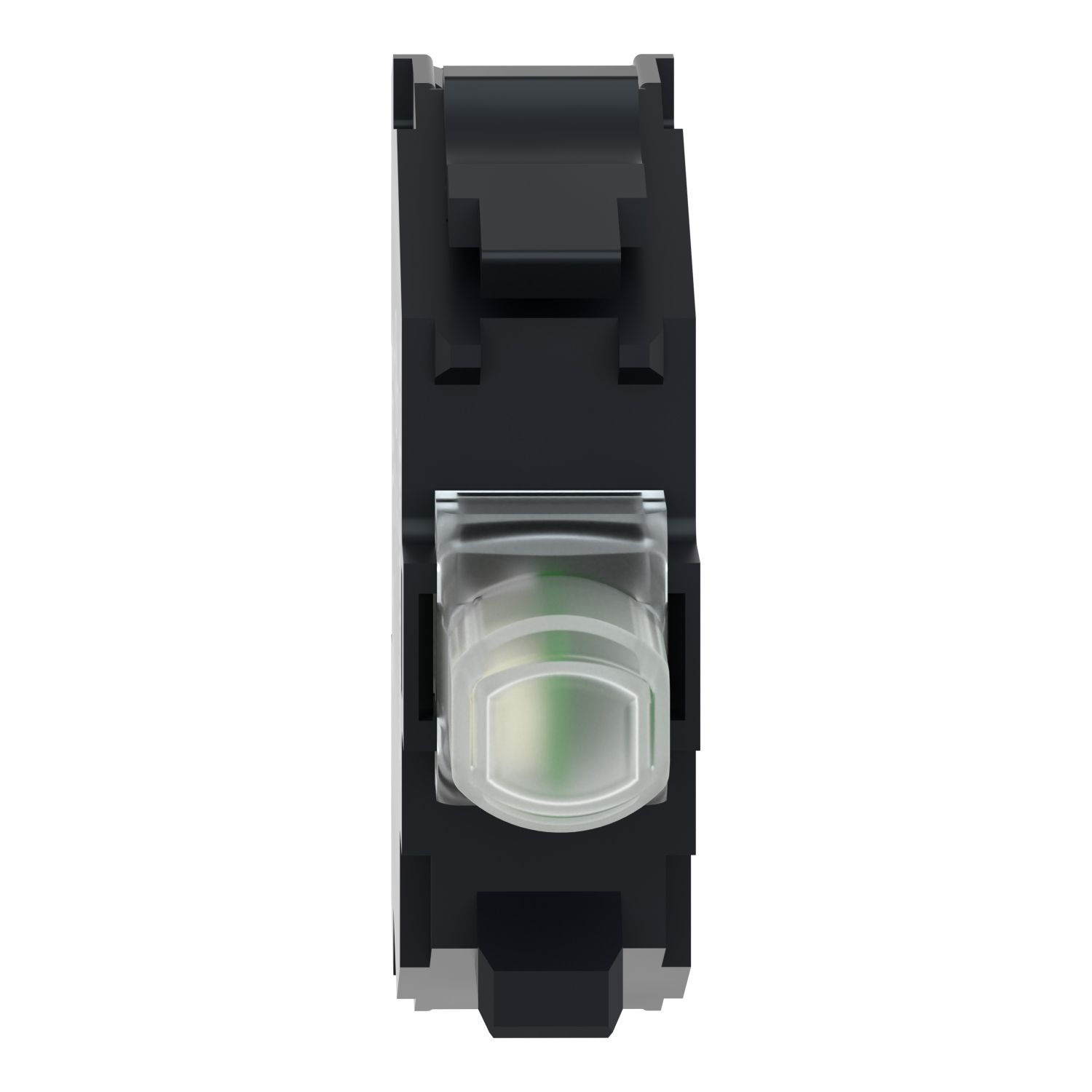

Picture of Light block, Harmony XB4 XB5, white, for head 22mm, universal LED, screw clamp terminals, 12V AC DC
Picture of Light block, Harmony XB4 XB5, white, for head 22mm, universal LED, screw clamp terminals, 12V AC DC
Picture of Light block, Harmony XB4 XB5, white, for head 22mm, universal LED, screw clamp terminals, 12V AC DC
SKU:

ZBVJ1

Light block, Harmony XB4 XB5, white, for head 22mm, universal LED, screw clamp terminals, 12V AC DC

Old price: $46.64 INC GST
$36.38 INC GST
Available for Shipping : 10-Dec-2025
Product Selector
Light block, Harmony XB4 XB5, white, for head 22mm, universal LED, screw clamp terminals, 12V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 10-Dec-2025

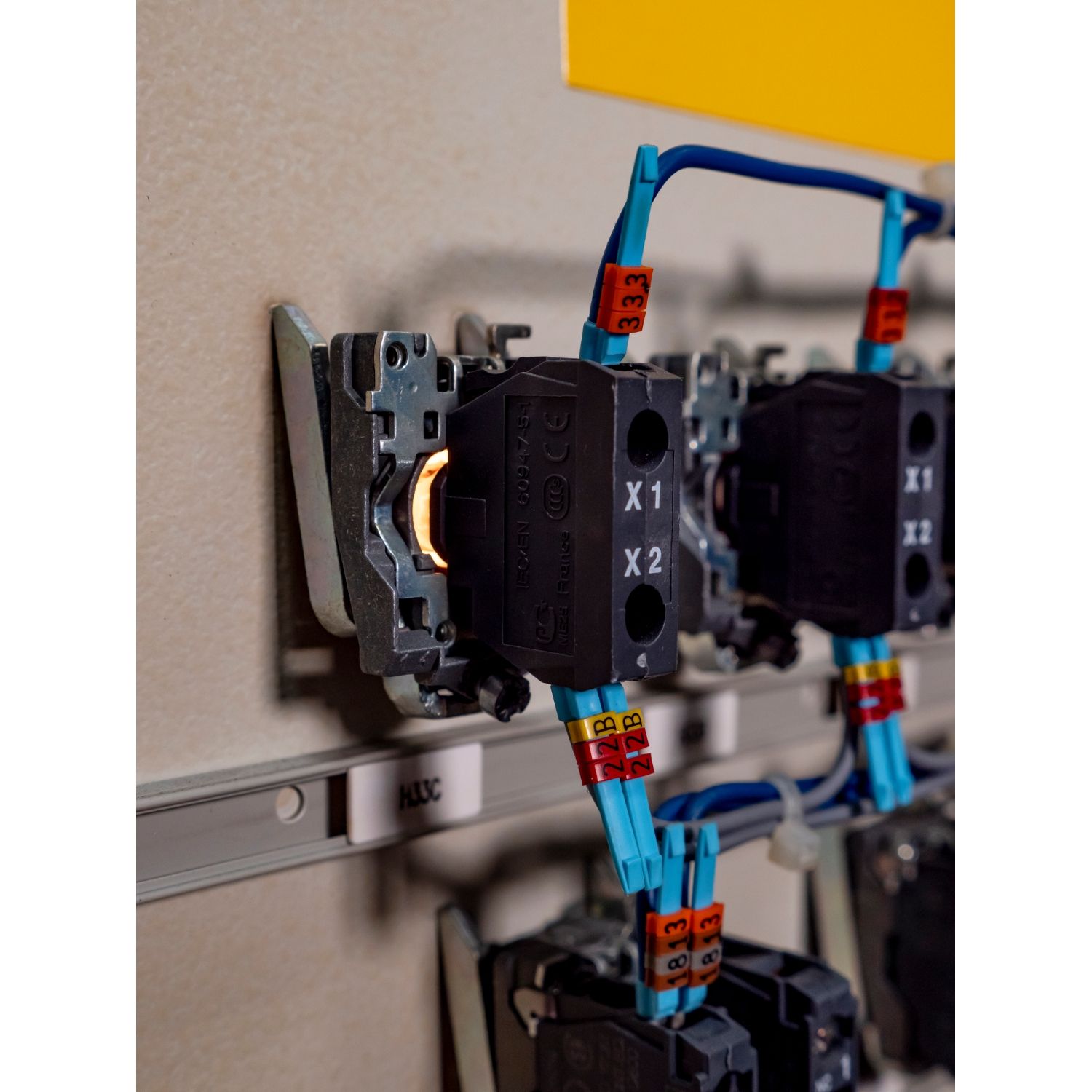

Image of product in real life situation
Image of product in real life situation
Declaration of conformity
Environmental Disclosure
Circularity Profile
CAD
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony ZB, white light block operates with an integral LED. It is supplied with 12V AC/DC and uses screw-clamp terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Products specifications

Attribute name Attribute value
Main
Device short name ZBV
Light source colour white
Sale per indivisible quantity 5
Light block supply direct
Range of product Harmony XB4, Harmony XB5
Bulb base integral LED
[Us] rated supply voltage 12 V AC/DC at 50/60 Hz
Signalling type steady
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Product or component type light block
Light source universal LED
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Compatibility code ZBV
Supply voltage limits 10.2-13.8 V AC, 10-15 V DC
Surge withstand 1 kV conforming to IEC 61000-4-5
Device presentation basic element
Electrical composition code PF1, P2, P1, MF1, M10, M6, M5, M4, M3, M2, M1
Service life 100000 h at rated voltage and 25 °C
Current consumption 15 mA
Net weight 0.017 kg
Mounting of block front mounting
Environment
Resistance to fast transients 2 kV conforming to IEC 61000-4-4
Protective treatment TH
Resistance to electrostatic discharge 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
Ambient air temperature for storage -40-70 °C
IP degree of protection IP20 conforming to IEC 60529
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation -40-70 °C
[Us] rated supply voltage 12 V
Electromagnetic emission class B conforming to IEC 55011
Standards JIS C8201-1, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-5-1, UL 508, IEC 60947-5-5, IEC 60947-1, JIS C8201-5-1
Product certifications CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.600 cm
Package 1 Width 4.400 cm
Package 1 Length 5.400 cm
Package 1 Weight 9.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 5.600 cm
Package 2 Width 4.400 cm
Package 2 Length 5.400 cm
Package 2 Weight 52.000 g
Unit Type of Package 3 3
Number of Units in Package 3 400
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 4.370 kg
