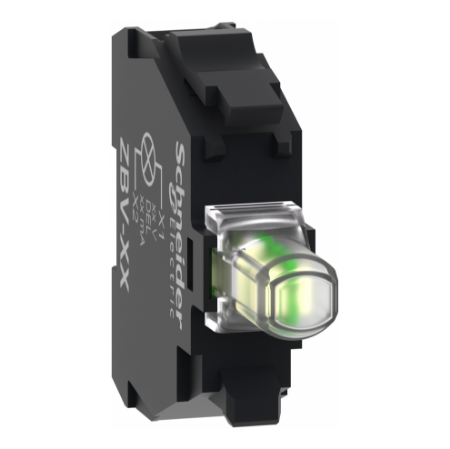

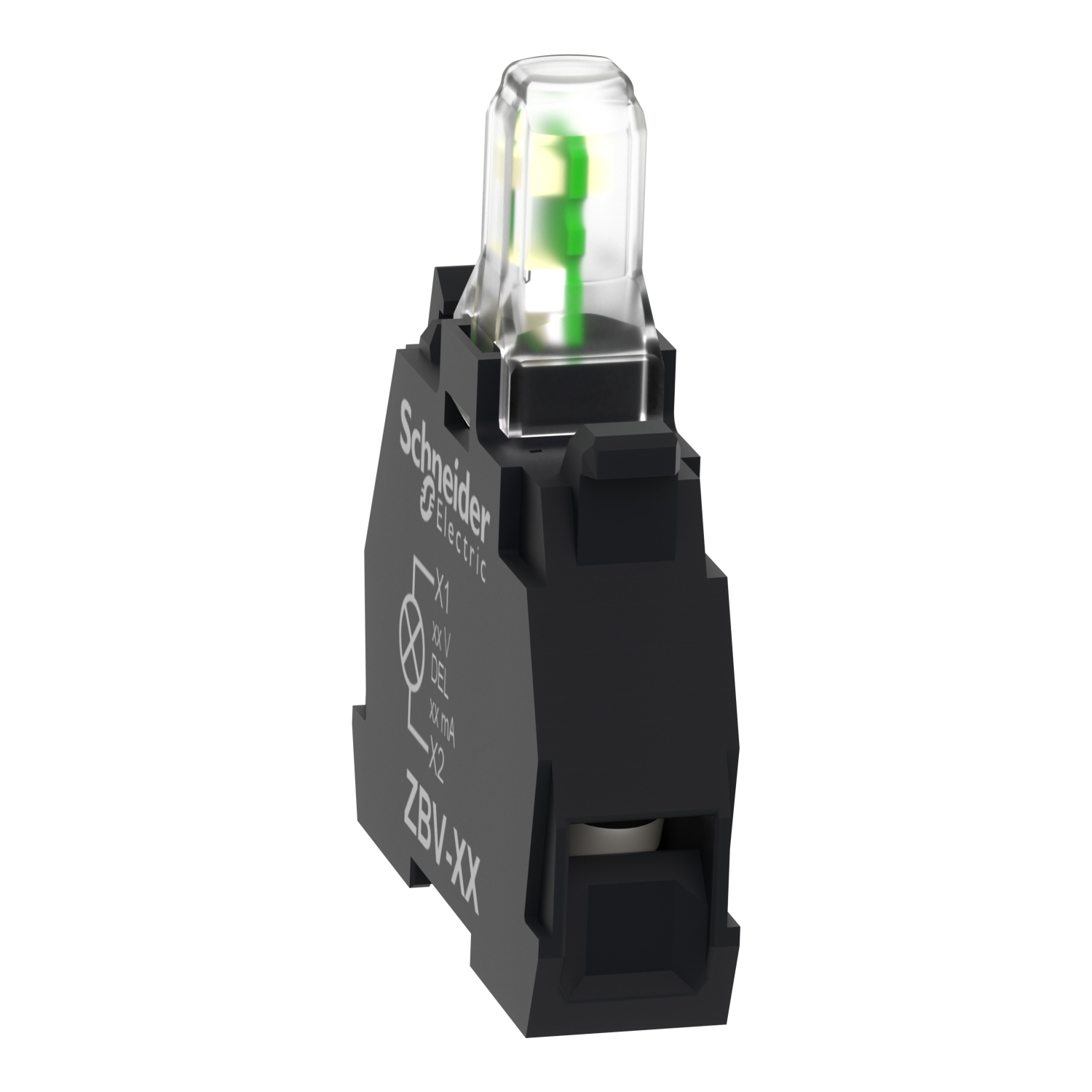

Picture of Light block, Harmony XB4, Harmony XB5, 22mm, universal LED, screw clamp terminal, 110...240V AC

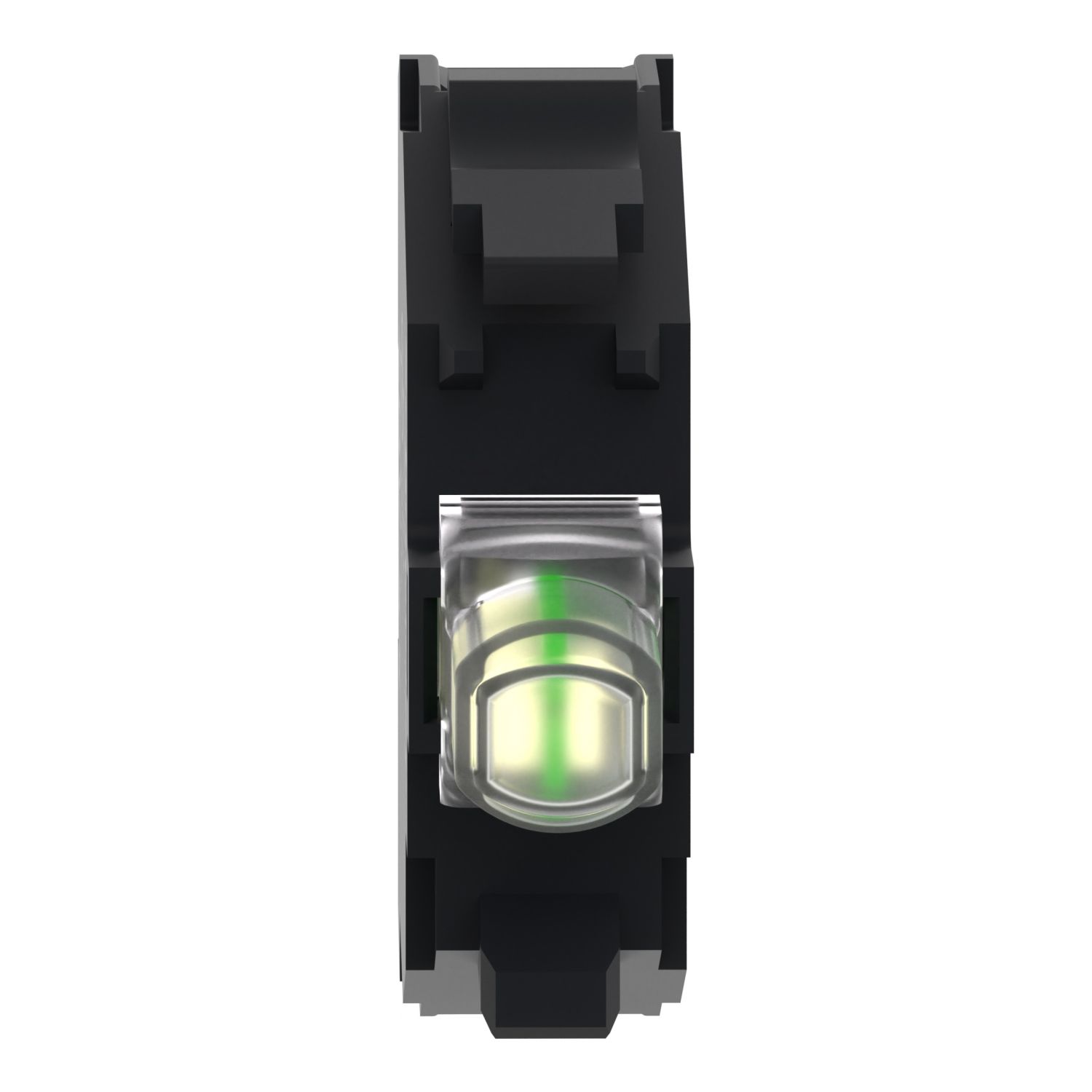

Picture of Light block, Harmony XB4, Harmony XB5, 22mm, universal LED, screw clamp terminal, 110...240V AC

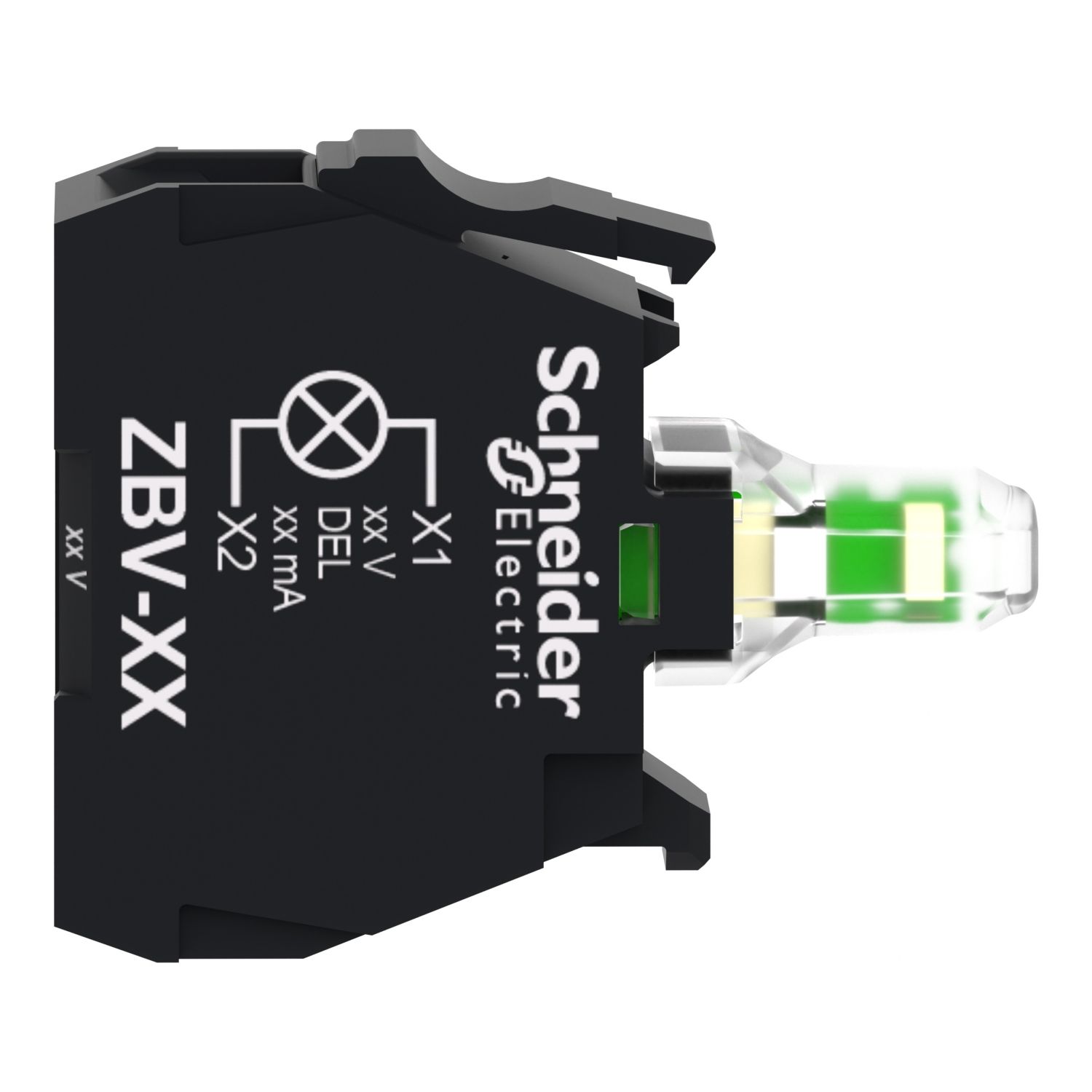

Picture of Light block, Harmony XB4, Harmony XB5, 22mm, universal LED, screw clamp terminal, 110...240V AC

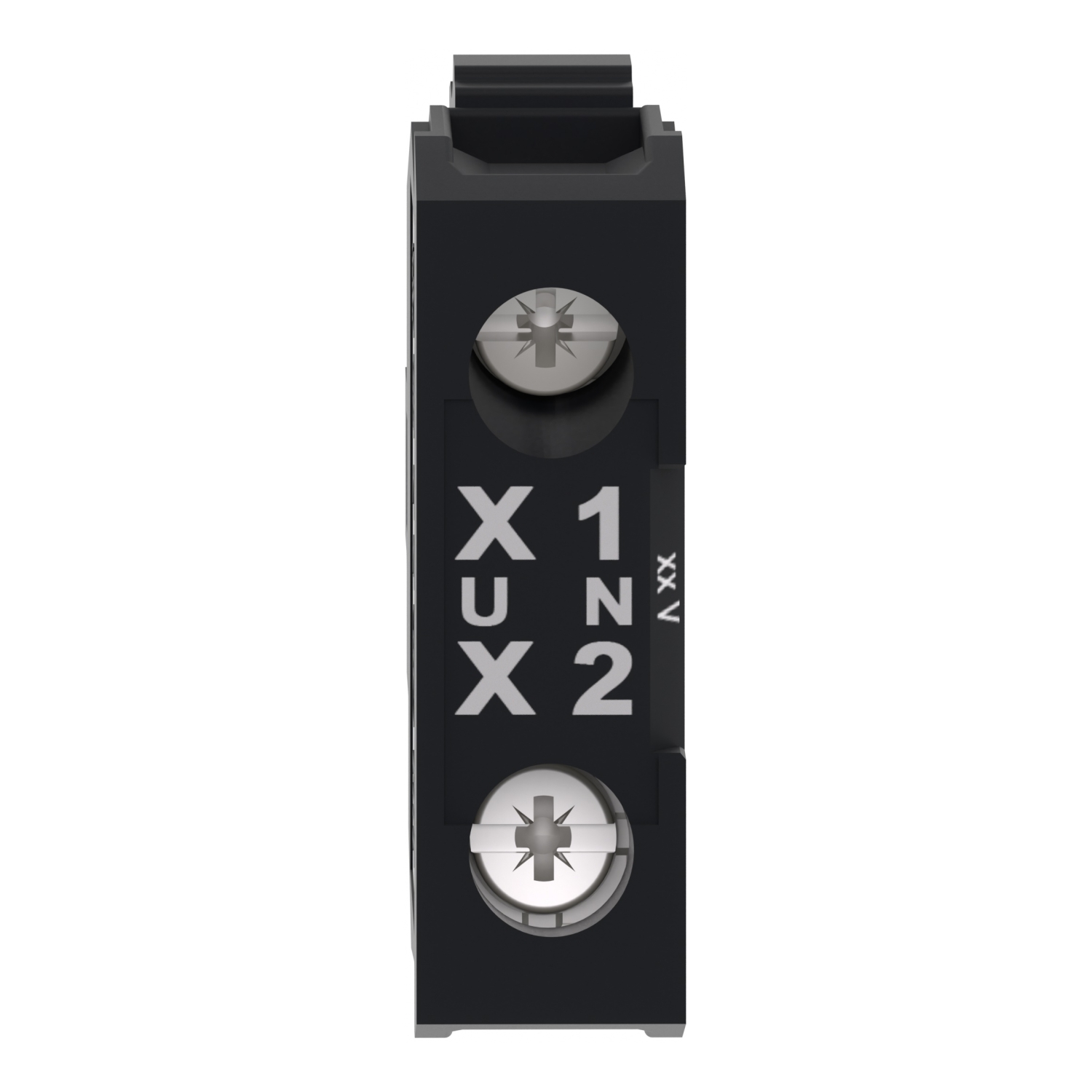

Picture of Light block, Harmony XB4, Harmony XB5, 22mm, universal LED, screw clamp terminal, 110...240V AC

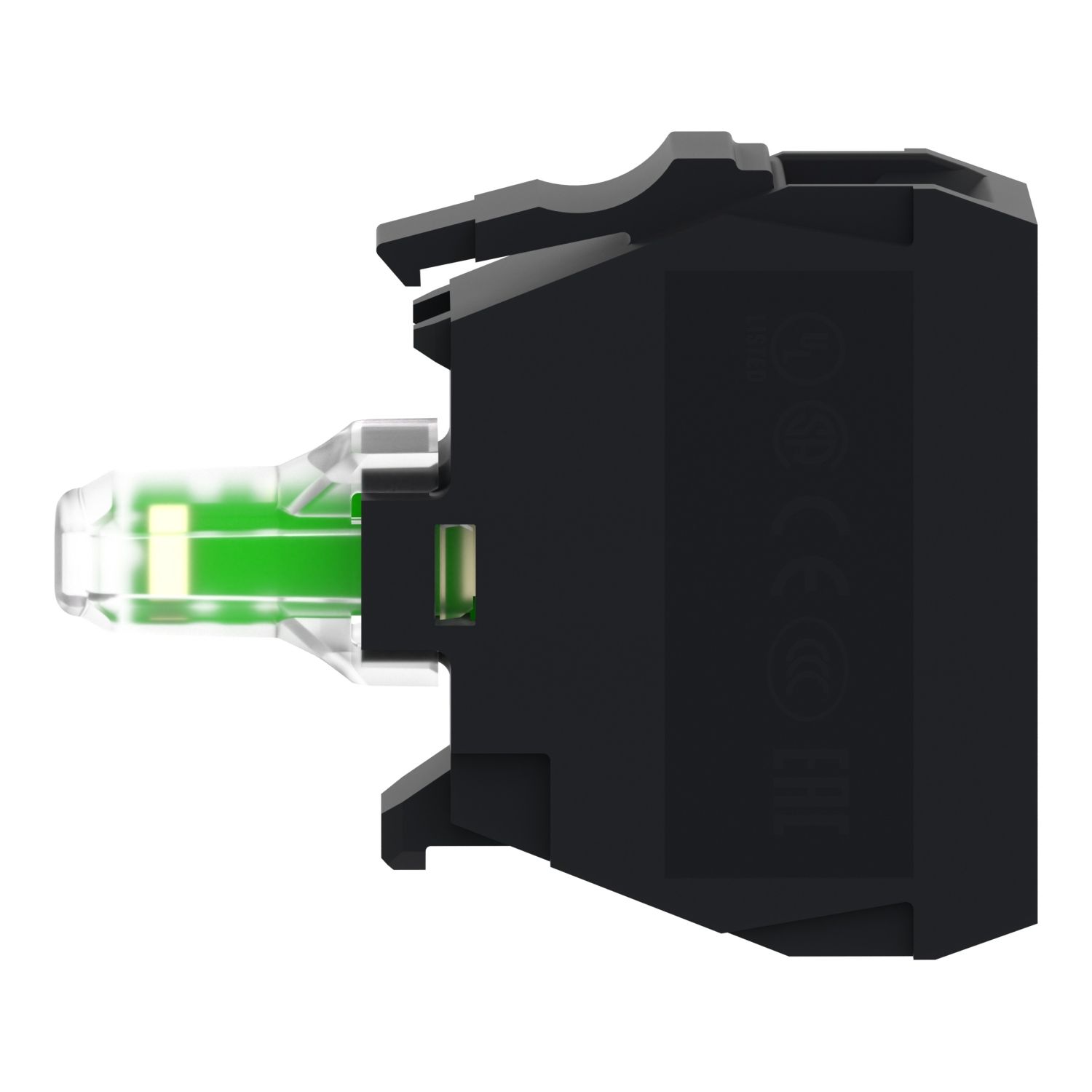

Picture of Light block, Harmony XB4, Harmony XB5, 22mm, universal LED, screw clamp terminal, 110...240V AC

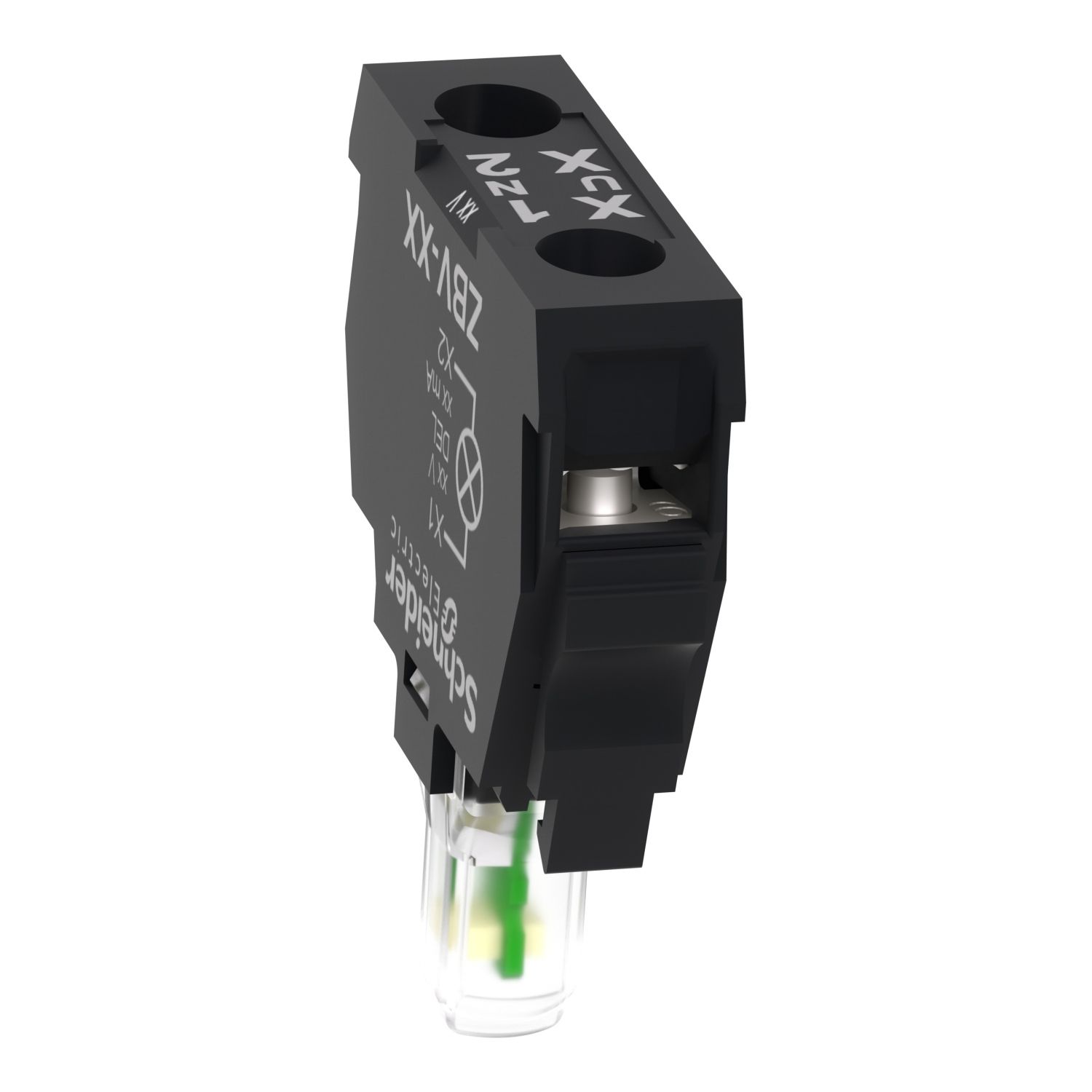

Picture of Light block, Harmony XB4, Harmony XB5, 22mm, universal LED, screw clamp terminal, 110...240V AC

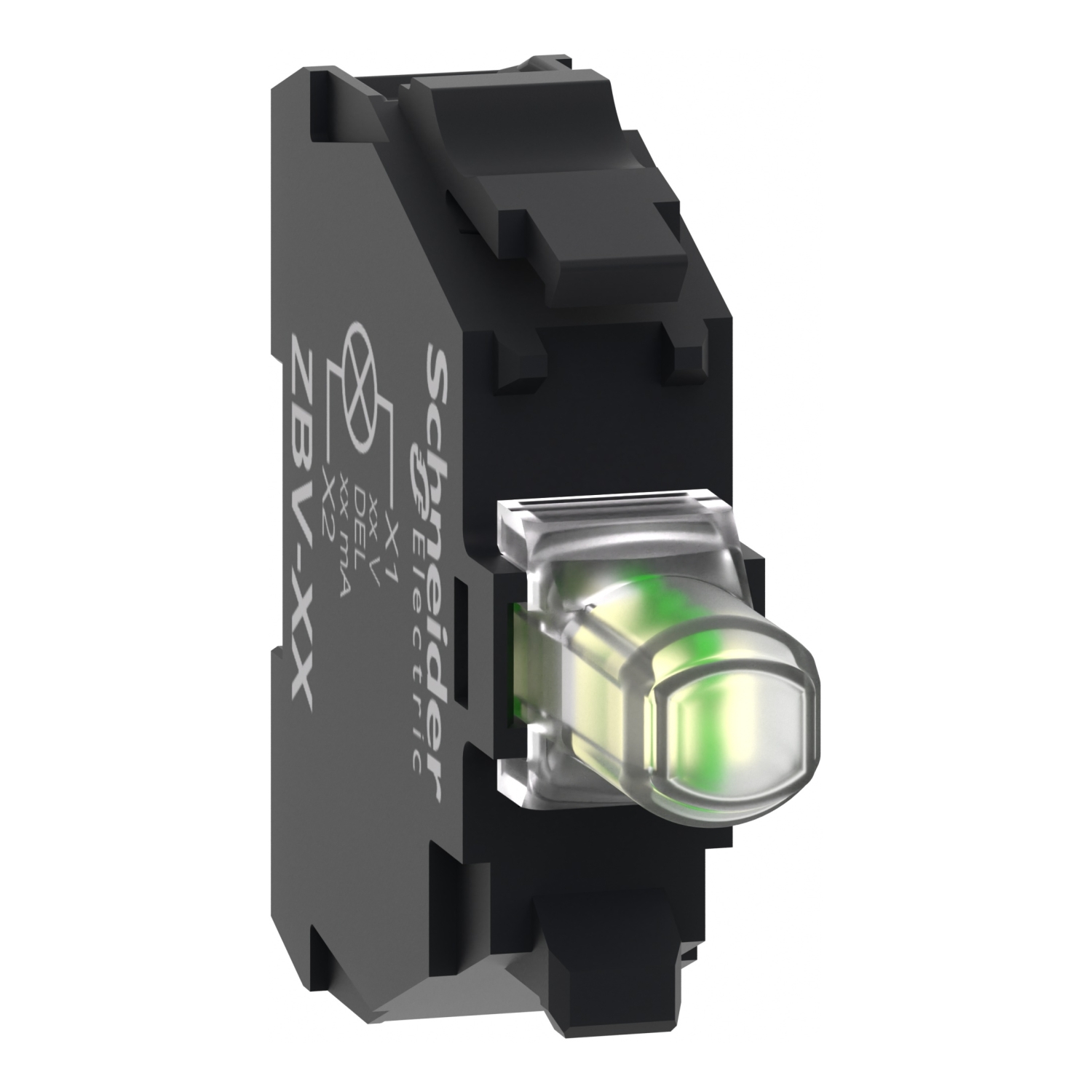

Picture of Light block, Harmony XB4, Harmony XB5, 22mm, universal LED, screw clamp terminal, 110...240V AC
Picture of Light block, Harmony XB4, Harmony XB5, 22mm, universal LED, screw clamp terminal, 110...240V AC
SKU:

ZBVGM1T

Light block, Harmony XB4, Harmony XB5, 22mm, universal LED, screw clamp terminal, 110...240V AC

$62.33 EXCL GST
Available for Shipping : 10-Apr-2025
Light block, Harmony XB4, Harmony XB5, 22mm, universal LED, screw clamp terminal, 110...240V AC
Be the first to review this product
Manufacturer: Schneider Electric
Declaration of conformity
Catalogue
Technical illustration
Product Page Link
Product Data Sheet
This LED light block is compatible with Harmony XB4 metallic and Harmony XB5 plastic range. It is used for pushbutton heads of diameter 22. The color of the light source is white. Its robustness design LED allows to be used for specific application with overload risk like Marine, Hospital or direct wiring of loads at 230VAC The source of light is high protection integral LED and the overload capacity is 300VA at 230VAC and 120VA at 110VAC The connection terminal is screw clamp. The weight of the product is 17 grams. The rated supply voltage is 110 to 240 V AC. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. It has IP 20 protection degree. It is certified with EN/IEC, UL, CSA, and JIS. The packaging includes 5 units of this light blocks. It can be easily installed to a panel cut out with the help of a cross head screwdriver. The LED design with overload protection simplify mounting and reduce maintenance operation. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.

Products specifications

Attribute name Attribute value
Main
Bulb base integral LED
[Us] rated supply voltage 110...240 V AC at 50/60 Hz
Device short name ZBV
Light source colour white
Signalling type steady
Sale per indivisible quantity 5
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Product or component type light block
Light block supply direct
Light source universal LED
Range of product Harmony XB4, Harmony XB5
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Compatibility code ZBV
Supply voltage limits 93-264 V AC
Surge withstand 2 kV conforming to IEC 61000-4-5
Service life 100000 h at rated voltage and 25 °C
Device presentation basic element
Current consumption 13 mA
Net weight 0.017 kg
Electrical composition code PF1, P2, P1, MF1, M10, M6, M5, M4, M3, M2, M1
Mounting of block front mounting
Environment
Electromagnetic emission class B conforming to IEC 55011
Resistance to fast transients 2 kV conforming to IEC 61000-4-4
Resistance to electrostatic discharge 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
Ambient air temperature for storage -40-70 °C
Electrical insulation class class II conforming to IEC 61140
IP degree of protection IP20 conforming to IEC 60529
Standards JIS C8201-1, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-1, UL 508, IEC 60947-1
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation -40-70 °C
[Us] rated supply voltage 110...240 V
Product certifications UL listed, CSA
Overload capacity 120 VA, 300 VA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.000 cm
Package 1 Width 3.300 cm
Package 1 Length 4.000 cm
Package 1 Weight 9.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 5.500 cm
Package 2 Width 4.500 cm
Package 2 Length 26.500 cm
Package 2 Weight 53.000 g
Unit Type of Package 3 3
Number of Units in Package 3 800
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 9.020 kg
