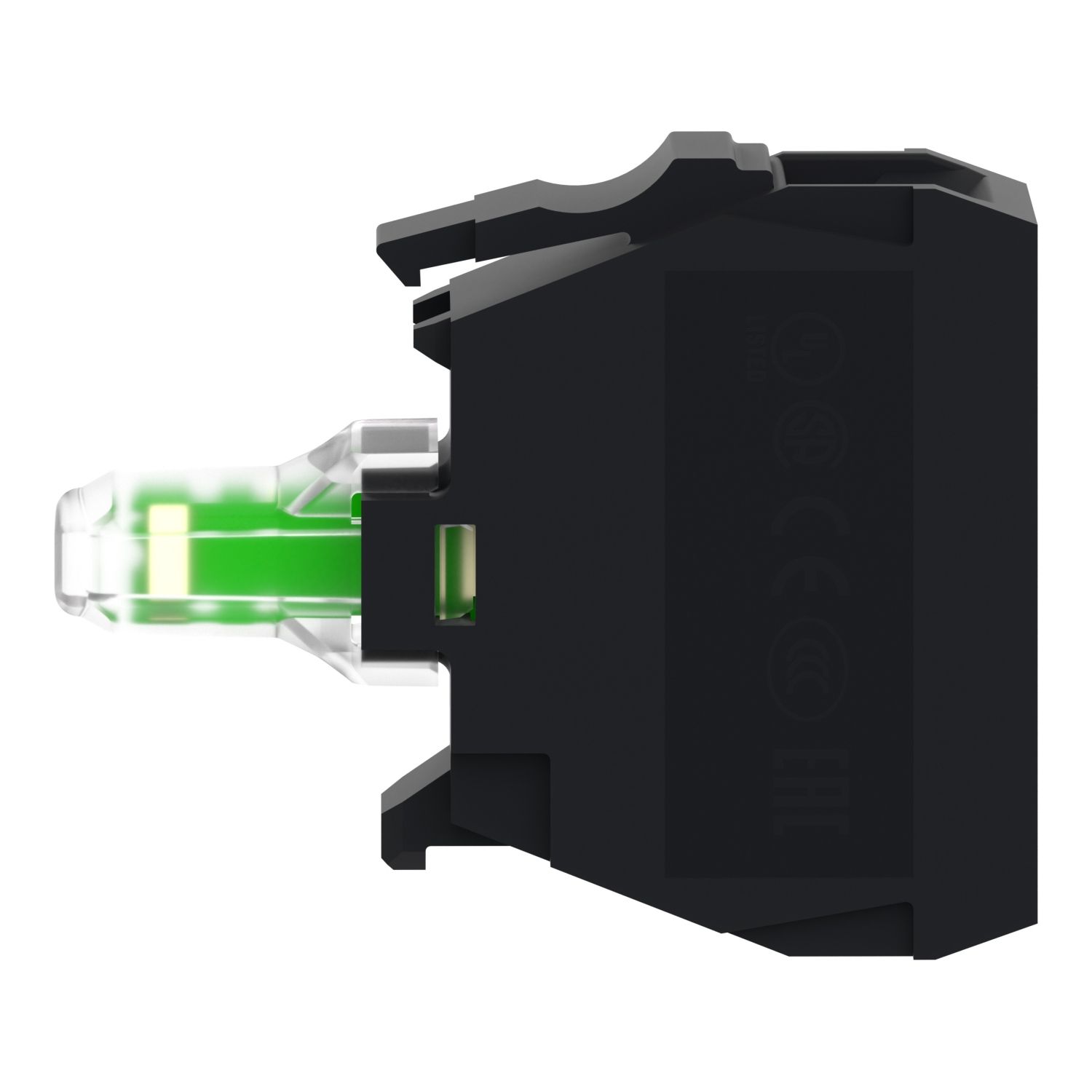

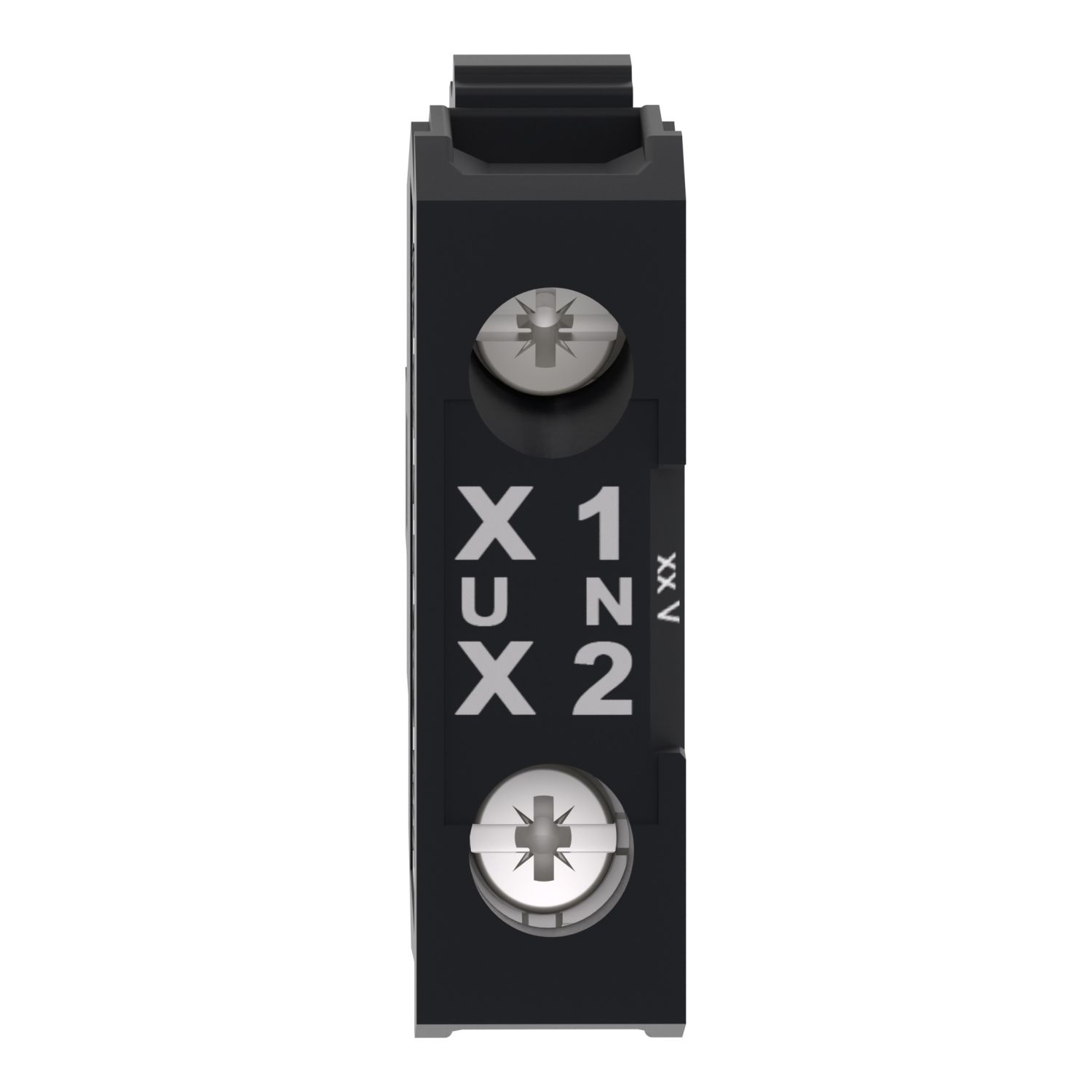

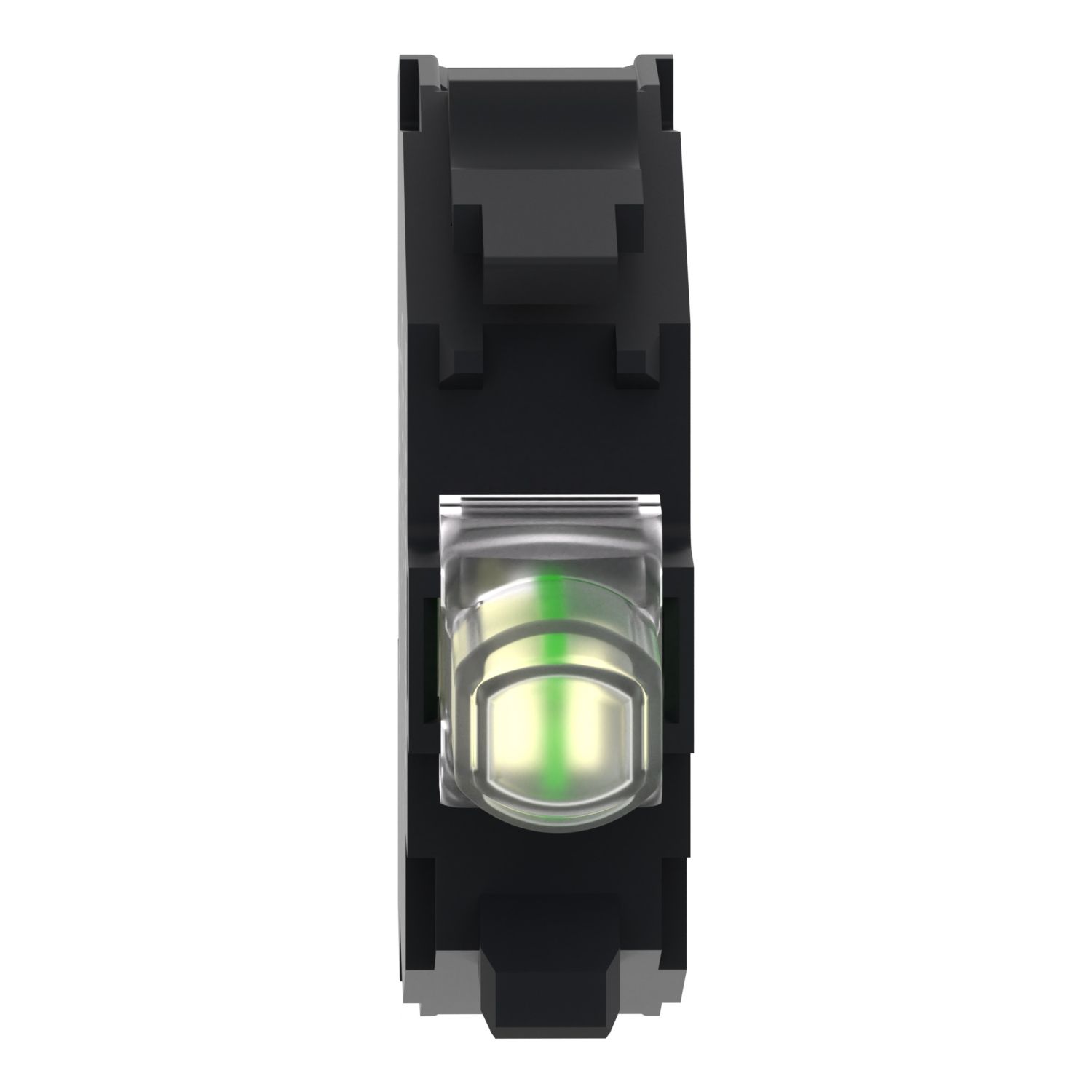

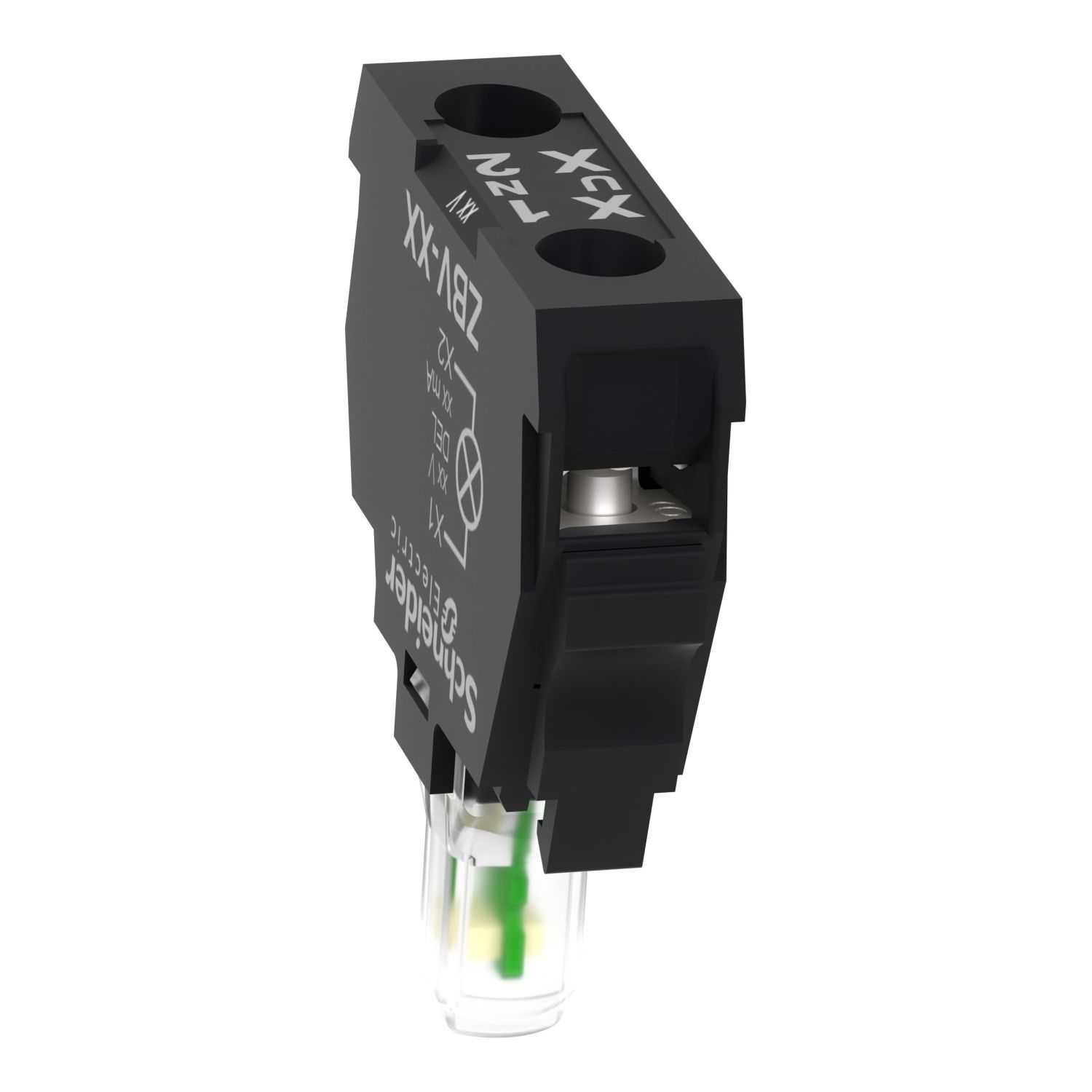

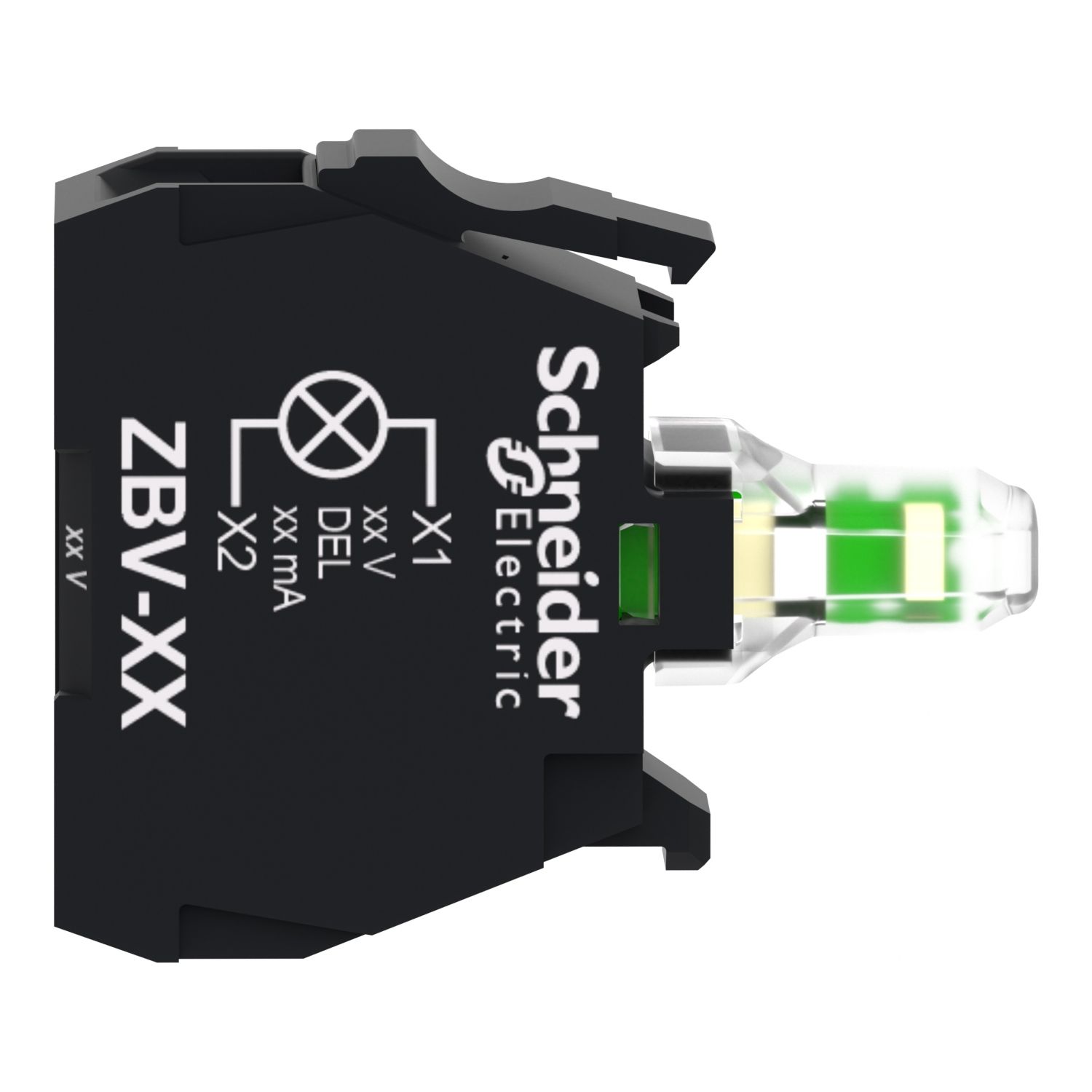

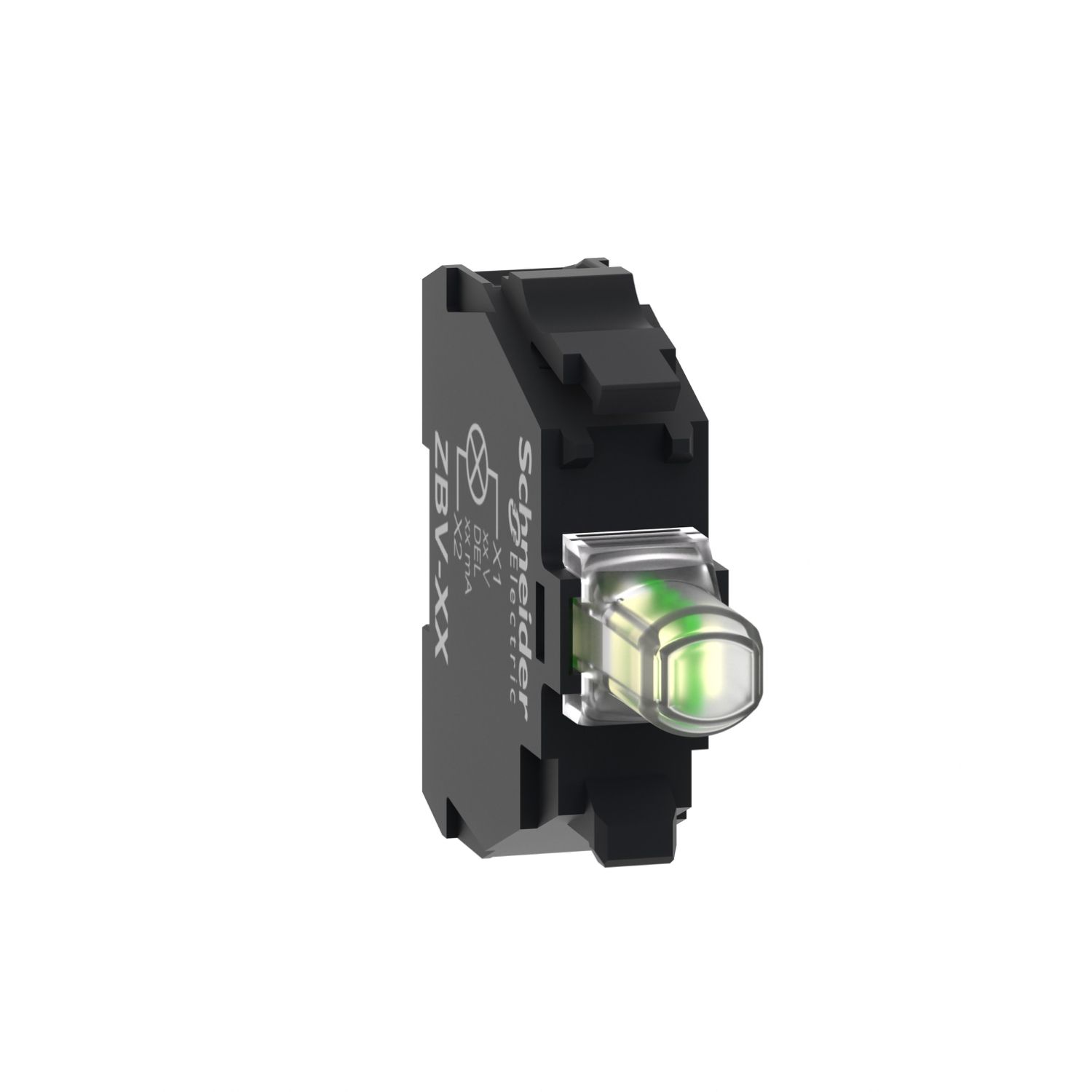

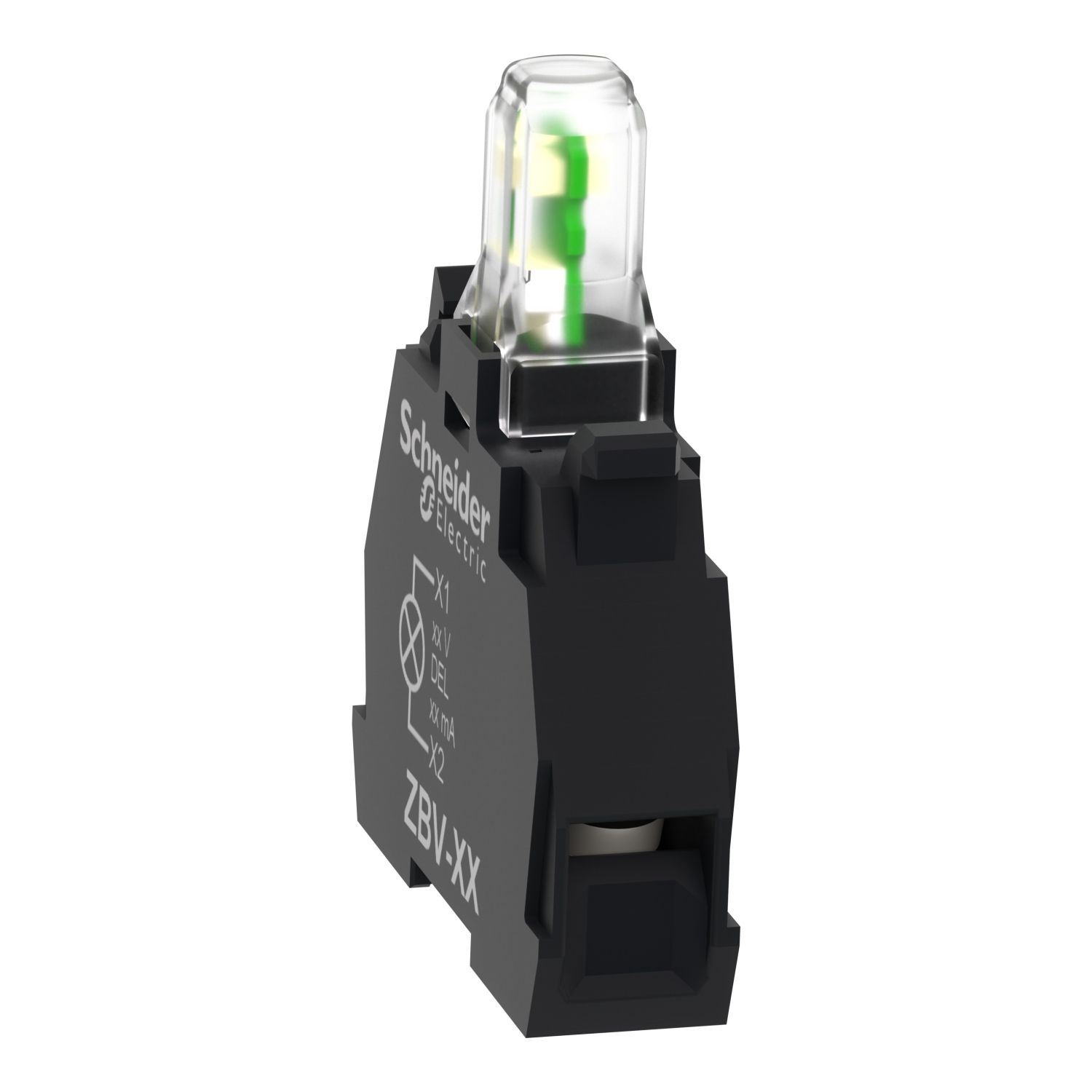

Picture of Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 110...120V AC
Picture of Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 110...120V AC
Picture of Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 110...120V AC
Picture of Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 110...120V AC
Picture of Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 110...120V AC
Picture of Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 110...120V AC
Picture of Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 110...120V AC
Picture of Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 110...120V AC
Picture of Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 110...120V AC
Picture of Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 110...120V AC
SKU:

ZBVG1

Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 110...120V AC

Old price: $46.09 INC GST
$35.95 INC GST
Available for Shipping : 10-Dec-2025
Product Selector
Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, screw clamp terminals, 110...120V AC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 10-Dec-2025

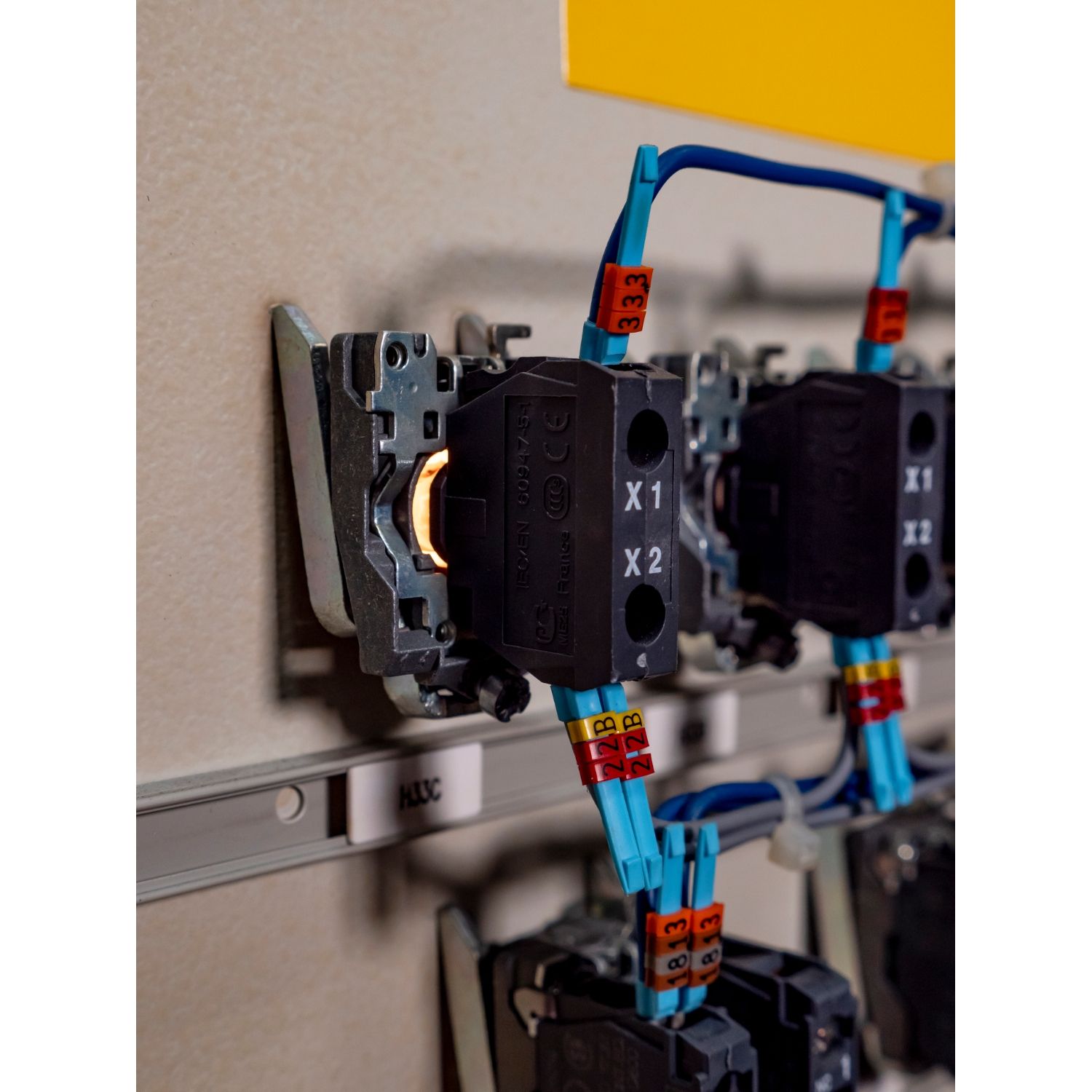

Image of product in real life situation
Image of product in real life situation
Catalog
CAD
Declaration of conformity
Environmental Disclosure
Circularity Profile
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony ZB, XB5 white Light block operates with an integral LED. It is supplied with 110V to 120V AC and uses screw clamp terminals. It has a plastic body. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It features high endurance LED lighting for less replacement and process downtimes. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Products specifications

Attribute name Attribute value
Main
Device short name ZBV
Light source colour white
Sale per indivisible quantity 5
Light block supply direct
Range of product Harmony XB5, Harmony XB4
Bulb base integral LED
[Us] rated supply voltage 110...120 V AC at 50/60 Hz
Signalling type steady
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Product or component type light block
Light source universal LED
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Compatibility code ZBV
Surge withstand 1 kV conforming to IEC 61000-4-5
Device presentation basic element
Electrical composition code PF1, P2, P1, MF1, M10, M6, M5, M4, M3, M2, M1
Service life 100000 h at rated voltage and 25 °C
Current consumption 14 mA
Net weight 0.017 kg
Mounting of block front mounting
Environment
Resistance to fast transients 2 kV conforming to IEC 61000-4-4
Protective treatment TH
Resistance to electrostatic discharge 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2, 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
Ambient air temperature for storage -40-70 °C
IP degree of protection IP20 conforming to IEC 60529
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation -40-70 °C
[Us] rated supply voltage 110...120 V
Electromagnetic emission class B conforming to IEC 55011
Standards JIS C8201-1, IEC 60947-1, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-5-4, JIS C8201-5-1, UL 508, IEC 60947-5-5
Product certifications CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.6 cm
Package 1 Width 4.4 cm
Package 1 Length 5.4 cm
Package 1 Weight 9.0 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 5.6 cm
Package 2 Width 4.4 cm
Package 2 Length 5.4 cm
Package 2 Weight 53.0 g
Unit Type of Package 3 3
Number of Units in Package 3 800
Package 3 Height 30.0 cm
Package 3 Width 30.0 cm
Package 3 Length 40.0 cm
Package 3 Weight 8.9 kg

Customers who bought this item also bought

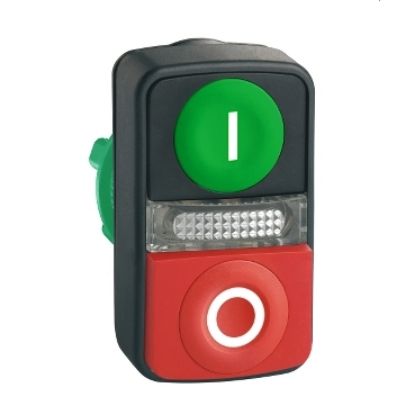

Harmony XB5, Illuminated double headed push button head, plastic, Ø22, 1 green flush I + 1 pilot light + 1 red projecting O
