SKU:

ZBRT1

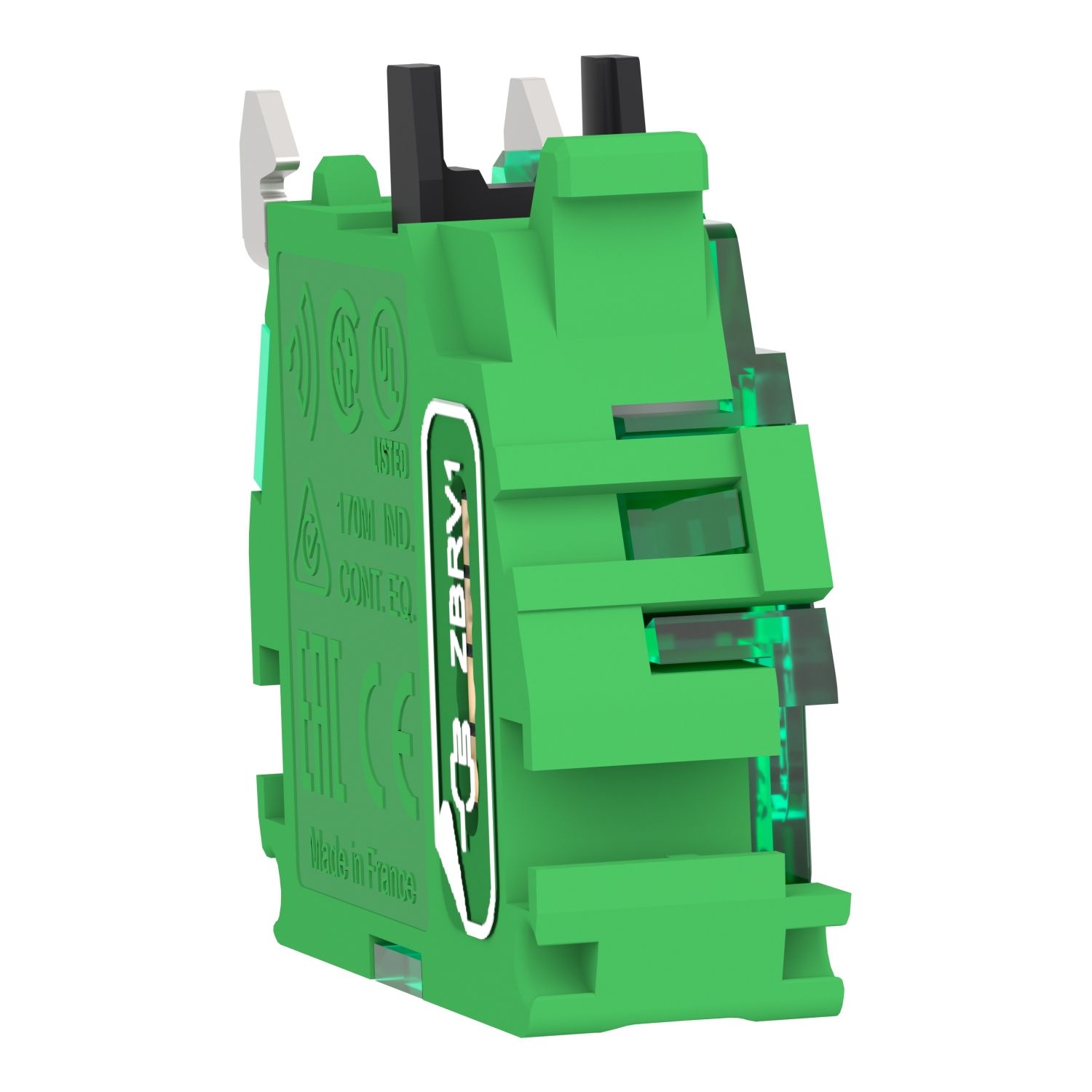

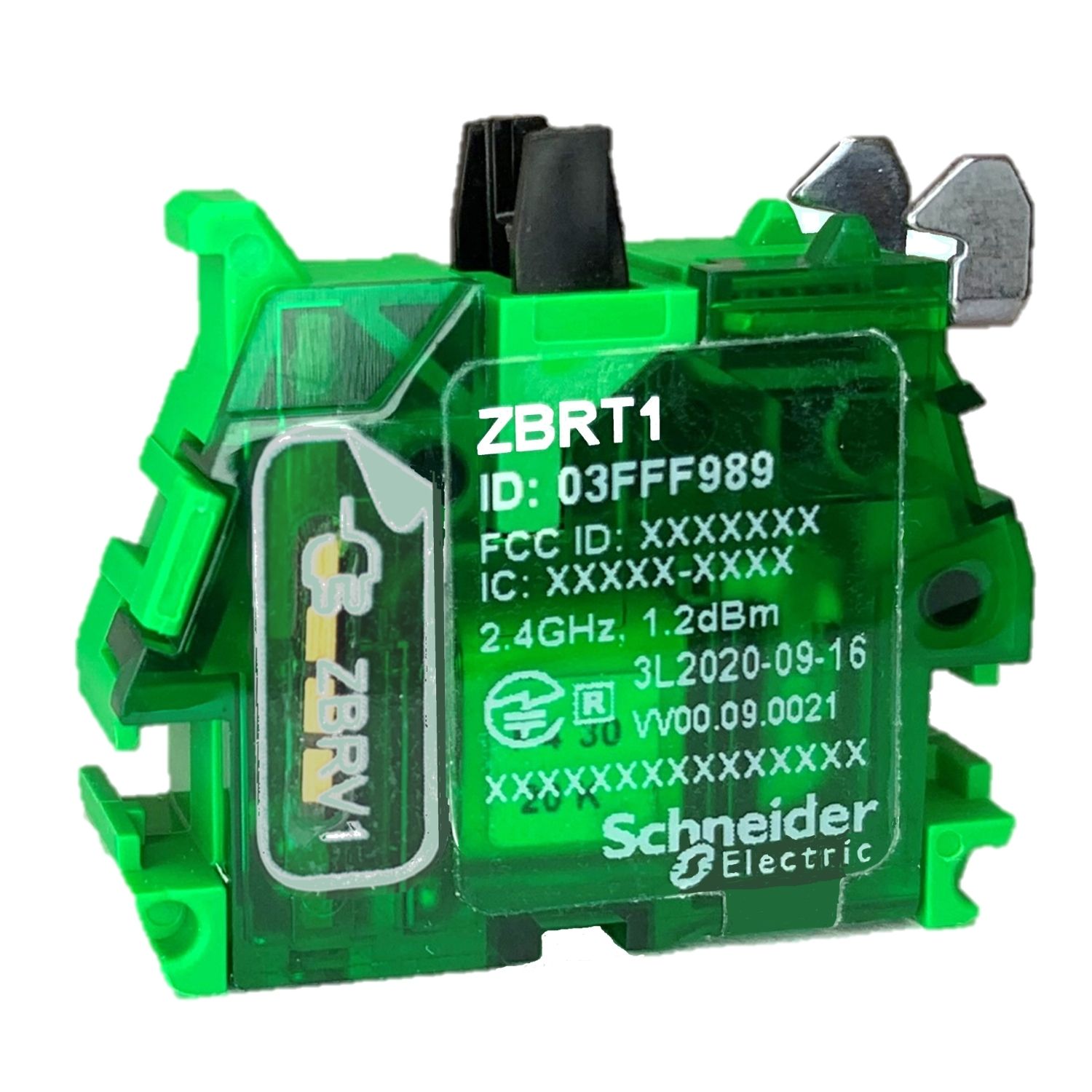

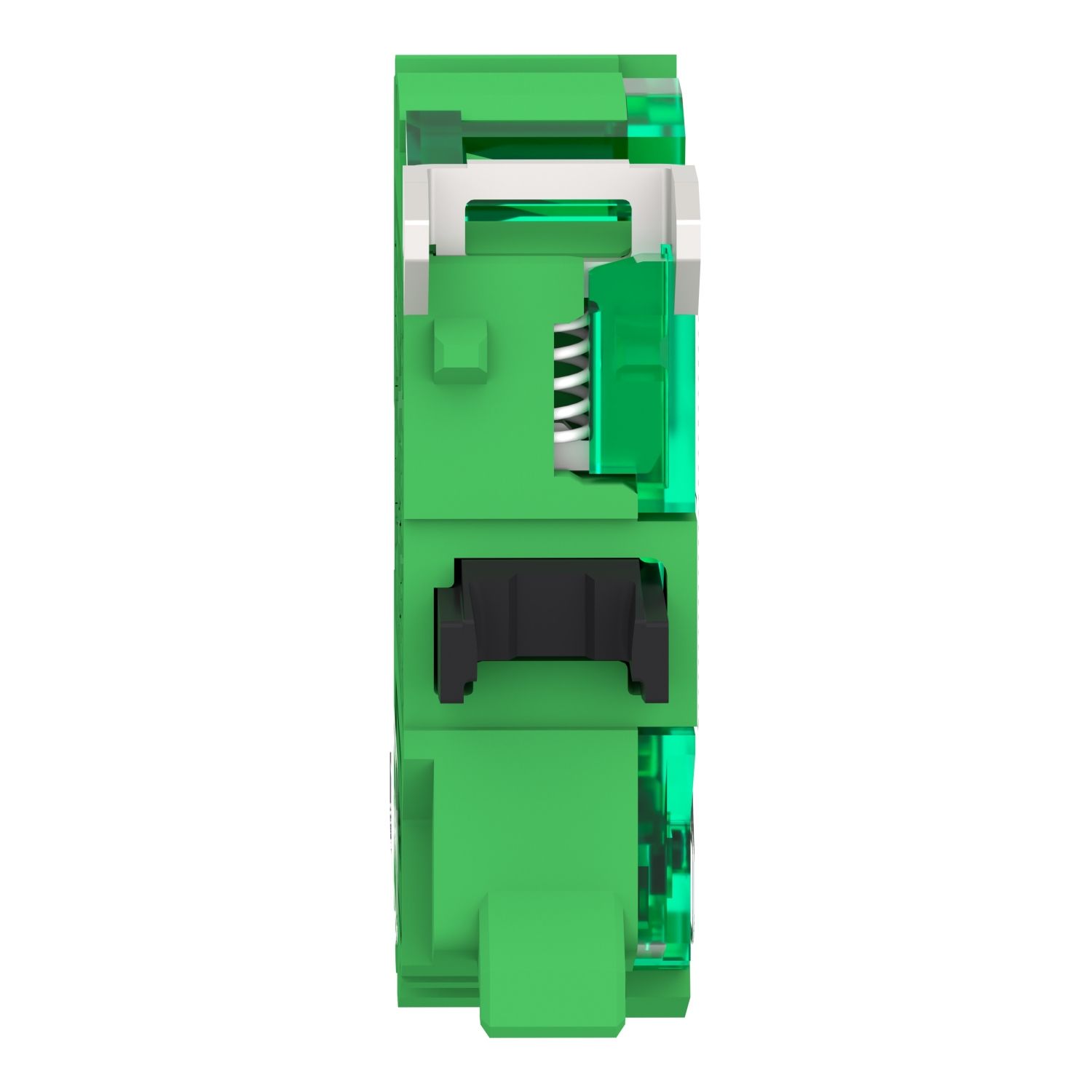

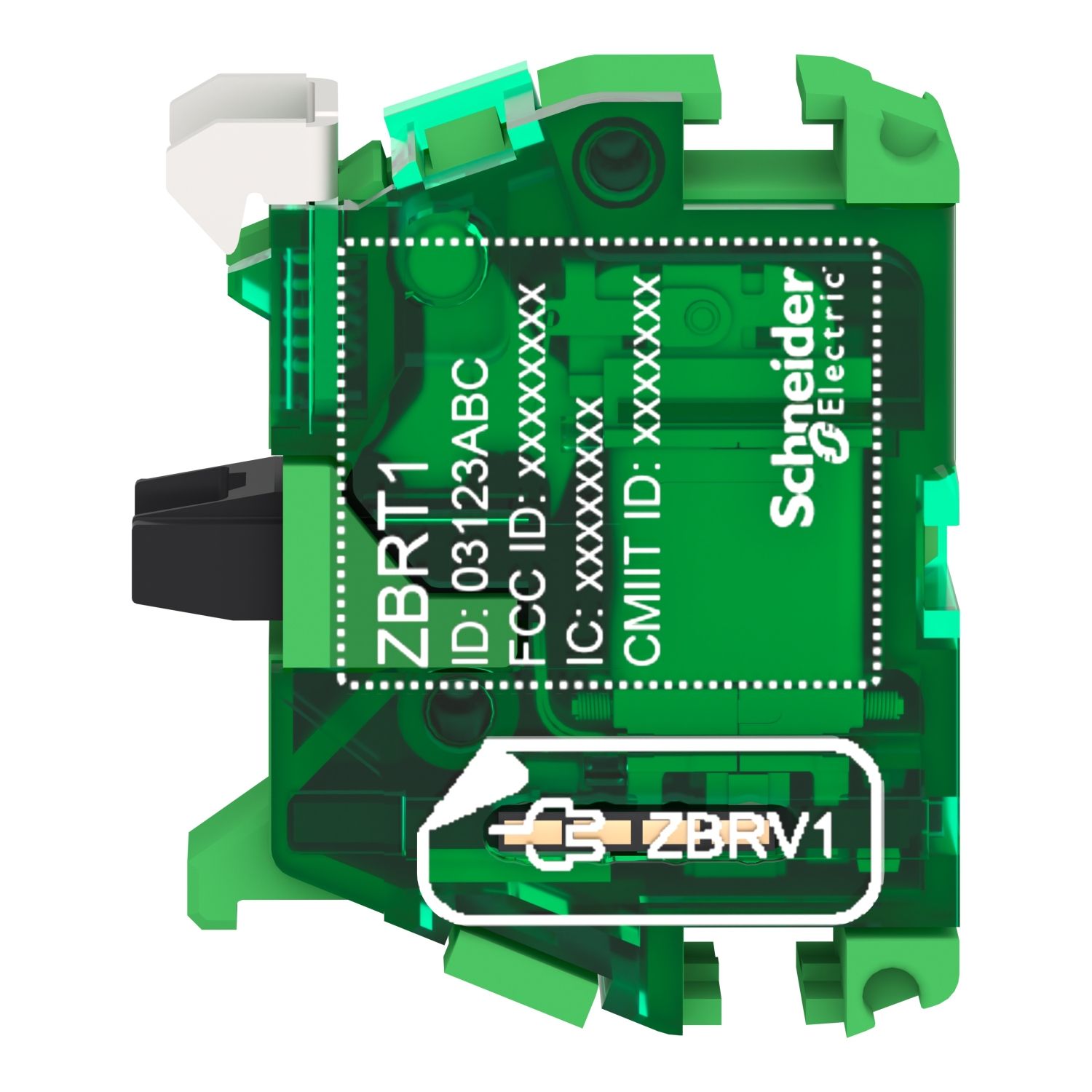

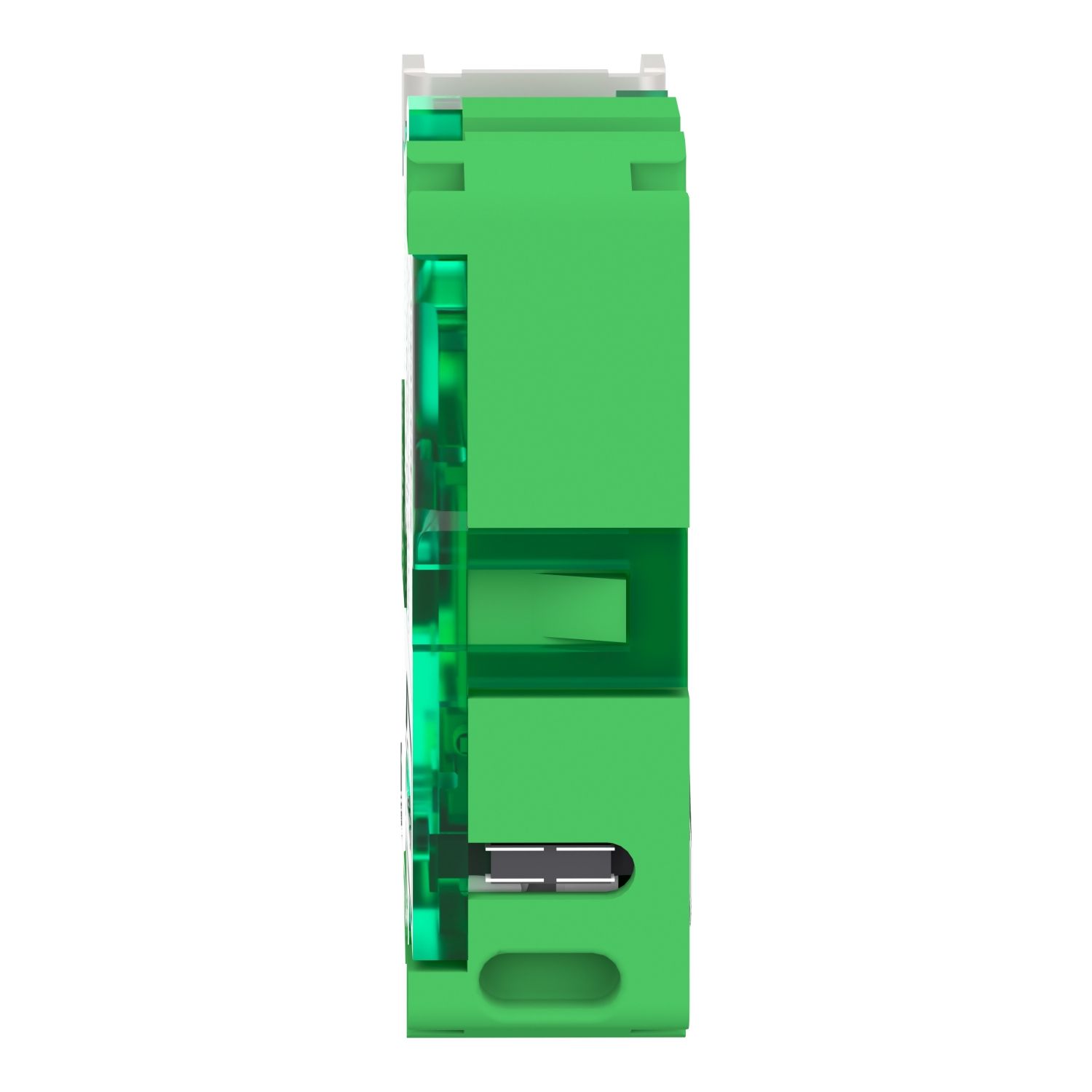

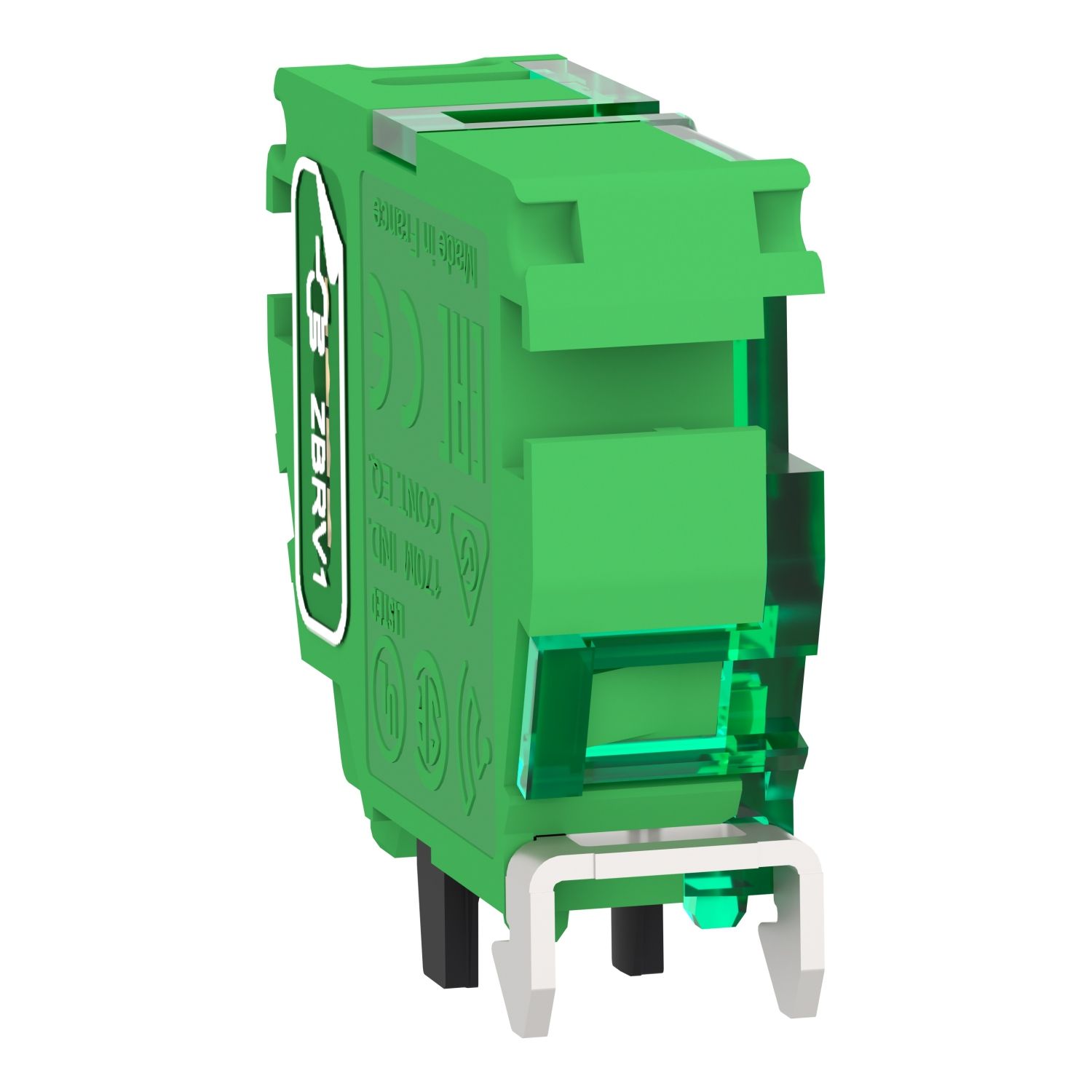

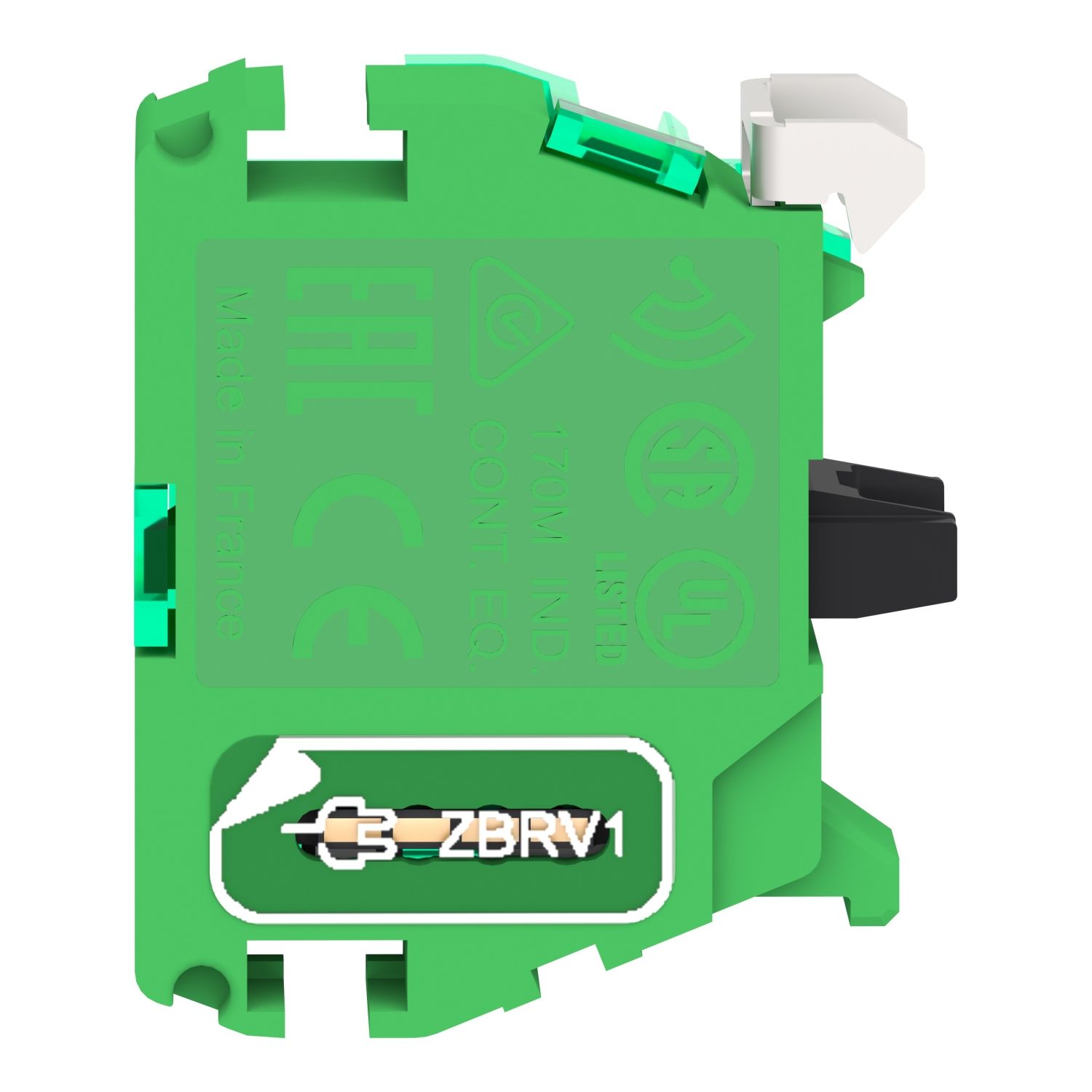

Transmitter for wireless and batteryless push button, Harmony XB5R, plastic, black

Old price: $155.32 INC GST
$121.15 INC GST
Available for Shipping : 04-Jan-2026
Product Selector
Transmitter for wireless and batteryless push button, Harmony XB5R, plastic, black
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 04-Jan-2026
Image of product in real life situation
Circularity Profile
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Environmental Disclosure
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Declaration of conformity
Instruction sheet
Image of product in real life situation
Image of product in real life situation
Catalog
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
User guide
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This transmitter is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. It features a transmitter for wireless and batteryless pushbutton. It provides 1 radio frame sent at the push of the button. It operates with the protocol Zigbee green power 2.4 GHz in compliance with IEEE 802.15.4. It weighs 25g.

Products specifications

Attribute name Attribute value
Main
Device short name XB5R
Contact operation simple action (push-button)
Transmission frequency 2405 MHz
Range of product Harmony XB5
Antenna type omnidirectional
Bezel material plastic
Level or class 5M00G7W
Product or component type wireless and batteryless transmitter
Mounting diameter 22 mm
Complementary
Bandwidth 5-5 MHz
Number of channels 16
Maximum sensing distance 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna, 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure, 100 m in free field
CAD overall height 41.5 mm
Antenna gain 0 dBi
Communication port protocol Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4
Electrical composition code PW1
Acquisition time 2 ms
Fixing mode fixing nut beneath head: 2-2.4 N.m
Operating travel 4.3 mm (total travel)
Operating force 10 N C/O changing electrical state
Mechanical robustness free fall resistance 1000 mm conforming to IEC 60068-2-32
CAD overall depth 43 mm
CAD overall width 30 mm
Radio agreement RSS, ICASA, FCC, ARIB T66, ANATEL
Max power consumption in W 1 mW
Net weight 0.025 kg
Response time < 2 ms
Embedding depth 42 mm
Standards UL 508, IEC 60947-5-1, IEC 60947-1, CSA C22.2 No 14
Modulation Technique O-QPSK
Environment
Mechanical durability 1000000 cycles
Relative humidity 95-95 % at -40-70 °C without condensation
Ambient air temperature for storage -40-70 °C
Directives 2004/108/EC - electromagnetic compatibility, 1999/5/EC - R&TTE directive
IP degree of protection IP30 (back face) conforming to IEC 60529
Electromagnetic compatibility susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Vibration resistance +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6, 5 gn (f= 11-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 25 gn (duration = 6 ms) for 6000 shocks conforming to IEC 60068-2-27
Product certifications BT 2006/95/EC, UL, C-Tick, CCC, GOST, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.2 cm
Package 1 Width 4.5 cm
Package 1 Length 5.3 cm
Package 1 Weight 18 g
Unit Type of Package 2 2
Number of Units in Package 2 75
Package 2 Height 15 cm
Package 2 Width 15 cm
Package 2 Length 40 cm
Package 2 Weight 1.533 kg
