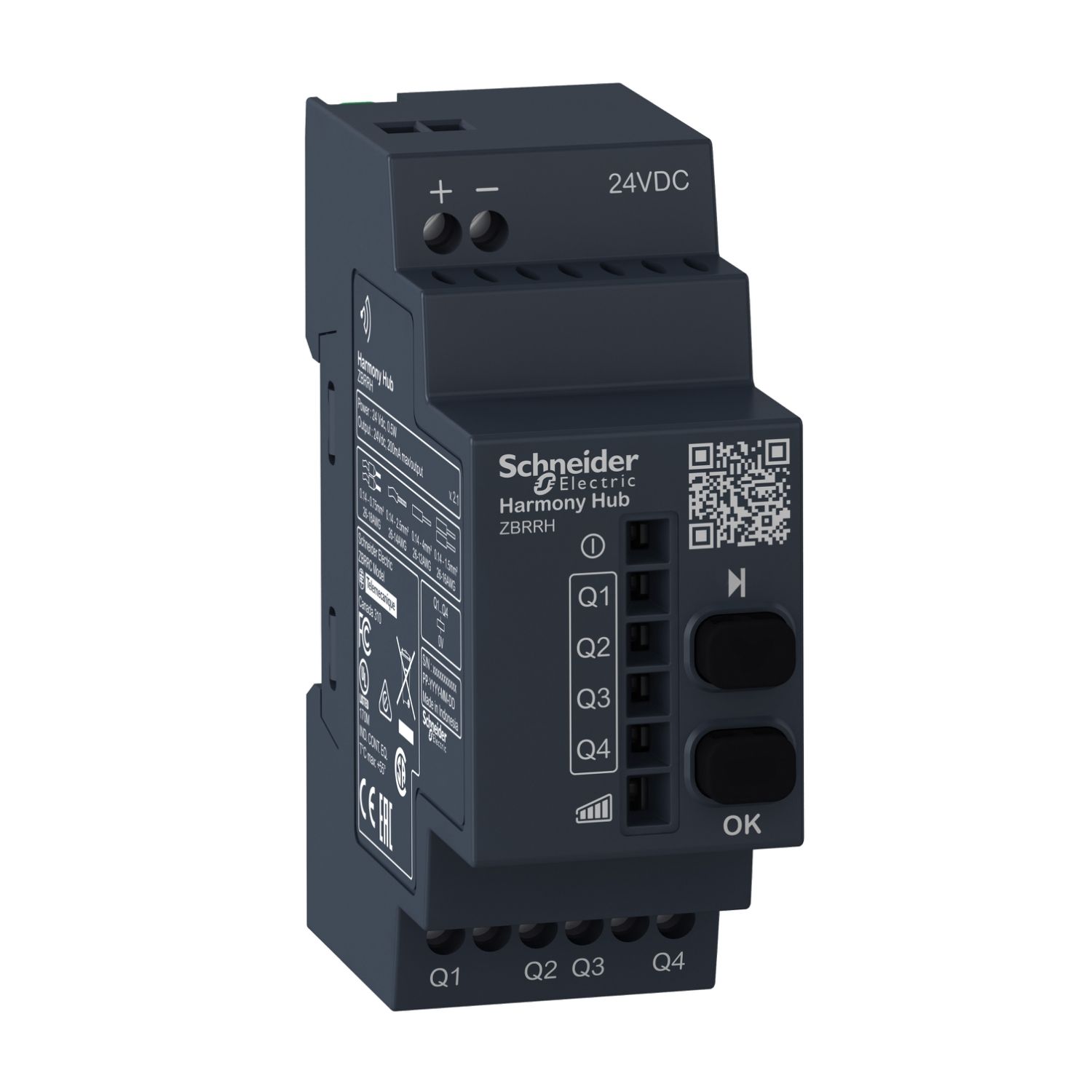

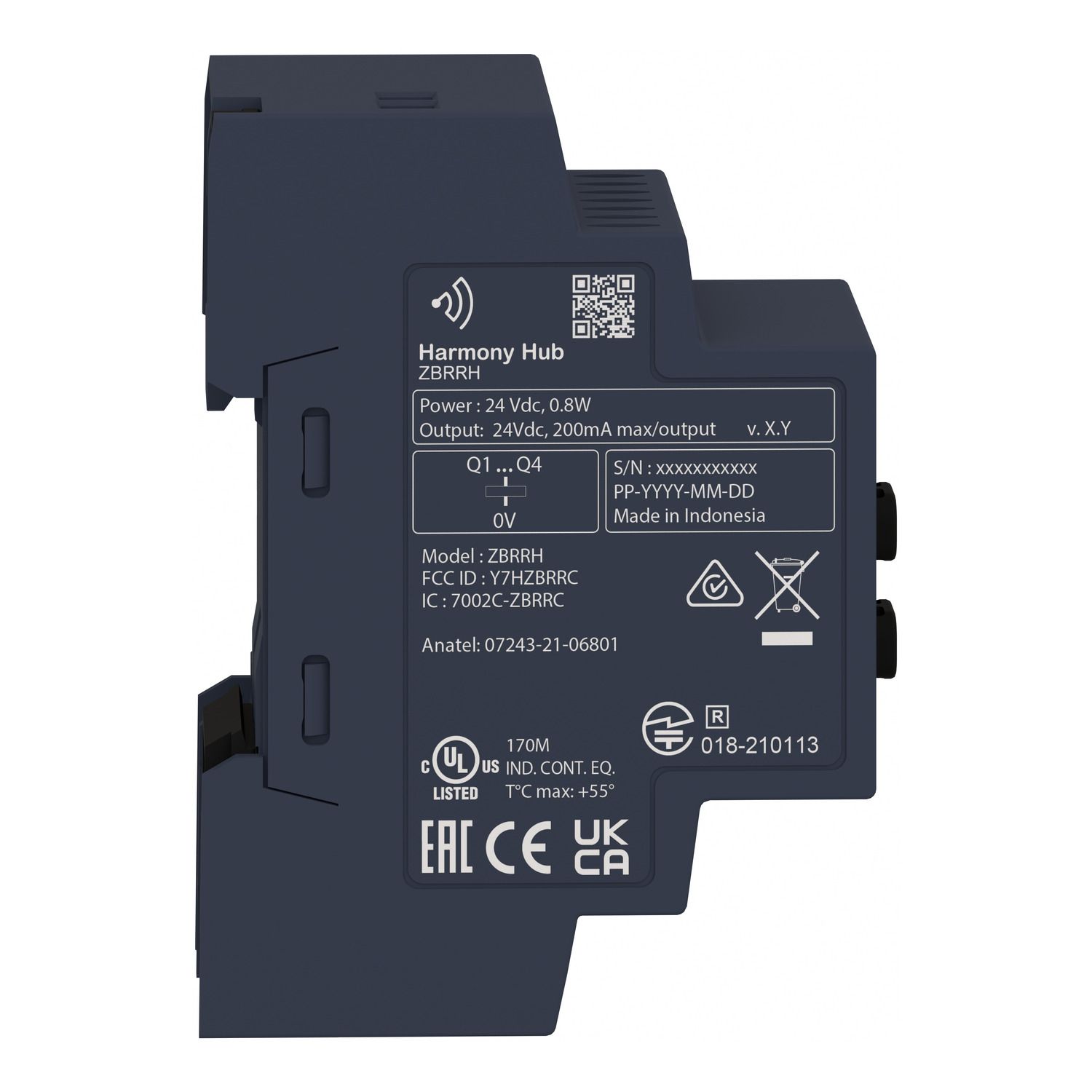

Picture of Wireless Receiver, Harmony XB5R, 4 PNP, 2 pusbuttons, LED, 200mA, 24V DC

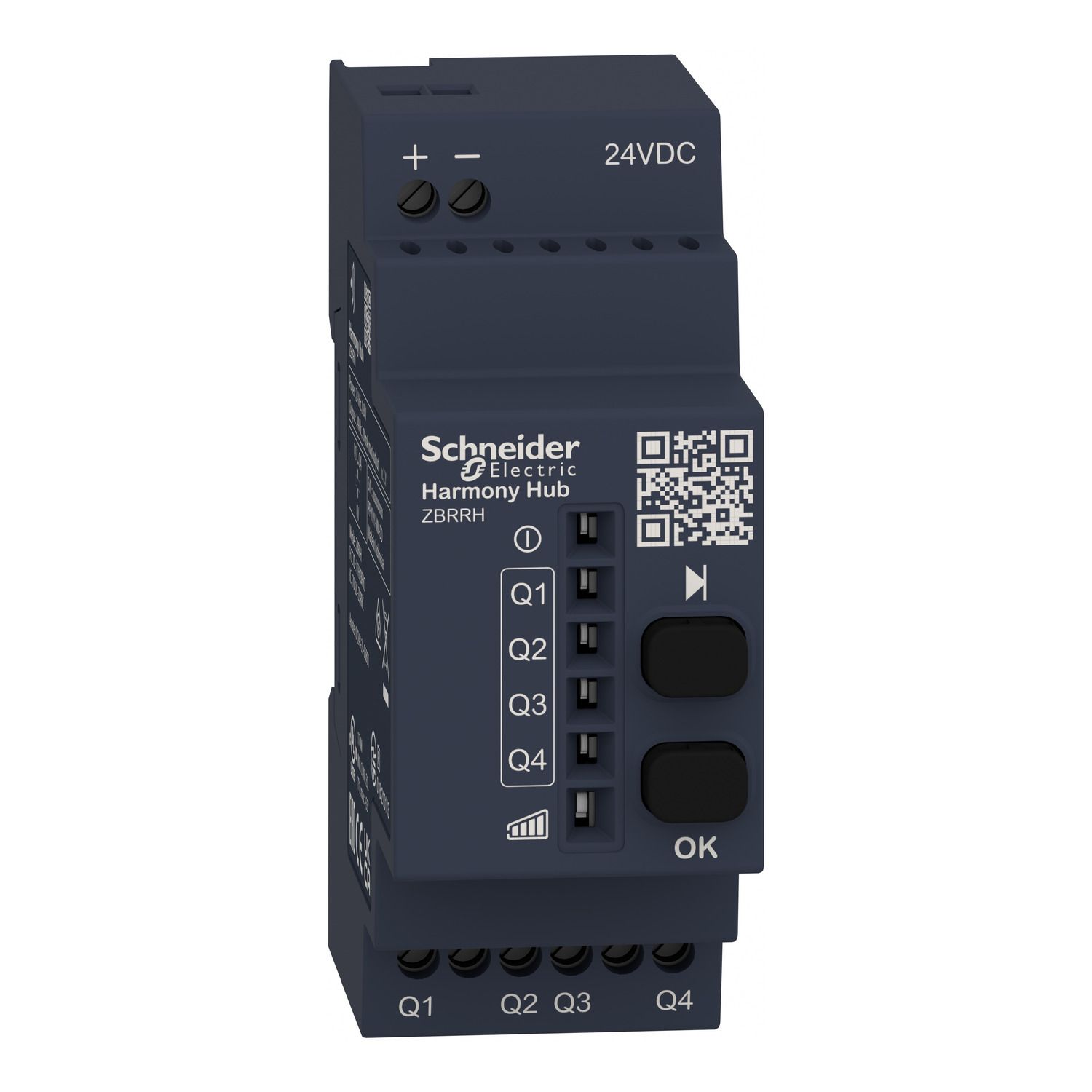

Picture of Wireless Receiver, Harmony XB5R, 4 PNP, 2 pusbuttons, LED, 200mA, 24V DC

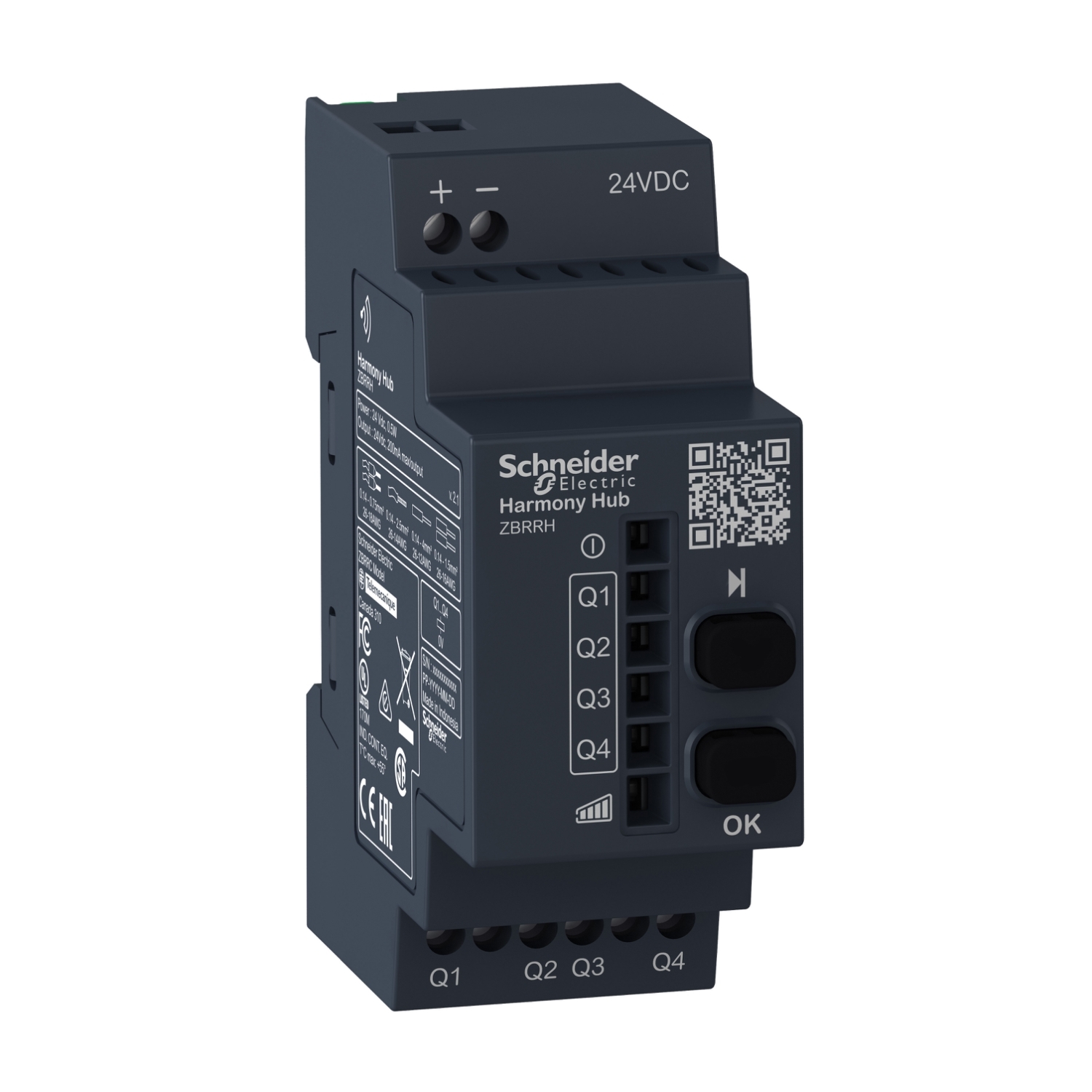

Picture of Wireless Receiver, Harmony XB5R, 4 PNP, 2 pusbuttons, LED, 200mA, 24V DC

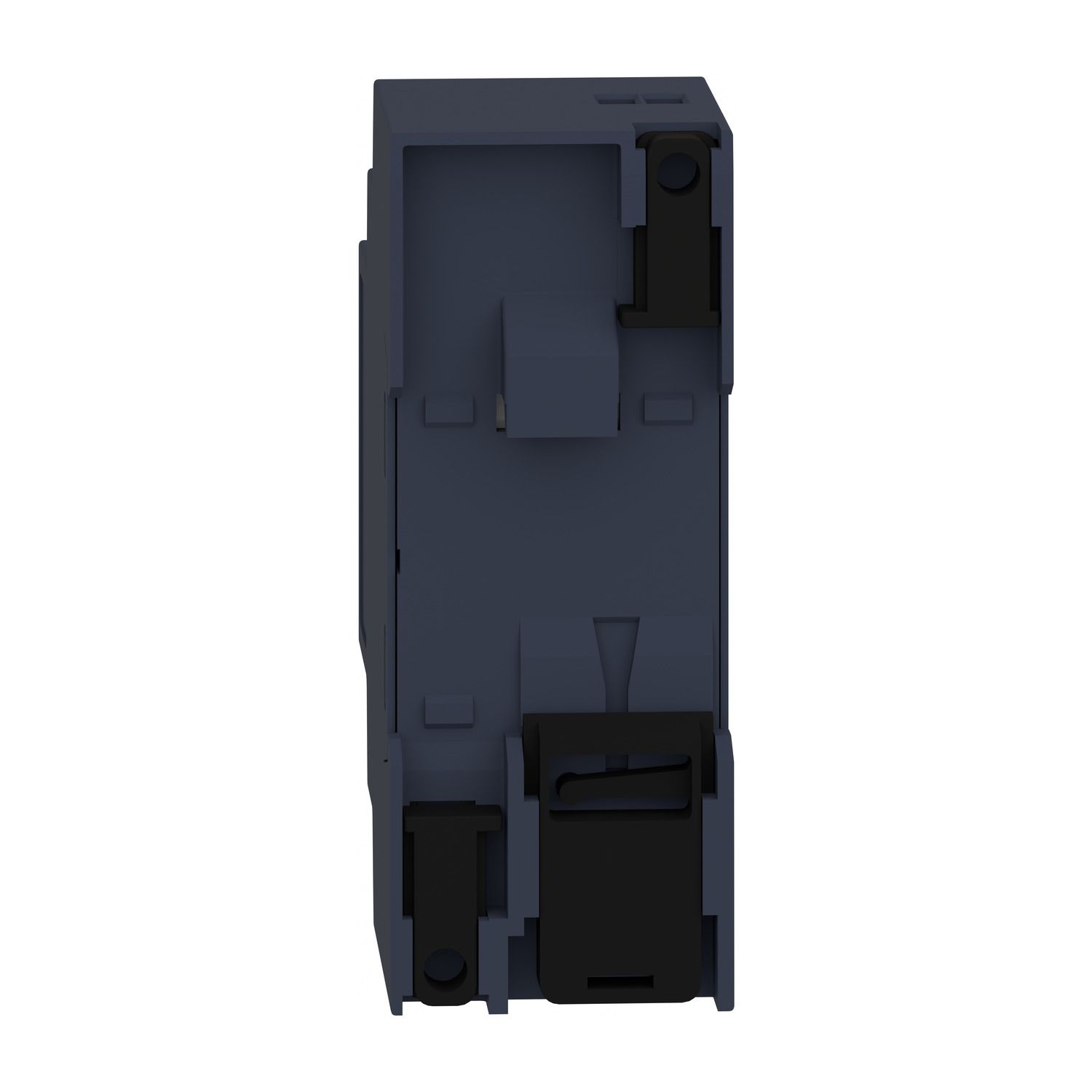

Picture of Wireless Receiver, Harmony XB5R, 4 PNP, 2 pusbuttons, LED, 200mA, 24V DC

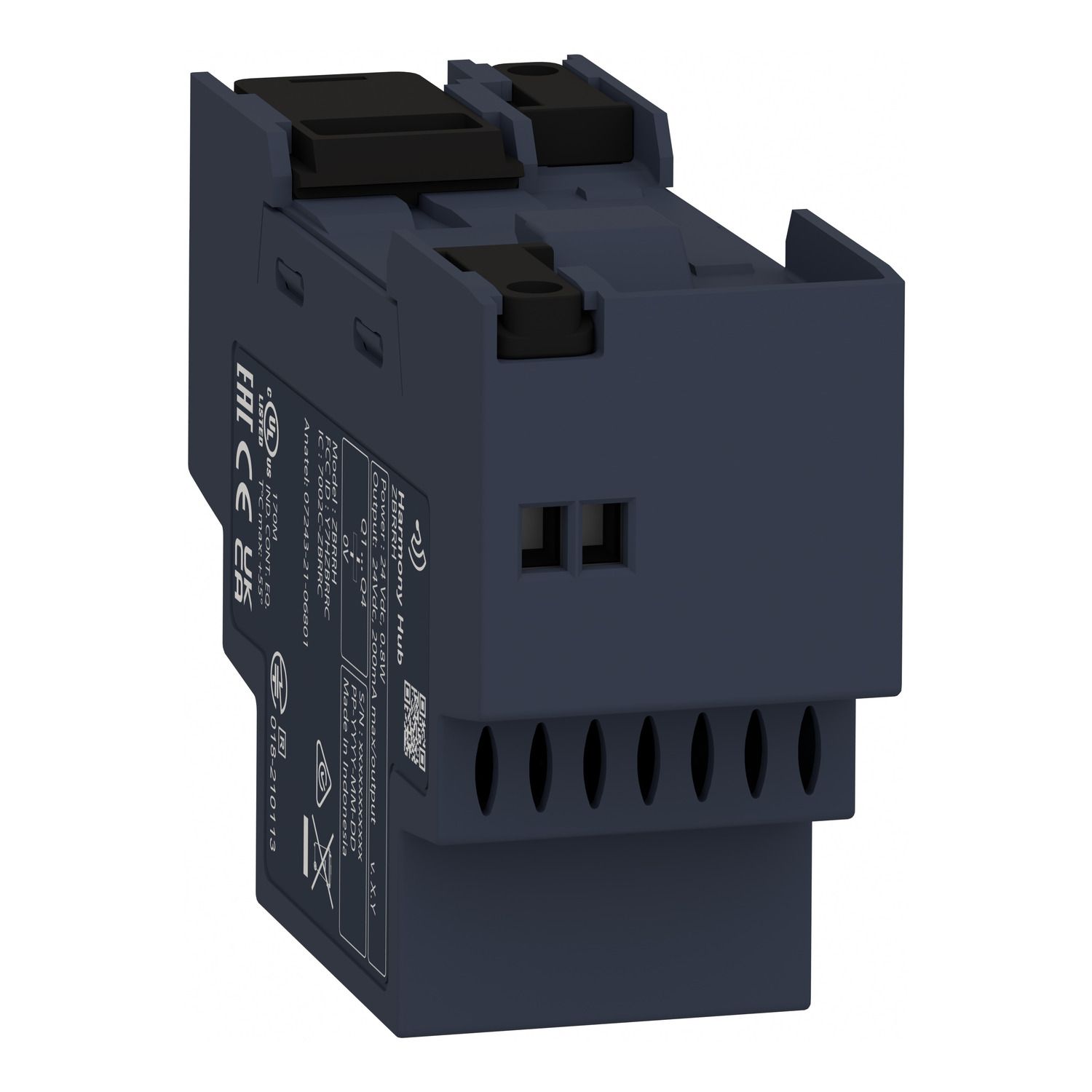

Picture of Wireless Receiver, Harmony XB5R, 4 PNP, 2 pusbuttons, LED, 200mA, 24V DC
Picture of Wireless Receiver, Harmony XB5R, 4 PNP, 2 pusbuttons, LED, 200mA, 24V DC
Picture of Wireless Receiver, Harmony XB5R, 4 PNP, 2 pusbuttons, LED, 200mA, 24V DC

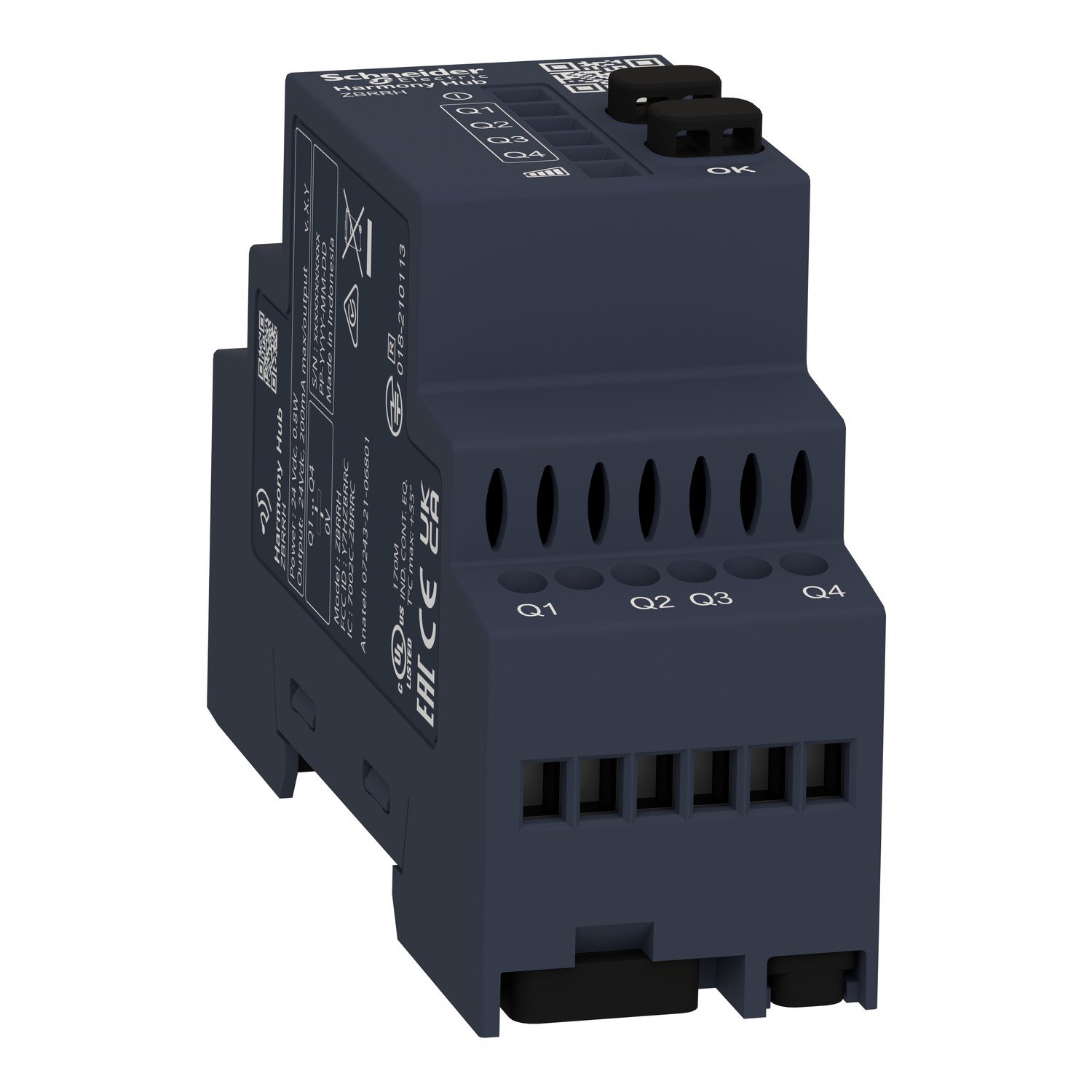

Picture of Wireless Receiver, Harmony XB5R, 4 PNP, 2 pusbuttons, LED, 200mA, 24V DC
SKU:

ZBRRH

Wireless Receiver, Harmony XB5R, 4 PNP, 2 pusbuttons, LED, 200mA, 24V DC

$300.85
Available for Shipping : 10-Oct-2024
Product Selector
Wireless Receiver, Harmony XB5R, 4 PNP, 2 pusbuttons, LED, 200mA, 24V DC
Be the first to review this product
Manufacturer: Schneider Electric
User guide
Catalogue
Technical illustration
Declaration of conformity
Instruction sheet
Product environmental
End of life manual
Technical illustration
Product Page Link
Product Data Sheet
This product is part of the Harmony XB5R range, an offer of wireless receiver. It is a green premium product and conforms to international standard and certifications.

Products specifications

Attribute name Attribute value
Main
Device short name ZBRRH
Function of module bi-stable
Product specific application interface to Harmony hub
Level or class 5M00G7W
Reset time 2 ms time delay
Product or component type wireless receiver
Transmission frequency 2405 MHz
Range of product Harmony
Antenna type omnidirectional
Complementary
Bandwidth 5-5 MHz
Maximum power consumption in VA 20 VA DC
Maximum power consumption in W 20 W DC
Tightening torque 0.5-1 N.m conforming to EN/IEC 60947-1
Depth 75 mm
Output type transistor PNP
Width 36 mm
Housing material self-extinguishing plastic
Mounting support mounting plate, 35 mm symmetrical DIN rail conforming to EN/IEC 60715
Breaking capacity 4.8 W (per output)
Number of channels 1
Max power consumption in W 1 mW
Maximum sensing distance 40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna, 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure, 100 m in free field
Rated short-duration power frequency withstand voltage 1 kV 50 Hz conforming to EN/IEC 60947-5-1
Minimum switching current 10 mA at 5 V DC
Surge withstand 1 kV common mode conforming to IEC 61000-4-5, 0.5 kV differential mode conforming to IEC 61000-4-5
Time delay range 0.5 s (tolerance: - 15...15 %)
Net weight 0.13 kg
Utilisation category DC-13 conforming to EN/IEC 60947-5-1
Antenna gain 0 dBi
Operating position any position without derating
Response time < 30 ms after transmitter clicks
Maximum voltage drop <2 V DC at 2 A
Communication port protocol Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4
Output contacts 4 PNP
Channels utilisation 1 Harmony Hub per receiver
Status LED 4 LEDs green for relay ON, 1 LED green and yellow for reception signal, 1 LED green for power ON
[Uimp] rated impulse withstand voltage 0.8 kV
Modulation Technique O-QPSK
Short-circuit protection 0.4 A fuse type fast blow
Maximum switching current 0.2 mA DC
Height 108 mm
[Us] rated supply voltage 24 V DC - 15...20 %
Electrical connection 2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - flexible - with cable end conforming to IEC 60947-1, 1 conductor cable 0.14-4 mm² - AWG 26...AWG 12 - flexible - with cable end conforming to IEC 60947-1, 2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - solid - without cable end conforming to IEC 60947-1, 1 conductor cable 0.14-2.5 mm² - AWG 26...AWG 14 - solid - without cable end conforming to IEC 60947-1
Environment
[Ui] rated insulation voltage 60 V conforming to IEC 60664-1
Radio agreement ICASA, FCC, ARIB T66, ANATEL, SRRC, RSS
Relative humidity 90-90 % at -20-55 °C, without condensation conforming to ETSI EN 300 440-1
Overvoltage category III conforming to IEC 60664-1
Ambient air temperature for storage -40-70 °C
Pollution degree 2 conforming to IEC 60664-1
IP degree of protection IP20 (terminals), IP20 (casing) conforming to IEC 60529
Insulation resistance > 500 MOhm at 500 V DC conforming to NF C 20-030
Vibration resistance 2 gn (f= 8-150 Hz) conforming to IEC 60068-2-6, +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6
Marking CE
Shock resistance 10 gn (duration = 16 ms) for 6000 shocks conforming to IEC 60068-2-27
Electromagnetic compatibility immunity to microbreaks and voltage drops - test level: 7 ms conforming to IEC 61000-4-11, 1.2/50 µs shock waves immunity test - test level: 1 kV (common mode) conforming to IEC 61000-4-5, 1.2/50 µs shock waves immunity test - test level: 0.5 kV (differential mode) conforming to IEC 61000-4-5, electrical fast transient/burst immunity test - test level: 1 kV (PNP output wires) conforming to IEC 61000-4-4, radiated emission conforming to ETSI EN 300 440-2, conducted emission conforming to ETSI EN 300 489-3, conducted emission conforming to EN 300-489-1, radiated emission conforming to ETSI EN 300 440-1, conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6, electrical fast transient/burst immunity test - test level: 2 kV (power supply wires) conforming to IEC 61000-4-4, susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3, electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2, conducted and radiated emissions class B conforming to CISPR 22, immunity for industrial environments conforming to EN/IEC 61000-6-2
Standards EN/IEC 60947-5-1
Product certifications UL, C-Tick, GOST, CSA, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 9.200 cm
Package 1 Width 10.800 cm
Package 1 Length 10.200 cm
Package 1 Weight 118.000 g
Unit Type of Package 2 2
Number of Units in Package 2 64
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 8.400 kg
