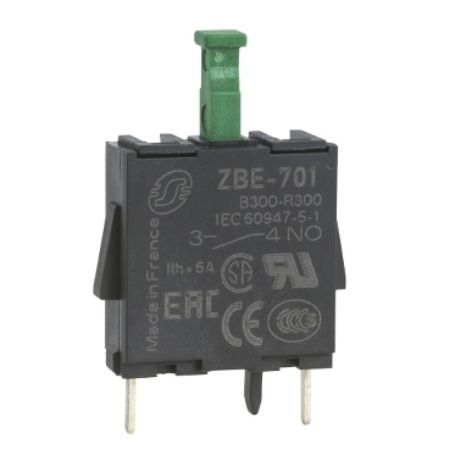

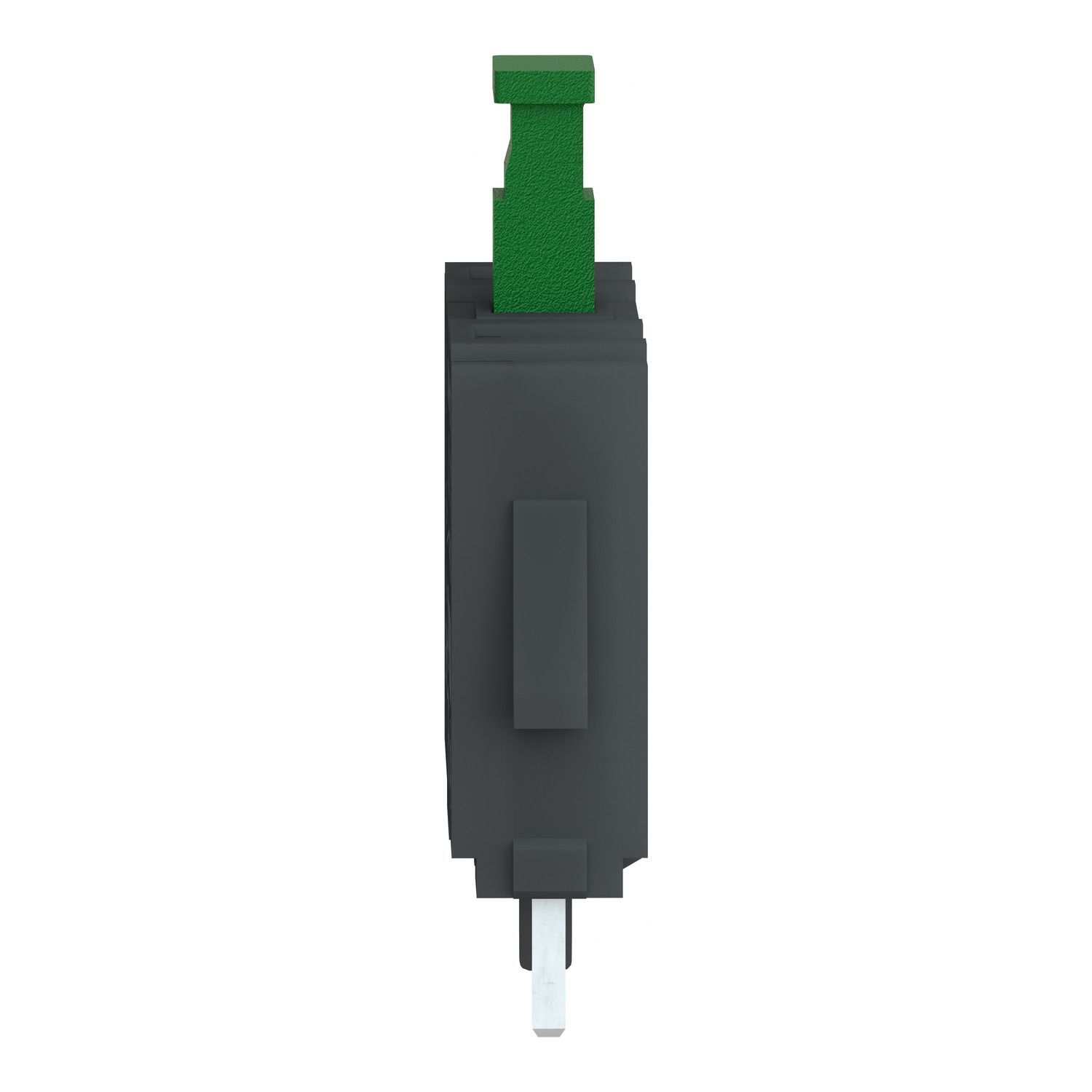

Picture of Single contact block, Harmony XB4, silver alloy, pins for printed circuit board, 1NO

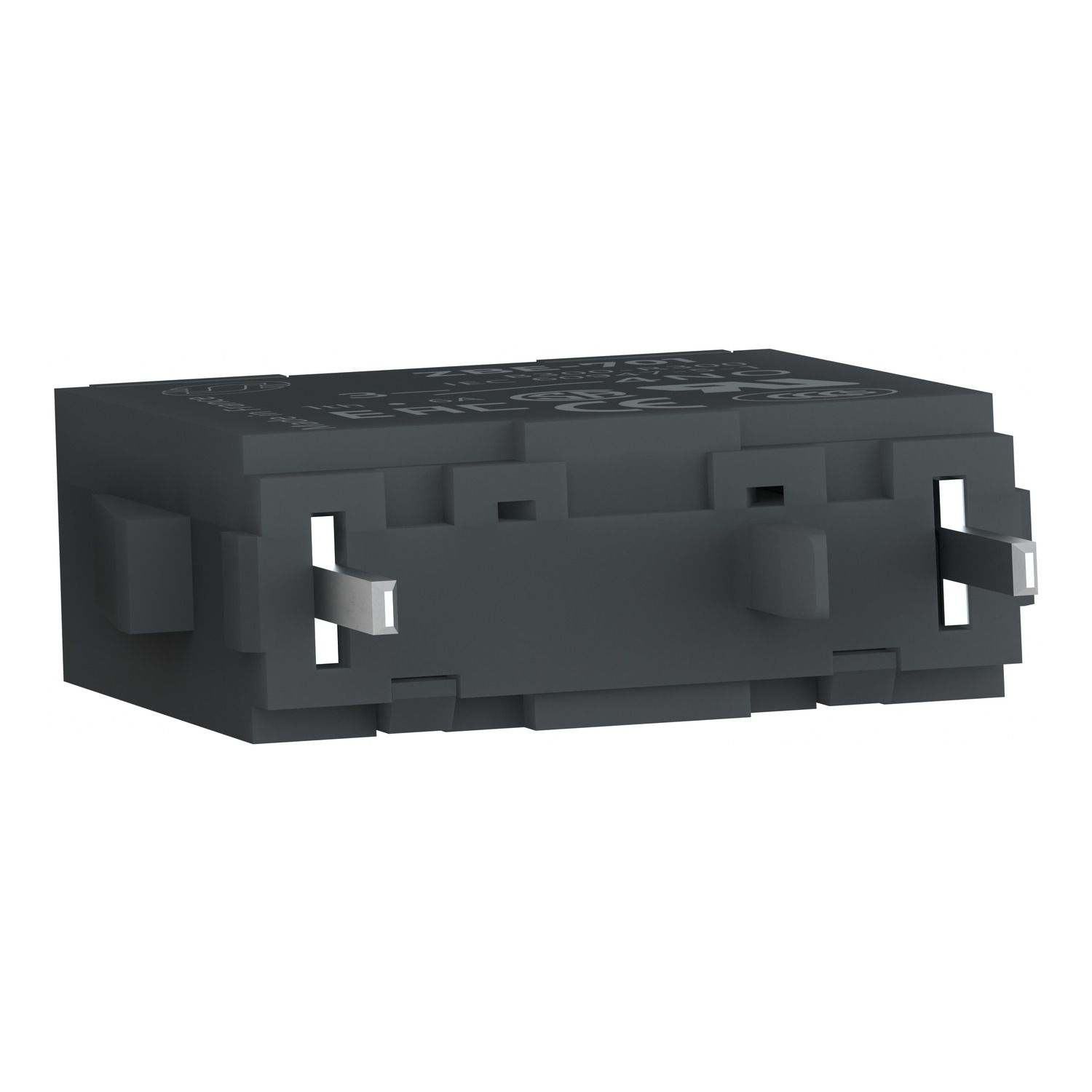

Picture of Single contact block, Harmony XB4, silver alloy, pins for printed circuit board, 1NO

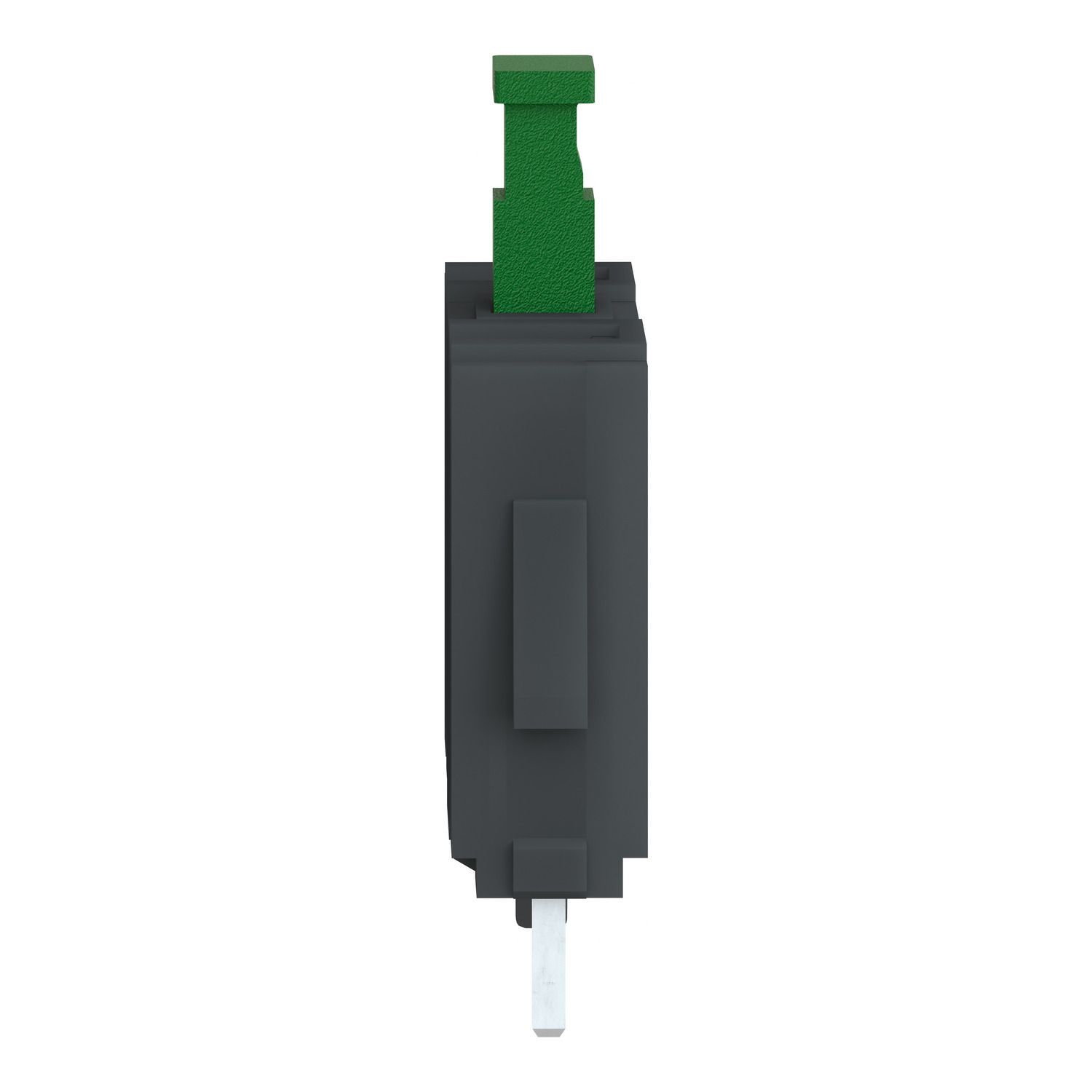

Picture of Single contact block, Harmony XB4, silver alloy, pins for printed circuit board, 1NO

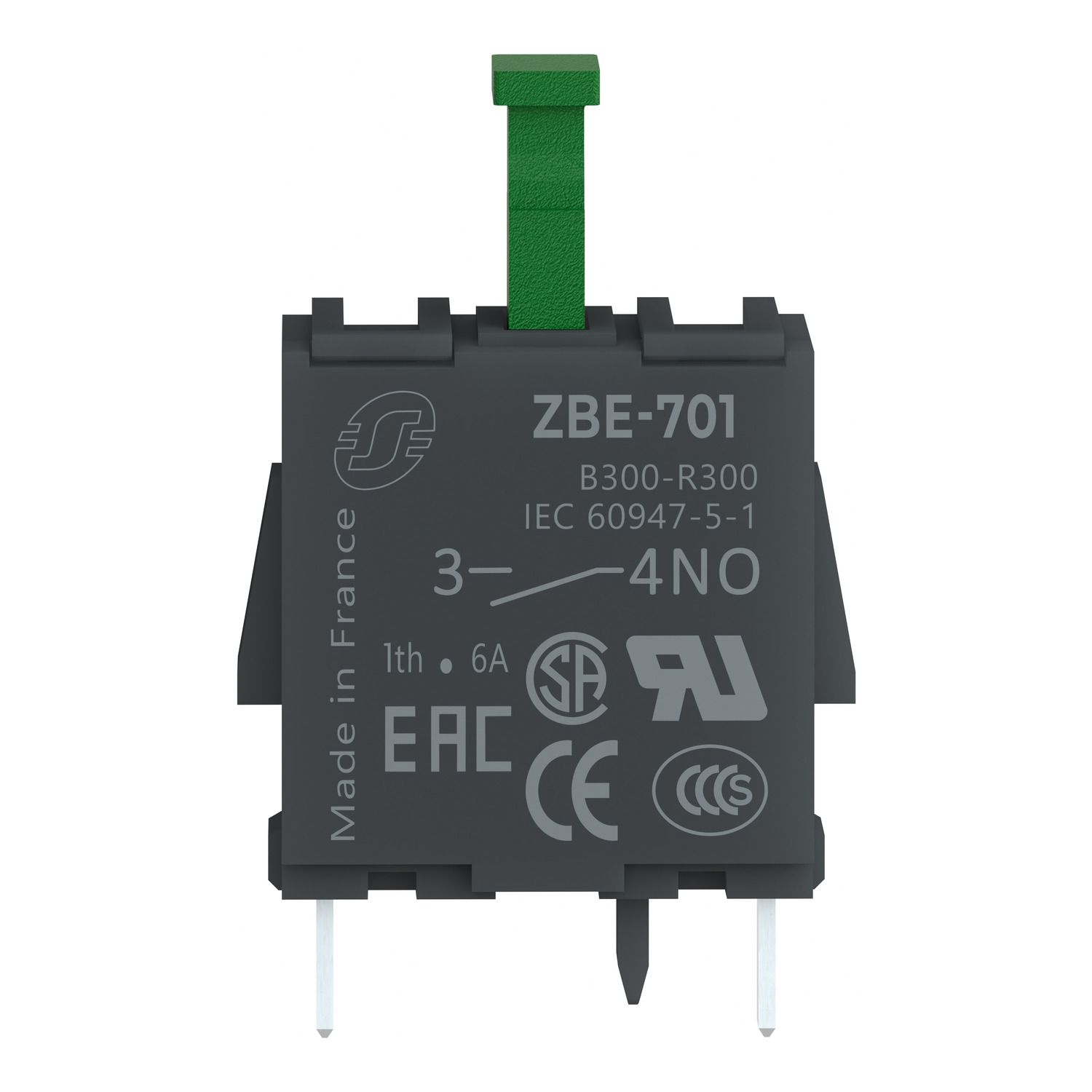

Picture of Single contact block, Harmony XB4, silver alloy, pins for printed circuit board, 1NO

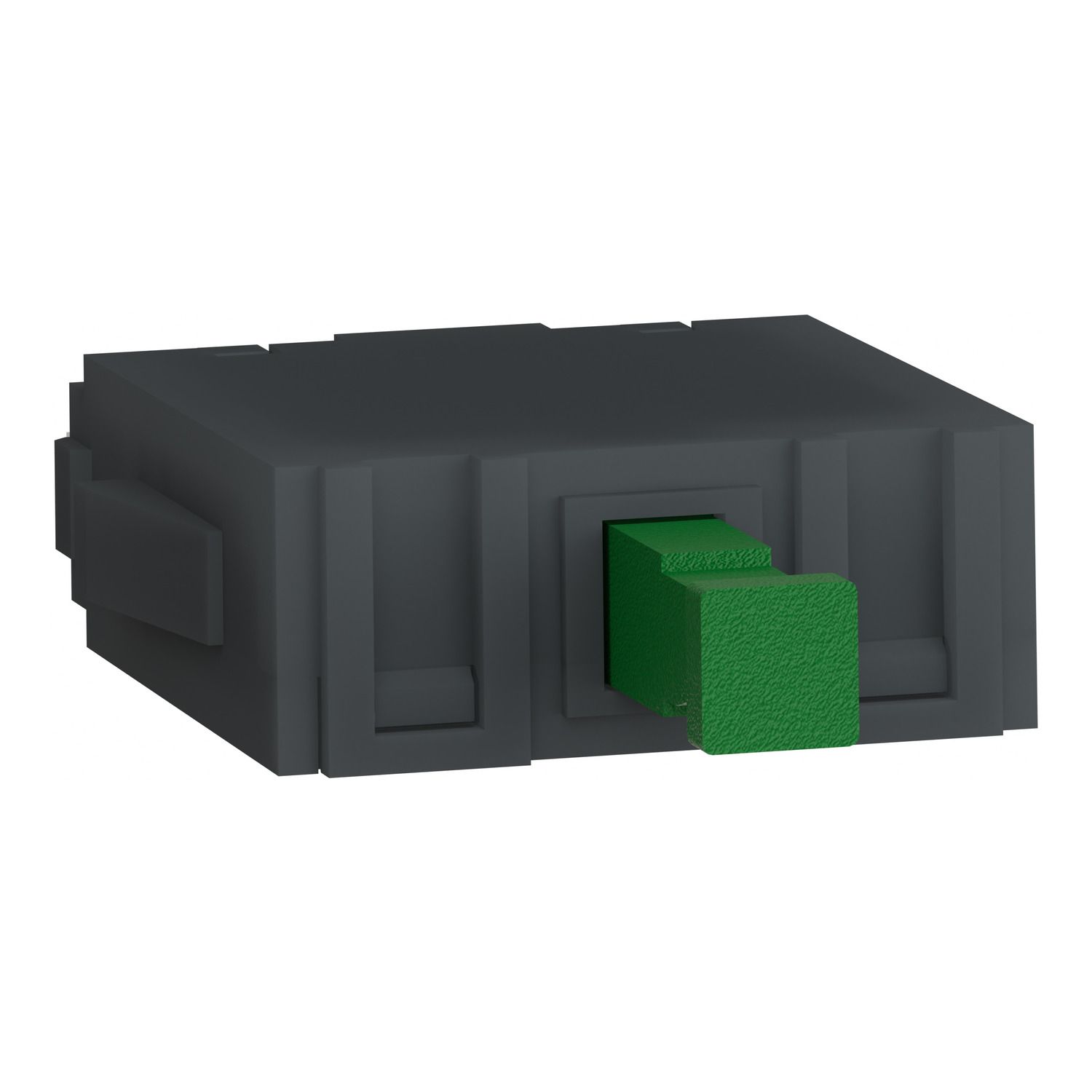

Picture of Single contact block, Harmony XB4, silver alloy, pins for printed circuit board, 1NO
Picture of Single contact block, Harmony XB4, silver alloy, pins for printed circuit board, 1NO

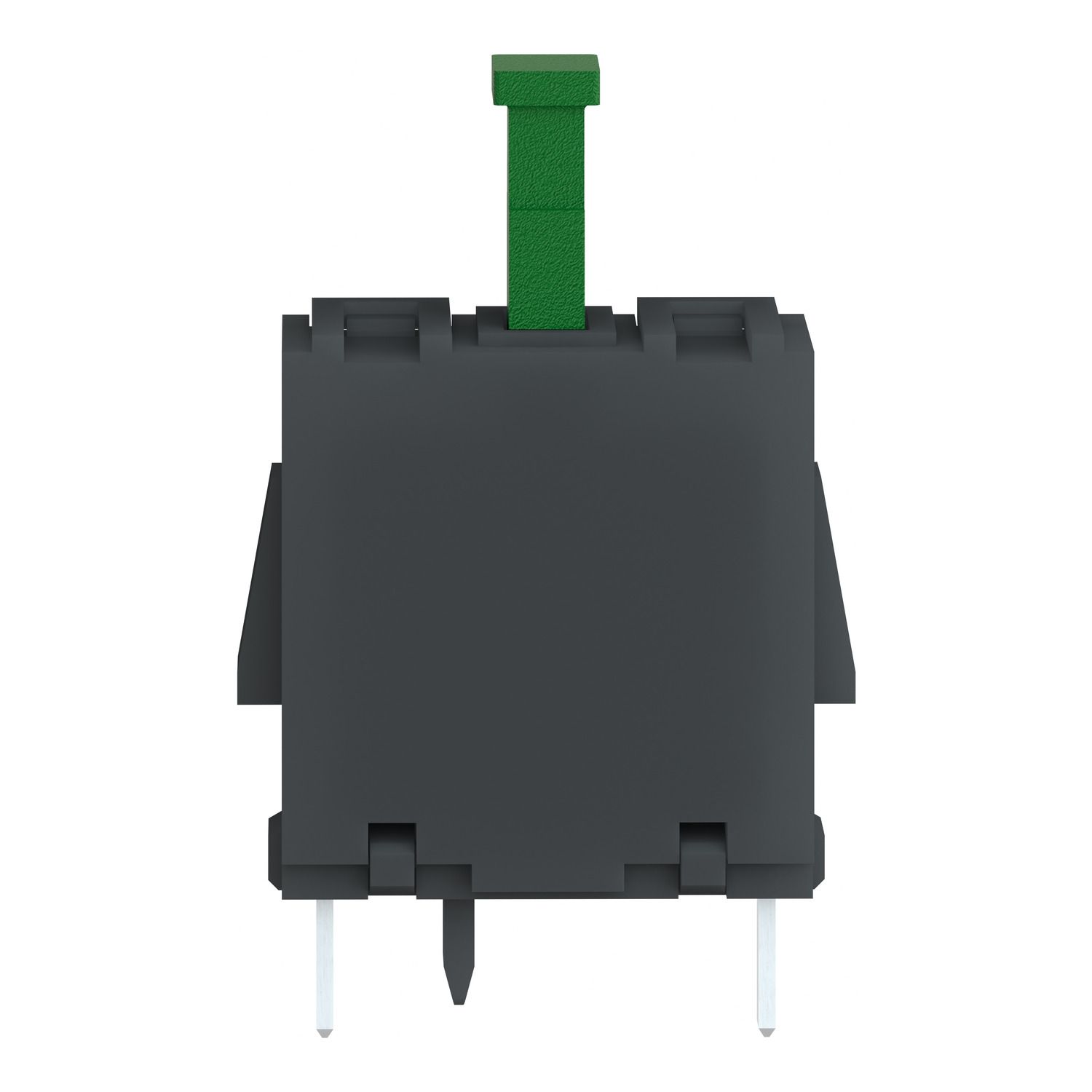

Picture of Single contact block, Harmony XB4, silver alloy, pins for printed circuit board, 1NO

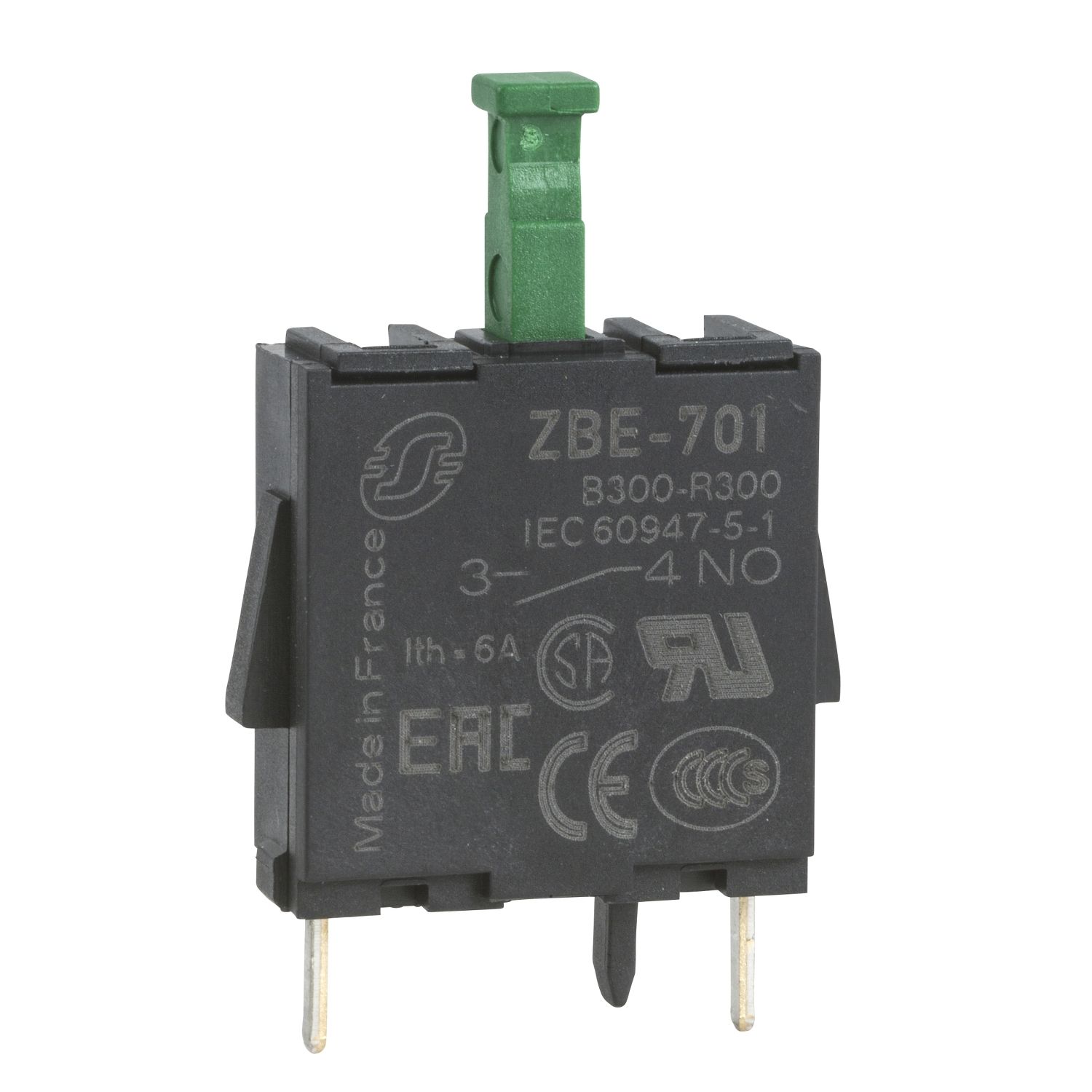

Picture of Single contact block, Harmony XB4, silver alloy, pins for printed circuit board, 1NO
Picture of Single contact block, Harmony XB4, silver alloy, pins for printed circuit board, 1NO
Picture of Single contact block, Harmony XB4, silver alloy, pins for printed circuit board, 1NO
SKU:

ZBE701

Single contact block, Harmony XB4, silver alloy, pins for printed circuit board, 1NO

Old price: $28.49 INC GST
$22.22 INC GST
Available for Shipping : 12-Jan-2026
Single contact block, Harmony XB4, silver alloy, pins for printed circuit board, 1NO
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026

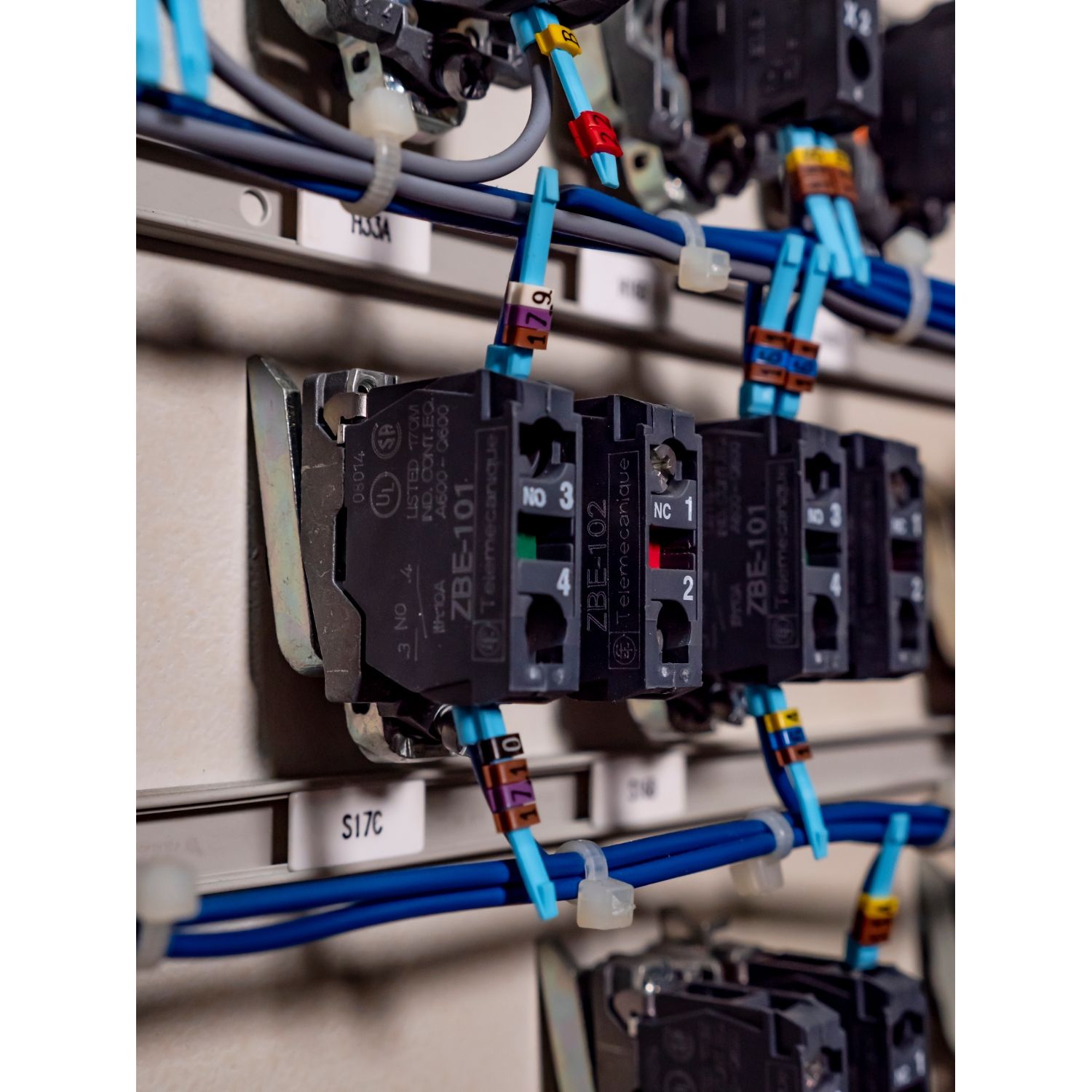

Image of product in real life situation
Catalog
Environmental Disclosure
CAD
Declaration of conformity
Instruction sheet
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony ZB, single contact block uses PCB terminals. It is compatible with Harmony XB4 and XB5 control and signaling units. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB4 and XB5 complete push-button units and selector switches and connects to control circuits with simple PCB connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZBE
Contact operation slow-break
Sale per indivisible quantity 10
IP degree of protection IP20 conforming to IEC 60529
Contact block type single
Range of product Harmony XB5, Harmony XB4
Connections - terminals pins for printed circuit board
Product or component type contact block
Contacts usage standard contacts
Complementary
Compatibility code ZBE
Mechanical durability 5000000 cycles
[Ie] rated operational current 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1, 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1, 1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1, 3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1
Contacts material silver alloy (Ag/Ni)
Operating travel 4.3 mm (total travel), 2.6 mm (NO changing electrical state)
Operating force 2.3 N NO changing electrical state
Contacts type and composition 1 NO
[Ui] rated insulation voltage 250 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage 4 kV conforming to IEC 60947-1
Net weight 0.011 kg
[Ith] conventional free air thermal current 6 A conforming to IEC 60947-5-1
Positive opening without
Short-circuit protection 4 A cartridge fuse type gG conforming to IEC 60947-5-1
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
Ambient air temperature for operation -25-70 °C
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, CSA C22.2 No 14, JIS C8201-5-1, IEC 60947-5-4, UL 508, IEC 60947-1, IEC 60947-5-1
Product certifications DNV, LROS (Lloyds register of shipping), BV, CSA, GL, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 0.500 cm
Package 1 Width 2.000 cm
Package 1 Length 3.000 cm
Package 1 Weight 1.700 g
Unit Type of Package 2 2
Number of Units in Package 2 10
Package 2 Height 2.500 cm
Package 2 Width 3.500 cm
Package 2 Length 6.500 cm
Package 2 Weight 22.000 g
Unit Type of Package 3 3
Number of Units in Package 3 400
Package 3 Height 15.000 cm
Package 3 Width 15.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 1.085 kg
