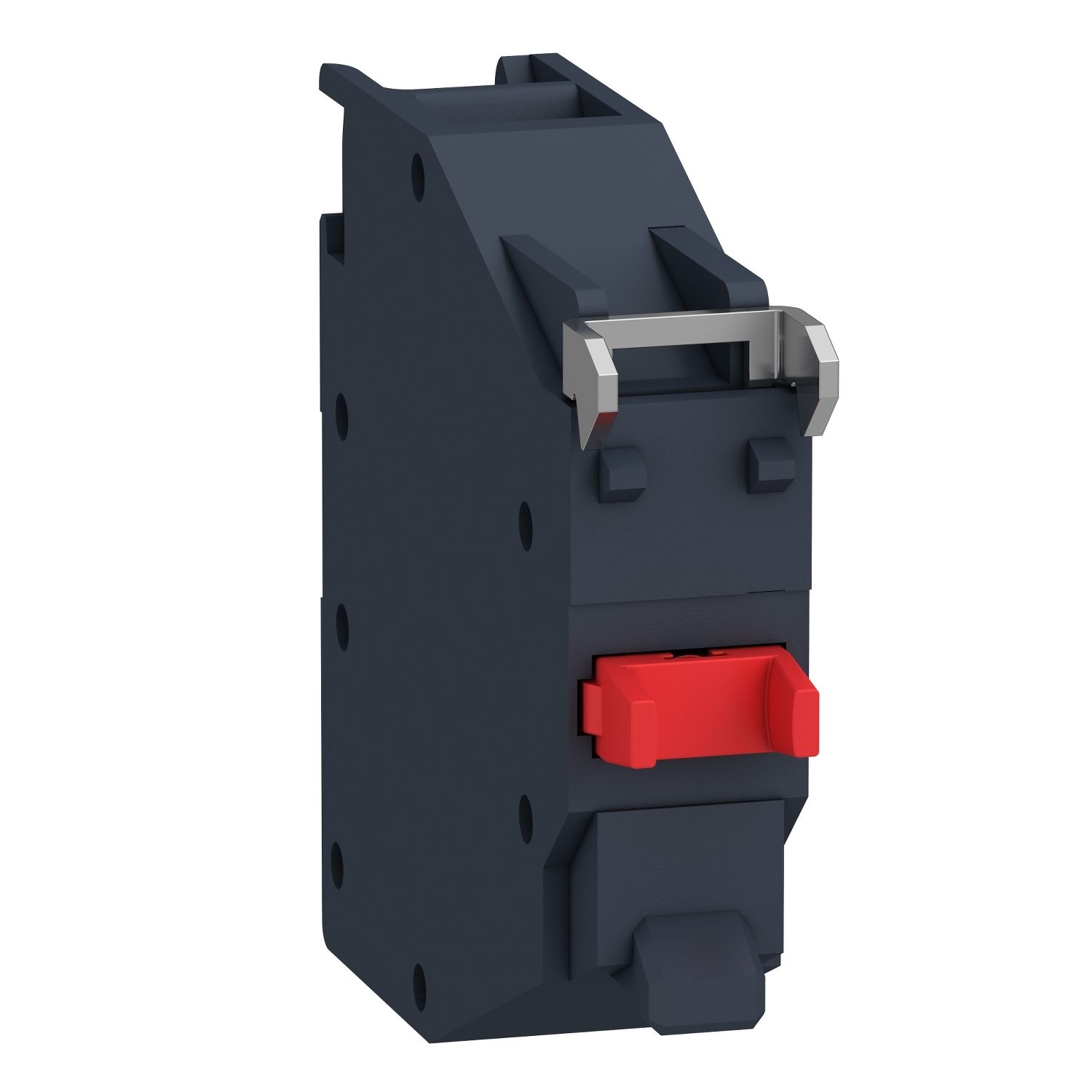

Picture of Contact block, Harmony XB4 - ATEX D, single contact, gas protected contact, screw clamp terminals, 1NC
SKU:

ZBE102GEX

Contact block, Harmony XB4 - ATEX D, single contact, gas protected contact, screw clamp terminals, 1NC

Old price: $98.45 INC GST
$76.79 INC GST
Available for Shipping : 22-Jan-2026
Contact block, Harmony XB4 - ATEX D, single contact, gas protected contact, screw clamp terminals, 1NC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 22-Jan-2026
Environmental Disclosure
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name ZBE
Contact operation standard
Sale per indivisible quantity 1
Contact block type single
Range of product Harmony XB4
Connections - terminals screw clamp terminals, 1 x 2.5 mm² with cable end, screw clamp terminals, 2 x 1.5 mm² without cable end
Product or component type contact block
Contacts usage gas protected contact
Complementary
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Compatibility code ZBE
Mechanical durability 1000000 cycles
[Ie] rated operational current 2.87 A at 24 V, DC, Q300 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC, Q300 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC, Q300 conforming to IEC 60947-5-1, 6 A at 120 V, AC, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC, A600 conforming to IEC 60947-5-1, 1.9 A at 380 V, AC, A600 conforming to IEC 60947-5-1
CAD overall height 10 mm
Marking Ex db eb IIC Gb
Operating travel 4.424 mm (total travel), 3.271 mm (changing state point), 1.688 mm (engagement point)
Operating force 2.873 N
Contacts type and composition 1 NC
CAD overall depth 42.4 mm
CAD overall width 38 mm
[Ui] rated insulation voltage 415 V
Net weight 0.019 kg
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening with
Mounting of block front mounting
Environment
Protective treatment TH
Ambient air temperature for storage -50-70 °C
Ambient air temperature for operation -50-75 °C
Environmental characteristic hazardous location class I division 2
Standards EN/IEC 60079-7, EN/IEC 60079-1, CSA C22.2 No 213, EN/IEC 60079-31, EN/IEC 60079-0, ANSI/ISA 12.12.01, UL 60079-1, UL 60079-0, UL 60079-31
Product certifications cULus
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.32 cm
Package 1 Width 1.27 cm
Package 1 Length 3.81 cm
Package 1 Weight 0.04 kg
