SKU:

ZB6Z2B

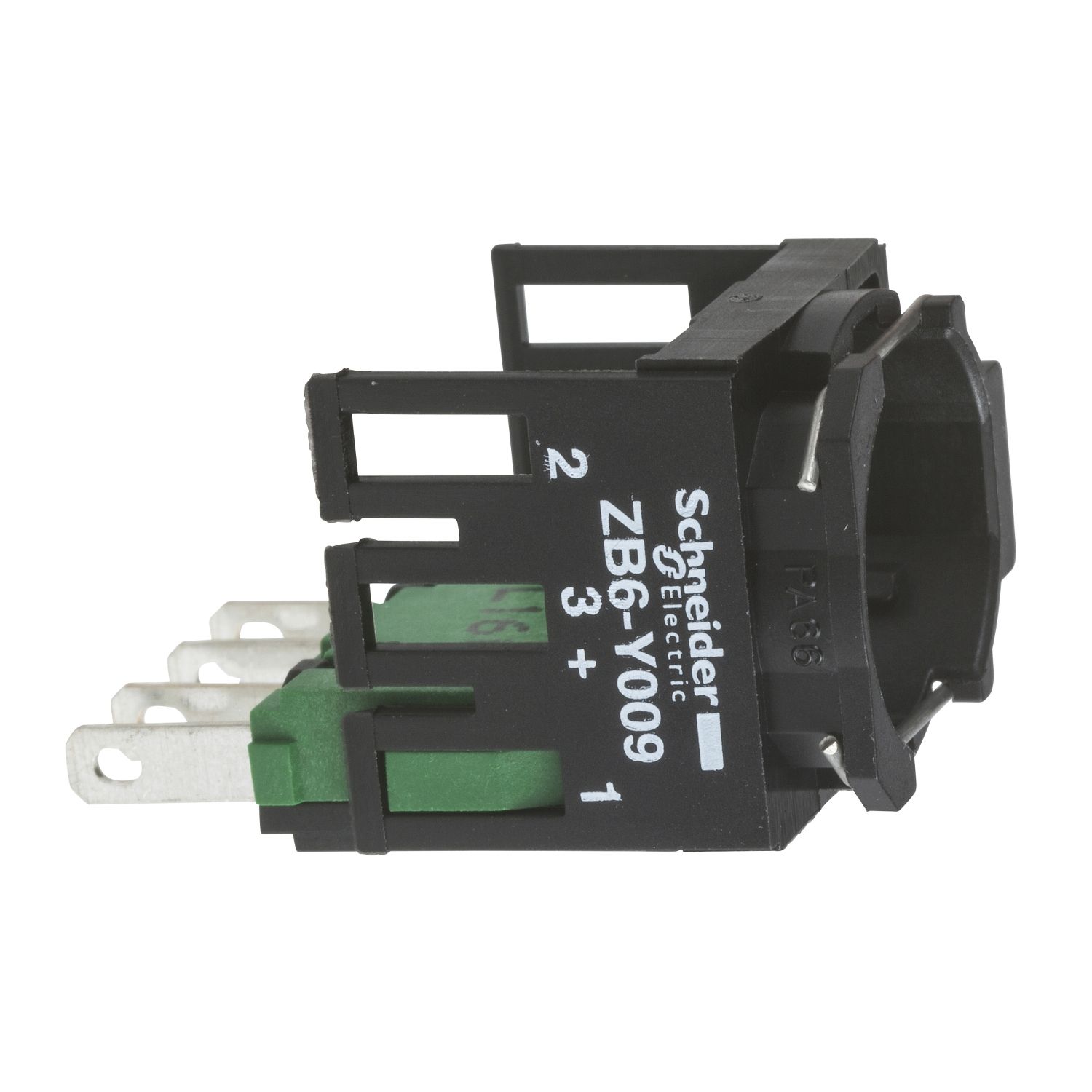

Complete body for push buttons or selector switches, Harmony XB6, single contact, with body fixing collar, faston connector, 1NC

Old price: $18.26 INC GST
$14.24 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Complete body for push buttons or selector switches, Harmony XB6, single contact, with body fixing collar, faston connector, 1NC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026

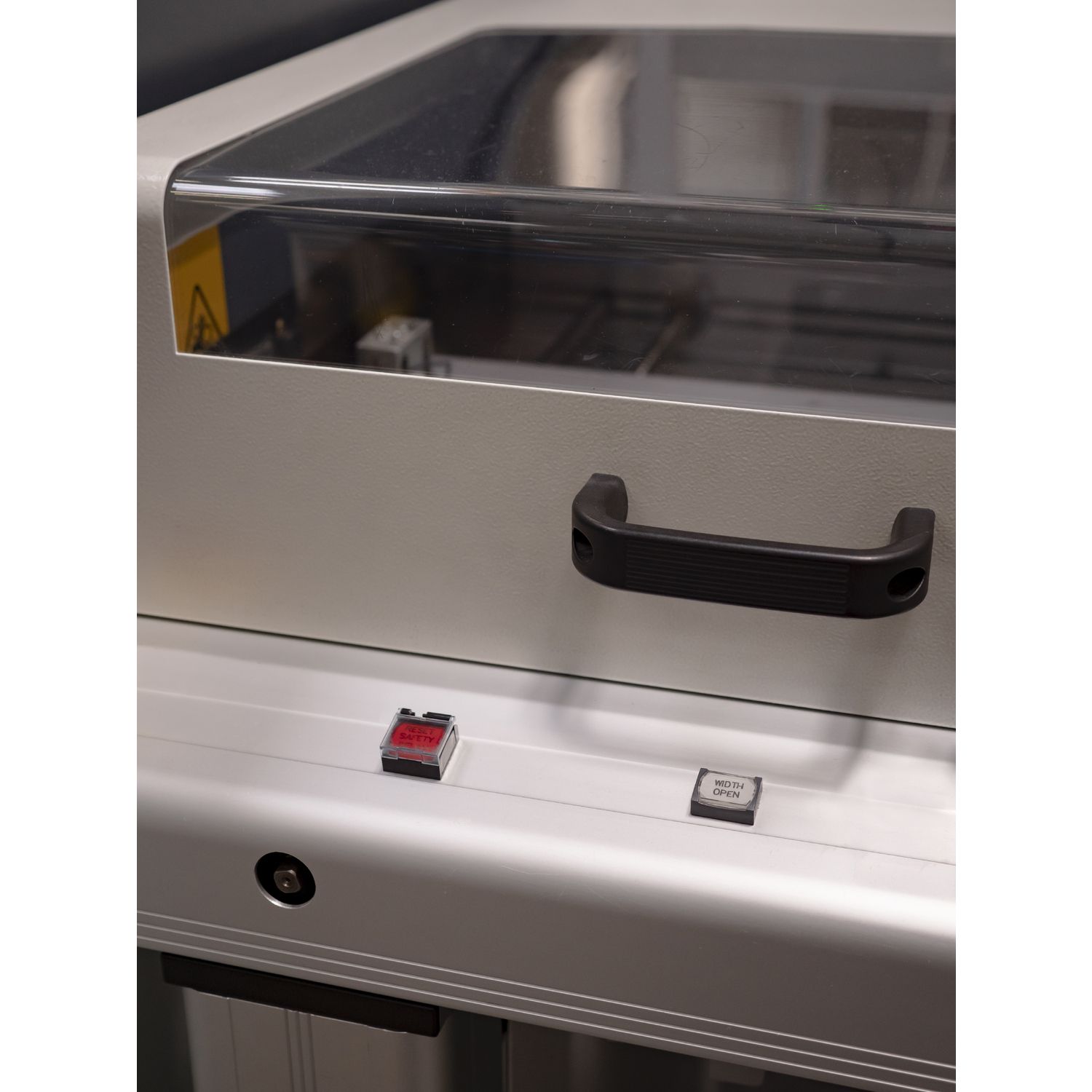

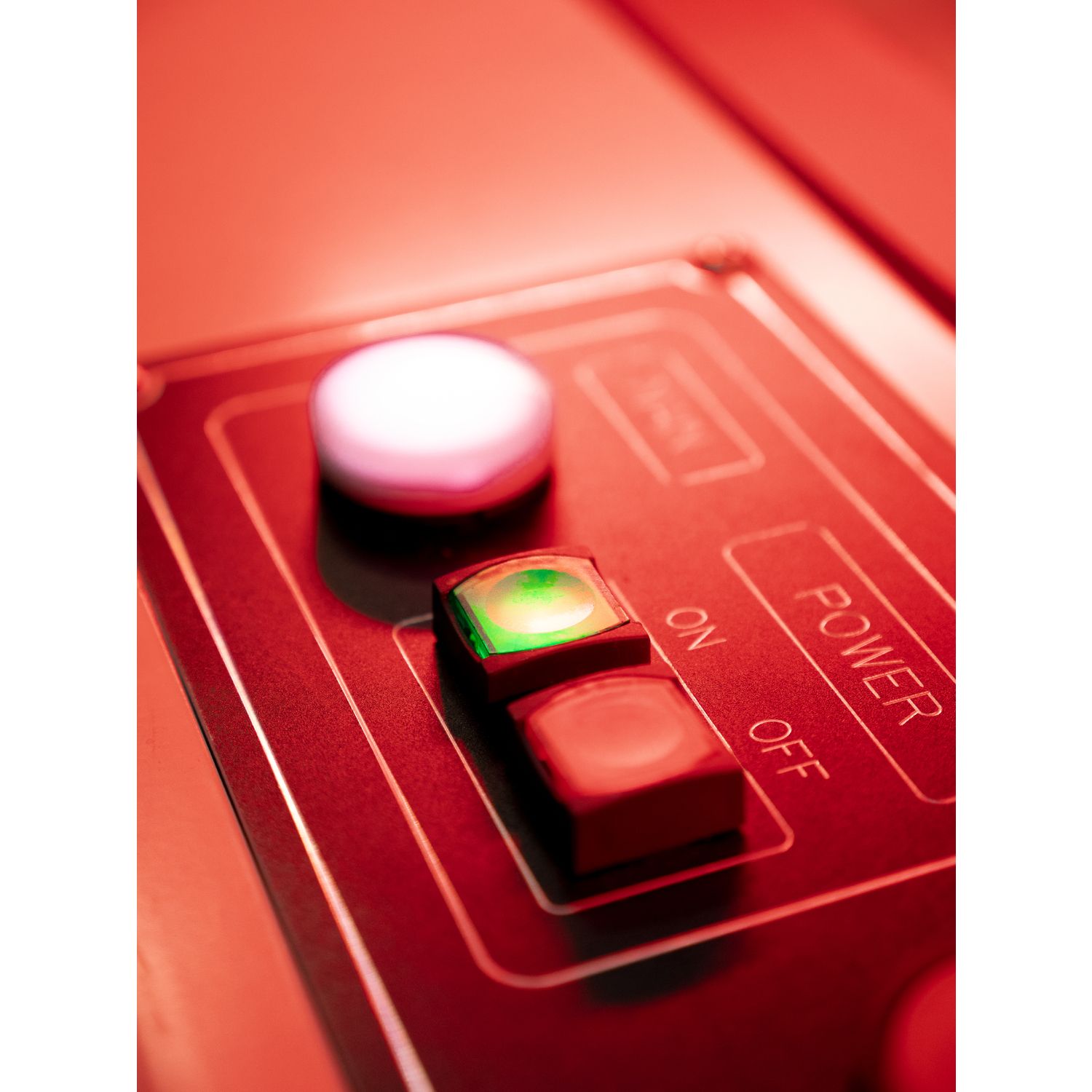

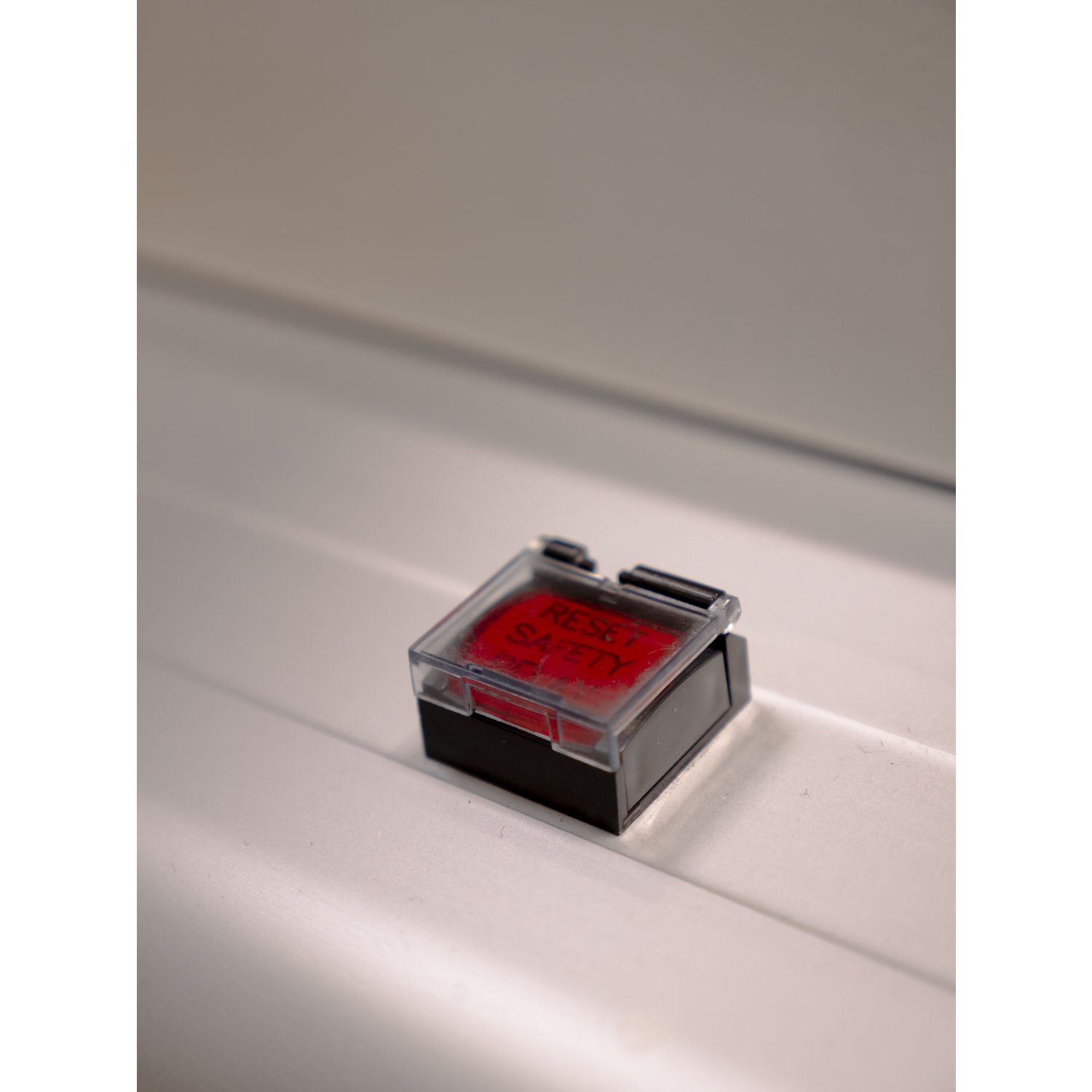

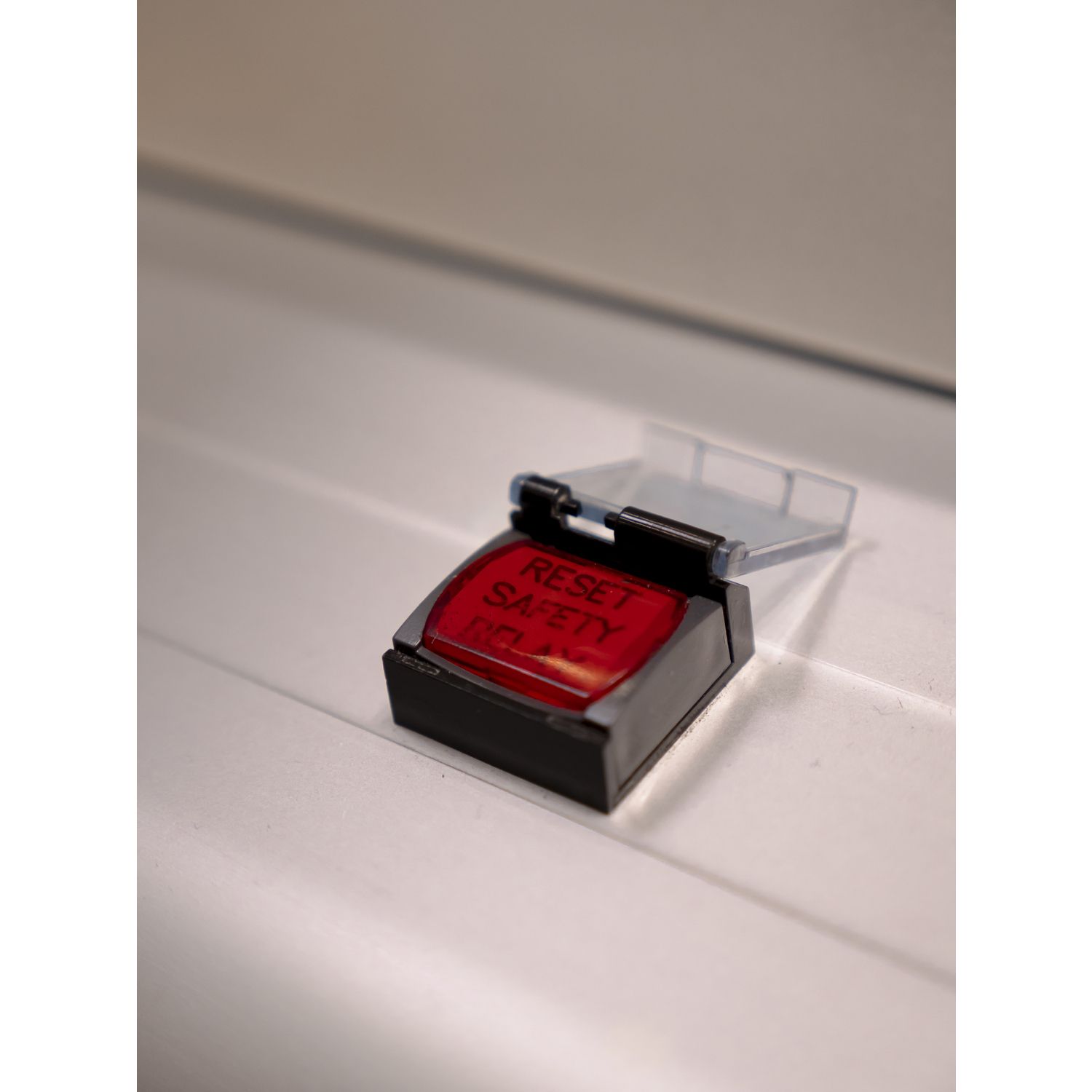

Image of product in real life situation
Image of product in real life situation
Circularity Profile
Declaration of conformity
Image of product in real life situation
Image of product in real life situation
CAD
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This Harmony ZB6Z2B is a single contact block with body/fixing collar with 1 NC faston connector. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Products specifications

Attribute name Attribute value
Main
[Us] rated supply voltage <= 250 V
Device short name ZB6
Contact operation slow-break
Sale per indivisible quantity 1
Contacts type and composition 1 NC
Connections - terminals Faston connector, connection size: 2.8 x 0.5 mm, Faston connector
Fixing collar material plastic
Product or component type complete body for push-buttons or selector switches
Range of product Harmony XB6
Complementary
CAD overall depth 40 mm
CAD overall width 18 mm
Electrical reliability λ = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4
Compatibility code ZB6
[Ie] rated operational current 0.22 A at 125 V, DC-13, R300, 0.1 A at 250 V, DC-13, R300, 1.5 A at 240 V, AC-15, B300, 3 A at 120 V, AC-15, B300
Electrical durability 1000000 cycles, DC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
CAD overall height 18 mm
Net weight 0.004 kg
Positive opening with conforming to IEC 60947-5-1 appendix K
Contacts material silver alloy (Ag/Ni)
Operating travel 4.3 mm (total travel), 1 mm (NC changing electrical state)
Short-circuit protection 6 A cartridge fuse type gG conforming to IEC 60947-5-1
Operating force 2.5 N NC changing electrical state
Terminals description ISO n°1 (11-12)NC
Contacts usage standard
Environment
Protective treatment TC
Electrical shock protection class class II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards IEC 60947-1, IEC 60947-5-5, CSA C22.2 No 14, UL 508, JIS C 4520, JIS C 852, IEC 60947-5-1
Ambient air temperature for operation -25-70 °C
Product certifications CSA, CCC, UL, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.5 cm
Package 1 Width 7.0 cm
Package 1 Length 7.0 cm
Package 1 Weight 6.0 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 813.0 g

Related products

Picture of Head for non illuminated push button, Harmony XB6, black rectangular flush, 16mm, integral LED, spring return, unmarked

Head for non illuminated push button, Harmony XB6, black rectangular flush, 16mm, integral LED, spring return, unmarked

ZB6DA2
$22.22 INC GST $28.49 INC GST
View Detail

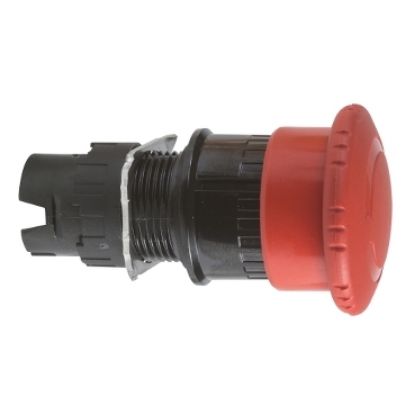

Head for emergency stop push button, Harmony XB6, red mushroom 30mm, 16mm, trigger latching turn to release, unmarked
