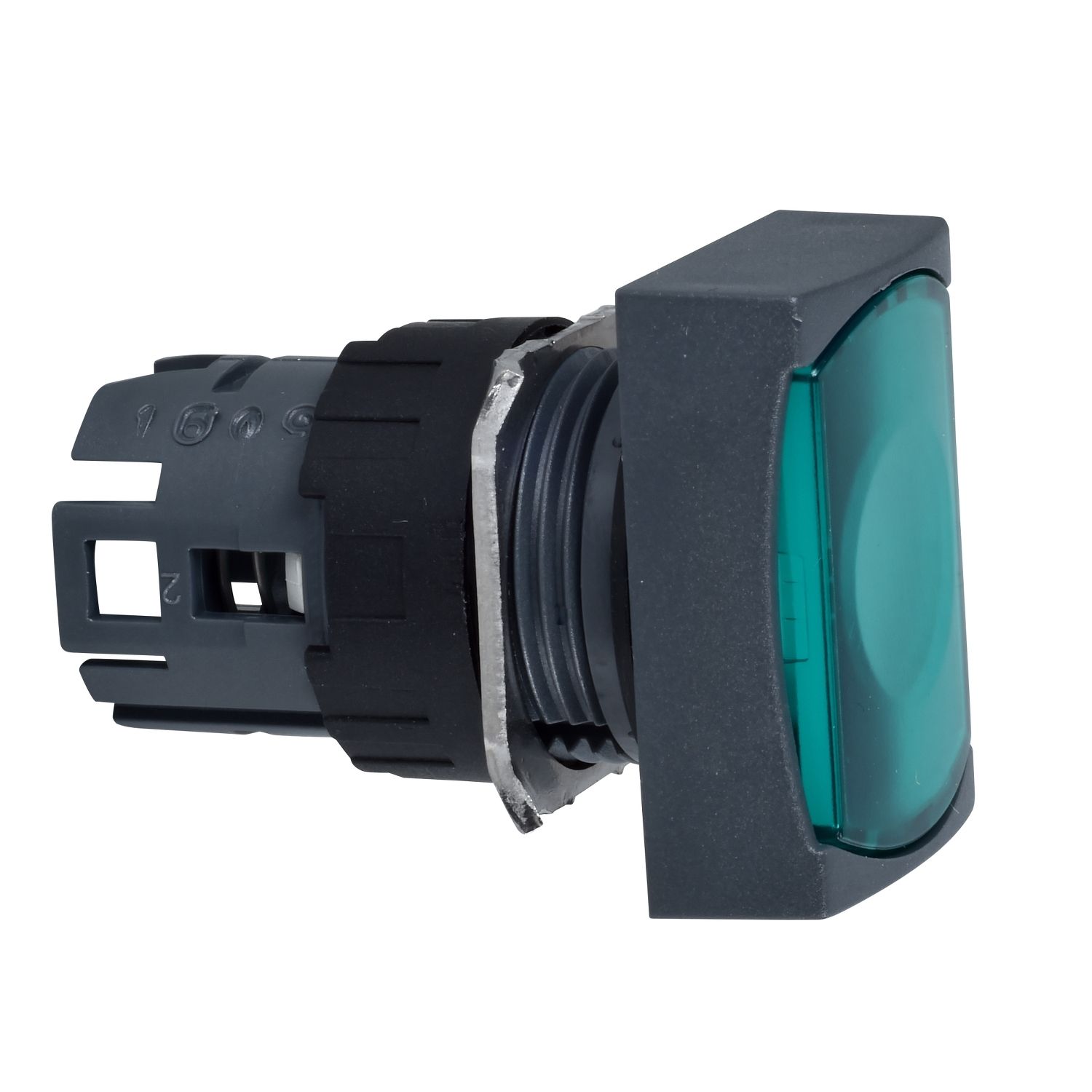

Picture of Head for illuminated push button, Harmony XB6, green rectangular flush, 16mm, integral LED, spring return, 12…24V, unmarked
SKU:

ZB6DW3

Head for illuminated push button, Harmony XB6, green rectangular flush, 16mm, integral LED, spring return, 12…24V, unmarked

Old price: $33.33 INC GST
$26.00 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Head for illuminated push button, Harmony XB6, green rectangular flush, 16mm, integral LED, spring return, 12…24V, unmarked
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Circularity Profile
CAD
Declaration of conformity
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This Harmony ZB6DW3 is a green rectangular flush illuminated push button head, spring return, 12V to 24V. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Products specifications

Attribute name Attribute value
Main
Device short name ZB6
Product compatibility integral LED
Operator profile green flush, unmarked
Bezel material plastic
Sale per indivisible quantity 1
Shape of signaling unit head rectangular
Product or component type head for illuminated push-button
Type of operator spring return
Mounting diameter 16 mm
Range of product Harmony XB6
Complementary
CAD overall depth 33 mm
CAD overall width 24 mm
Compatibility code ZB6
CAD overall height 18 mm
Net weight 0.016 kg
Environment
Protective treatment TC
Electrical shock protection class class II conforming to IEC 61140
NEMA degree of protection NEMA 13 conforming to CSA C22.2 No 94, NEMA 4X conforming to CSA C22.2 No 94, NEMA 4 conforming to CSA C22.2 No 94, NEMA 4X conforming to UL 50, NEMA 4 conforming to UL 50, NEMA 13 conforming to UL 50
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-5, EN/IEC 60947-1, UL 508, JIS C 852
Ambient air temperature for operation -25-70 °C
Product certifications UL, CCC, GOST, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.5 cm
Package 1 Width 4.1 cm
Package 1 Length 13.1 cm
Package 1 Weight 10.0 g
Unit Type of Package 2 2
Number of Units in Package 2 80
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 849.0 g
