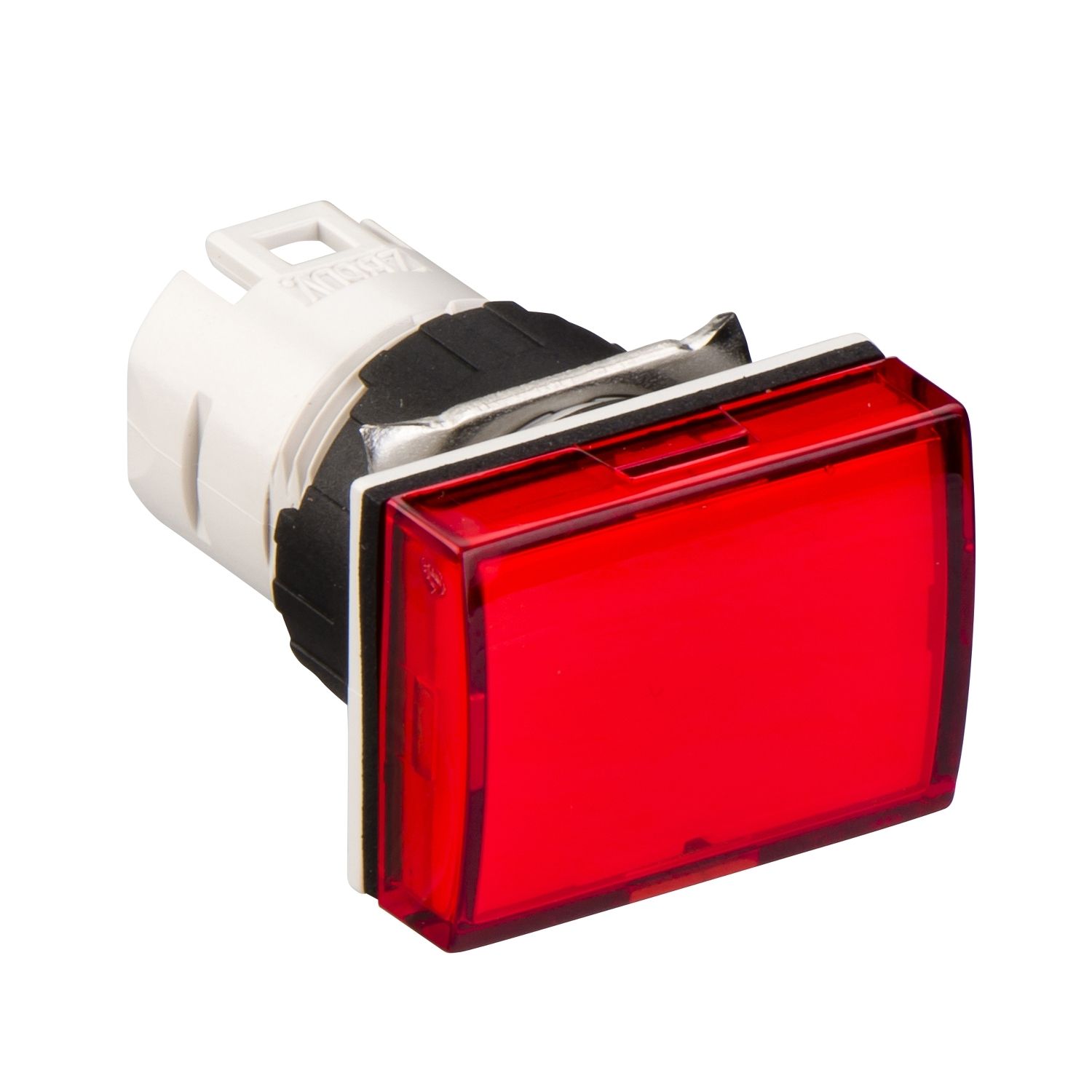

Picture of Head for pilot light, Harmony XB6, rectangular red, 16mm, integral LED
SKU:

ZB6DV4

Head for pilot light, Harmony XB6, rectangular red, 16mm, integral LED

Old price: $17.82 INC GST
$13.90 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Head for pilot light, Harmony XB6, rectangular red, 16mm, integral LED
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Environmental Disclosure
Declaration of conformity
Catalog
Circularity Profile
CAD
Product Page Link
Product Data Sheet
This Harmony ZB6DV4 is a rectangular red pilot light head for integral LED. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Products specifications

Attribute name Attribute value
Main
Device short name ZB6
Product compatibility integral LED
Bezel material plastic
Sale per indivisible quantity 1
Cap/operator or lens colour red
Shape of signaling unit head rectangular
Product or component type head for pilot light
Mounting diameter 16 mm
Range of product Harmony XB6
Complementary
CAD overall depth 33 mm
CAD overall width 24 mm
Compatibility code ZB6
CAD overall height 18 mm
Net weight 0.015 kg
Environment
Protective treatment TC
Electrical shock protection class class II conforming to IEC 61140
NEMA degree of protection NEMA 4X conforming to CSA C22.2 No 94, NEMA 4 conforming to CSA C22.2 No 94, NEMA 13 conforming to CSA C22.2 No 94, NEMA 4X conforming to UL 50, NEMA 4 conforming to UL 50, NEMA 13 conforming to UL 50
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C 852, UL 508, IEC 60947-5-5, JIS C 4520, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1
Ambient air temperature for operation -25-70 °C
Product certifications CSA, UL, GOST, CCC
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.300 cm
Package 1 Width 3.500 cm
Package 1 Length 13.600 cm
Package 1 Weight 9.000 g
Unit Type of Package 2 2
Number of Units in Package 2 80
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 853.000 g
