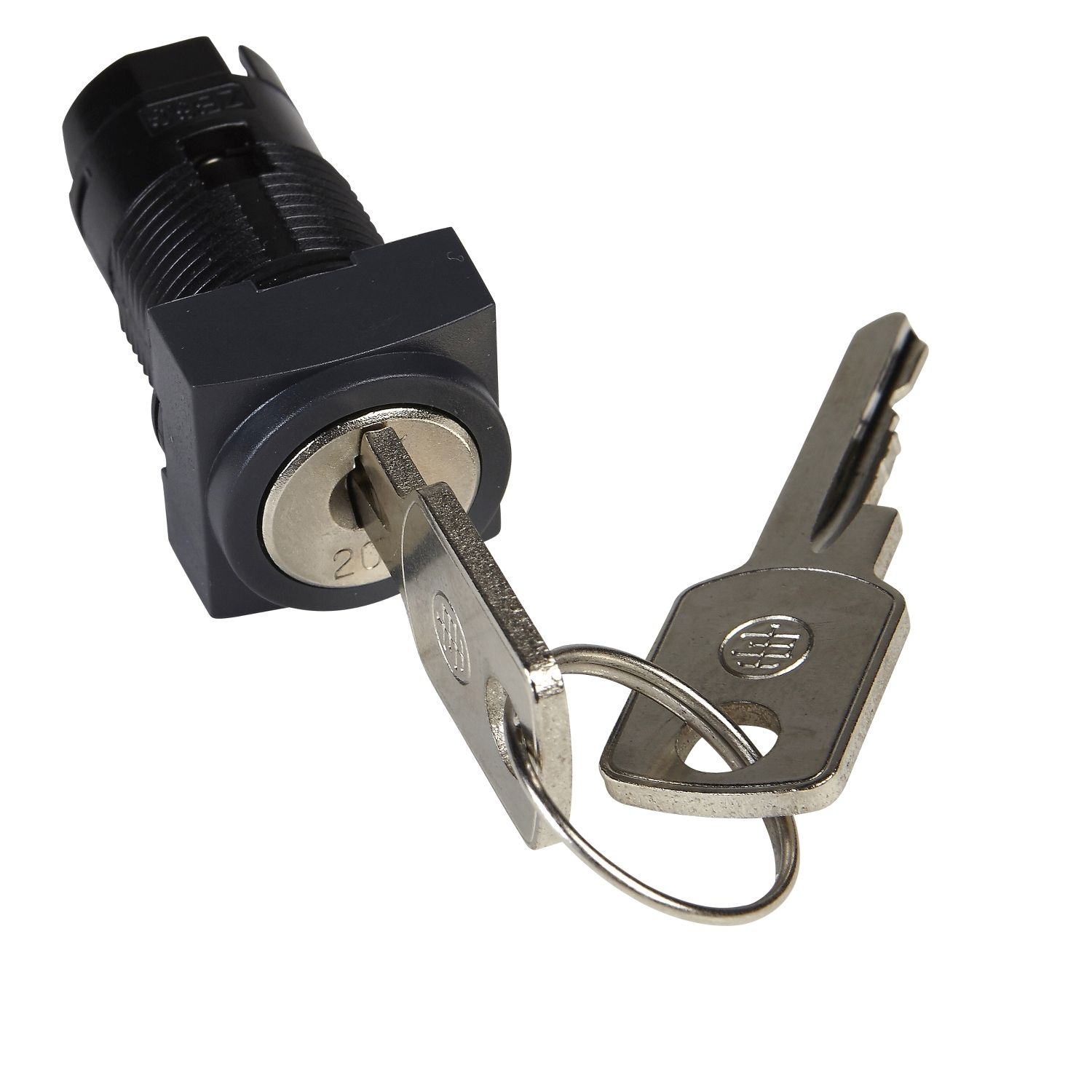

Picture of Head for key selector switch, Harmony XB6, square Ø 16 2 position stay put 200
SKU:

ZB6CGB

Head for key selector switch, Harmony XB6, square Ø 16 2 position stay put 200

Old price: $95.59 INC GST
$74.56 INC GST
Available for Shipping : 12-Jan-2026
Head for key selector switch, Harmony XB6, square Ø 16 2 position stay put 200
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Circularity Profile
Declaration of conformity
CAD
Environmental Disclosure
Catalog
Product Page Link
Product Data Sheet
This Harmony ZB6CGB is a square selector switch head, 2-position stay put, key operated Ronis 200. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Products specifications

Attribute name Attribute value
Main
Type of keylock key 200
Device short name ZB6
Operator position information 2 positions
Operator profile black key switch
Bezel material plastic
Sale per indivisible quantity 1
Key withdrawal position center
Shape of signaling unit head square
Product or component type head for key selector switch
Type of operator stay put
Mounting diameter 16 mm
Range of product Harmony XB6
Complementary
CAD overall depth 55 mm
CAD overall width 18 mm
Compatibility code ZB6
CAD overall height 18 mm
Environment
Protective treatment TC
Electrical shock protection class class II conforming to IEC 61140
NEMA degree of protection NEMA 4X conforming to CSA C22.2 No 94, NEMA 4 conforming to CSA C22.2 No 94, NEMA 13 conforming to CSA C22.2 No 94, NEMA 4X conforming to UL 50, NEMA 4 conforming to UL 50, NEMA 13 conforming to UL 50
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-5-1, EN/IEC 60947-1, JIS C 852, EN/IEC 60947-5-5, UL 508
Ambient air temperature for operation -25-70 °C
Product certifications CCC, UL, CSA, GOST
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 1.8 cm
Package 1 Width 1.8 cm
Package 1 Length 6.0 cm
Package 1 Weight 27.5 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 15.0 cm
Package 2 Width 15.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 1.905 kg
