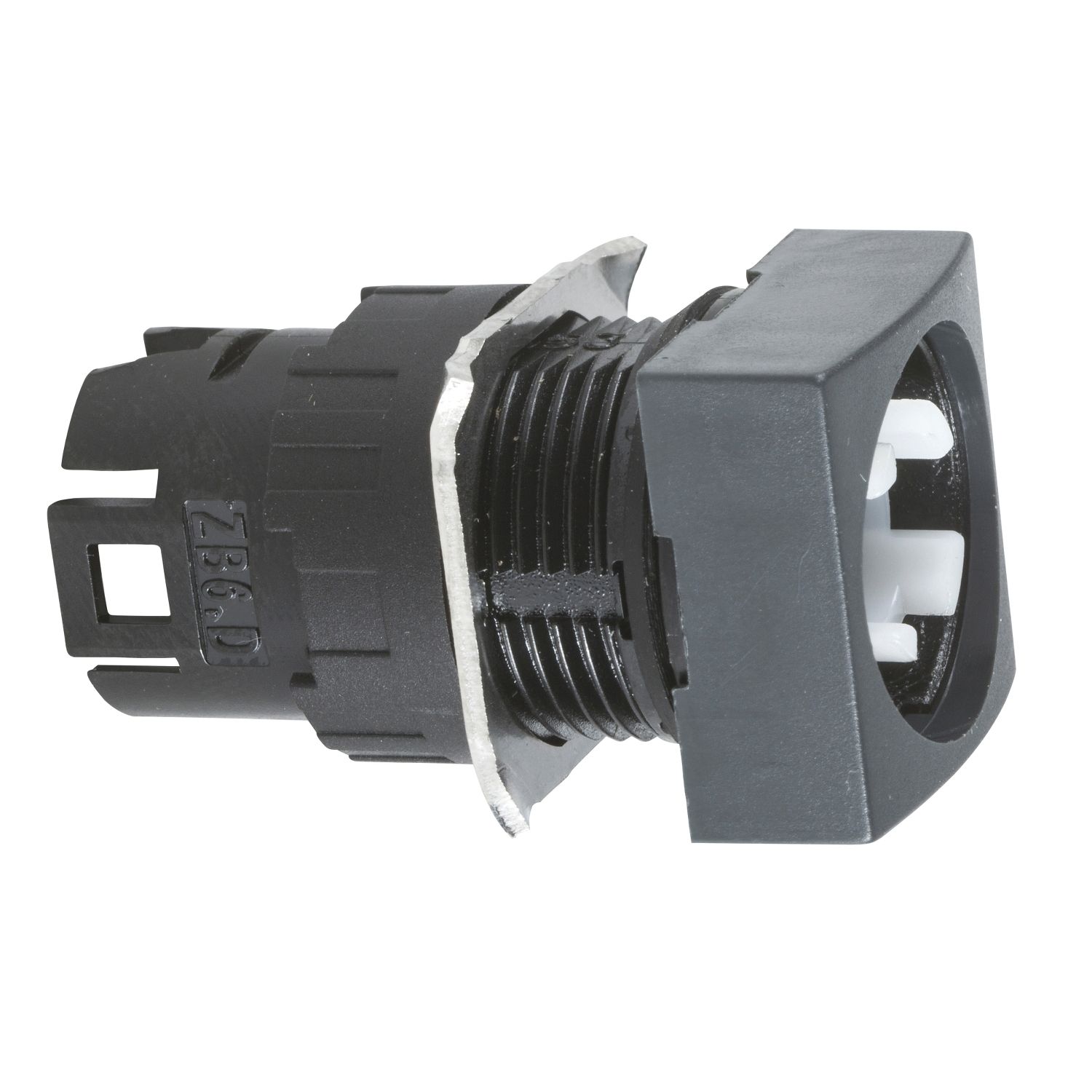

Picture of Head for selector switch, Harmony XB6, illuminated square 16mm 2 positions 60degrees, stay put
SKU:

ZB6CD02

Head for selector switch, Harmony XB6, illuminated square 16mm 2 positions 60degrees, stay put

Old price: $42.68 INC GST
$33.29 INC GST
Available for Shipping : 10-Dec-2025
Head for selector switch, Harmony XB6, illuminated square 16mm 2 positions 60degrees, stay put
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 10-Dec-2025
Circularity Profile
Environmental Disclosure
Catalog
Declaration of conformity
Product Page Link
Product Data Sheet
This Harmony ZB6CD02 is an illuminated square selector switch head, 2-position stay put. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

Products specifications

Attribute name Attribute value
Main
Device short name ZB6
Operator position information 2 positions 60°
Operator profile without handle
Bezel material plastic
Sale per indivisible quantity 1
Shape of signaling unit head square
Product or component type head for selector switch
Type of operator stay put
Mounting diameter 16 mm
Range of product Harmony XB6
Complementary
CAD overall width 18 mm
Compatibility code ZB6
CAD overall height 18 mm
Net weight 0.016 kg
Environment
Protective treatment TC
Electrical shock protection class class II conforming to IEC 61140
NEMA degree of protection NEMA 4X conforming to CSA C22.2 No 94, NEMA 4 conforming to CSA C22.2 No 94, NEMA 13 conforming to CSA C22.2 No 94, NEMA 4X conforming to UL 50, NEMA 4 conforming to UL 50, NEMA 13 conforming to UL 50
Ambient air temperature for storage -40-70 °C
IP degree of protection IP65 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, UL 508, JIS C8201-5-1, CSA C22.2 No 14, JIS C 852, IEC 60947-5-5, IEC 60947-5-1, IEC 60947-1
Ambient air temperature for operation -25-70 °C
Product certifications GOST, CCC, CSA, UL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 6.000 cm
Package 1 Width 7.000 cm
Package 1 Length 3.250 cm
Package 1 Weight 6.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 6.000 cm
Package 2 Width 7.000 cm
Package 2 Length 13.000 cm
Package 2 Weight 59.000 g
Unit Type of Package 3 3
Number of Units in Package 3 100
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 1.514 kg
