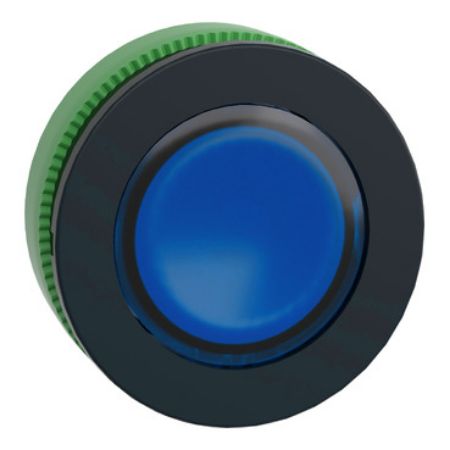

Picture of Head for pilot light, Harmony XB5, antimicrobial, plastic, blue, 30mm, universal LED, plain lens

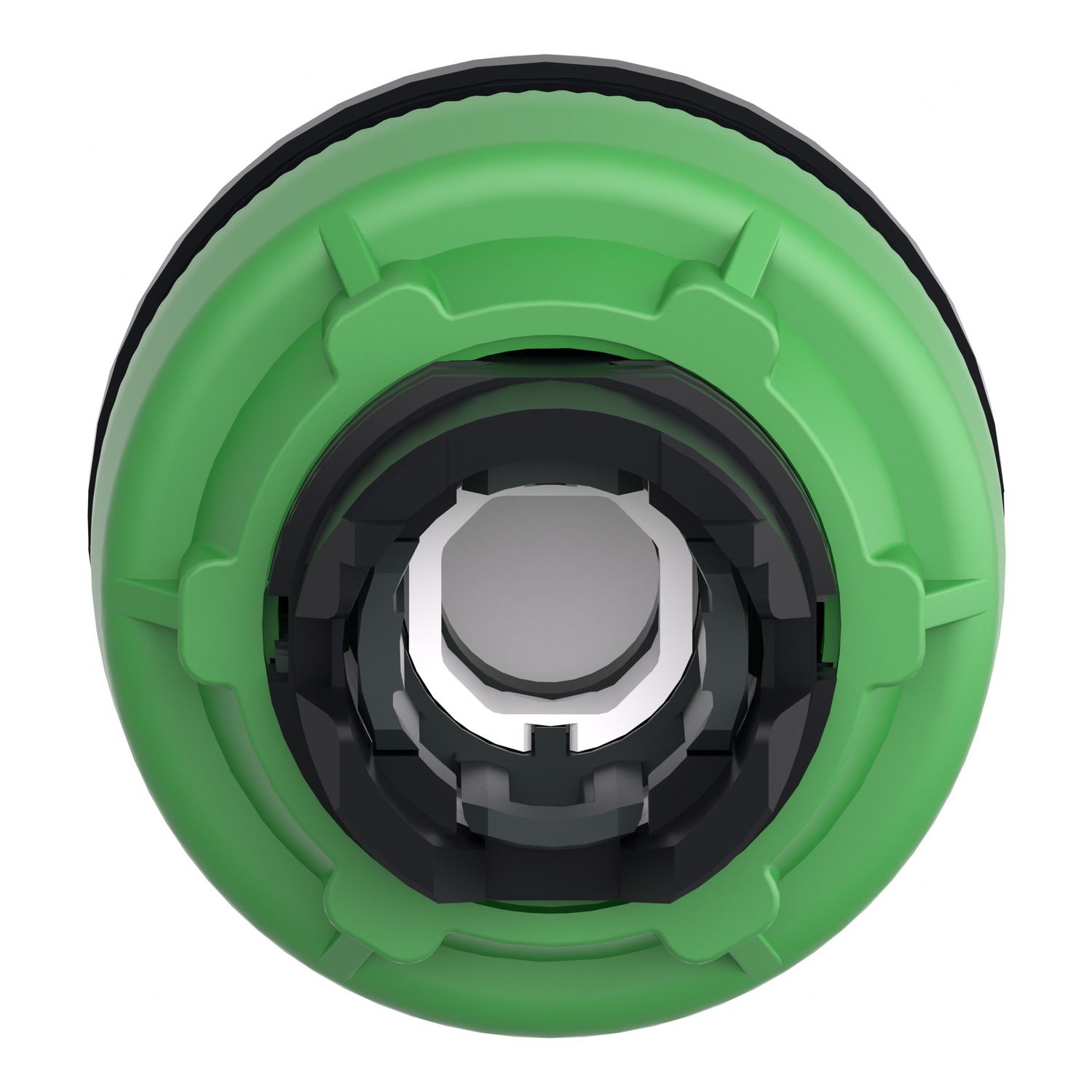

Picture of Head for pilot light, Harmony XB5, antimicrobial, plastic, blue, 30mm, universal LED, plain lens

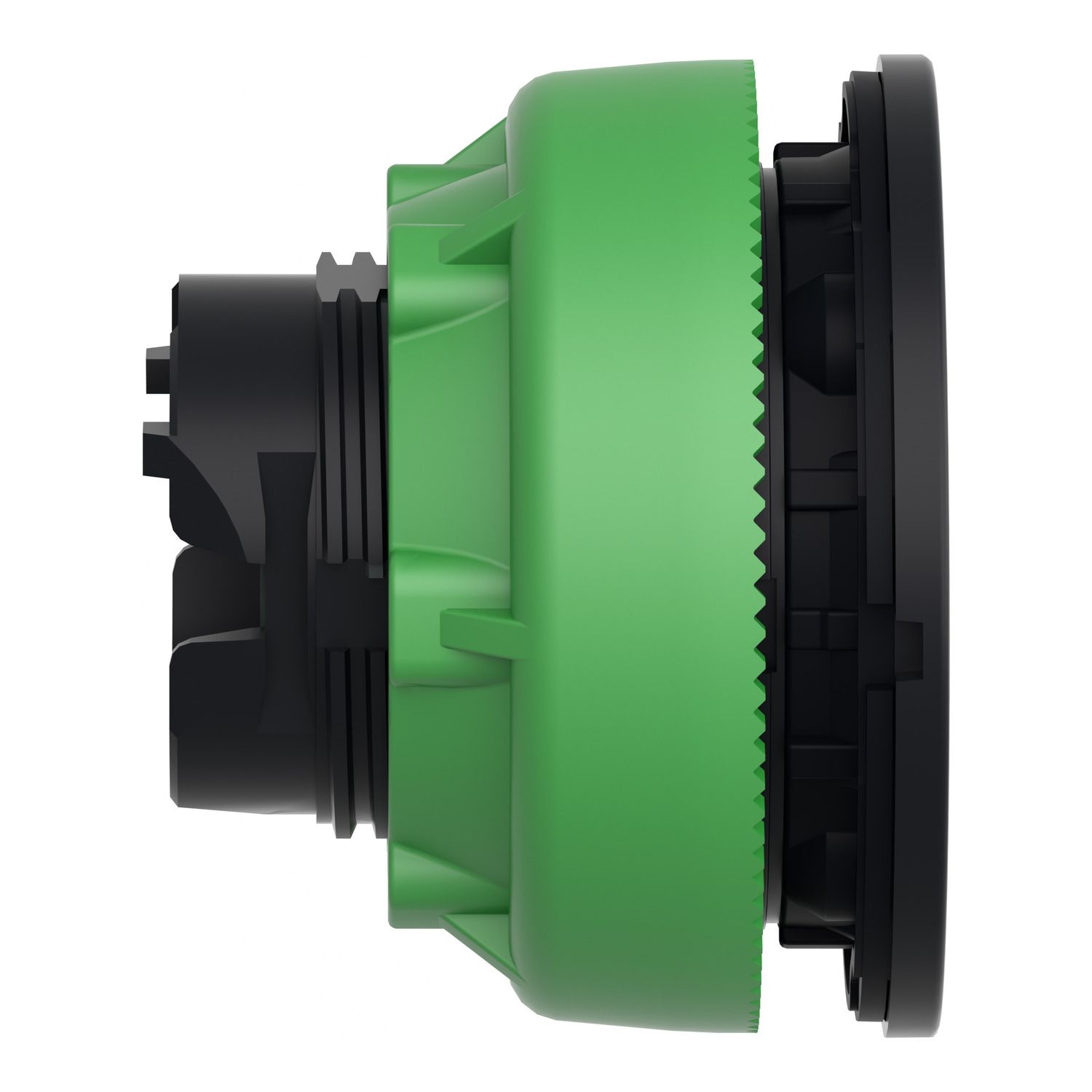

Picture of Head for pilot light, Harmony XB5, antimicrobial, plastic, blue, 30mm, universal LED, plain lens

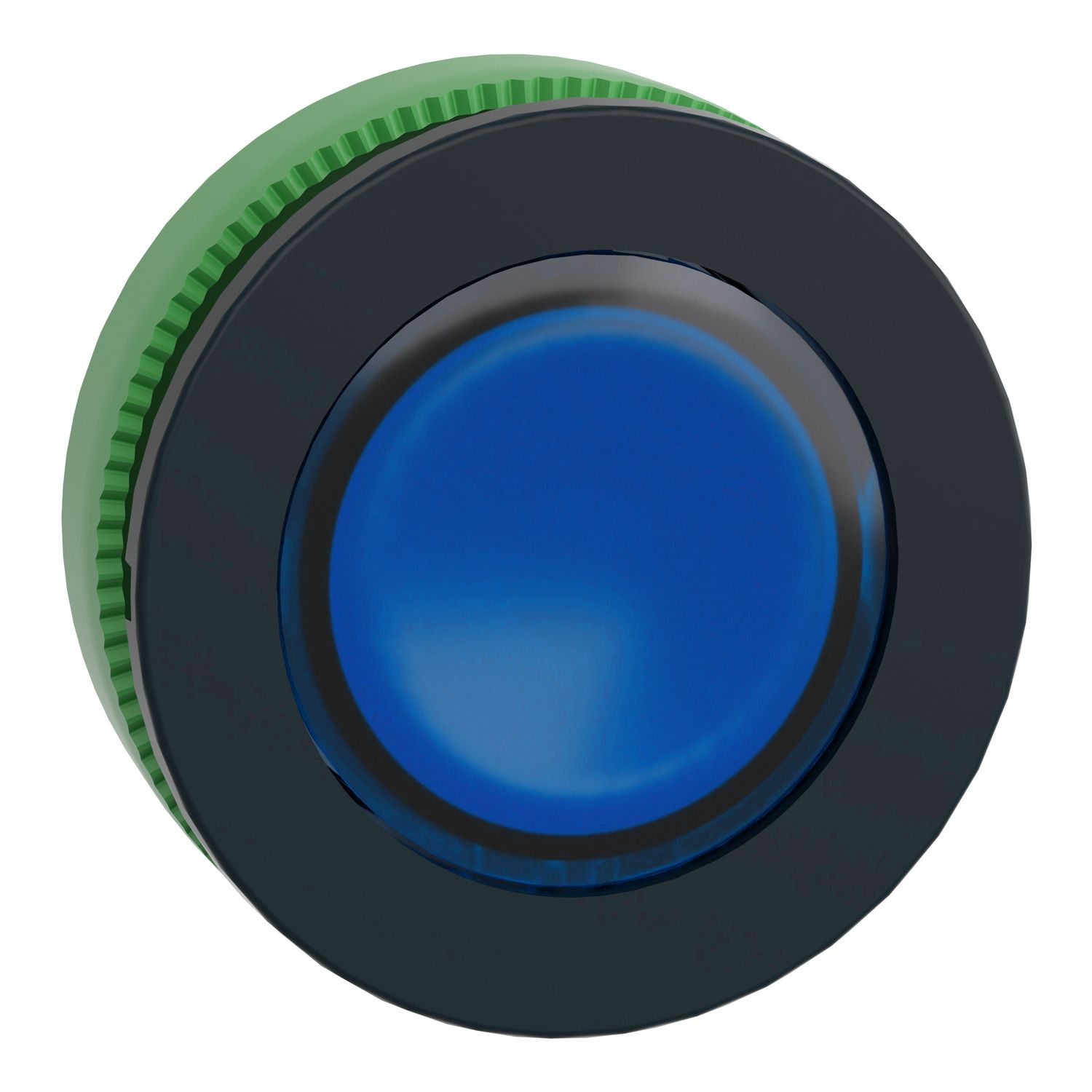

Picture of Head for pilot light, Harmony XB5, antimicrobial, plastic, blue, 30mm, universal LED, plain lens

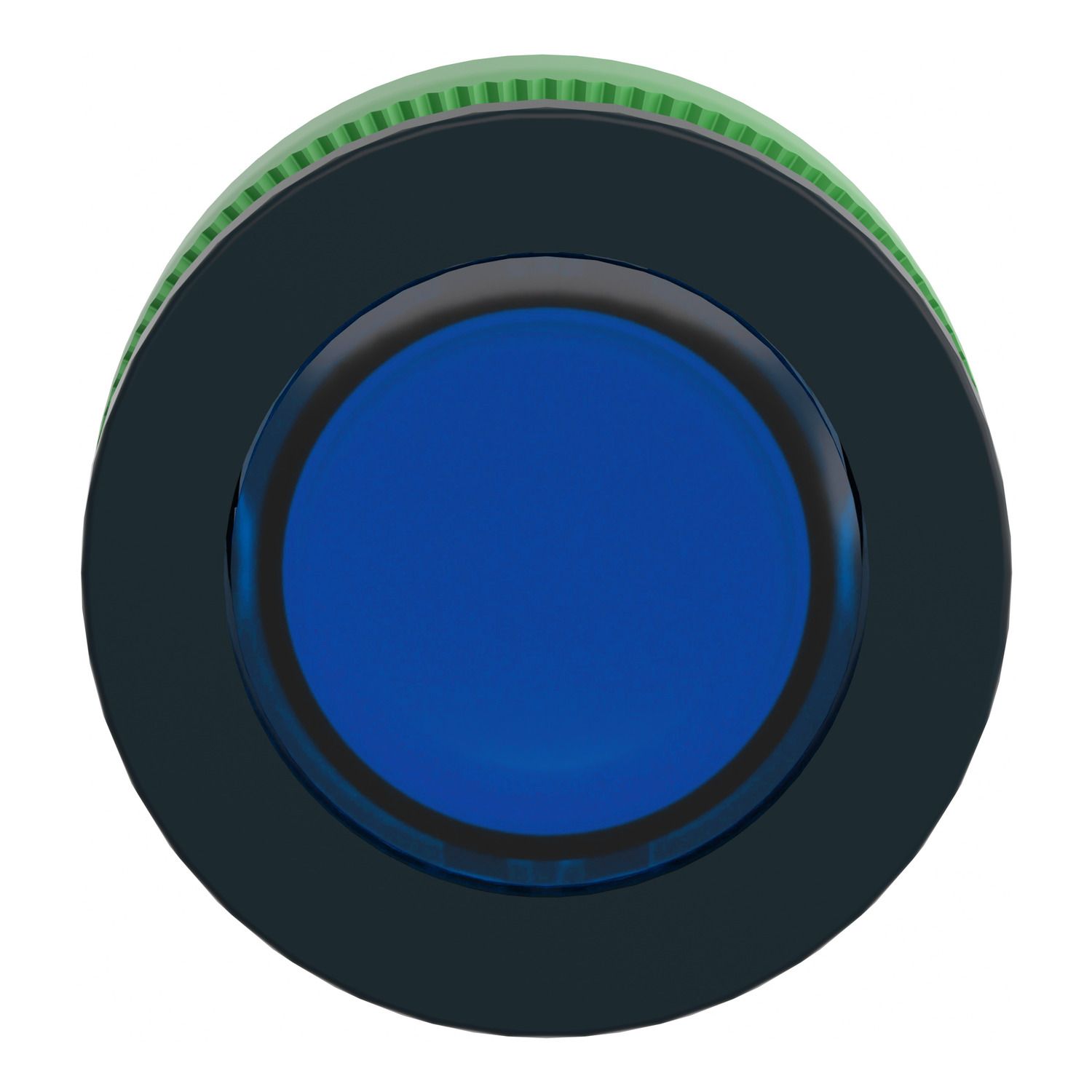

Picture of Head for pilot light, Harmony XB5, antimicrobial, plastic, blue, 30mm, universal LED, plain lens

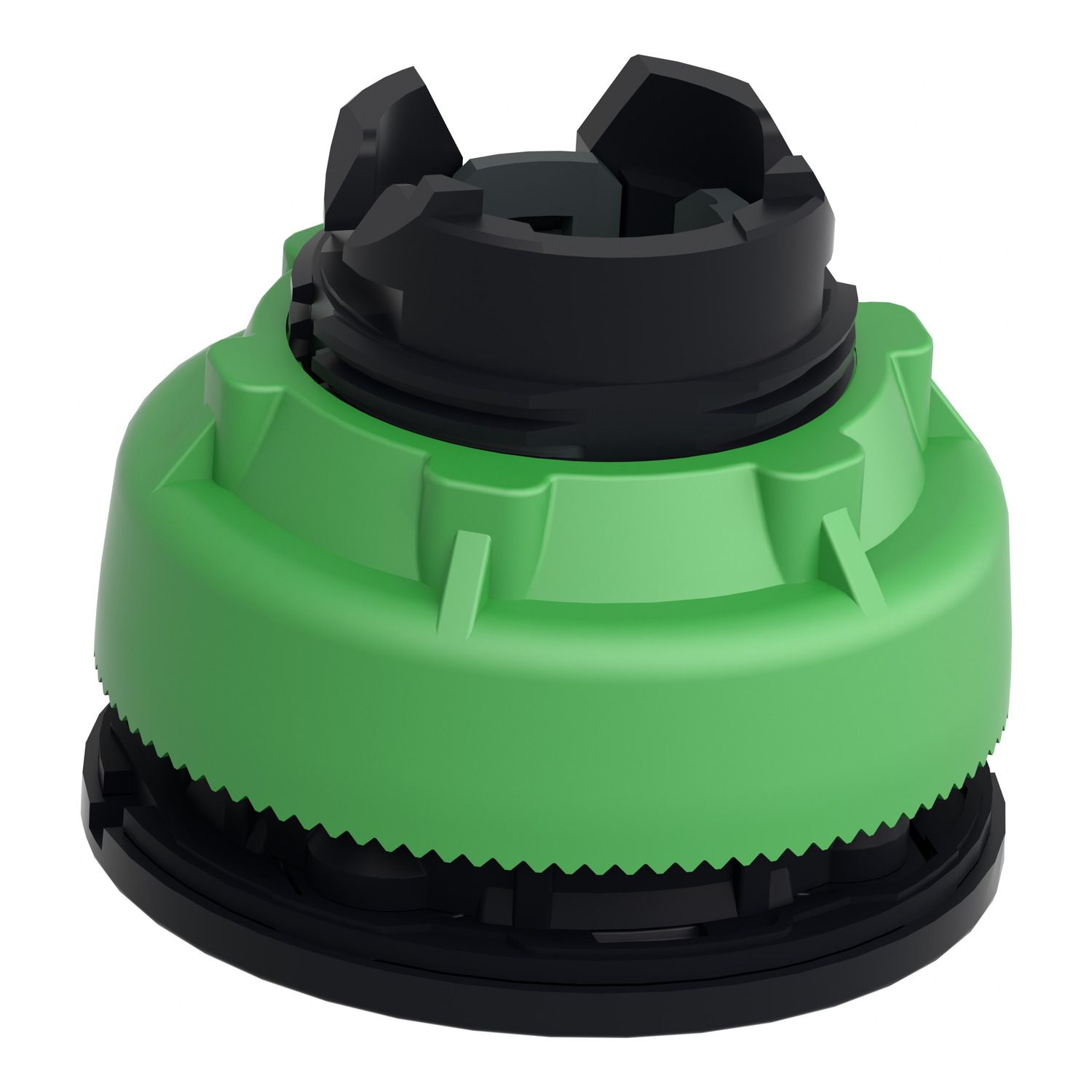

Picture of Head for pilot light, Harmony XB5, antimicrobial, plastic, blue, 30mm, universal LED, plain lens

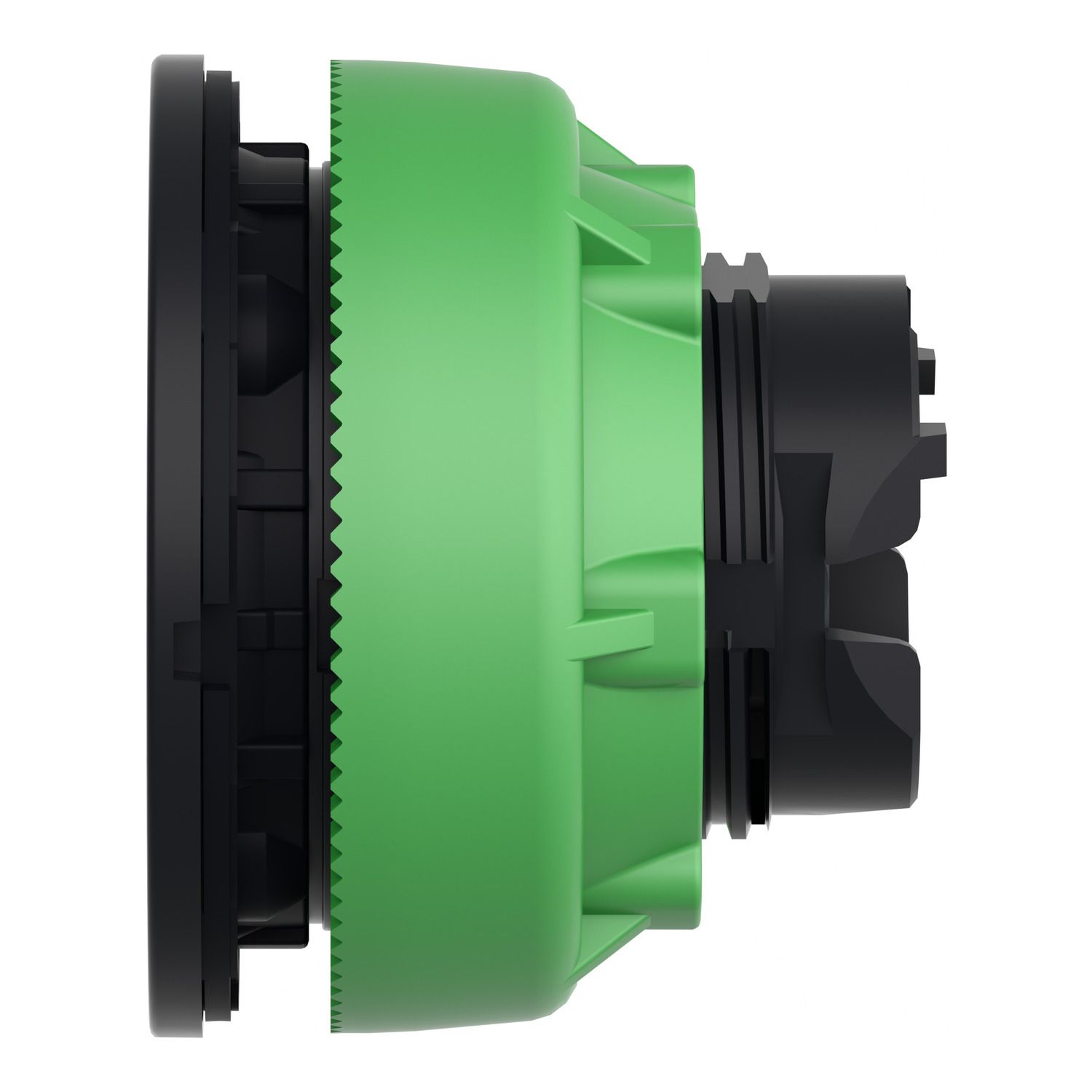

Picture of Head for pilot light, Harmony XB5, antimicrobial, plastic, blue, 30mm, universal LED, plain lens

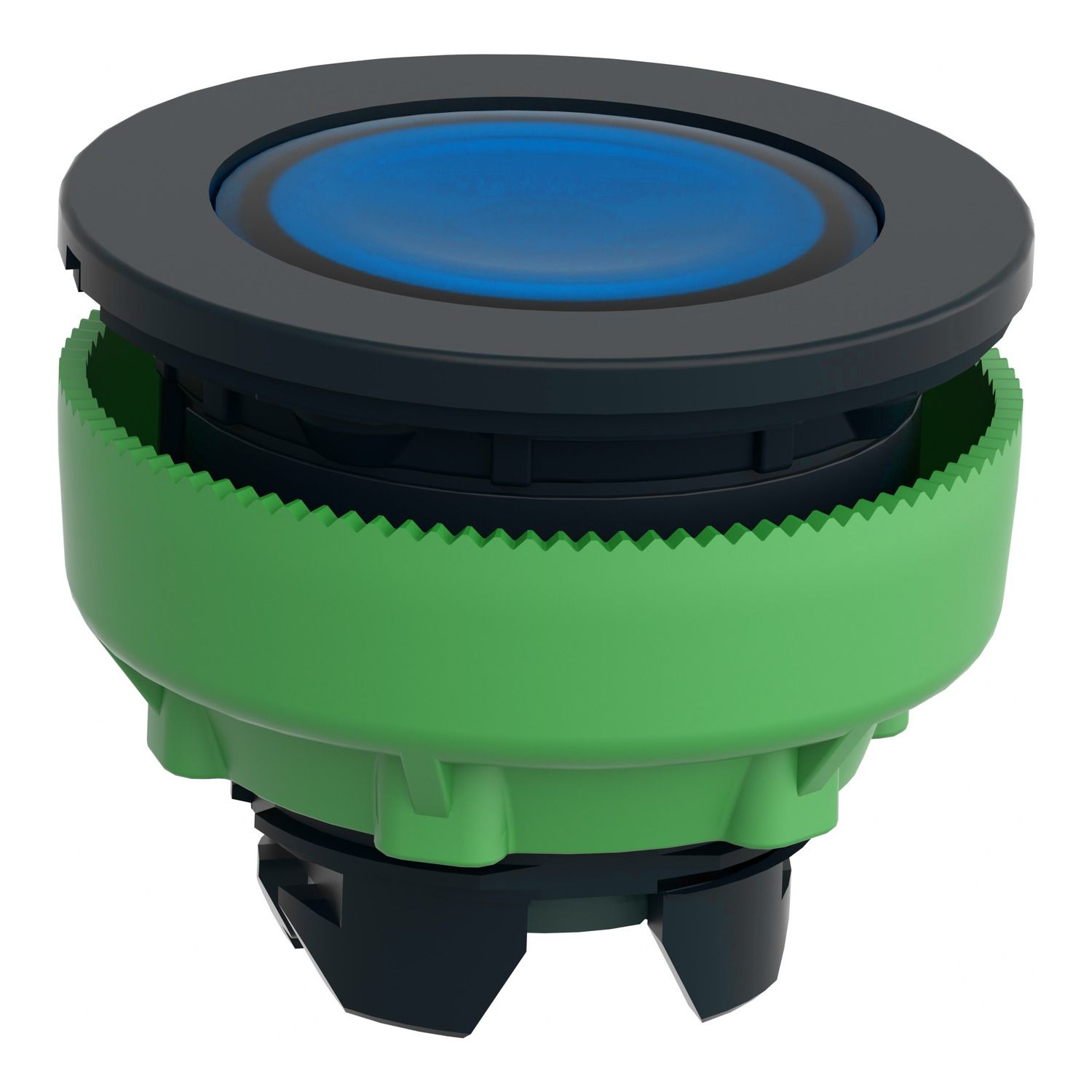

Picture of Head for pilot light, Harmony XB5, antimicrobial, plastic, blue, 30mm, universal LED, plain lens
SKU:

ZB5FV063

Head for pilot light, Harmony XB5, antimicrobial, plastic, blue, 30mm, universal LED, plain lens

Old price: $24.09 INC GST
$18.79 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Head for pilot light, Harmony XB5, antimicrobial, plastic, blue, 30mm, universal LED, plain lens
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Circularity Profile
Environmental Disclosure
Declaration of conformity
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This pilot light head for integral LED provides clear visual feedback on the status of your machines. It comes with antimicrobial characteristics. It is easily installed into a 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Product compatibility universal LED
Bezel material dark grey plastic
Sale per indivisible quantity 1
Head type built-in-flush
Cap/operator or lens colour blue
Shape of signaling unit head round
Product or component type head for pilot light
Mounting diameter 30.5 mm
Range of product Harmony XB5
Operator additional information with plain lens
Complementary
Group of product lens fitted integral LED
CAD overall depth 30 mm
CAD overall width 37 mm
Customizable no, 1
Compatibility code ZB5
Cap/operator or lens colour blue
GCR BRIDGE ZB5FVCUST01
Device presentation basic element
CAD overall height 37 mm
Net weight 0.015 kg
Electrical composition code PF1 in front mounting with integral LED, P2 in front mounting with integral LED and transformer, P1 in front mounting with integral LED
Main group pilot light
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards ISO 22196:2011, ISO 21702, JIS C8201-1, EN/IEC 60947-5-5, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-1, JIS C8201-5-1, UL 508
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.600 cm
Package 1 Width 4.300 cm
Package 1 Length 5.200 cm
Package 1 Weight 22.000 g
Unit Type of Package 2 2
Number of Units in Package 2 40
Package 2 Height 15.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 1.170 kg
