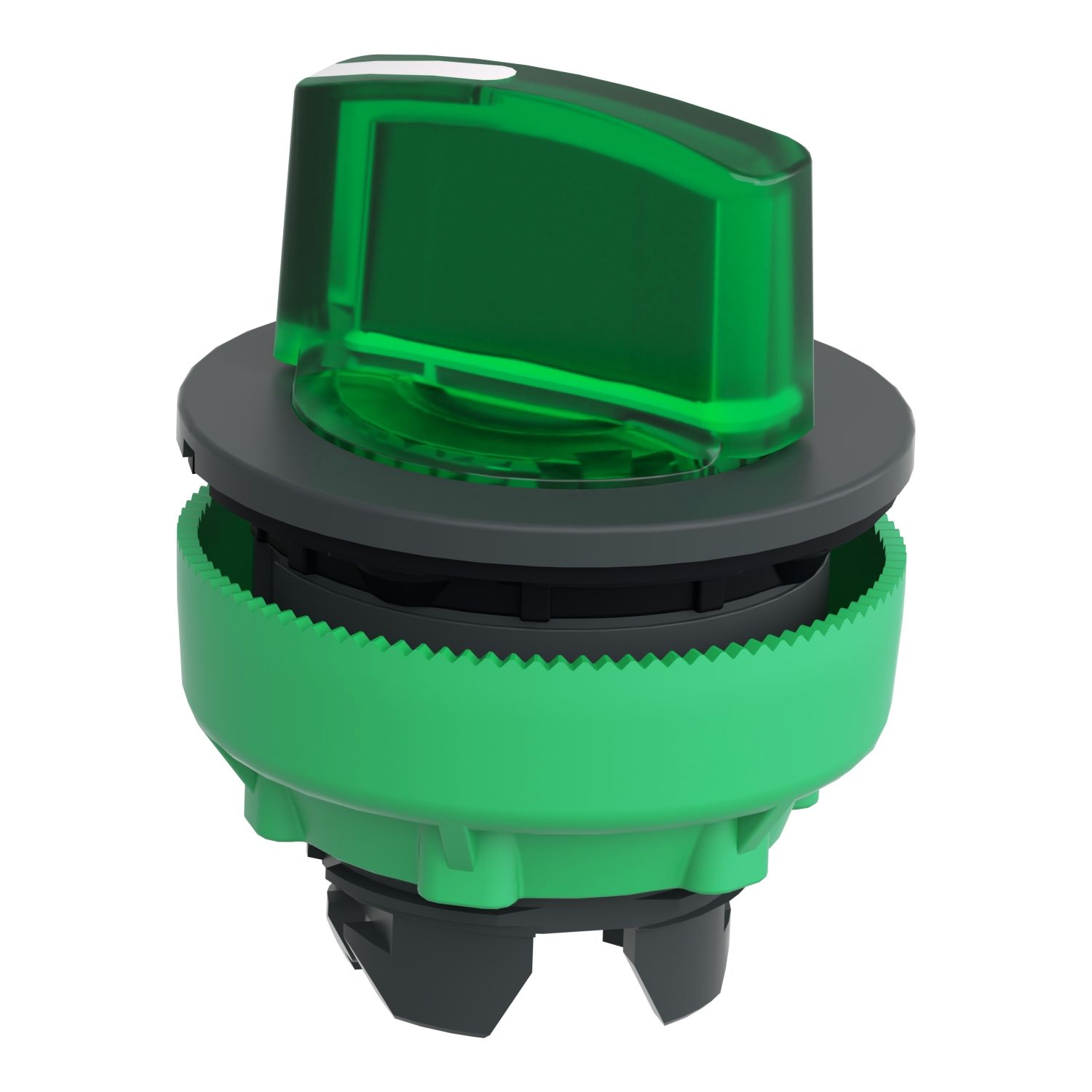

Picture of Head for illuminated selector switch, Harmony XB5, plastic, green handle, flush mounted, universal LED, 2 positions

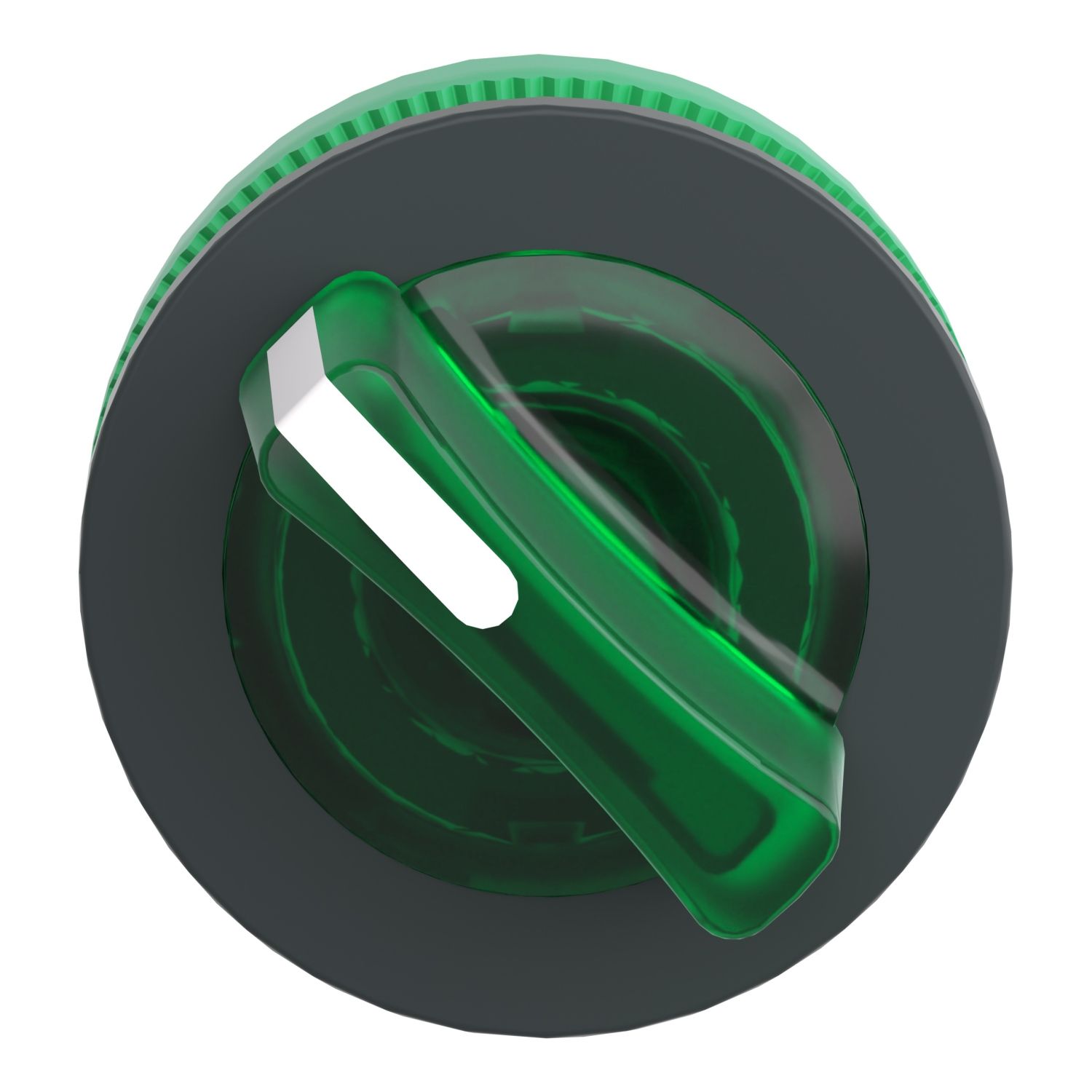

Picture of Head for illuminated selector switch, Harmony XB5, plastic, green handle, flush mounted, universal LED, 2 positions

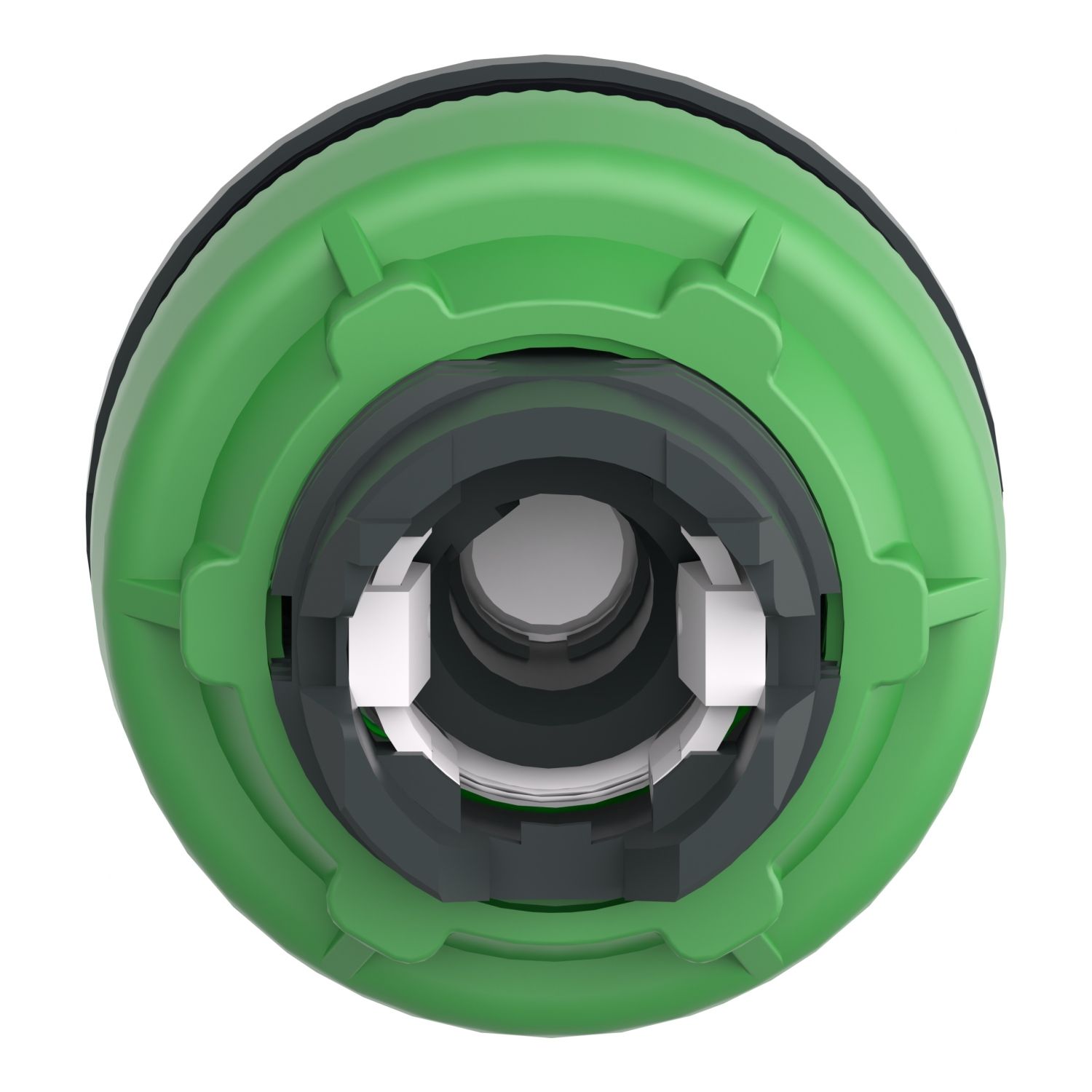

Picture of Head for illuminated selector switch, Harmony XB5, plastic, green handle, flush mounted, universal LED, 2 positions

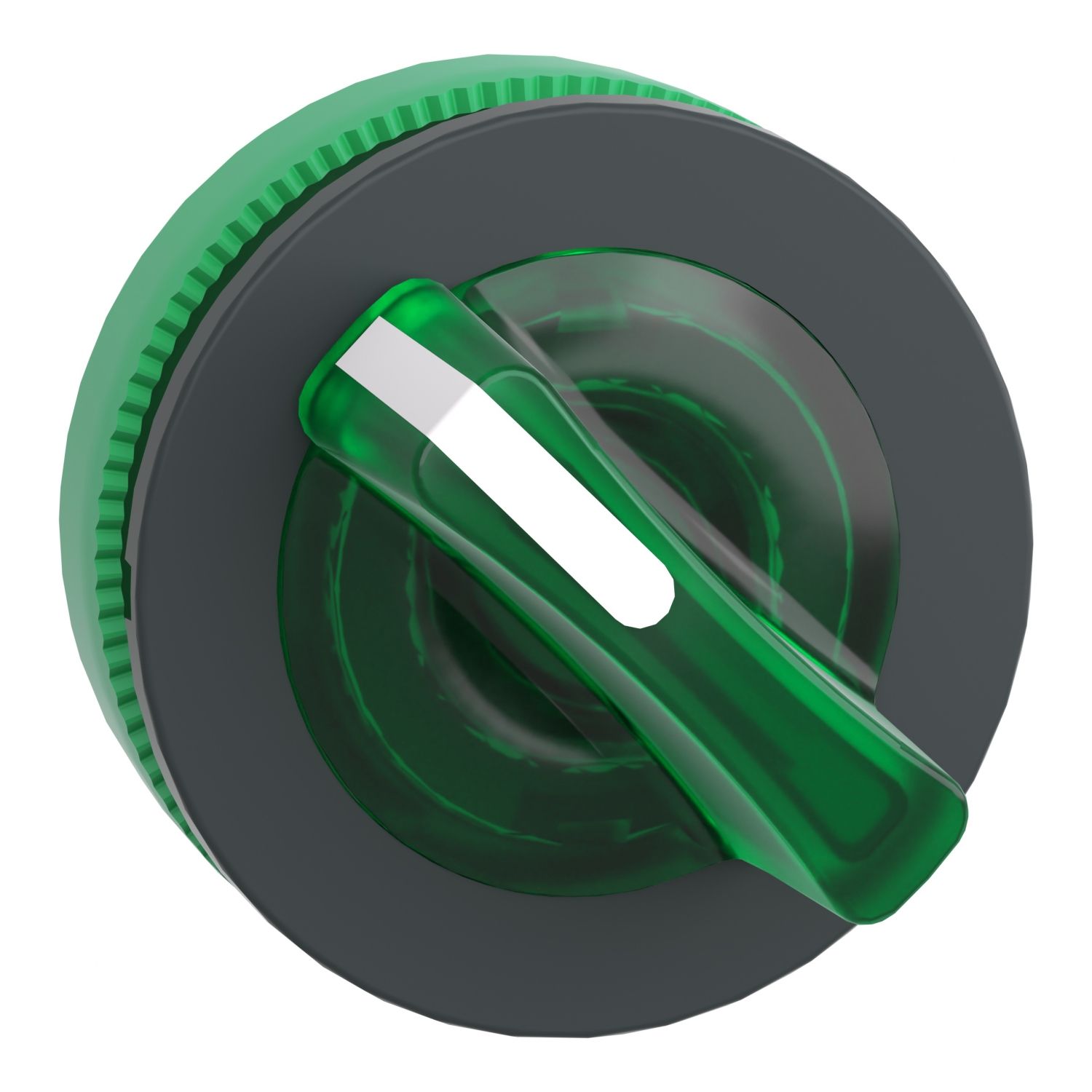

Picture of Head for illuminated selector switch, Harmony XB5, plastic, green handle, flush mounted, universal LED, 2 positions

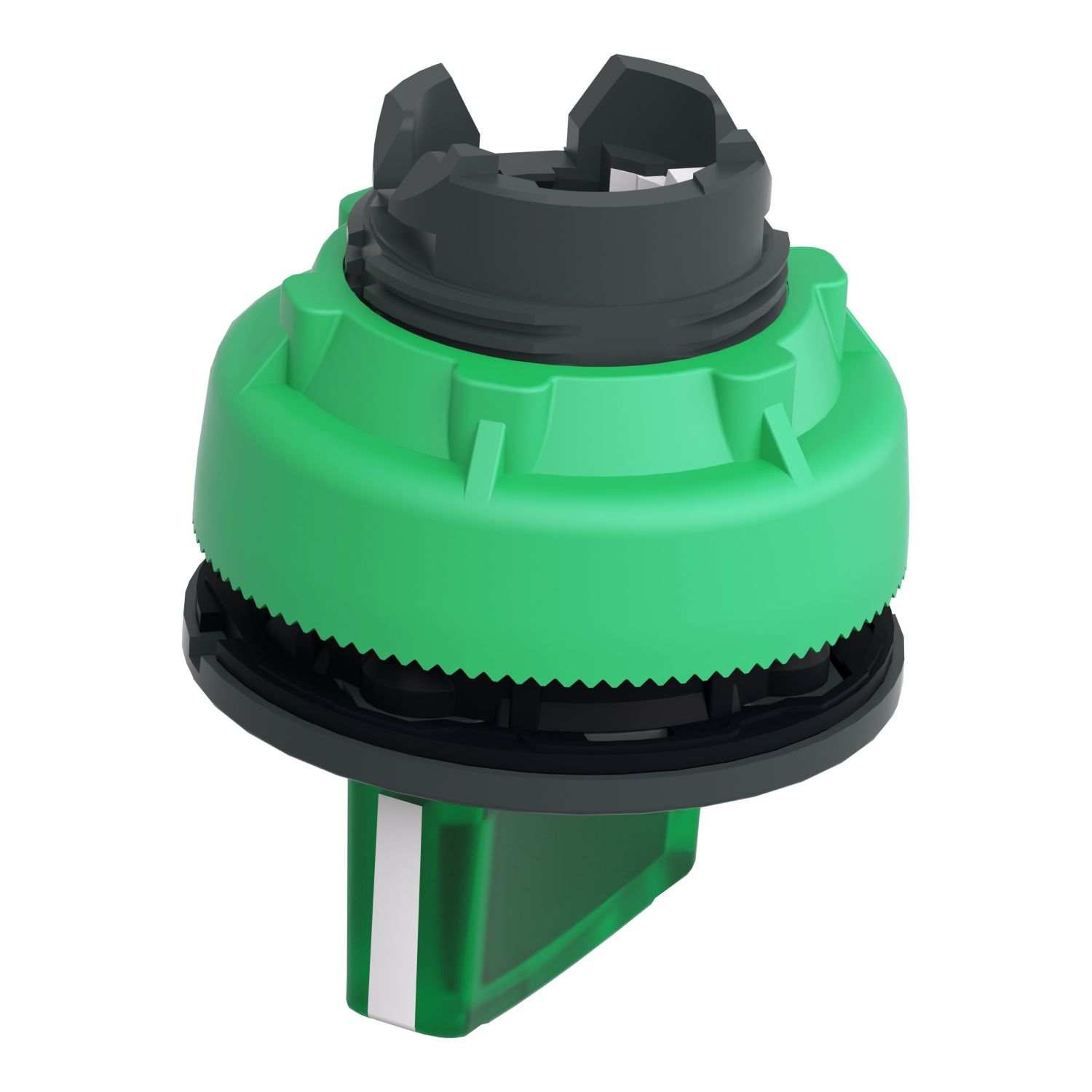

Picture of Head for illuminated selector switch, Harmony XB5, plastic, green handle, flush mounted, universal LED, 2 positions

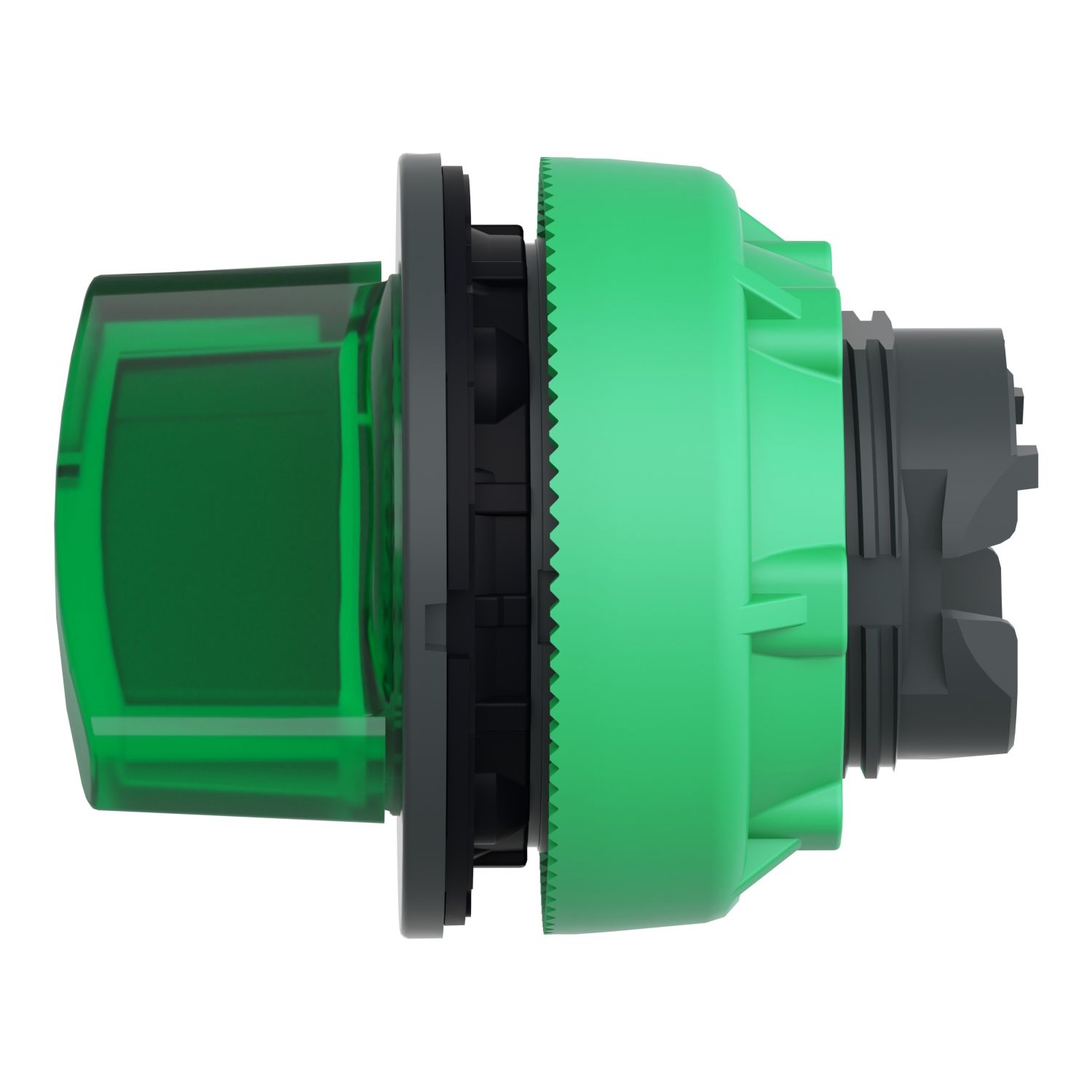

Picture of Head for illuminated selector switch, Harmony XB5, plastic, green handle, flush mounted, universal LED, 2 positions

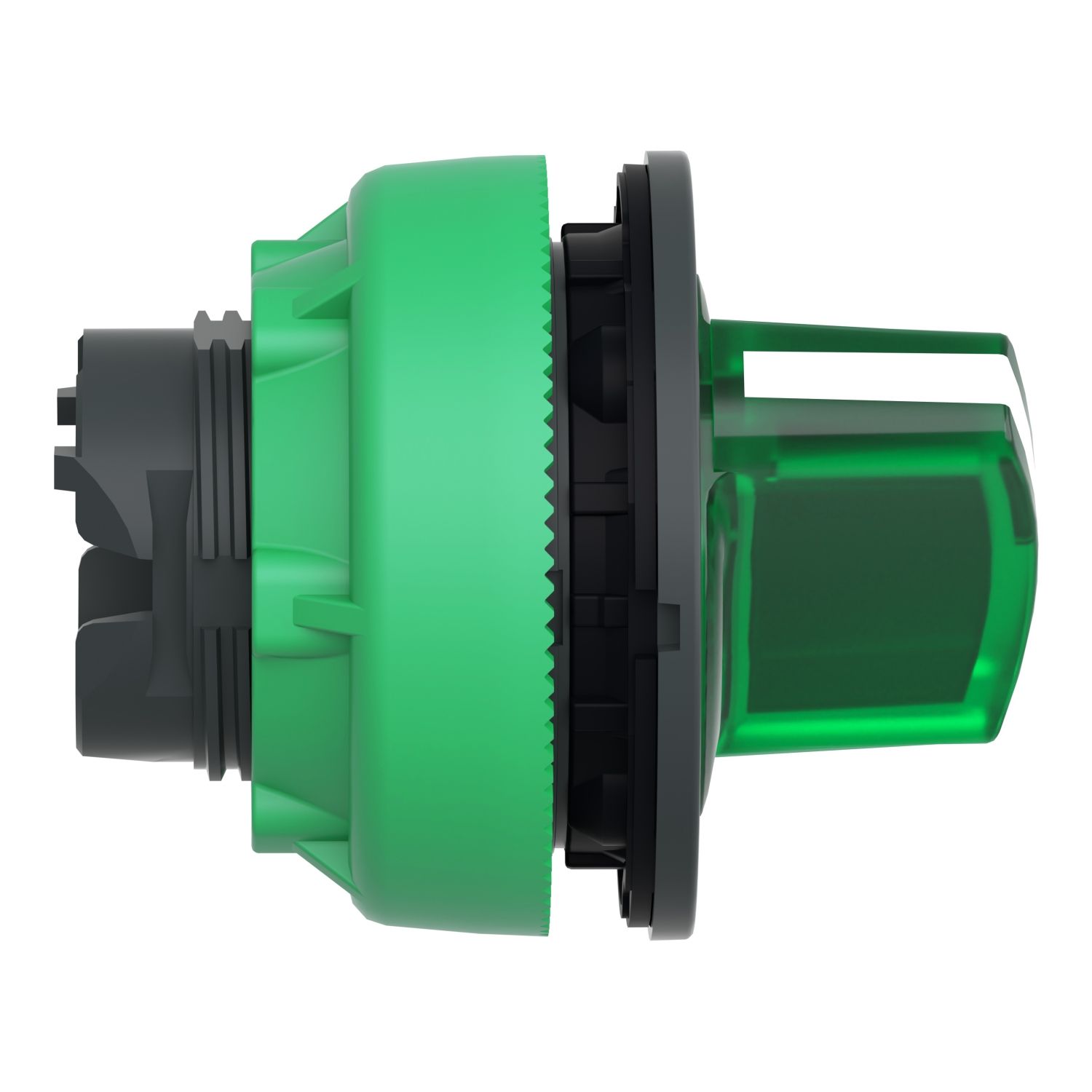

Picture of Head for illuminated selector switch, Harmony XB5, plastic, green handle, flush mounted, universal LED, 2 positions
Picture of Head for illuminated selector switch, Harmony XB5, plastic, green handle, flush mounted, universal LED, 2 positions
SKU:

ZB5FK1433

Head for illuminated selector switch, Harmony XB5, plastic, green handle, flush mounted, universal LED, 2 positions

Old price: $70.84 INC GST
$55.26 INC GST
Available for Shipping : 14-Jan-2026
Head for illuminated selector switch, Harmony XB5, plastic, green handle, flush mounted, universal LED, 2 positions
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Jan-2026
Circularity Profile
Instruction sheet
Environmental Disclosure
Declaration of conformity
Product Page Link
Product Data Sheet
This 30mm head for illuminated selector switch provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Product compatibility universal LED
Operator position information 2 positions 90°
Operator profile green standard handle
Bezel material dark grey plastic
Sale per indivisible quantity 1
Head type built-in-flush
Shape of signaling unit head round
Product or component type head for illuminated selector switch
Type of operator right to left spring return
Mounting diameter 30.5 mm
Range of product Harmony XB5
Complementary
Group of product illum. integral LED
CAD overall depth 46 mm
CAD overall width 37 mm
Customizable no, 0
Compatibility code ZB5
Mechanical durability 500000 cycles
Cap/operator or lens colour green
GCR BRIDGE ZB5FKCUST01
CAD overall height 37 mm
Net weight 0.03 kg
Electrical composition code M4 for <4 contacts using single and double blocks in front mounting with integral LED, MF1 for <2 contacts using single blocks in front mounting with integral LED, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M3 for <4 contacts using single blocks in front mounting with integral LED
Main group illum select switch
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, CSA C22.2 No 14, EN/IEC 60947-1, JIS C8201-5-1, EN/IEC 60947-5-5, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications BV, GL, UL listed, LROS (Lloyds register of shipping), DNV, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.400 cm
Package 1 Width 5.300 cm
Package 1 Length 5.900 cm
Package 1 Weight 22.000 g
