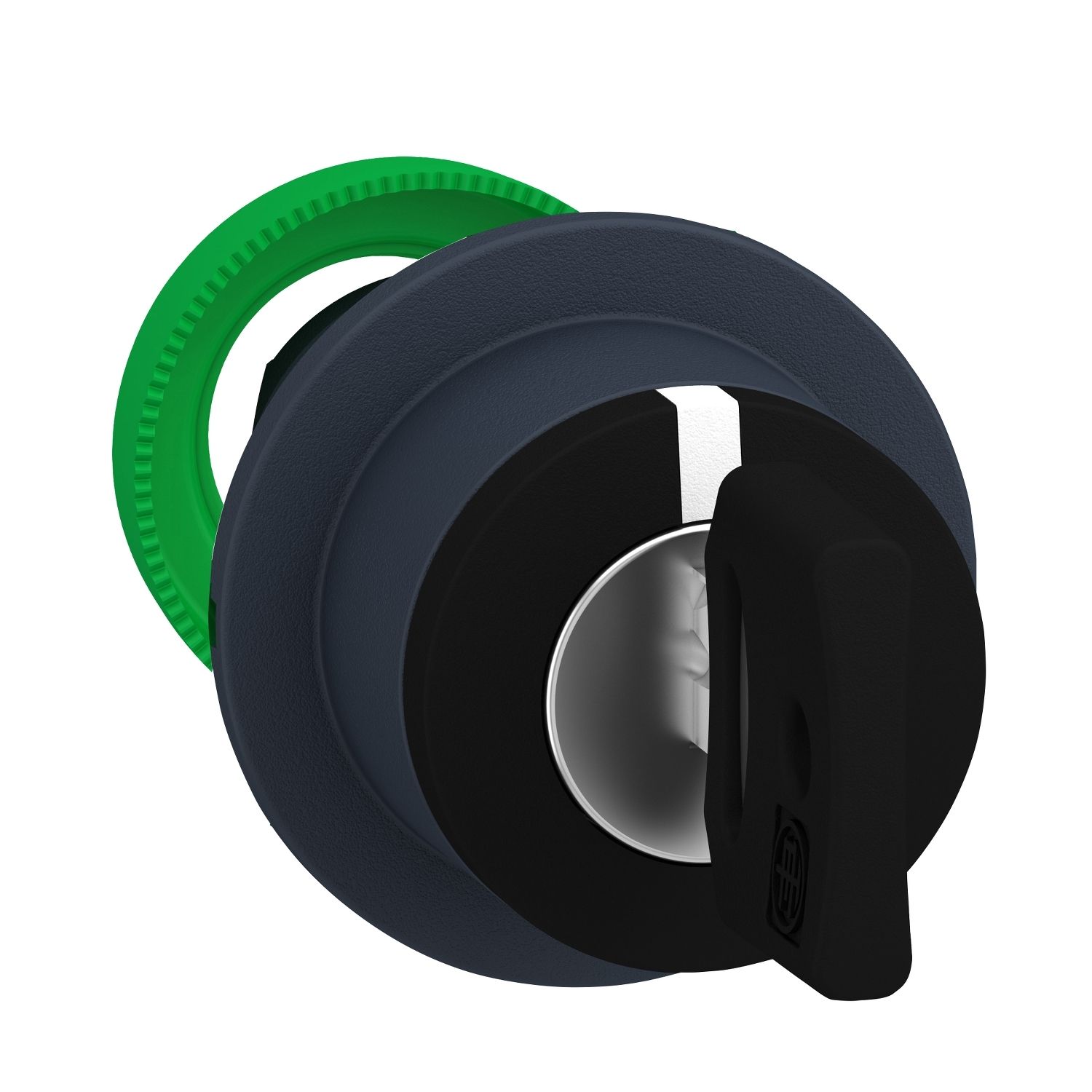

Picture of Head for key selector switch, Harmony XB5, flush mounted 455 3 pos return right to center
SKU:

ZB5FG05

Head for key selector switch, Harmony XB5, flush mounted 455 3 pos return right to center

Old price: $112.42 INC GST
$87.69 INC GST
Available for Shipping : 13-Jan-2026
Head for key selector switch, Harmony XB5, flush mounted 455 3 pos return right to center
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 13-Jan-2026
Environmental Disclosure
Catalog
Instruction sheet
Circularity Profile
Declaration of conformity
Product Page Link
Product Data Sheet
This 30mm key selector switch head, Ronis 455 provides an ergonomic interface for controlling your machine. It is easily installed/replaced on compatible selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Type of keylock key 455
Device short name ZB5
Operator position information 3 positions +/- 45°
Operator profile black key switch
Bezel material dark grey plastic
Sale per indivisible quantity 1
Key withdrawal position left and center
Head type built-in-flush
Shape of signaling unit head round
Product or component type head for key selector switch
Type of operator right to centre spring return
Mounting diameter 30.5 mm
Range of product Harmony XB5
Complementary
Group of product key switch
CAD overall depth 72 mm
CAD overall width 37 mm
Customizable no, 1
Compatibility code ZB5
Mechanical durability 1000000 cycles
Cap/operator or lens colour black
GCR BRIDGE ZB5FGCUST02
CAD overall height 37 mm
Net weight 0.069 kg
Electrical composition code SF1 for <3 contacts using single blocks in front mounting, C3 for <6 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting, C6 for <5 contacts using single and double blocks in front mounting, C5 for <5 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting
Main group selector switch
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, JIS C8201-5-1, EN/IEC 60947-1
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications BV, CSA, UL listed, LROS (Lloyds register of shipping), GL, DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 8.6 cm
Package 1 Width 4.3 cm
Package 1 Length 5.2 cm
Package 1 Weight 63.0 g
