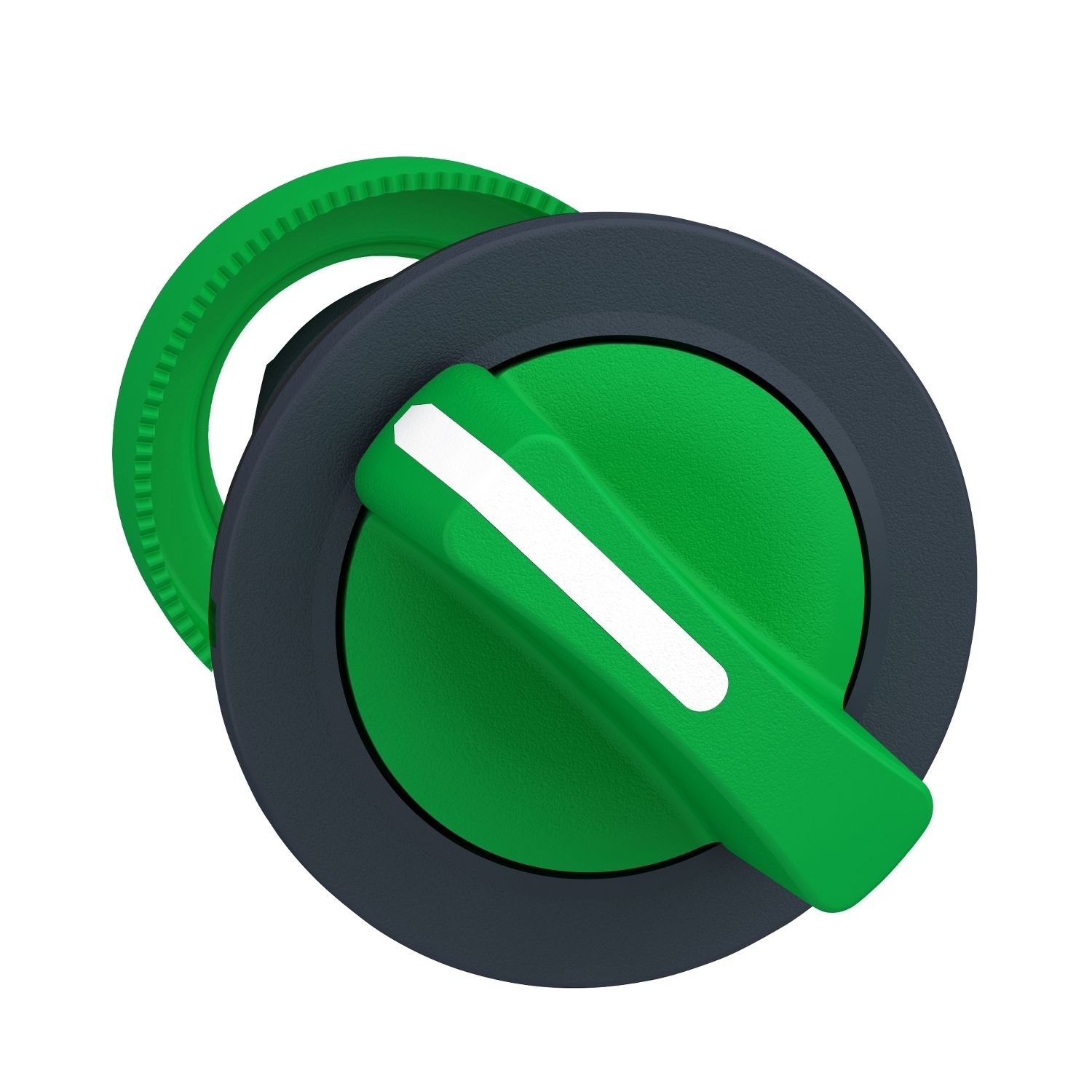

Picture of Head for selector switch, Harmony XB5, flush mounted green 2 pos stay put
SKU:

ZB5FD203

Head for selector switch, Harmony XB5, flush mounted green 2 pos stay put

Old price: $51.48 INC GST
$40.15 INC GST
Available for Shipping : 14-Jan-2026
Head for selector switch, Harmony XB5, flush mounted green 2 pos stay put
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 14-Jan-2026
Declaration of conformity
Environmental Disclosure
Catalog
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP66 protection, making it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Operator position information 2 positions 90°
Operator profile green standard handle
Bezel material dark grey plastic
Sale per indivisible quantity 1
Head type built-in-flush
Shape of signaling unit head round
Product or component type head for selector switch
Type of operator stay put
Mounting diameter 30.5 mm
Range of product Harmony XB5
Complementary
Group of product non illuminated
CAD overall depth 46 mm
CAD overall width 37 mm
Customizable no, 1
Compatibility code ZB5
Mechanical durability 1000000 cycles
Cap/operator or lens colour green
GCR BRIDGE ZB5FDCUST02
CAD overall height 37 mm
Net weight 0.031 kg
Electrical composition code SF1 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting, C6 for <5 contacts using single and double blocks in front mounting, C5 for <5 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C3 for <6 contacts using single blocks in front mounting
Main group selector switch
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP69, IP69K, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, JIS C8201-5-1, UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-4
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications UL listed, DNV, LROS (Lloyds register of shipping), CSA, GL, BV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.33 cm
Package 1 Width 4.32 cm
Package 1 Length 5.59 cm
Package 1 Weight 0.03 kg
