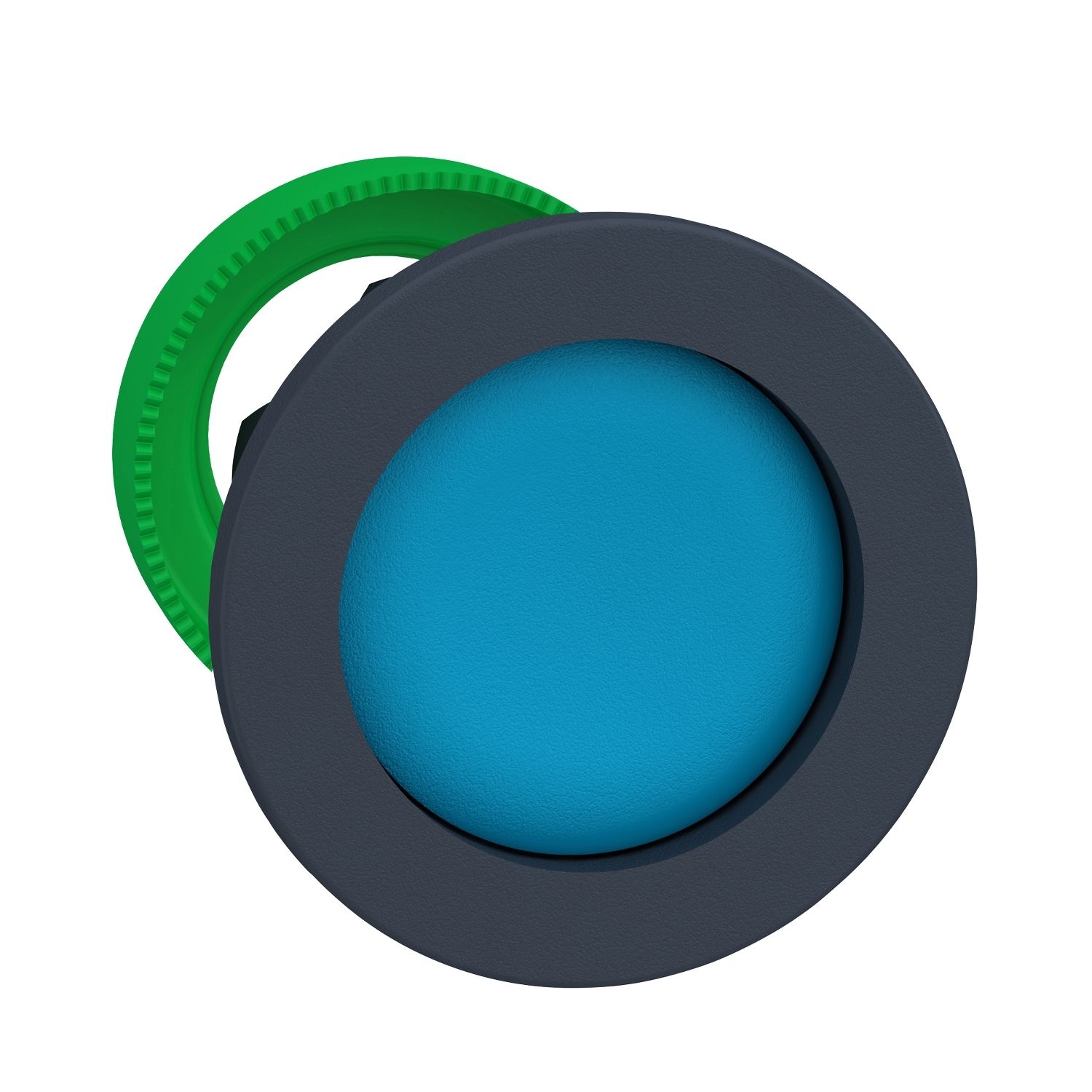

Picture of Harmony XB5, Antimicrobial Flush mounted push button head, plastic, recessed, blue, Ø30, spring return, unmarked, dark grey bezel
SKU:

ZB5FA66

Harmony XB5, Antimicrobial Flush mounted push button head, plastic, recessed, blue, Ø30, spring return, unmarked, dark grey bezel

Old price: $58.19 INC GST
$45.39 INC GST
Available for Shipping : 19-Jan-2026
Harmony XB5, Antimicrobial Flush mounted push button head, plastic, recessed, blue, Ø30, spring return, unmarked, dark grey bezel
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 19-Jan-2026
Environmental Disclosure
Catalog
Instruction sheet
Declaration of conformity
Circularity Profile
Product Page Link
Product Data Sheet
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Product compatibility ZB5AZ, ZBZF33, ZBZF32, ZBYF...
Operator profile blue recessed, unmarked
Bezel material dark grey plastic
Sale per indivisible quantity 1
Head type built-in-flush
Shape of signaling unit head round
Product or component type head for non-illuminated push-button
Type of operator spring return
Mounting diameter 30.5 mm
Range of product Harmony XB5
Operator additional information high guard
Complementary
Group of product recessed push
CAD overall depth 30 mm
CAD overall width 37 mm
Customizable no, 0
Marking unmarked
Compatibility code ZB5
Mechanical durability 10000000 cycles
Cap/operator or lens colour blue
CAD overall height 37 mm
Net weight 0.03 kg
Electrical composition code SF1 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C1 for <9 contacts using single blocks in front mounting
Main group push-button
Environment
Protective treatment TH
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection Type 4X conforming to UL 50 E, Type 4 conforming to UL 50 E, Type 12 conforming to UL 50 E, Type 13 conforming to UL 50 E, IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Vibration resistance 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, CSA C22.2 No 14, IEC 60947-5-1, UL 508, JIS C8201-5-1, IEC 60947-5-4, IEC 60947-1
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications BV, CSA, LROS (Lloyds register of shipping), DNV, UL listed, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.45 cm
Package 1 Width 4.3 cm
Package 1 Length 5.2 cm
Package 1 Weight 22.0 g
