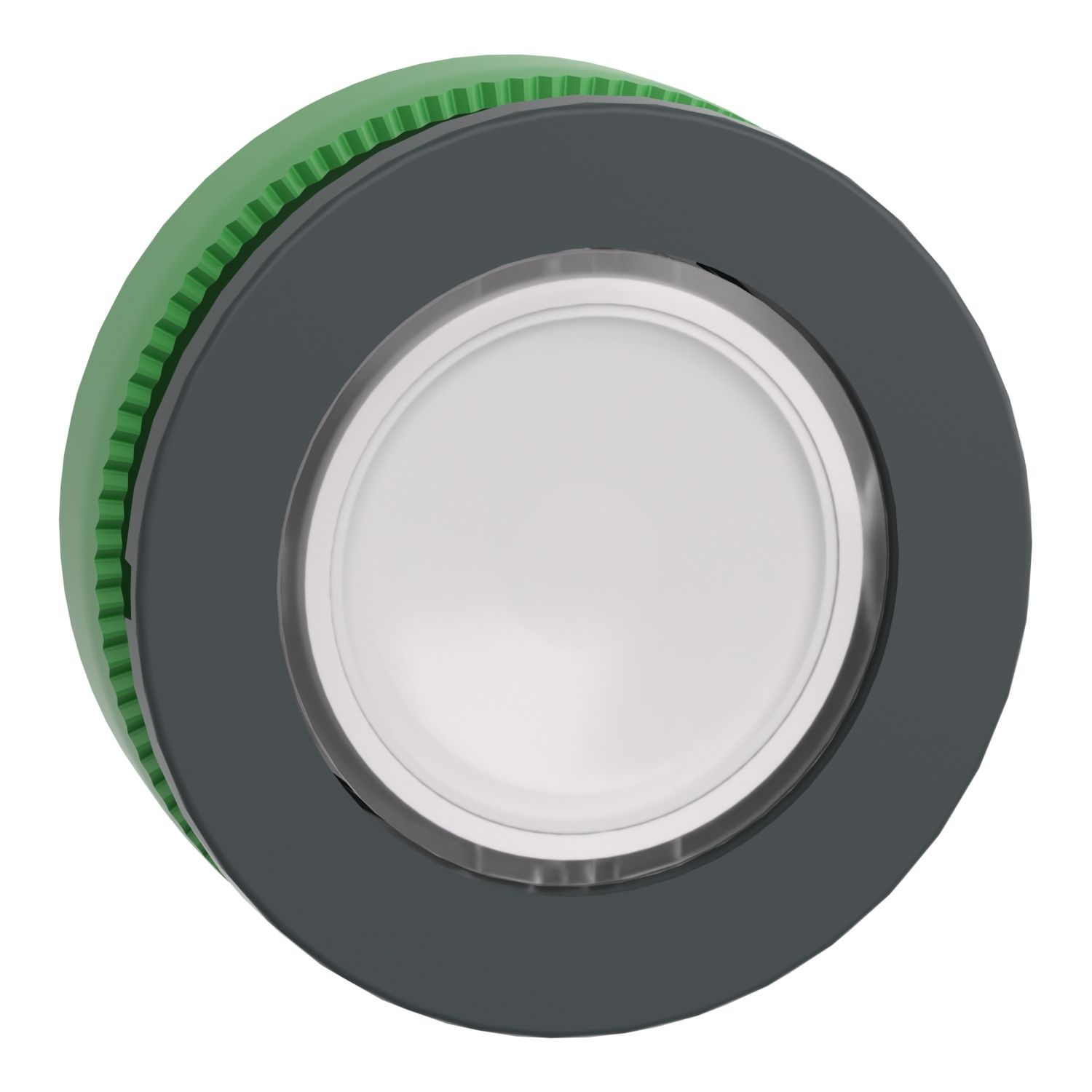

Picture of Head for illuminated push button, Harmony XB5, antimicrobial, plastic, white flush mounted, 30mm, universal LED,

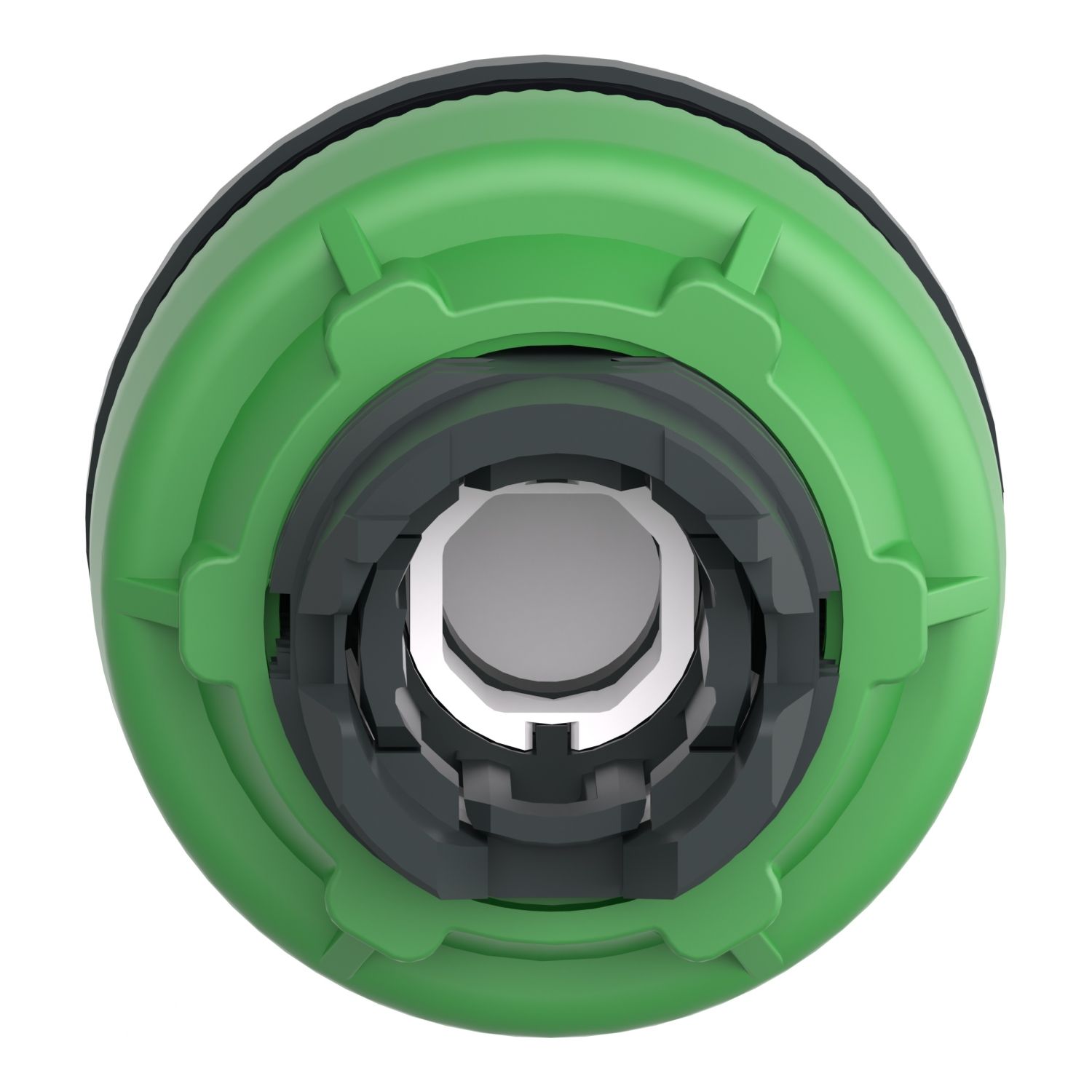

Picture of Head for illuminated push button, Harmony XB5, antimicrobial, plastic, white flush mounted, 30mm, universal LED,

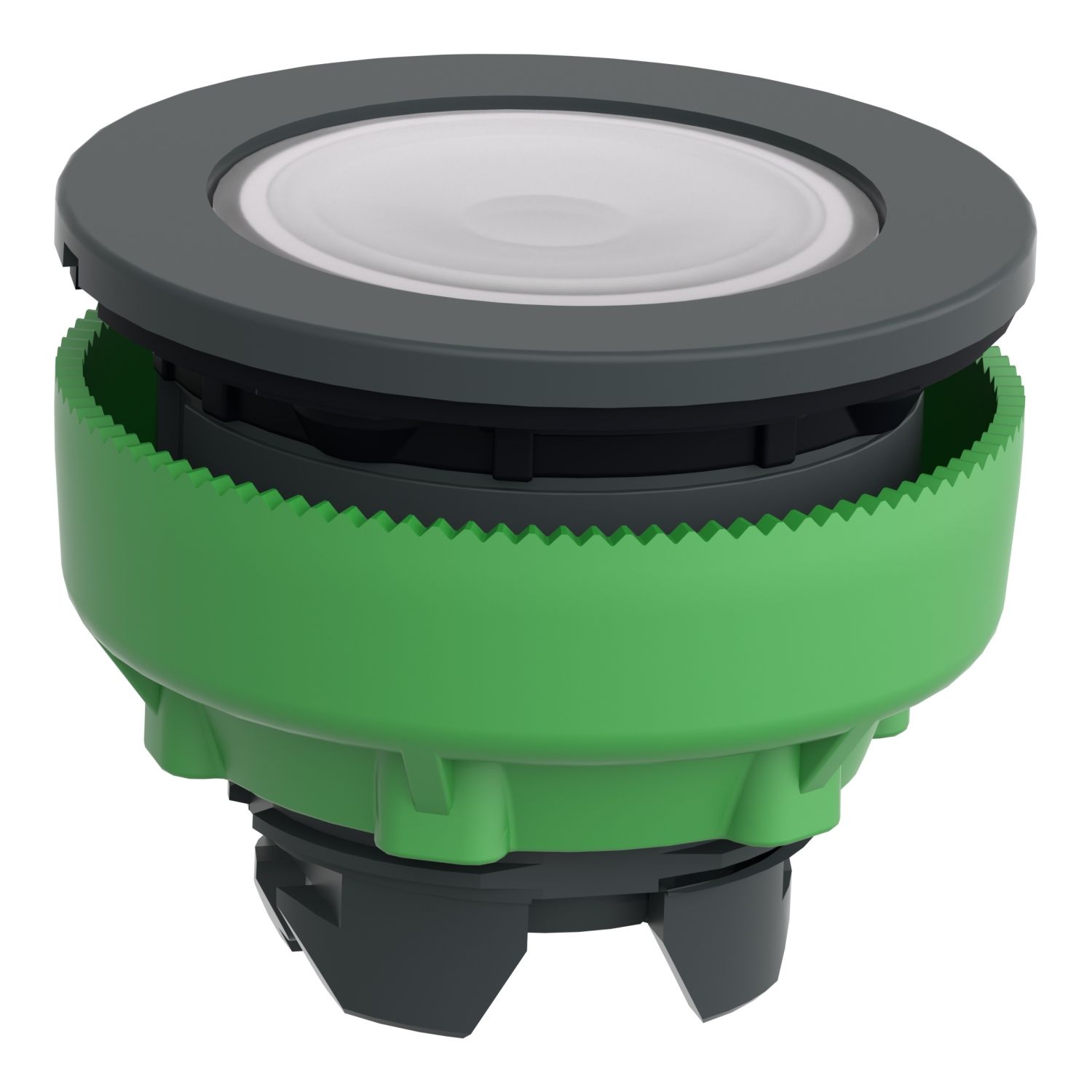

Picture of Head for illuminated push button, Harmony XB5, antimicrobial, plastic, white flush mounted, 30mm, universal LED,

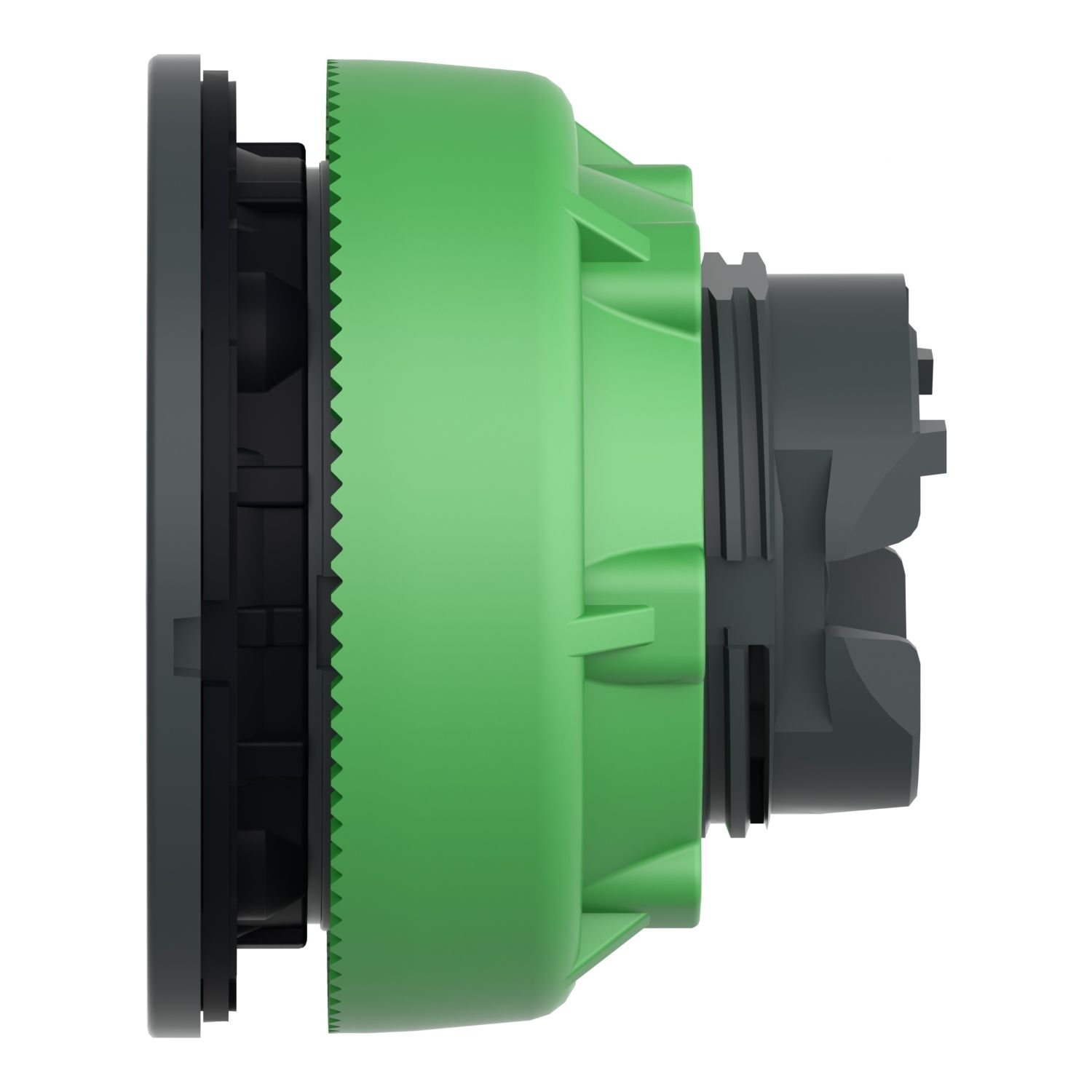

Picture of Head for illuminated push button, Harmony XB5, antimicrobial, plastic, white flush mounted, 30mm, universal LED,

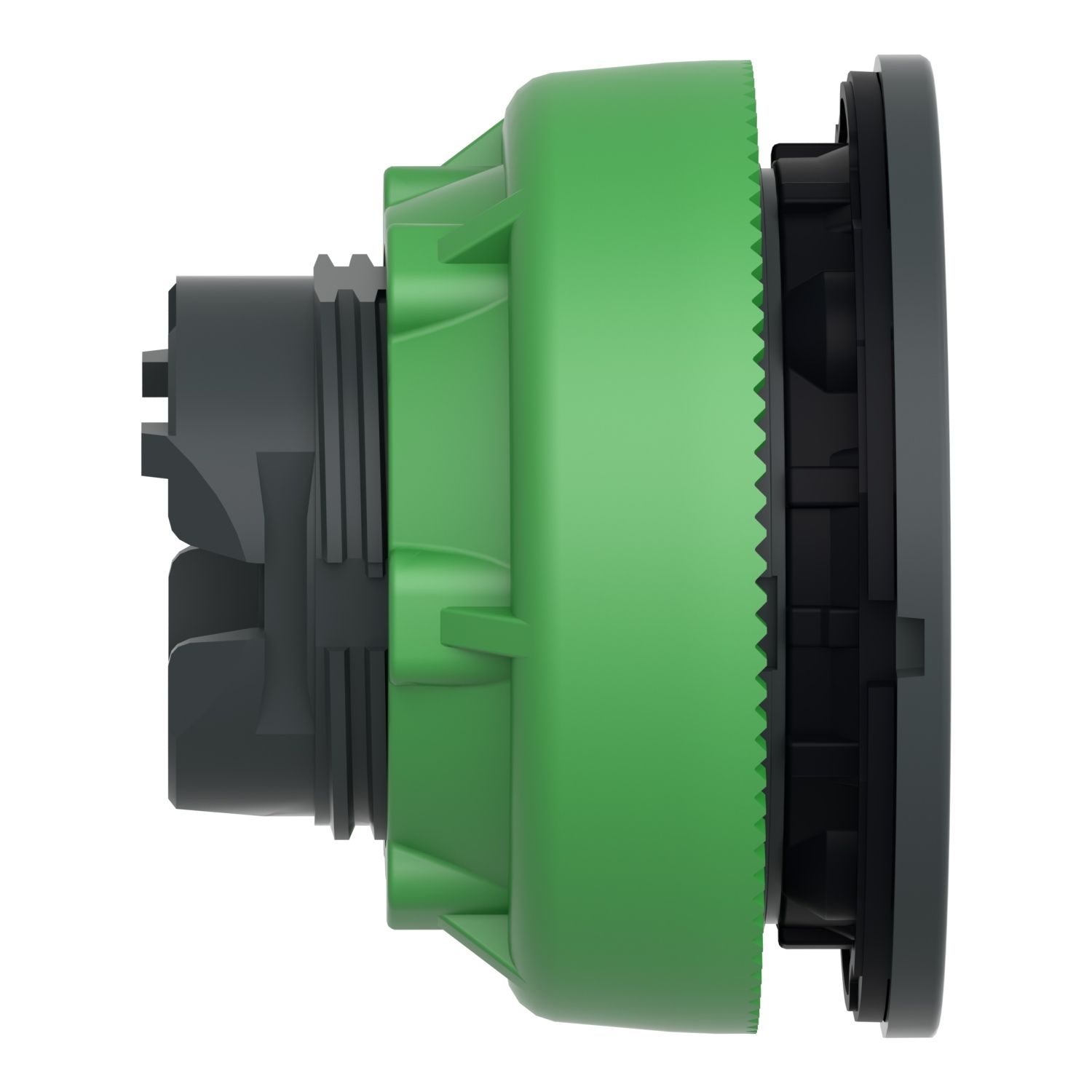

Picture of Head for illuminated push button, Harmony XB5, antimicrobial, plastic, white flush mounted, 30mm, universal LED,

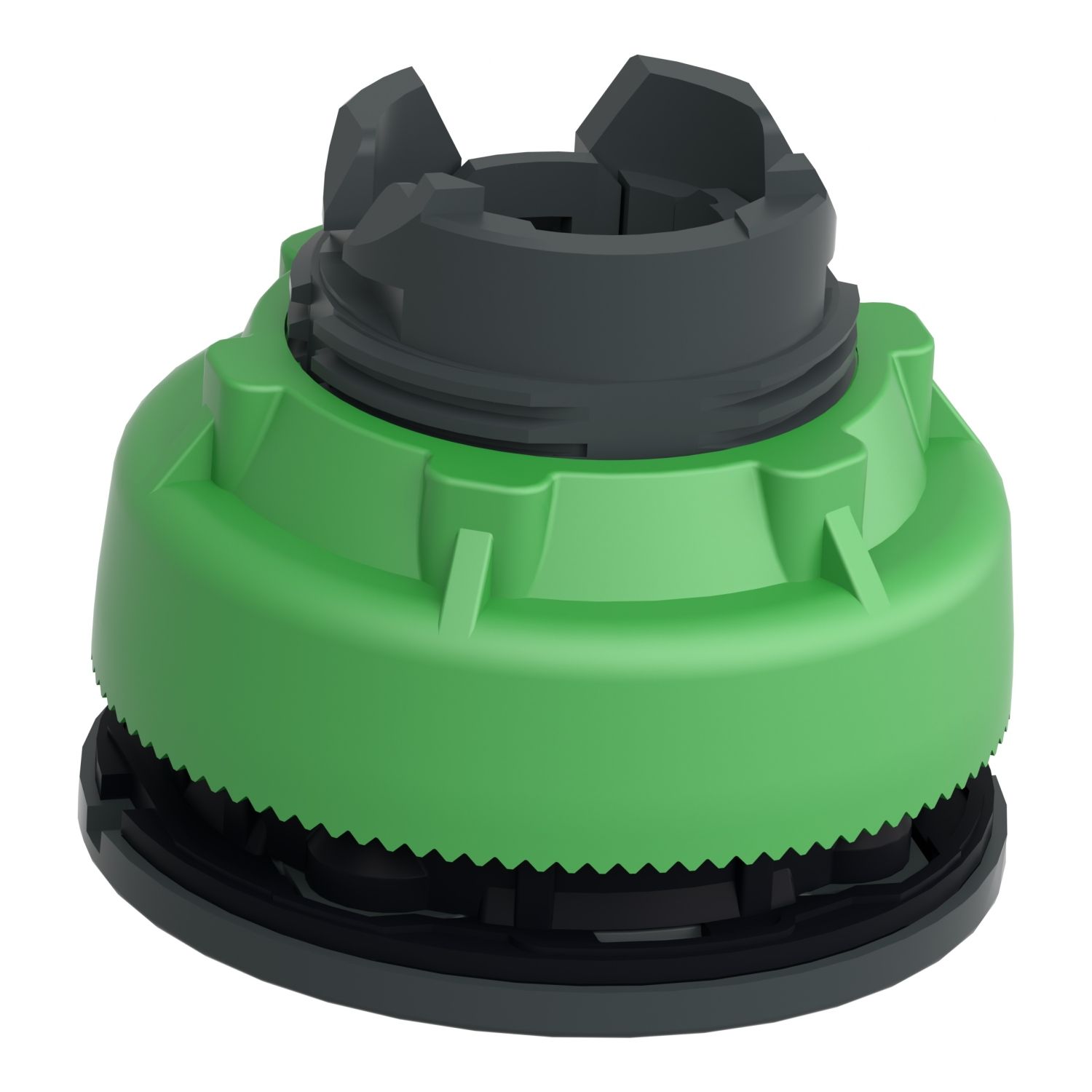

Picture of Head for illuminated push button, Harmony XB5, antimicrobial, plastic, white flush mounted, 30mm, universal LED,

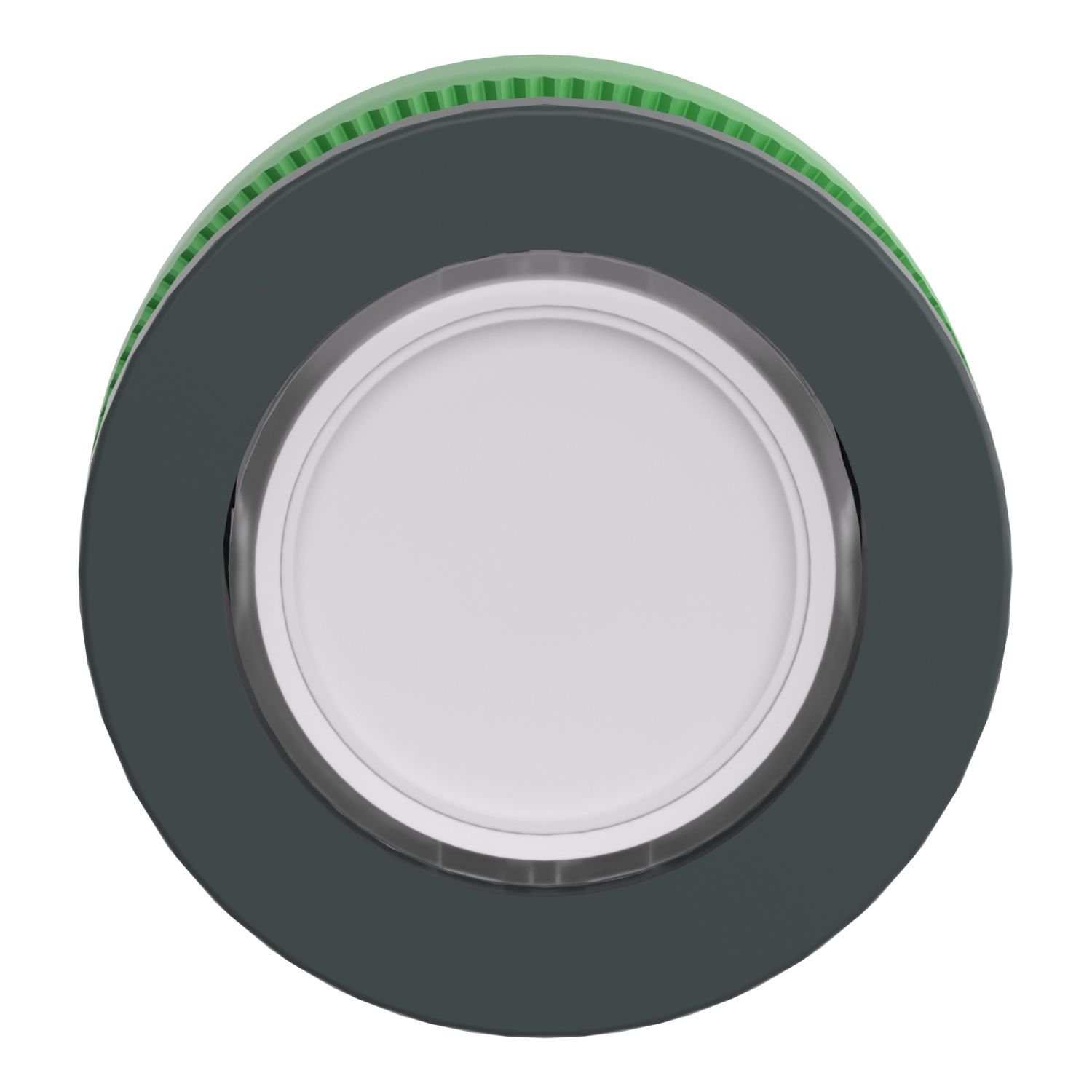

Picture of Head for illuminated push button, Harmony XB5, antimicrobial, plastic, white flush mounted, 30mm, universal LED,
Picture of Head for illuminated push button, Harmony XB5, antimicrobial, plastic, white flush mounted, 30mm, universal LED,
SKU:

ZB5FA18

Head for illuminated push button, Harmony XB5, antimicrobial, plastic, white flush mounted, 30mm, universal LED,

Old price: $33.44 INC GST
$26.08 INC GST
Available for Shipping : 10-Dec-2025
Head for illuminated push button, Harmony XB5, antimicrobial, plastic, white flush mounted, 30mm, universal LED,
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 10-Dec-2025
Circularity Profile
Environmental Disclosure
Declaration of conformity
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Product compatibility universal LED
Operator profile white flush, unmarked
Bezel material dark grey plastic
Sale per indivisible quantity 1
Head type built-in-flush
Shape of signaling unit head round
Product or component type head for illuminated push-button
Type of operator spring return
Mounting diameter 30.5 mm
Range of product Harmony XB5
Operator additional information for insertion of legend
Complementary
Group of product flush push with inser of legend
CAD overall depth 30 mm
CAD overall width 37 mm
Customizable no, 1
Marking unmarked
Compatibility code ZB5
Mechanical durability 10000000 cycles
Cap/operator or lens colour white
GCR BRIDGE ZB5FACUST05
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
CAD overall height 37 mm
Net weight 0.017 kg
Electrical composition code C3 for <6 contacts using single blocks in front mounting with integral LED, SF2 for <2 contacts using single blocks in front mounting, C14 for <2 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, MF1 for <2 contacts using single blocks in front mounting with integral LED, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M2 for <6 contacts using single and double blocks in front mounting with integral LED, M1 for <6 contacts using single blocks in front mounting with integral LED
Main group illum push-button
Environment
Protective treatment TC
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, JIS C8201-5-1, EN/IEC 60947-5-1, UL 508, GB 14048.5, EN/IEC 60947-5-4, EN/IEC 60947-1, CSA C22.2 No 14
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to EN 50102
Product certifications LROS (Lloyds register of shipping), CSA, BV, UL listed, DNV, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.300 cm
Package 1 Width 5.300 cm
Package 1 Length 9.200 cm
Package 1 Weight 28.000 g
