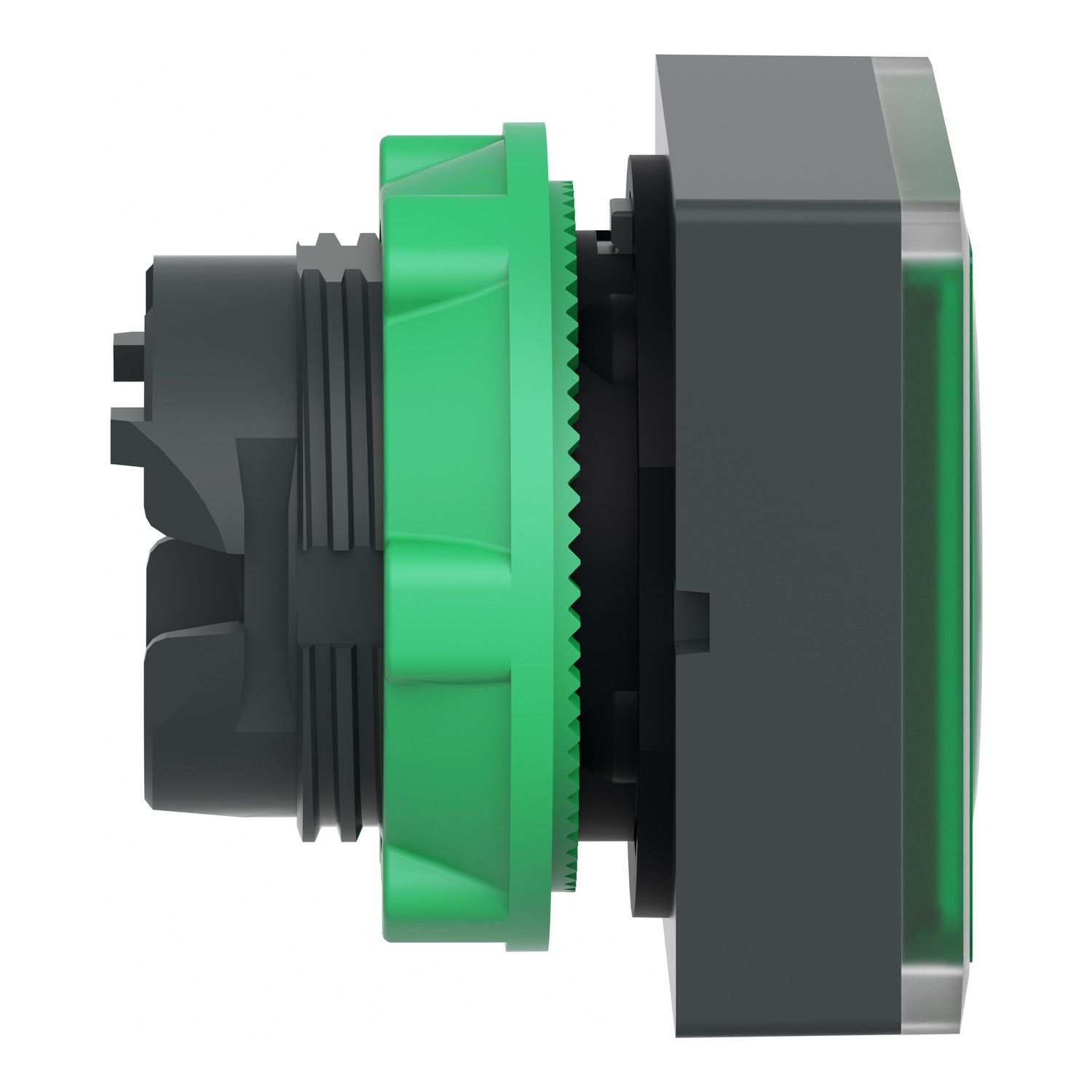

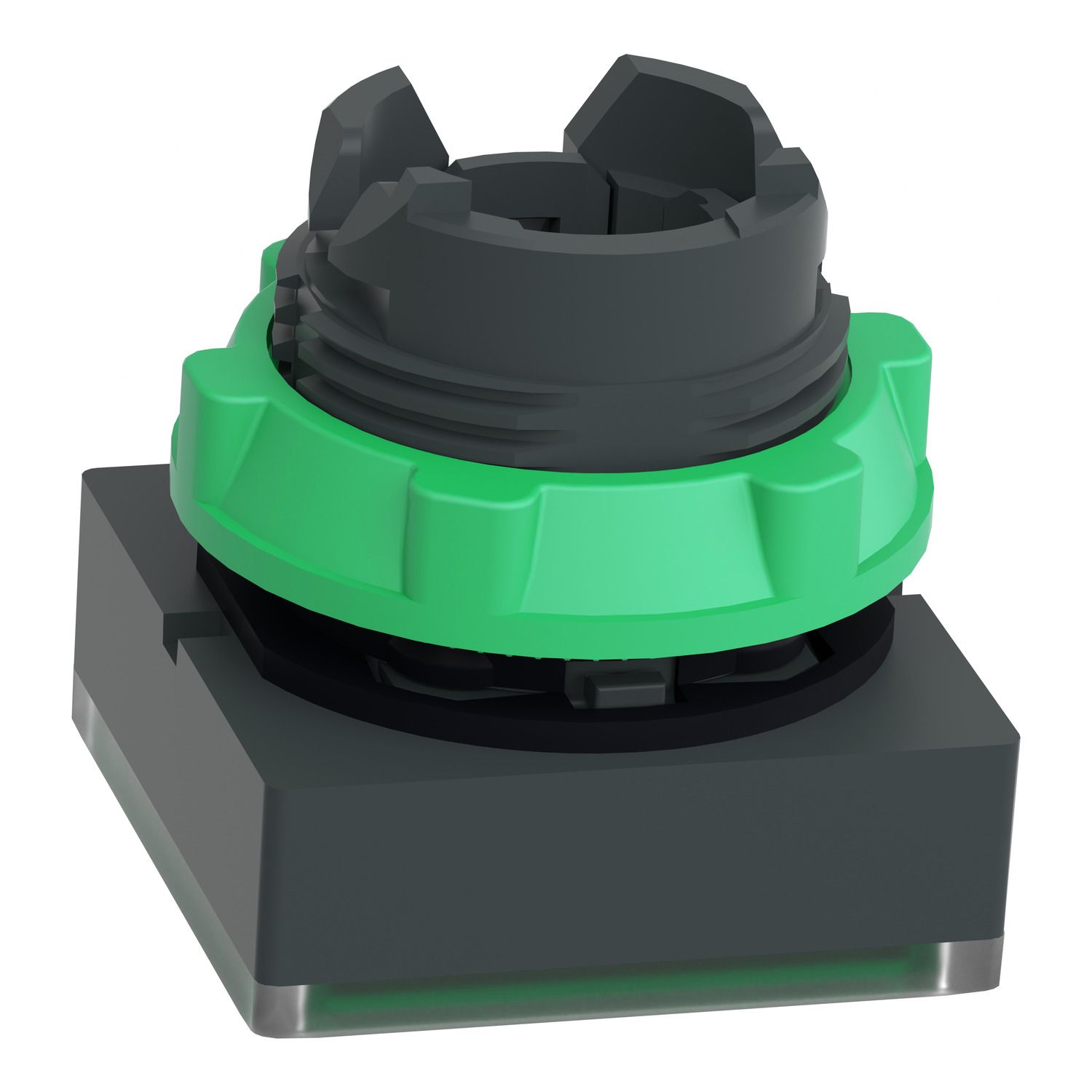

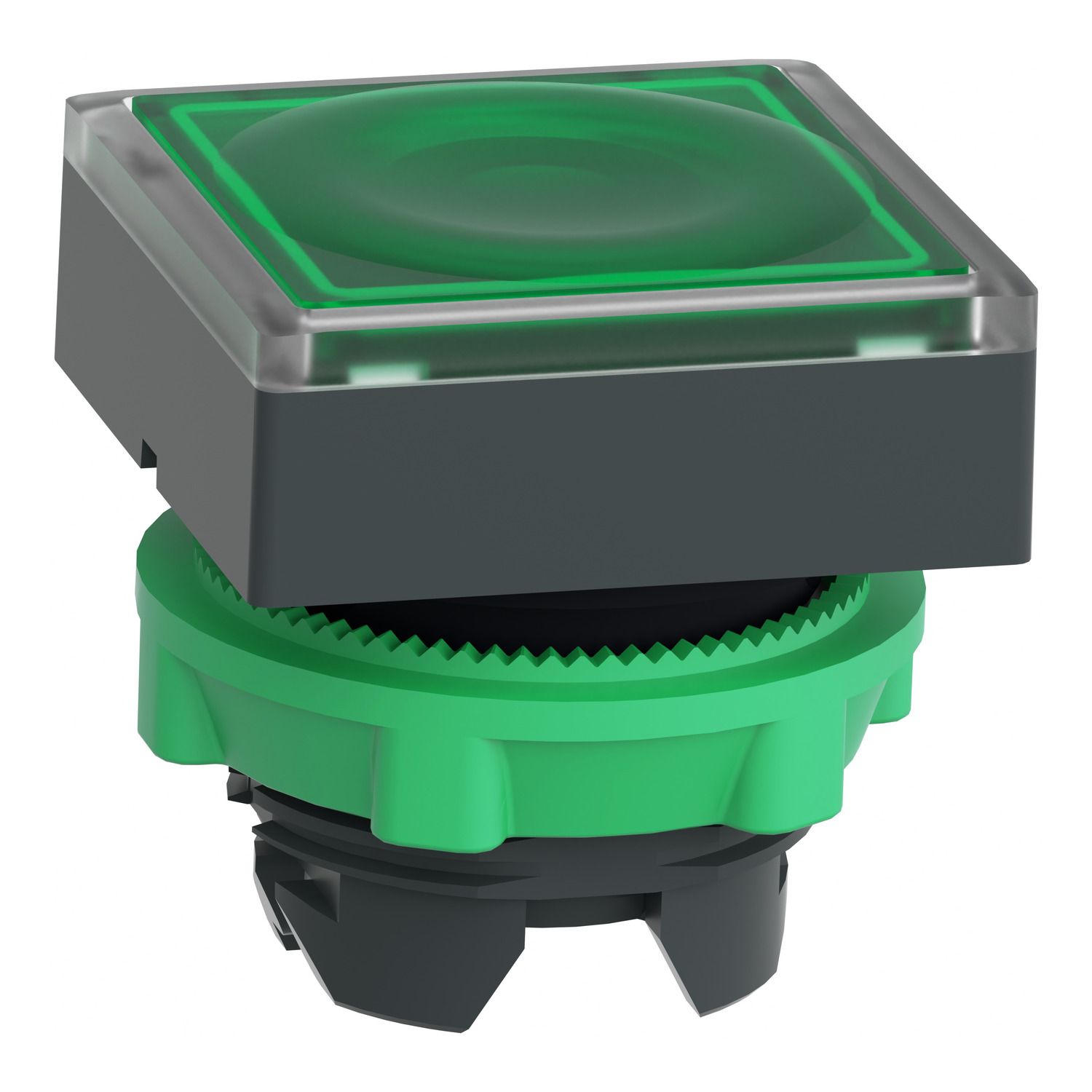

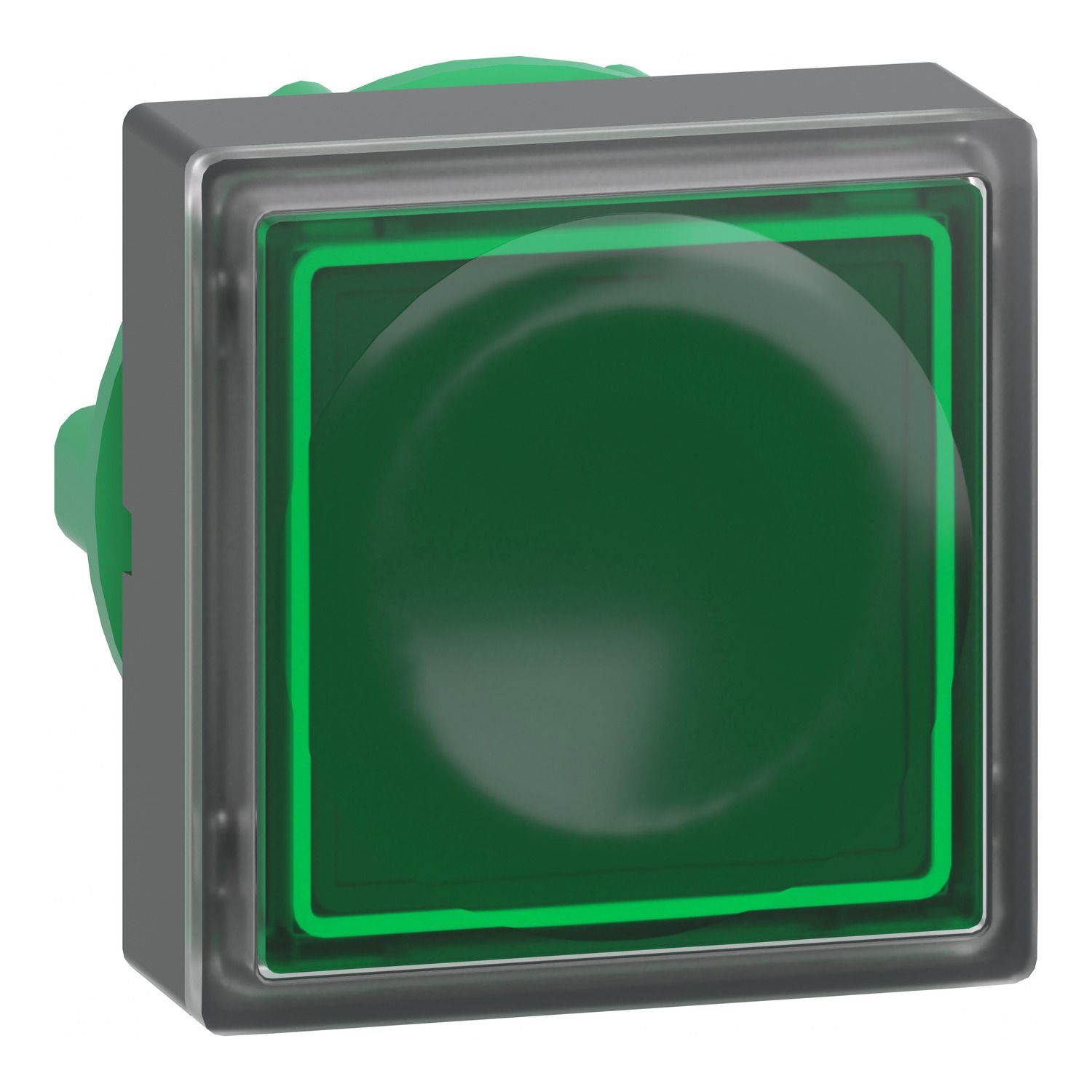

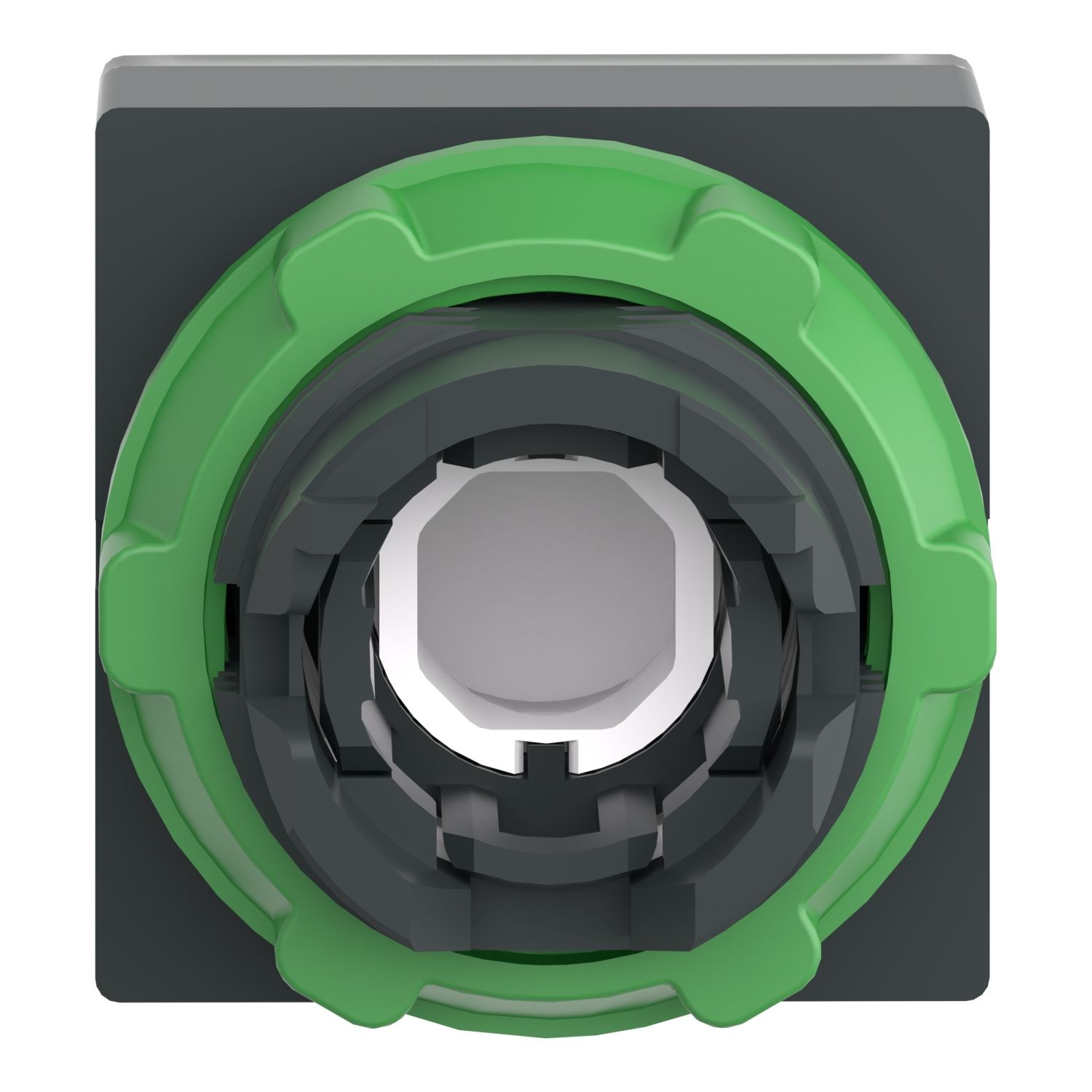

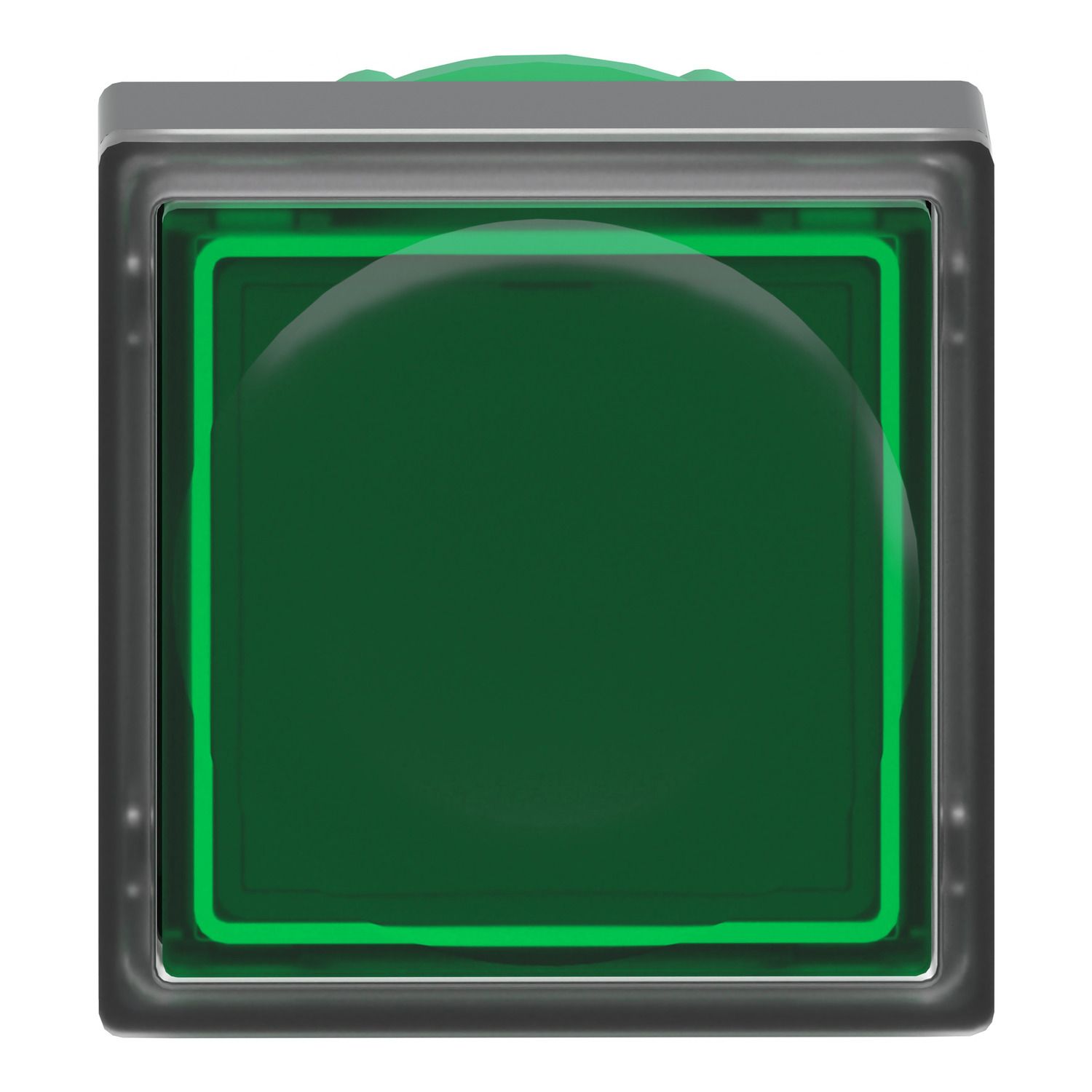

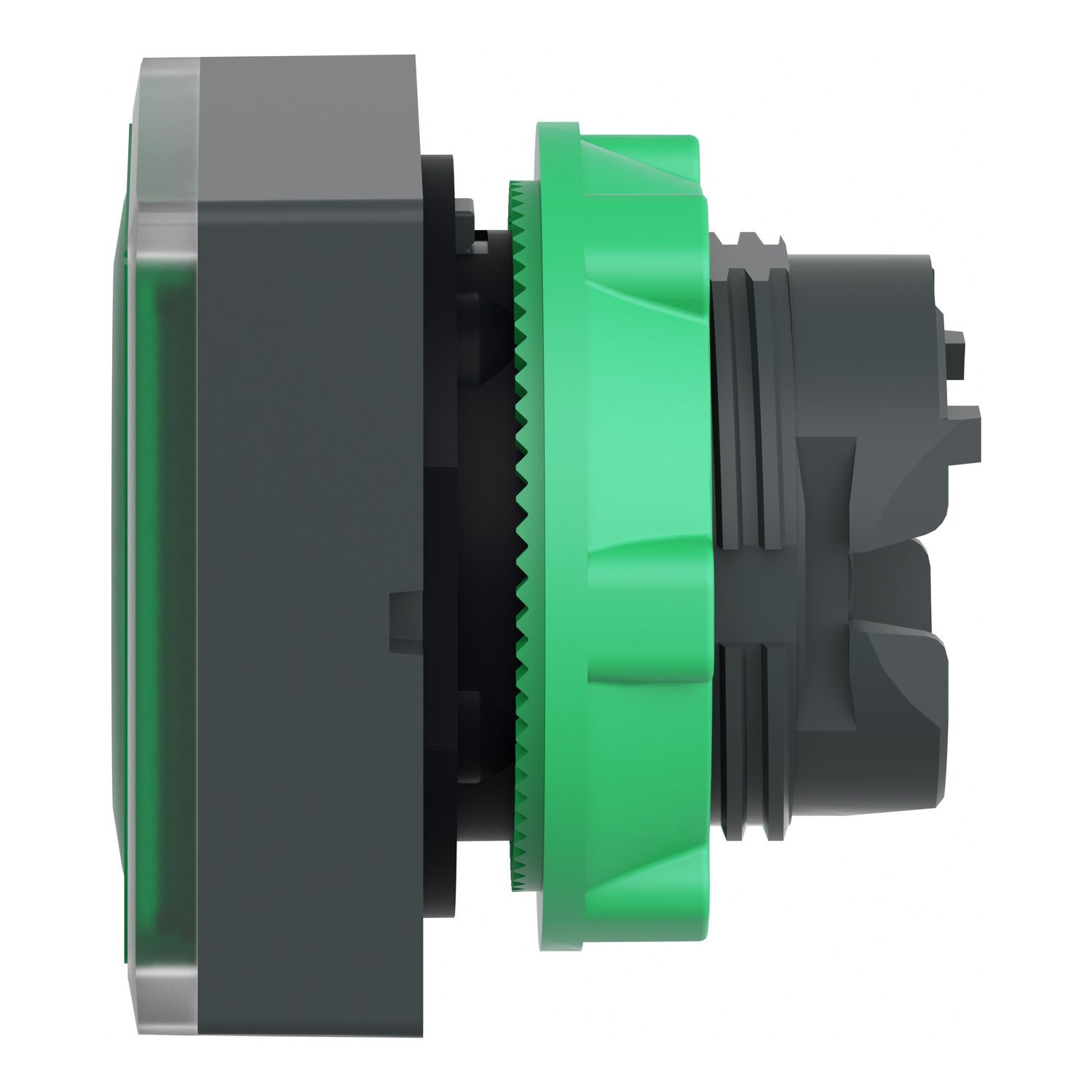

Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Picture of Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
SKU:

ZB5CW333

Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend

Old price: $62.26 INC GST
$48.56 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Head for illuminated push button, Harmony XB5, green square square flush, 22mm, universal LED, for insertion of legend
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Circularity Profile
CAD
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Catalog
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Environmental Disclosure
Instruction sheet
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Declaration of conformity
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This green flush illuminated button head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is very distinguishable visually at a distance thanks to illuminated, clear color and by touch due to flush element. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Product compatibility universal LED
Operator profile green flush, unmarked
Bezel material dark grey plastic
Sale per indivisible quantity 1
Head type standard
Shape of signaling unit head square
Product or component type head for illuminated push-button
Type of operator spring return
Mounting diameter 22 mm
Range of product Harmony XB5
Operator additional information for insertion of legend
Complementary
Group of product flush push with inser of legend
CAD overall depth 30 mm
CAD overall width 30 mm
Station name XALK 2...5 cut-outs, XALD 1...5 cut-outs
Customizable no, 0
Marking unmarked
Compatibility code ZB5
Mechanical durability 10000000 cycles
Cap/operator or lens colour green
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Device presentation basic element
CAD overall height 30 mm
Net weight 0.023 kg
Electrical composition code MR1 for <2 contacts using single blocks in rear mounting with integral LED, MF1 for <2 contacts using single blocks in front mounting with integral LED, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M2 for <6 contacts using single and double blocks in front mounting with integral LED, M1 for <6 contacts using single blocks in front mounting with integral LED
Main group illum push-button
Environment
Protective treatment TC
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
IP degree of protection IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-5-1, EN/IEC 60947-1, GB 14048.5, EN/IEC 60947-5-4
Ambient air temperature for operation -40-70 °C
IK degree of protection IK05 conforming to EN 50102
Product certifications GL, CSA, UL listed, BV, LROS (Lloyds register of shipping), DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.0 cm
Package 1 Width 5.0 cm
Package 1 Length 3.0 cm
Package 1 Weight 20.0 g
Unit Type of Package 2 2
Number of Units in Package 2 200
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.411 kg
