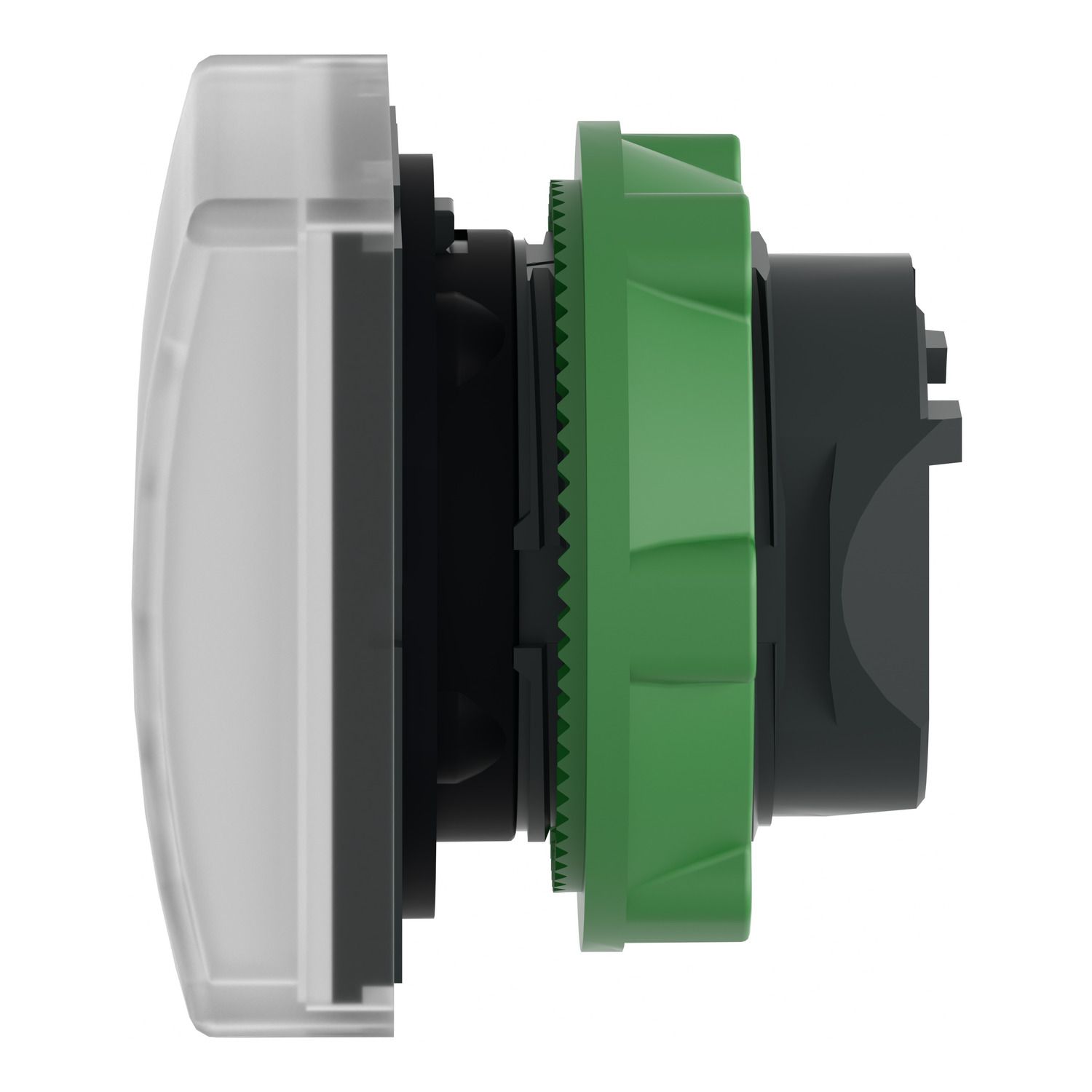

Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED

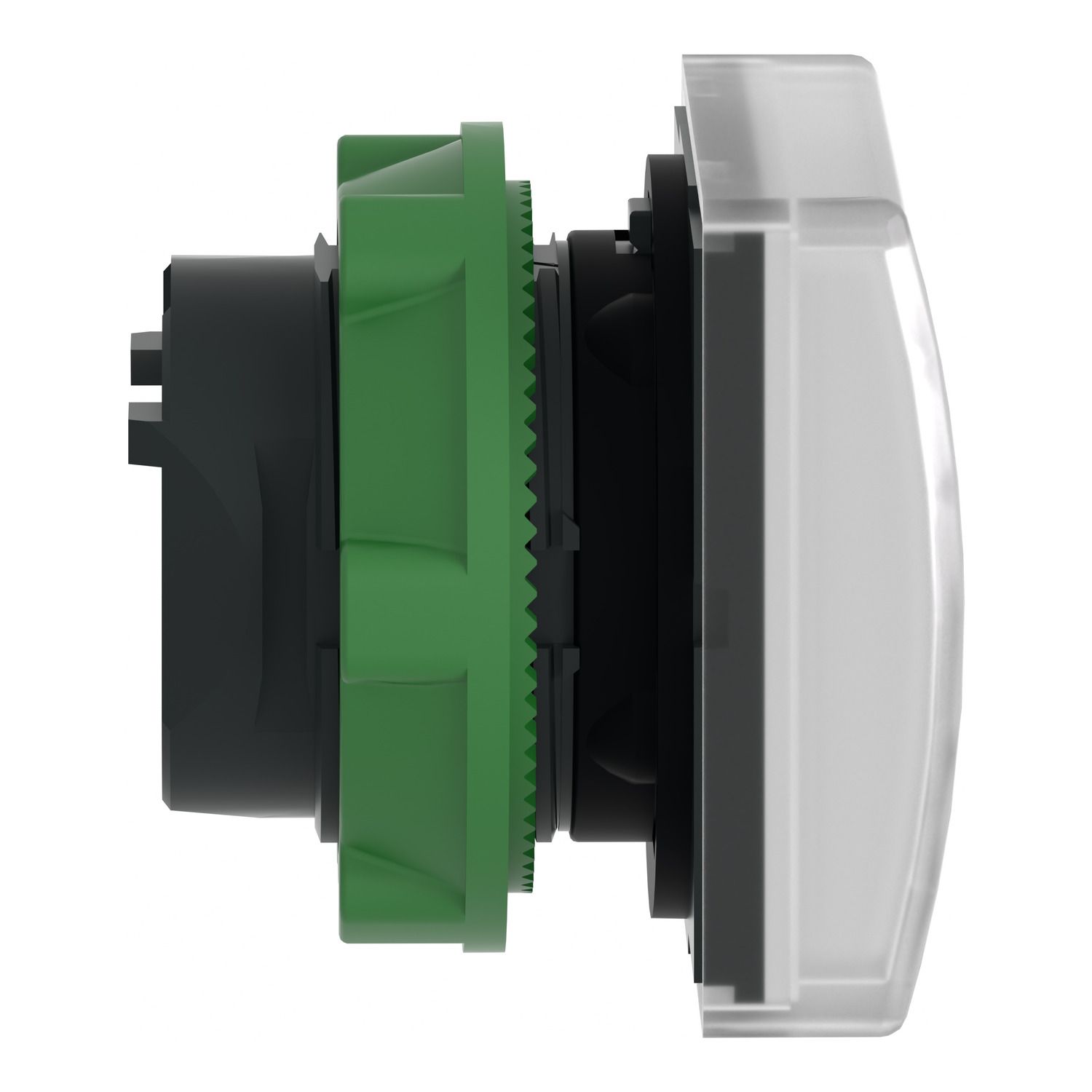

Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED

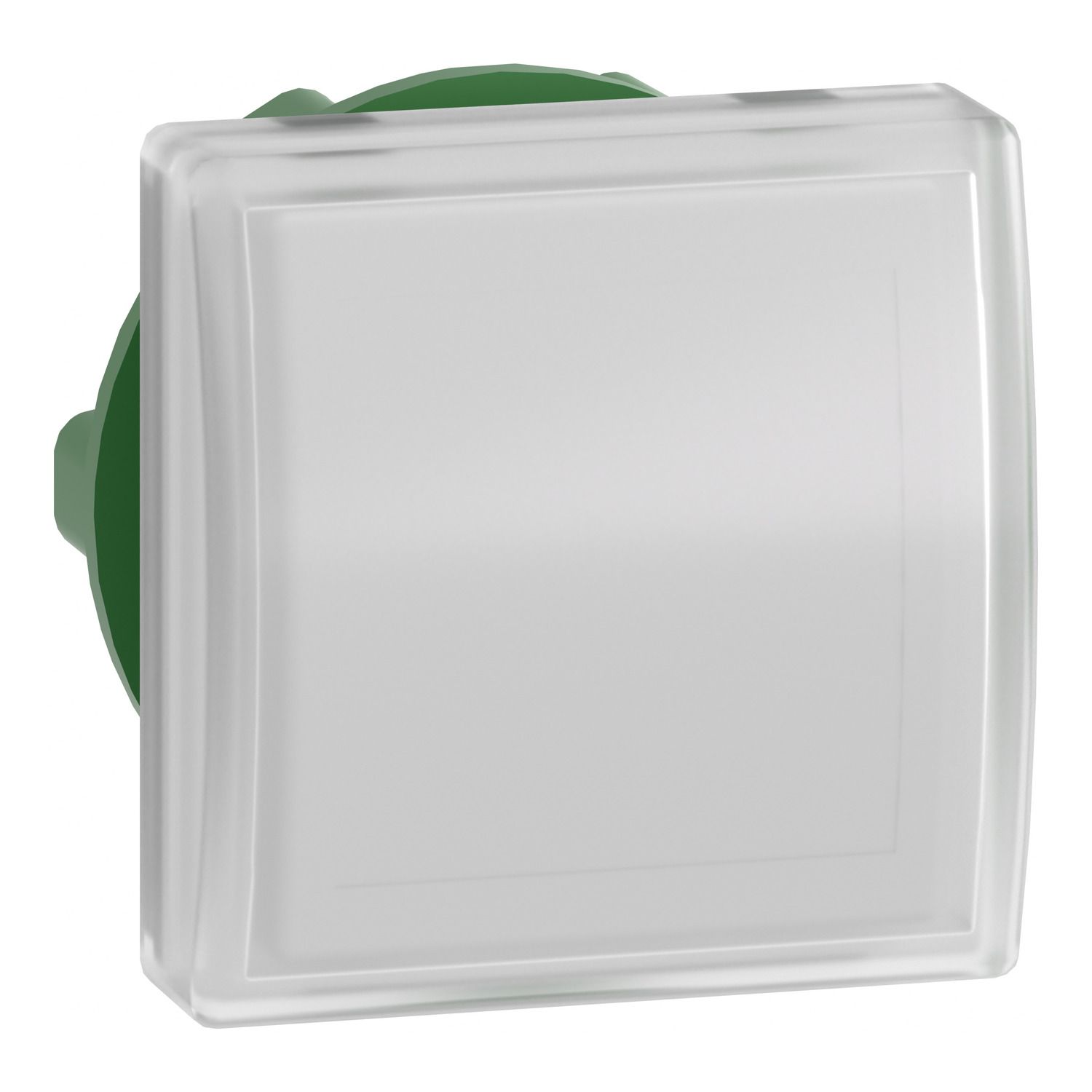

Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED

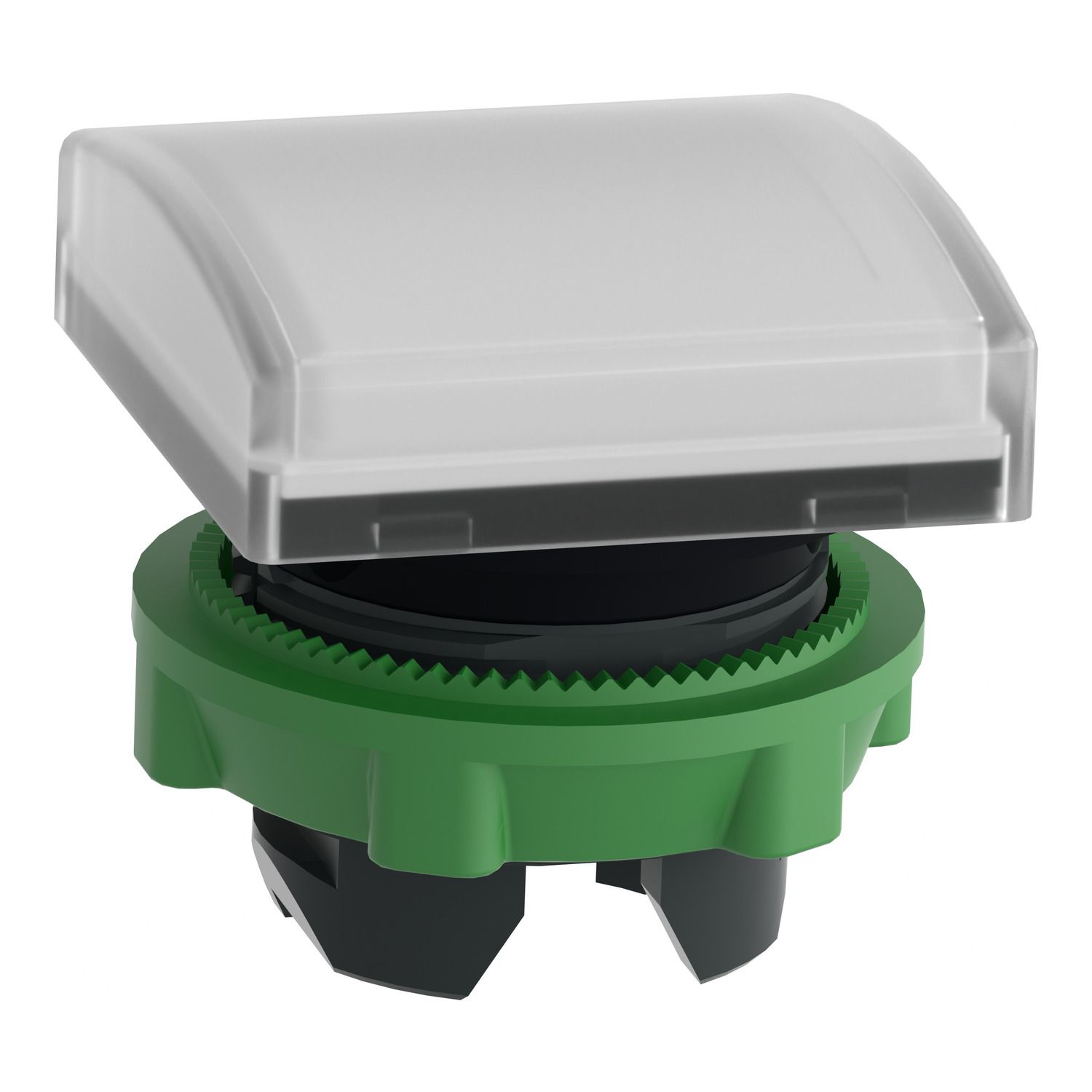

Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED

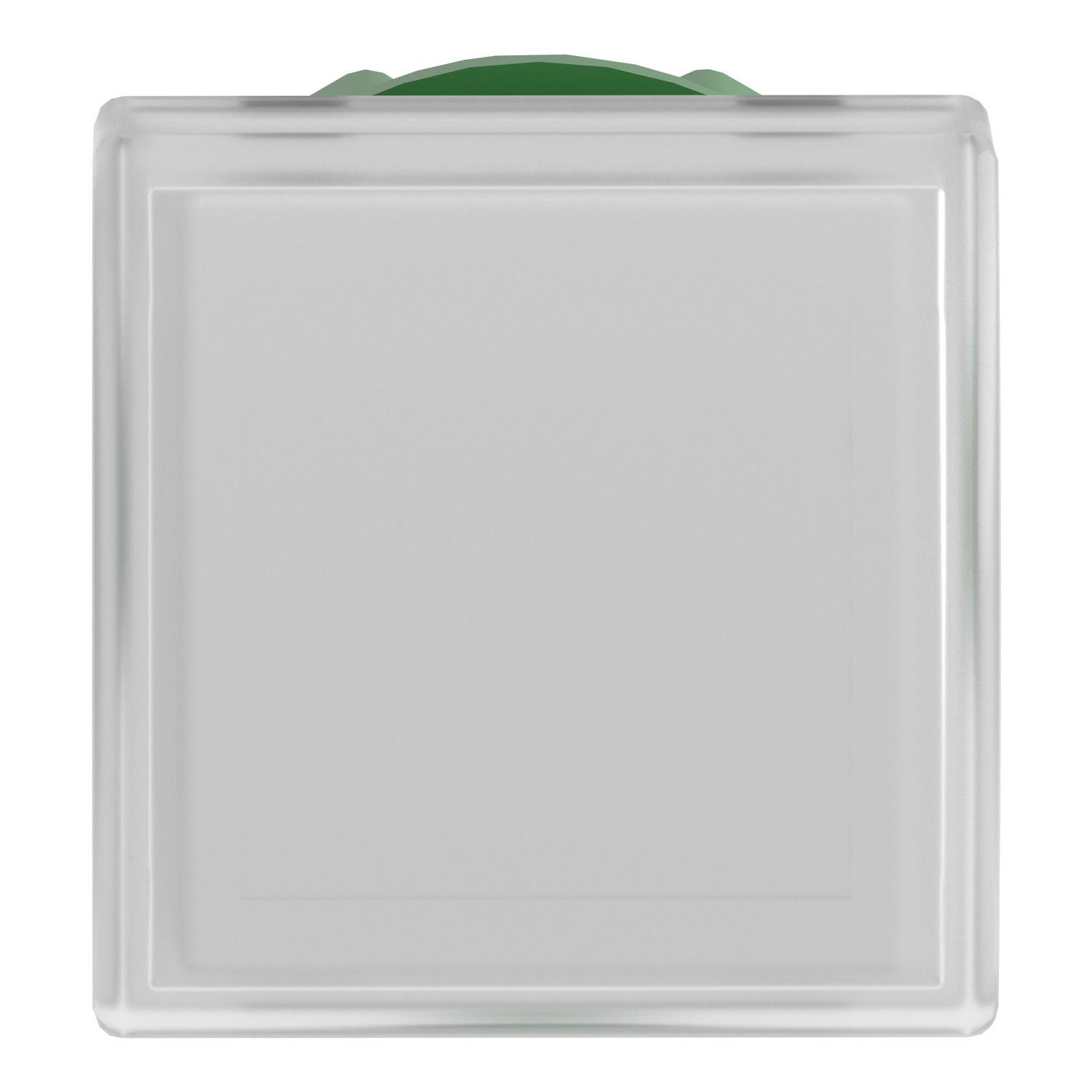

Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED

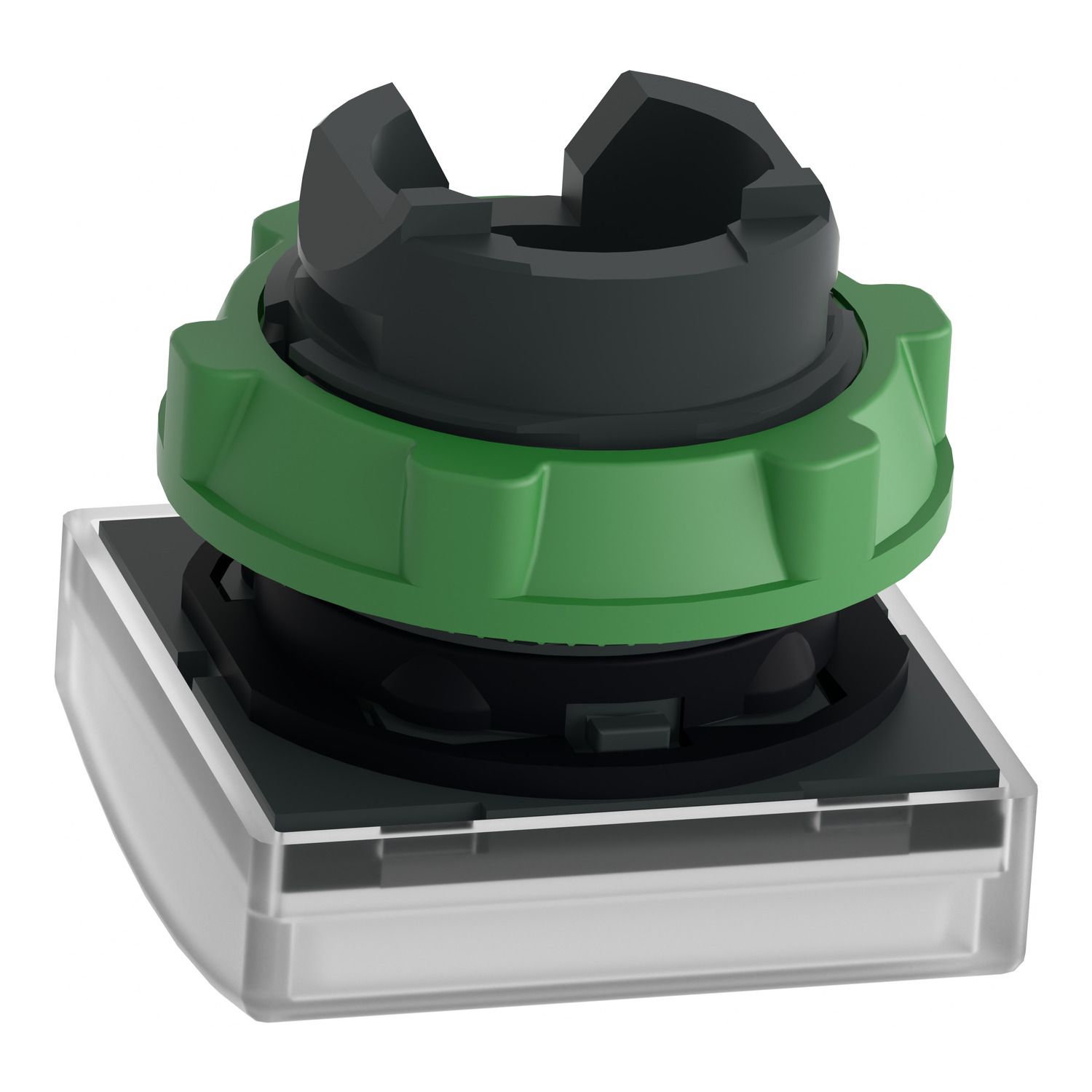

Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED

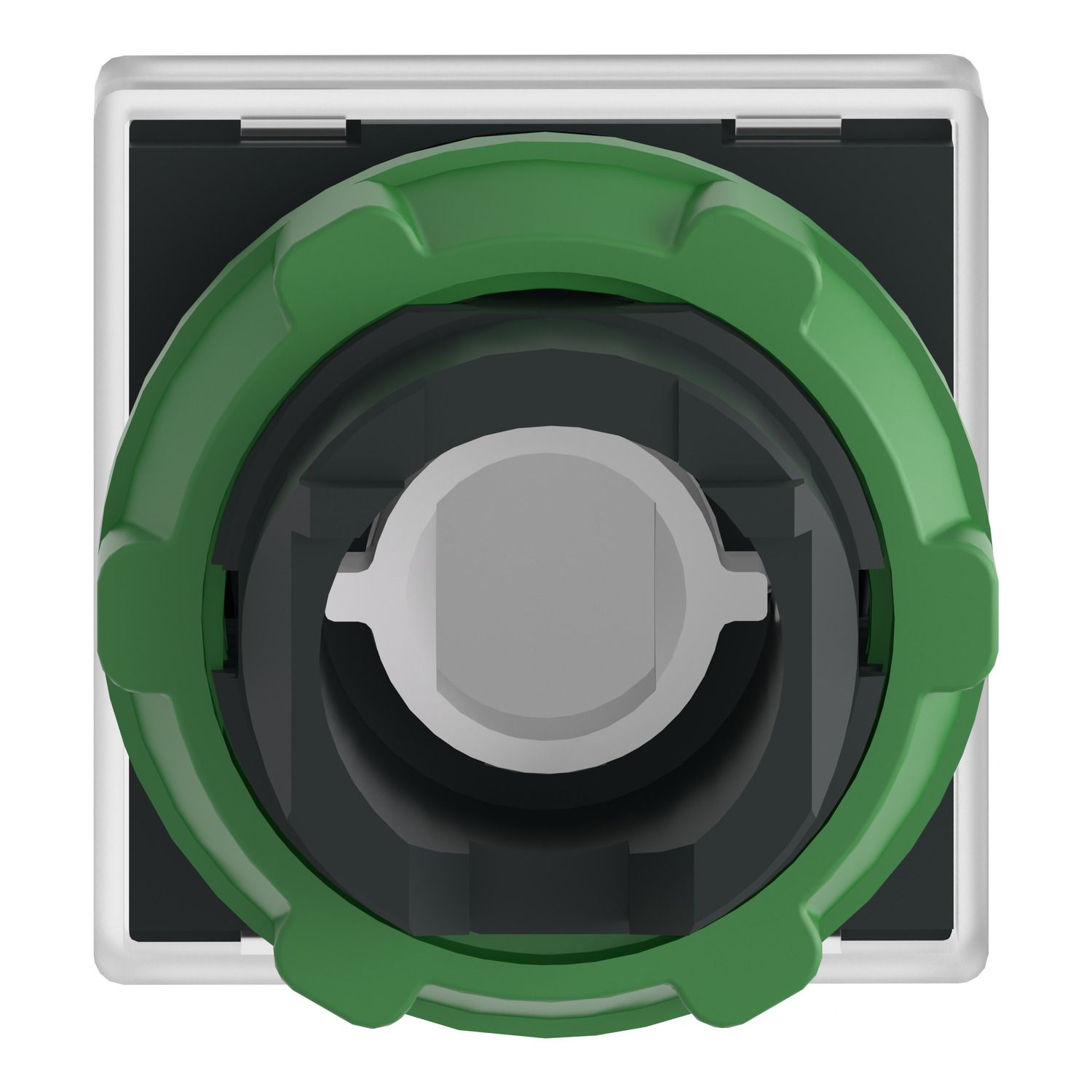

Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Picture of Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
SKU:

ZB5CV013

Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED

Old price: $39.16 INC GST
$30.54 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Head for pilot light, Harmony XB5, square white, 22mm, with plain lens, universal LED
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
CAD
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Environmental Disclosure
Image of product in real life situation
Image of product in real life situation
Catalog
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Instruction sheet
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Circularity Profile
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Declaration of conformity
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This white plain lens head for integral LED pilot light is designed to last without maintenance. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Product compatibility universal LED
Bezel material dark grey plastic
Sale per indivisible quantity 1
Head type standard
Cap/operator or lens colour white
Shape of signaling unit head square
Product or component type head for pilot light
Mounting diameter 22 mm
Range of product Harmony XB5
Operator additional information with plain lens
Complementary
Group of product lens fitted integral LED
CAD overall depth 29 mm
CAD overall width 30 mm
Station name XALK 2...5 cut-outs, XALD 1...5 cut-outs
Customizable no, 0
Compatibility code ZB5
Cap/operator or lens colour white
Device presentation basic element
CAD overall height 30 mm
Net weight 0.02 kg
Electrical composition code PR1 in rear mounting with integral LED, PF1 in front mounting with integral LED, P2 in front mounting with integral LED and transformer, P1 in front mounting with integral LED
Main group pilot light
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, UL 508, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1, JIS C8201-5-1
Ambient air temperature for operation -25-70 °C
IK degree of protection IK05 conforming to IEC 50102
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.200 cm
Package 1 Width 3.800 cm
Package 1 Length 4.400 cm
Package 1 Weight 16.000 g
Unit Type of Package 2 2
Number of Units in Package 2 200
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 3.739 kg
