Picture of Head for illuminated double headed push button, Harmony XB5, 2 flush whitout cap, 22mm, 1 central pilot light, unmarked
SKU:

ZB5AW7A9

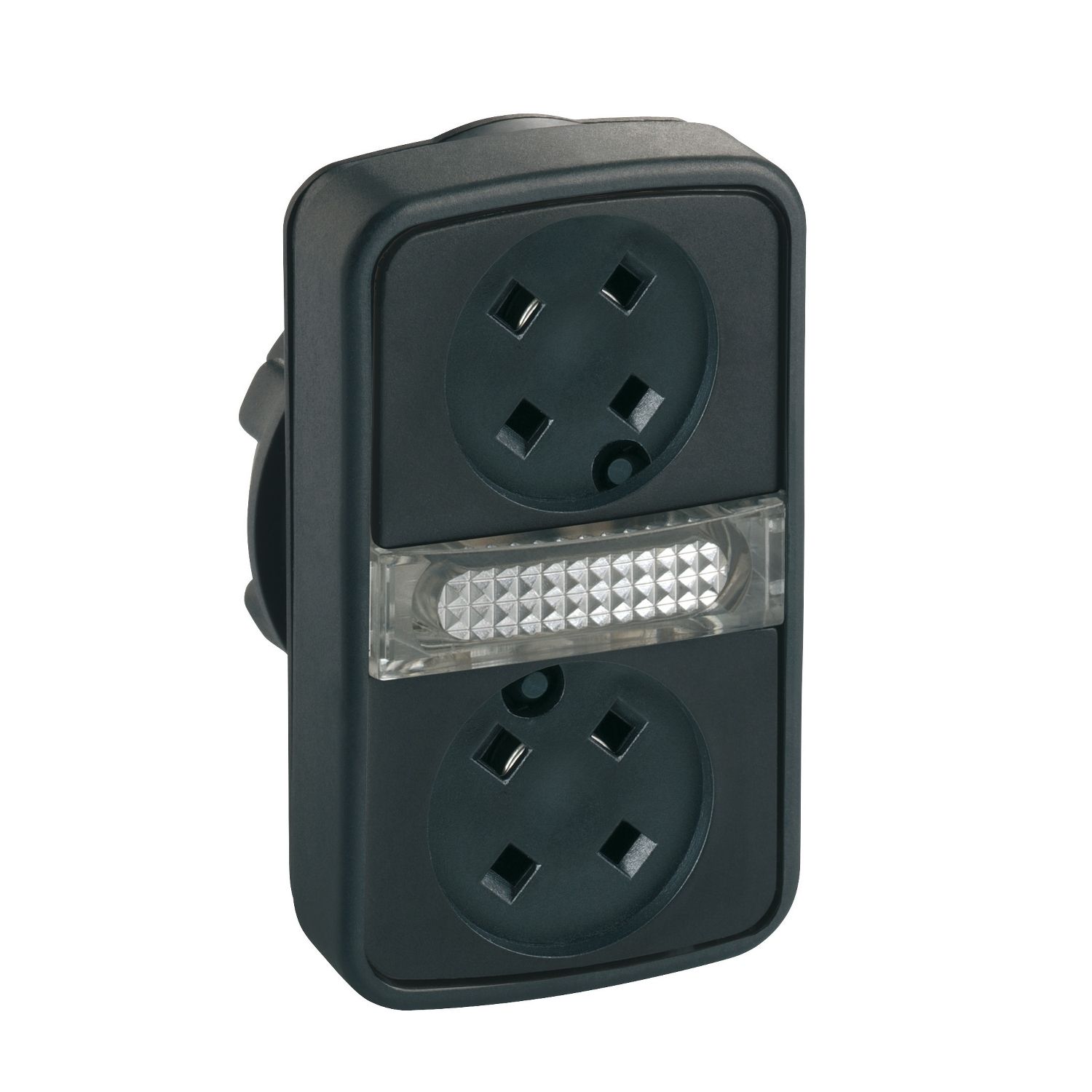

Head for illuminated double headed push button, Harmony XB5, 2 flush whitout cap, 22mm, 1 central pilot light, unmarked

Old price: $56.98 INC GST
$44.44 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Head for illuminated double headed push button, Harmony XB5, 2 flush whitout cap, 22mm, 1 central pilot light, unmarked
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Declaration of conformity
Circularity Profile
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This double head has 1 central white pilot light and is supplied without cap. This allows users to customize control functions with desired caps for their machines operations. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Product compatibility integral LED
Bezel material dark grey plastic
Sale per indivisible quantity 1
Head type standard
Operator profile 2 flush push-buttons - 1 central pilot light
Shape of signaling unit head rectangular
Product or component type head for illuminated double-headed push-button
Operators description black pushes without cap
Type of operator spring return
Mounting diameter 22 mm
Range of product Harmony XB5
Complementary
Group of product without cap illuminated
CAD overall depth 30 mm
CAD overall width 30 mm
Station name XALD 1 cut-out
Customizable no, 0
Compatibility code ZB5
Mechanical durability 1000000 cycles
Operator profile without cap
Device presentation basic sub-assemblies
CAD overall height 50 mm
Net weight 0.023 kg
Electrical composition code MR1 for <2 contacts using single blocks in rear mounting with integral LED, MF1 for <2 contacts using single blocks in front mounting with integral LED, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M2 for <6 contacts using single and double blocks in front mounting with integral LED, M1 for <6 contacts using single blocks in front mounting with integral LED
Main group illum double head
Environment
Electrical shock protection class class II conforming to IEC 60536
NEMA degree of protection NEMA 4X, NEMA 13
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP69K, IP69, IP67, IP66
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, EN/IEC 60947-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, JIS C8201-5-1, UL 508
Ambient air temperature for operation -25-70 °C
IK degree of protection IK05 conforming to IEC 50102
Product certifications GL, DNV, LROS (Lloyds register of shipping), CSA, UL listed, BV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 2.800 cm
Package 1 Width 4.800 cm
Package 1 Length 4.800 cm
Package 1 Weight 24.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 5.600 cm
Package 2 Width 3.500 cm
Package 2 Length 26.500 cm
Package 2 Weight 122.000 g
Unit Type of Package 3 3
Number of Units in Package 3 50
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 1.512 kg
