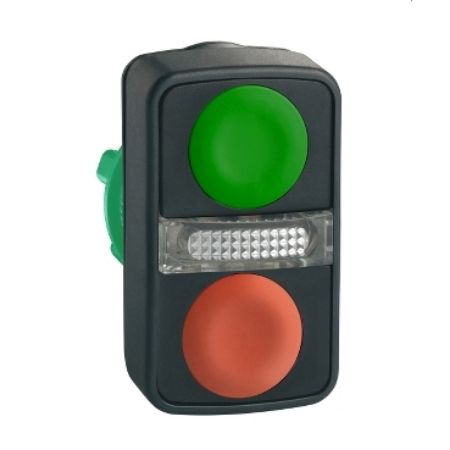

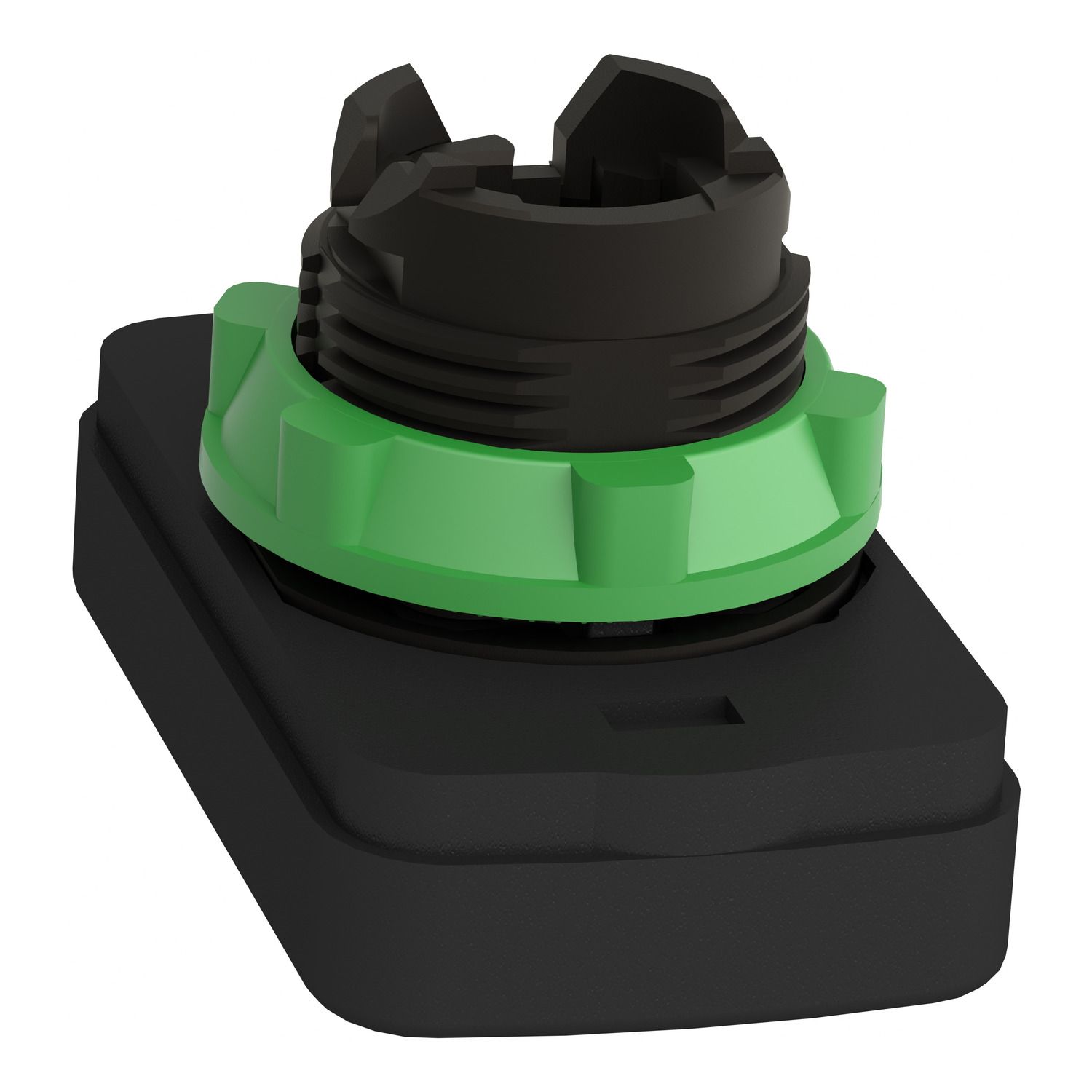

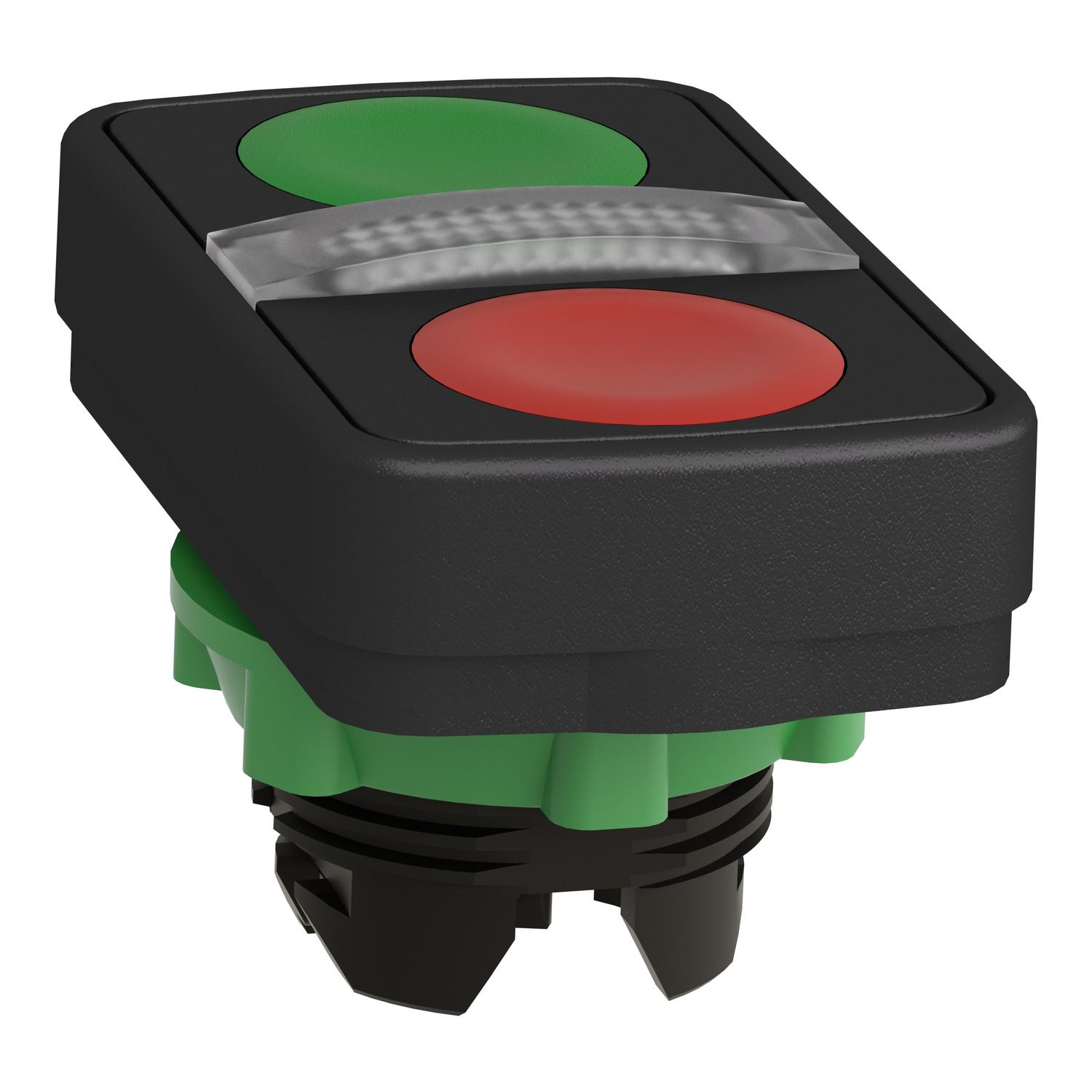

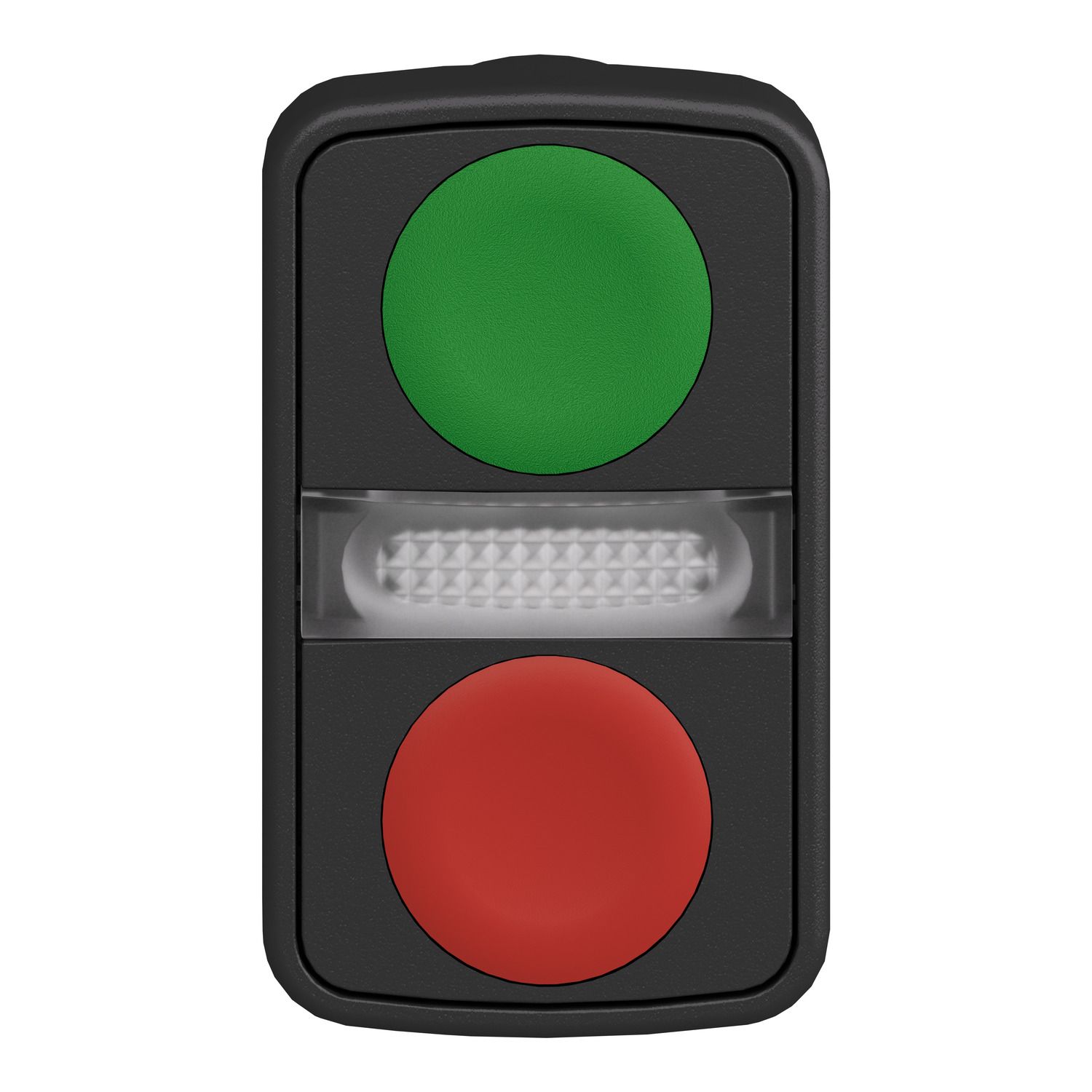

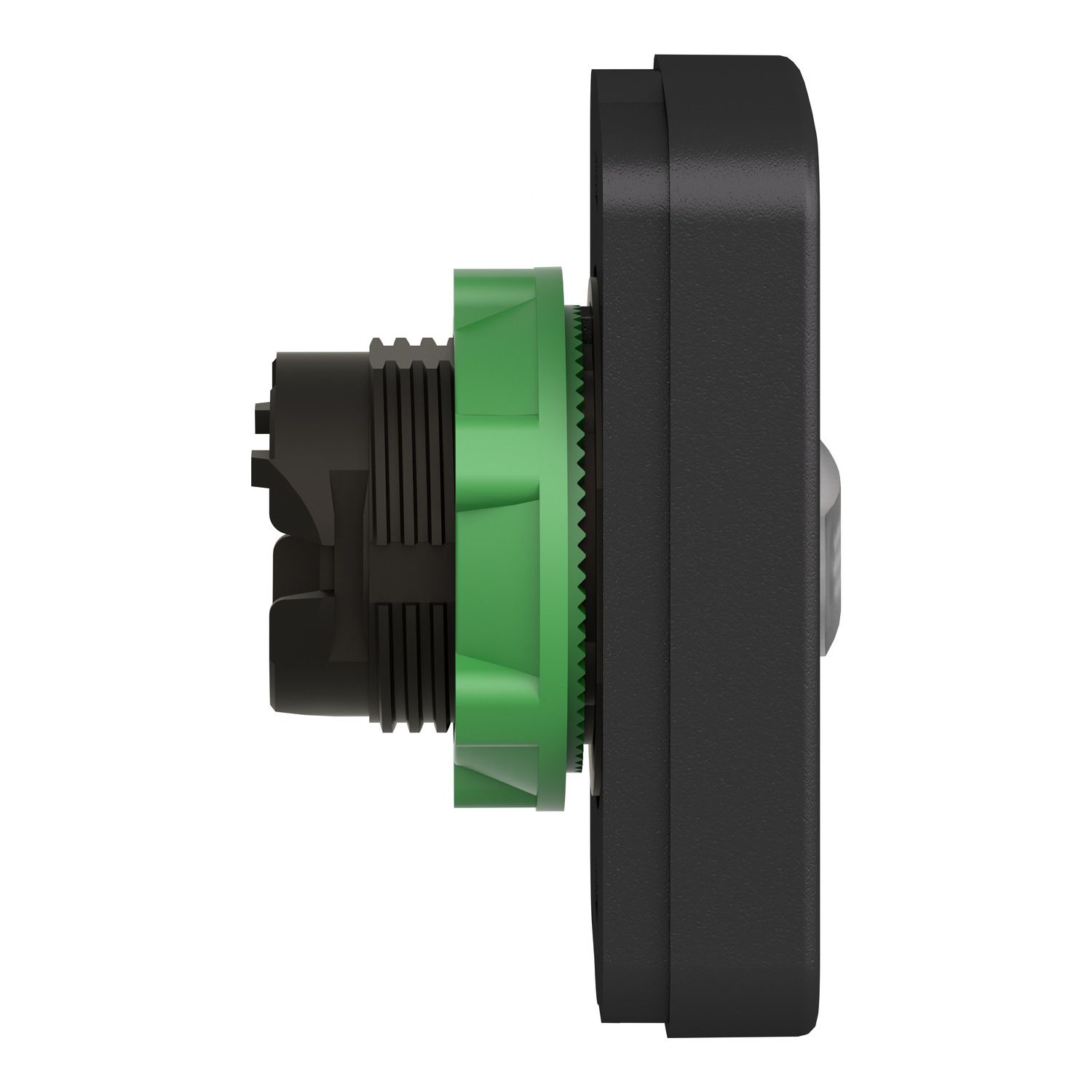

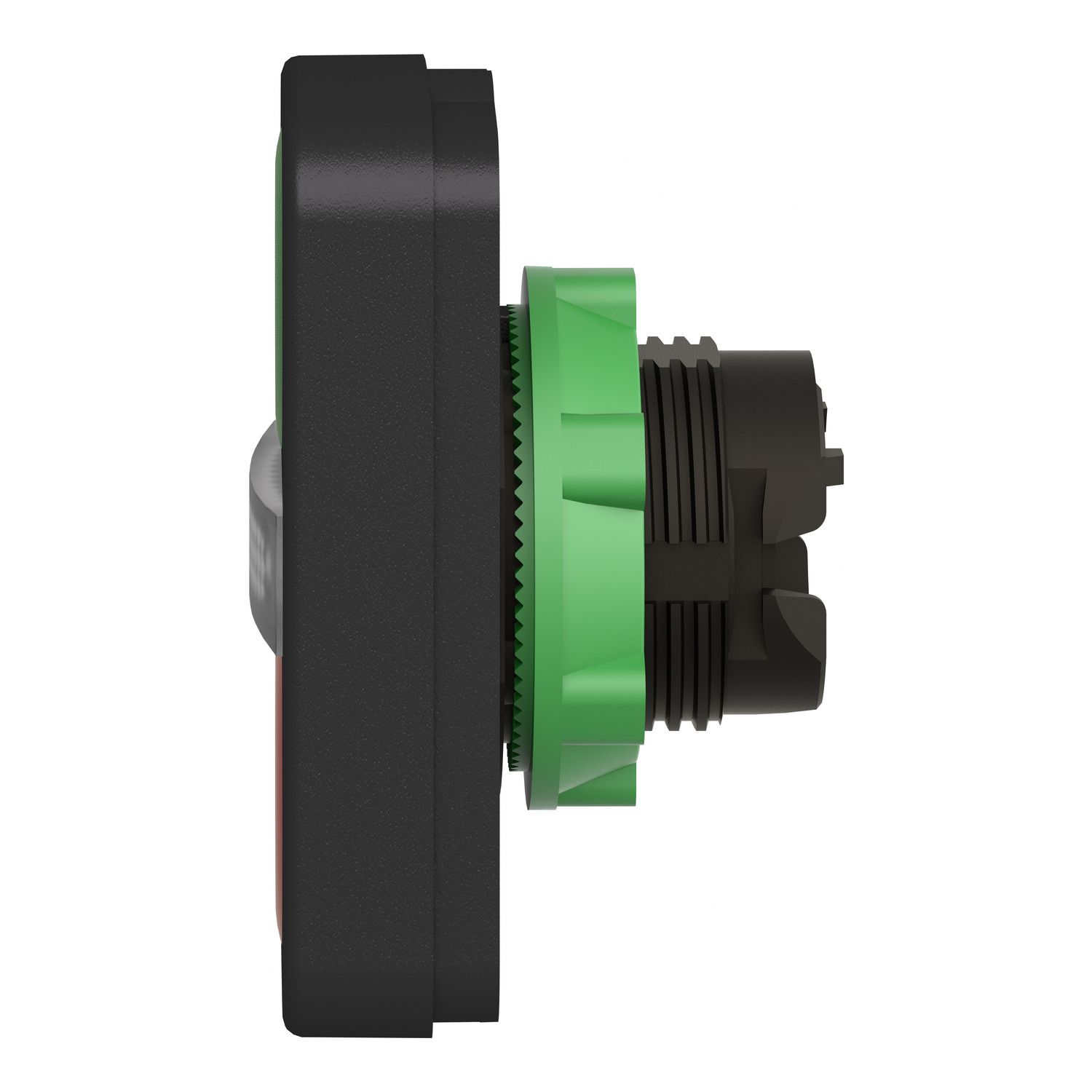

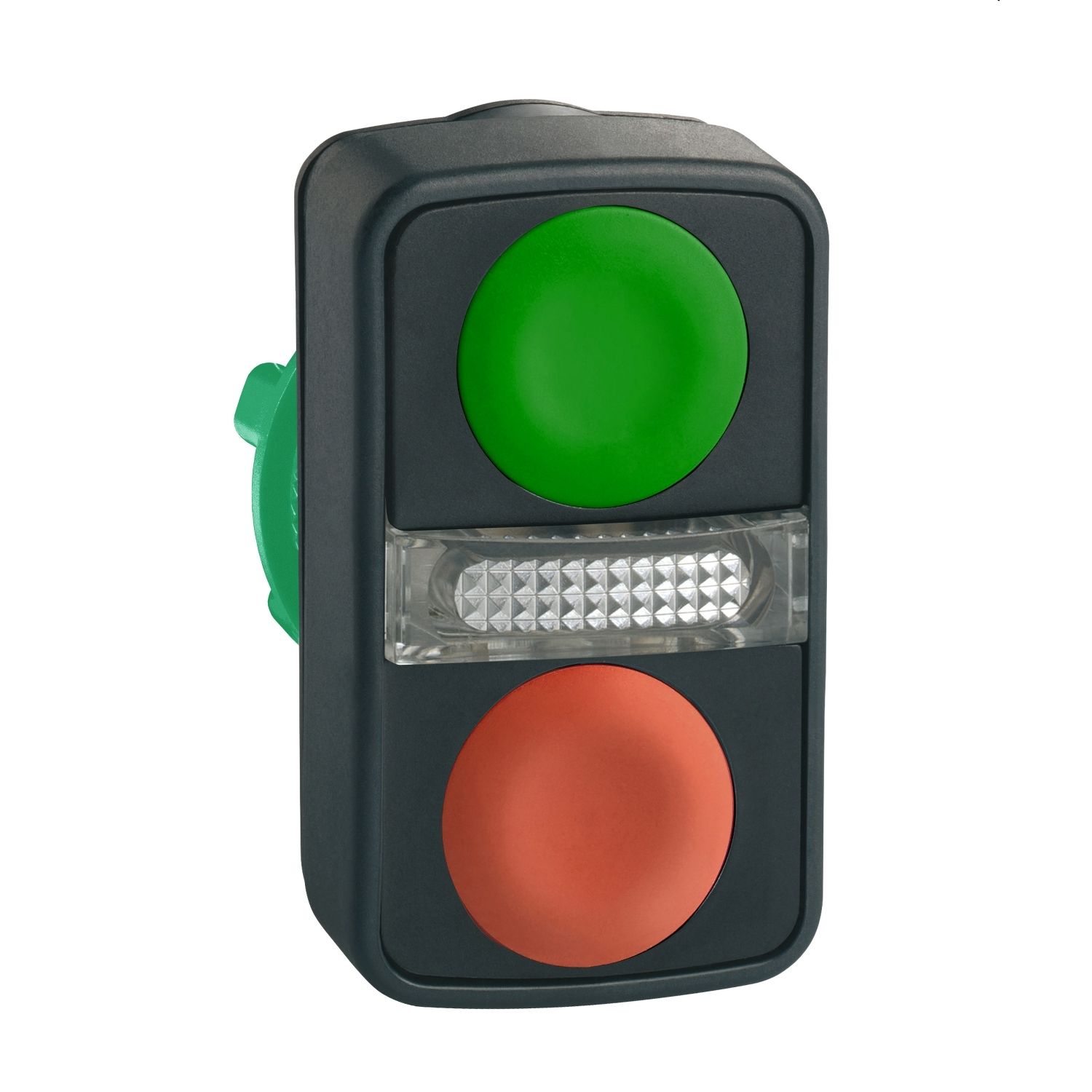

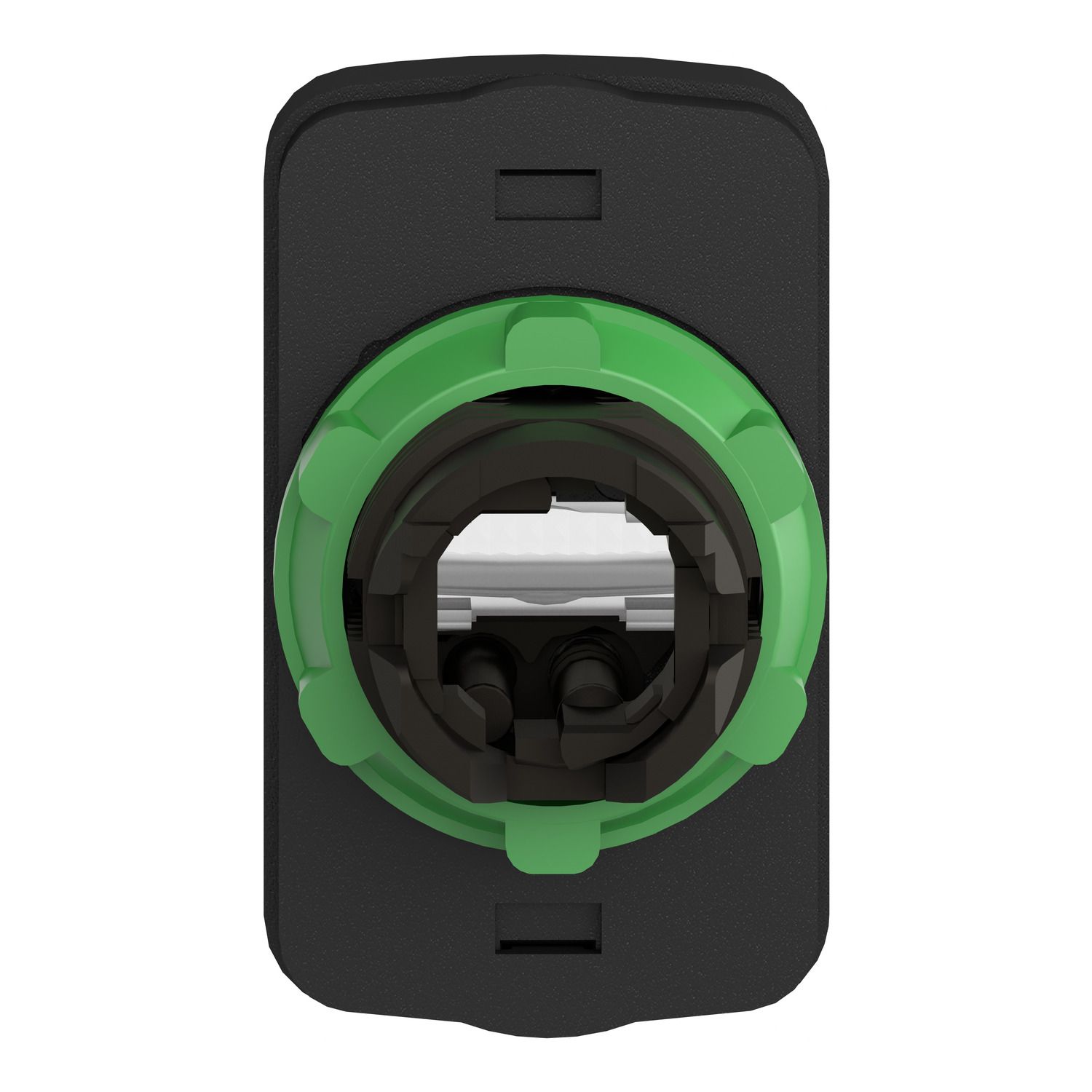

Picture of Illuminated double headed push button head, Harmony XB5, plastic, 22mm, 1 green flush + 1 pilot light + 1 red flush, unmarked
Picture of Illuminated double headed push button head, Harmony XB5, plastic, 22mm, 1 green flush + 1 pilot light + 1 red flush, unmarked
Picture of Illuminated double headed push button head, Harmony XB5, plastic, 22mm, 1 green flush + 1 pilot light + 1 red flush, unmarked
Picture of Illuminated double headed push button head, Harmony XB5, plastic, 22mm, 1 green flush + 1 pilot light + 1 red flush, unmarked
Picture of Illuminated double headed push button head, Harmony XB5, plastic, 22mm, 1 green flush + 1 pilot light + 1 red flush, unmarked
Picture of Illuminated double headed push button head, Harmony XB5, plastic, 22mm, 1 green flush + 1 pilot light + 1 red flush, unmarked
Picture of Illuminated double headed push button head, Harmony XB5, plastic, 22mm, 1 green flush + 1 pilot light + 1 red flush, unmarked
Picture of Illuminated double headed push button head, Harmony XB5, plastic, 22mm, 1 green flush + 1 pilot light + 1 red flush, unmarked
Picture of Illuminated double headed push button head, Harmony XB5, plastic, 22mm, 1 green flush + 1 pilot light + 1 red flush, unmarked
SKU:

ZB5AW7A3740

Illuminated double headed push button head, Harmony XB5, plastic, 22mm, 1 green flush + 1 pilot light + 1 red flush, unmarked

Old price: $63.91 INC GST
$49.85 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Illuminated double headed push button head, Harmony XB5, plastic, 22mm, 1 green flush + 1 pilot light + 1 red flush, unmarked
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Circularity Profile

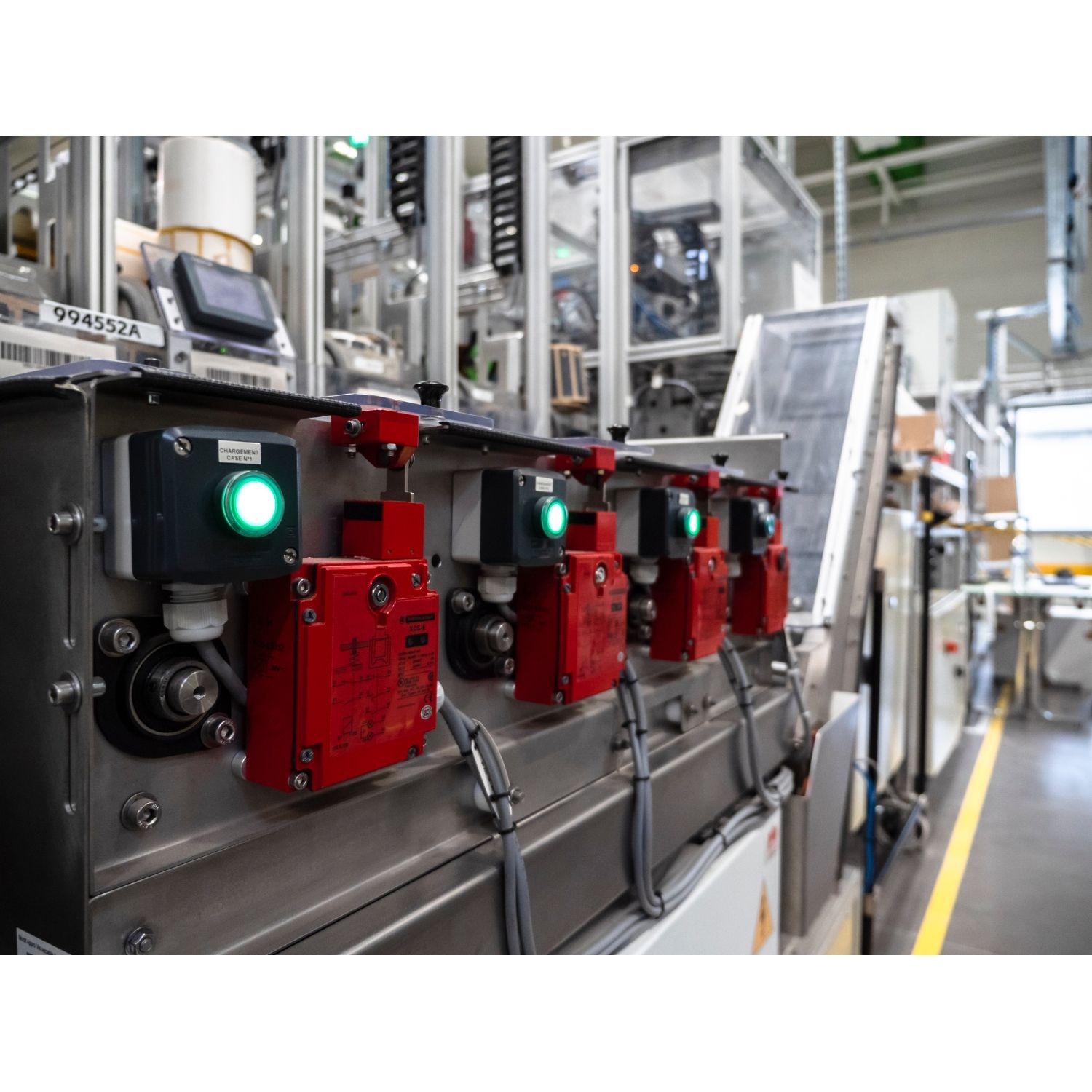

Image of product in real life situation
Declaration of conformity
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XB5, double head has 1 red, 1 green button and 1 central white pilot light, operates with a spring return / impulse mechanism. This double head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks its pilot light, clear colors and by touch due to flush elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Product compatibility integral LED
Sale per indivisible quantity 1
Head type standard
Operators description green unmarked - red unmarked
Type of operator spring return
Range of product Harmony XB5
Bezel material dark grey plastic
Operator profile 2 flush push-buttons - 1 central pilot light
Shape of signaling unit head rectangular
Product or component type head for illuminated double-headed push-button
Mounting diameter 22 mm
Complementary
Group of product flush/flush illum unmarked
Station name XALD 1 cut-out
Compatibility code ZB5
Mechanical durability 1000000 cycles
Device presentation basic sub-assemblies
CAD overall height 50 mm
Customizable 0, no
Electrical composition code MR1 for <2 contacts using single blocks in rear mounting with integral LED, MF1 for <2 contacts using single blocks in front mounting with integral LED, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M2 for <6 contacts using single and double blocks in front mounting with integral LED, M1 for <6 contacts using single blocks in front mounting with integral LED
Main group illum double head
CAD overall depth 30 mm
CAD overall width 30 mm
Marking unmarked
Operator profile red flush, unmarked, green flush, unmarked
Cap/operator or lens colour green/red
Net weight 0.023 kg
Environment
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69, IP67, IP66
Ambient air temperature for operation -25-70 °C
IK degree of protection IK05 conforming to IEC 50102
Electrical shock protection class class II conforming to IEC 60536
NEMA degree of protection NEMA 4X, NEMA 13
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-1, JIS C8201-5-1, UL 508, IEC 60947-5-4
Product certifications DNV, LROS (Lloyds register of shipping), UL listed, BV, GL, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.3 cm
Package 1 Width 5.3 cm
Package 1 Length 5.8 cm
Package 1 Weight 25.0 g
Unit Type of Package 2 2
Number of Units in Package 2 200
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 5.442 kg
