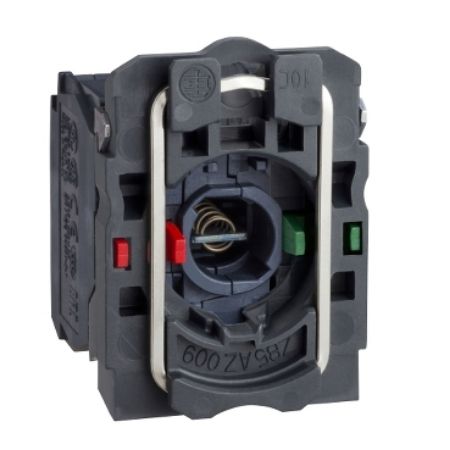

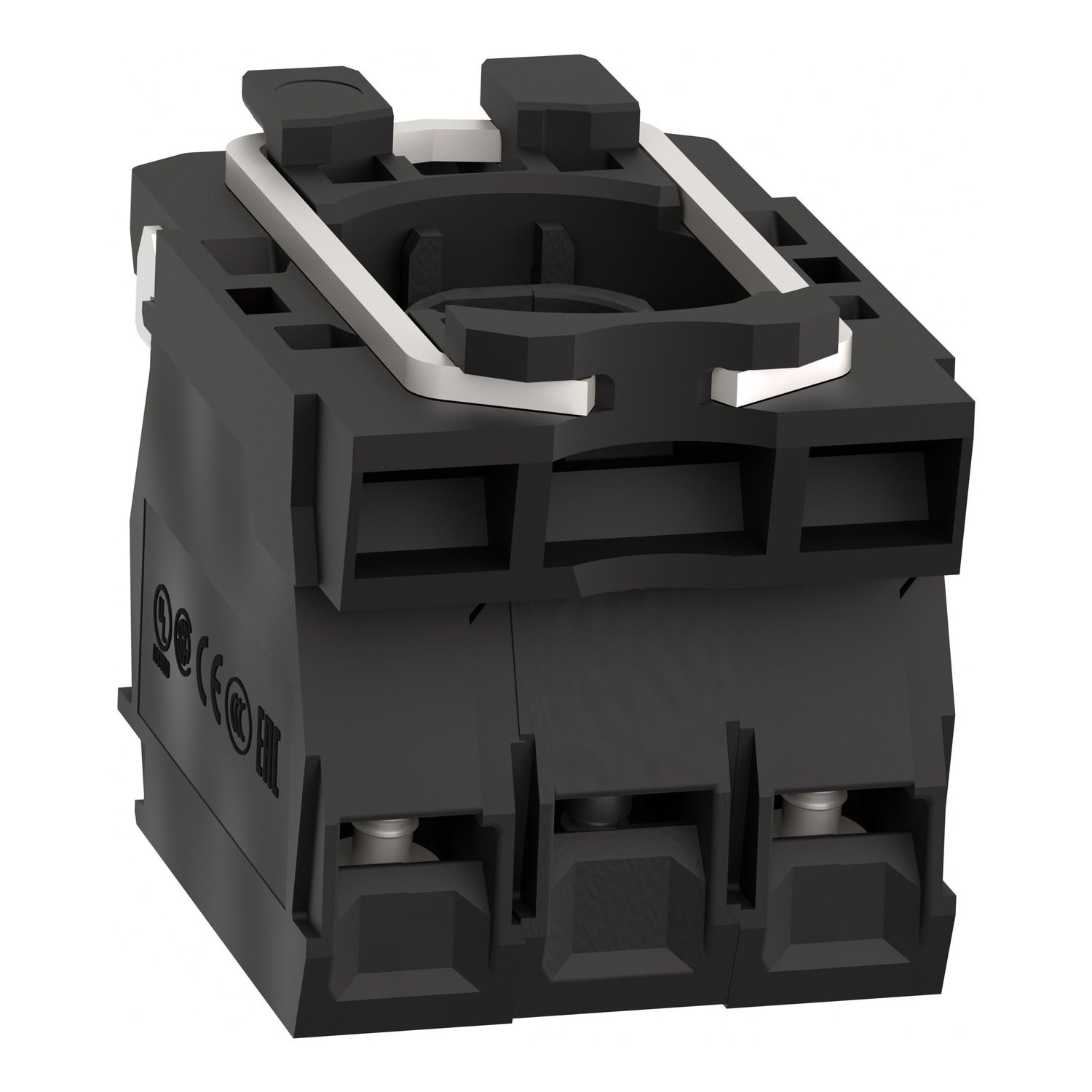

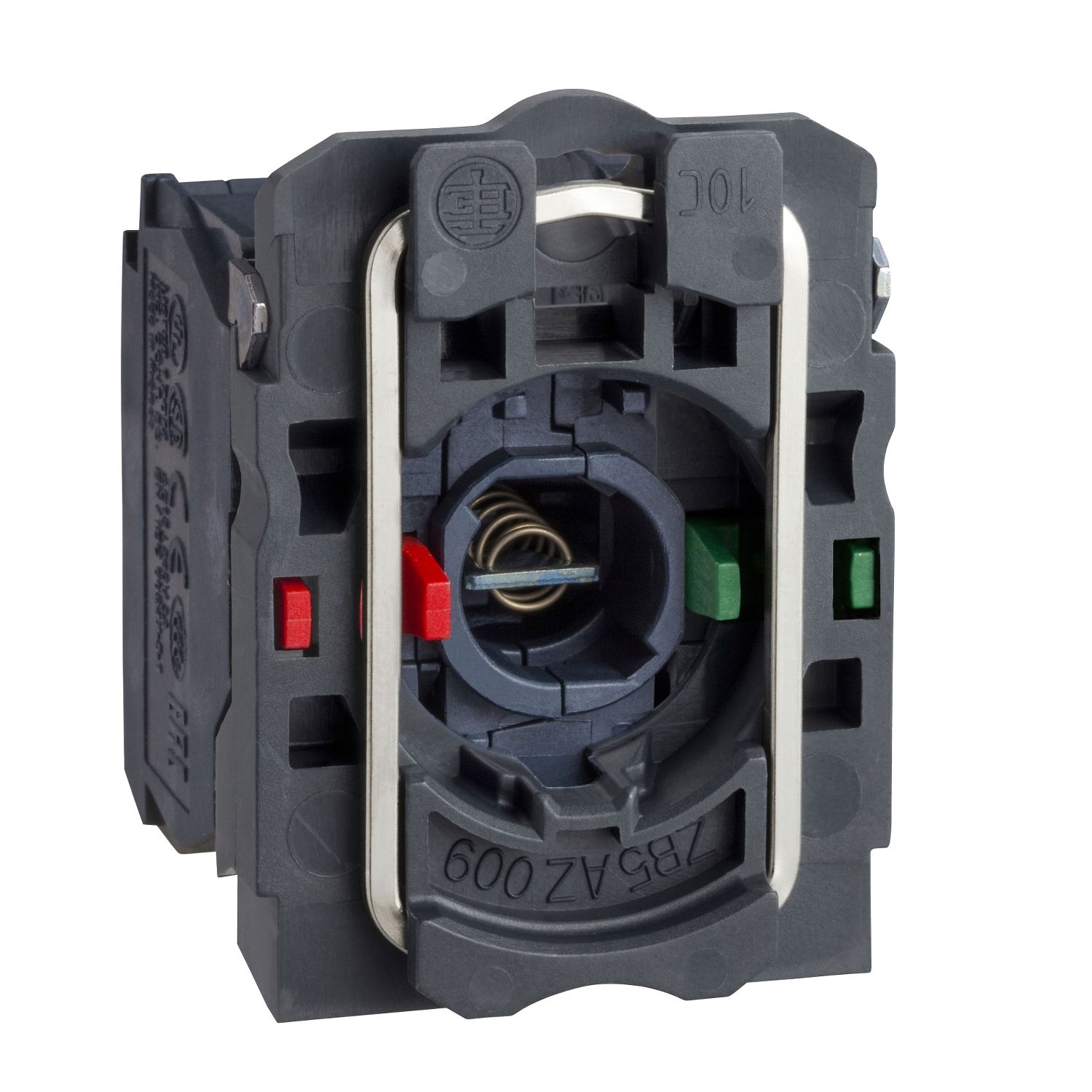

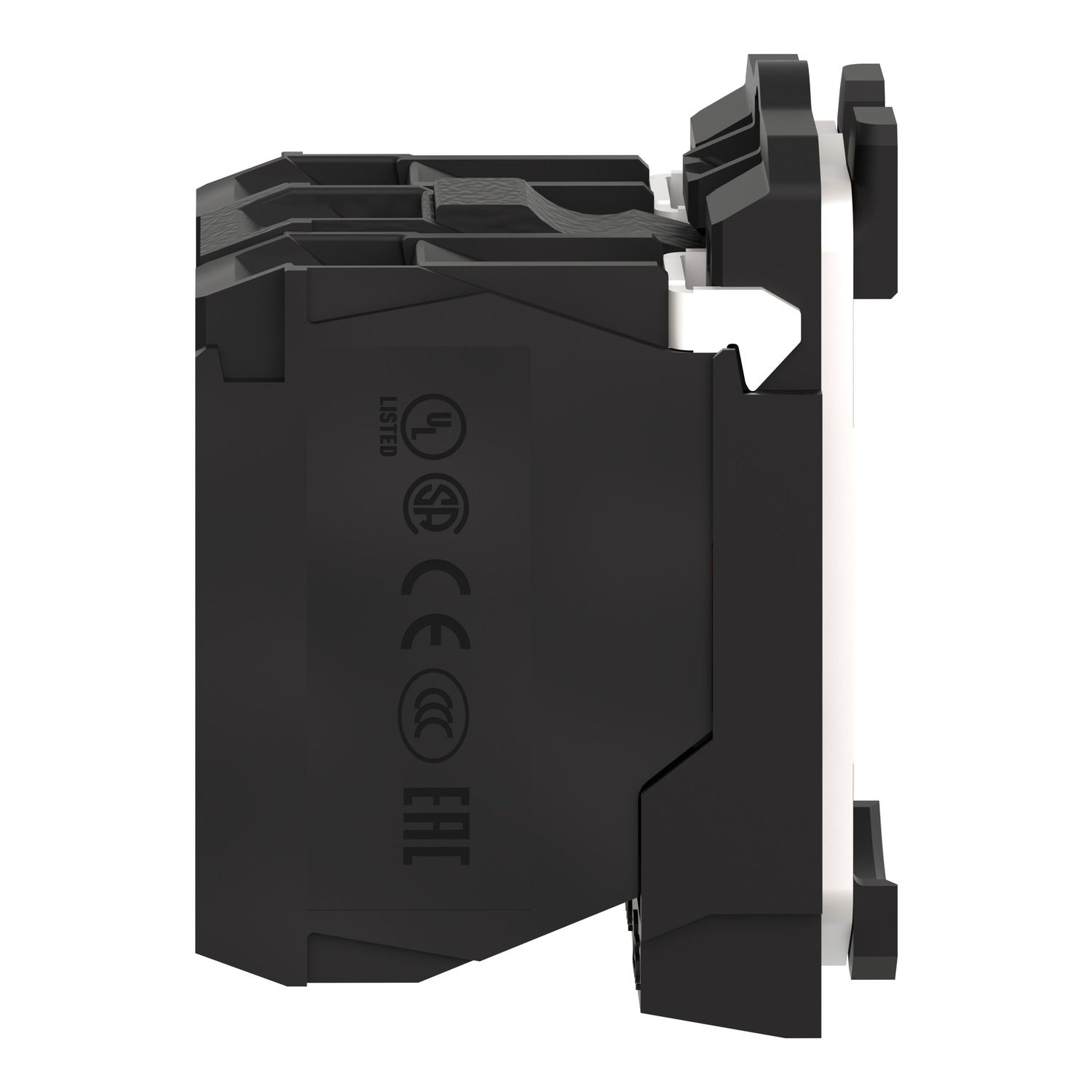

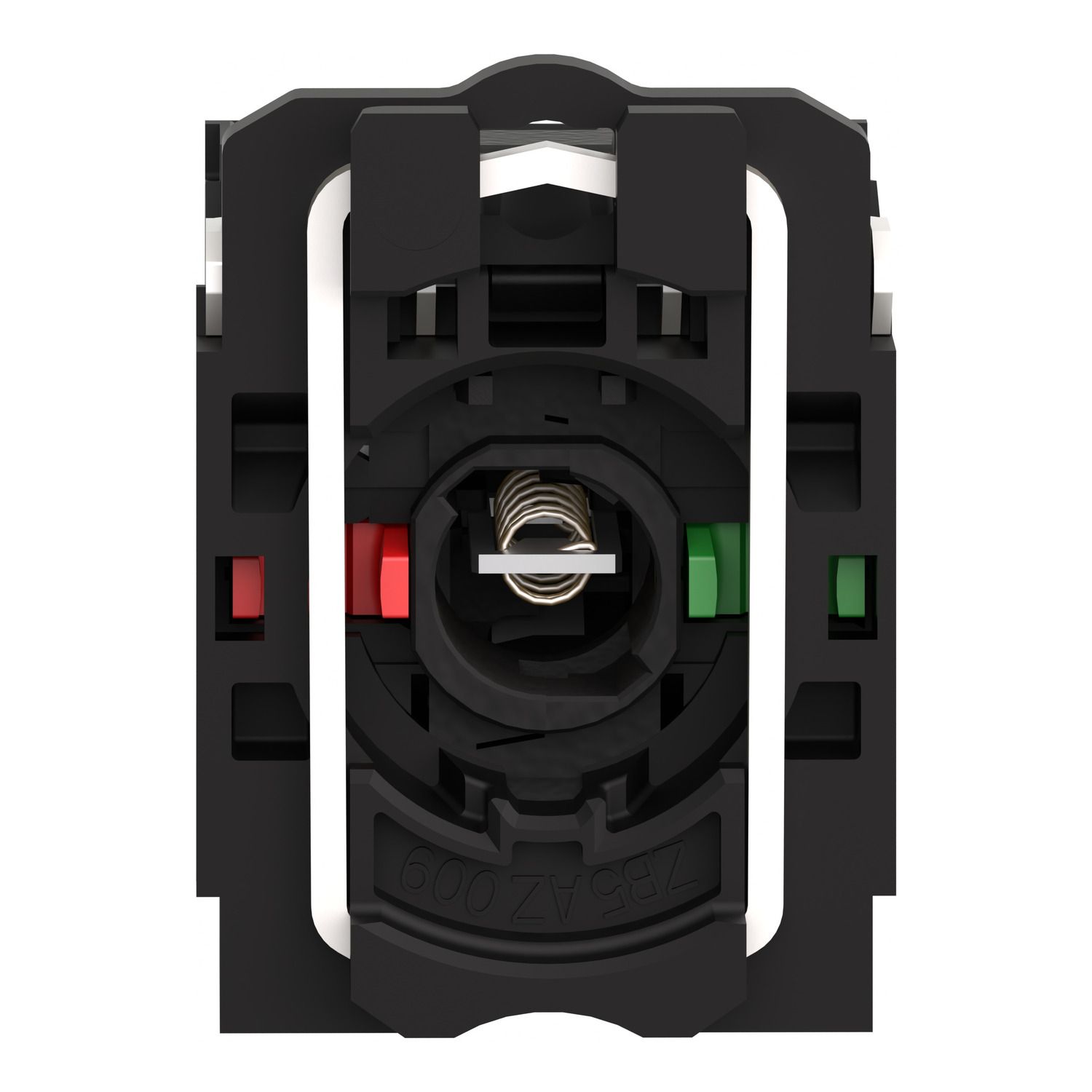

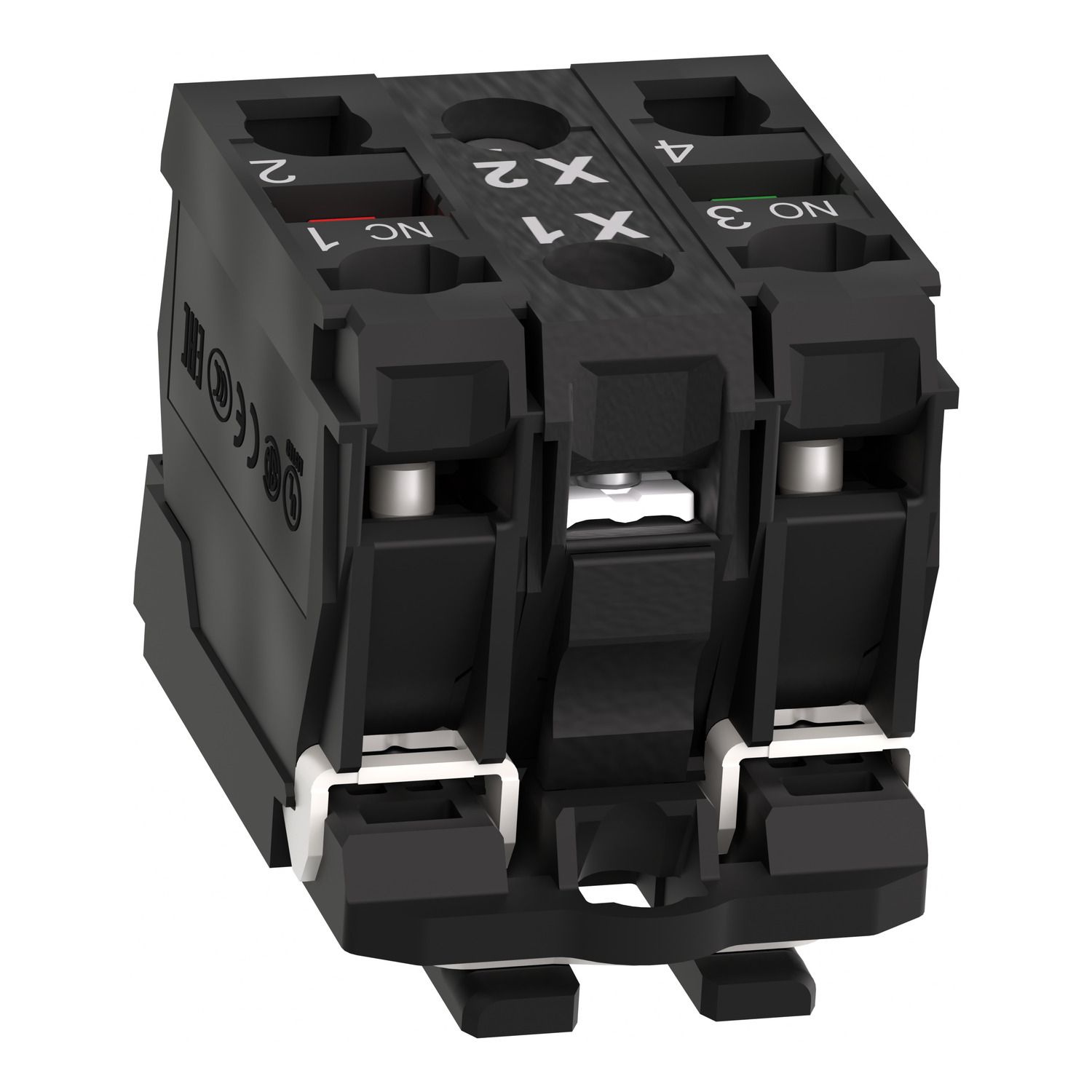

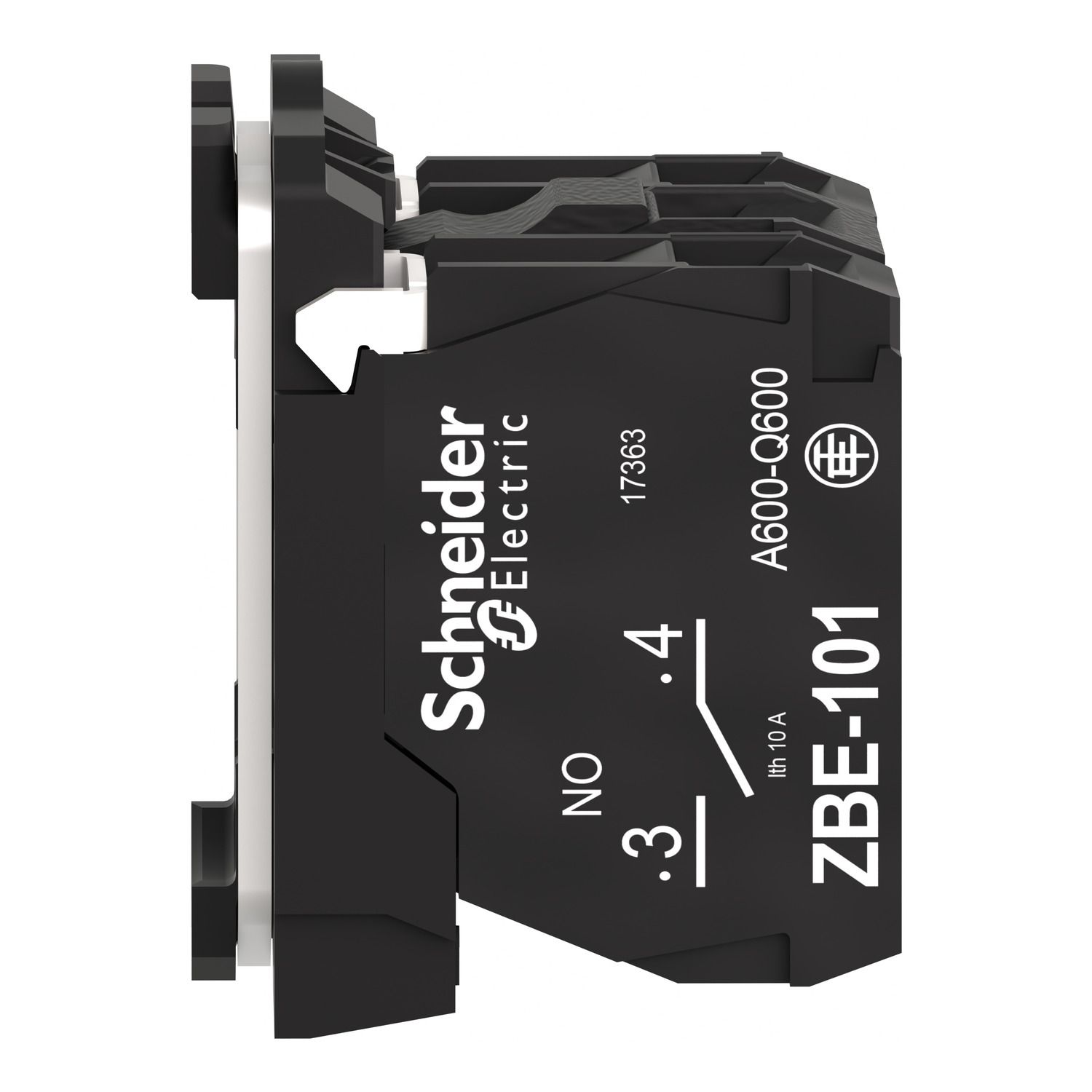

Light block with body fixing collar, Harmony XB5, plastic, blue, for BA9s bulb, lt 250V, 1NO+1NC

Old price: $74.69 INC GST
$58.26 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Light block with body fixing collar, Harmony XB5, plastic, blue, for BA9s bulb, lt 250V, 1NO+1NC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Circularity Profile
CAD

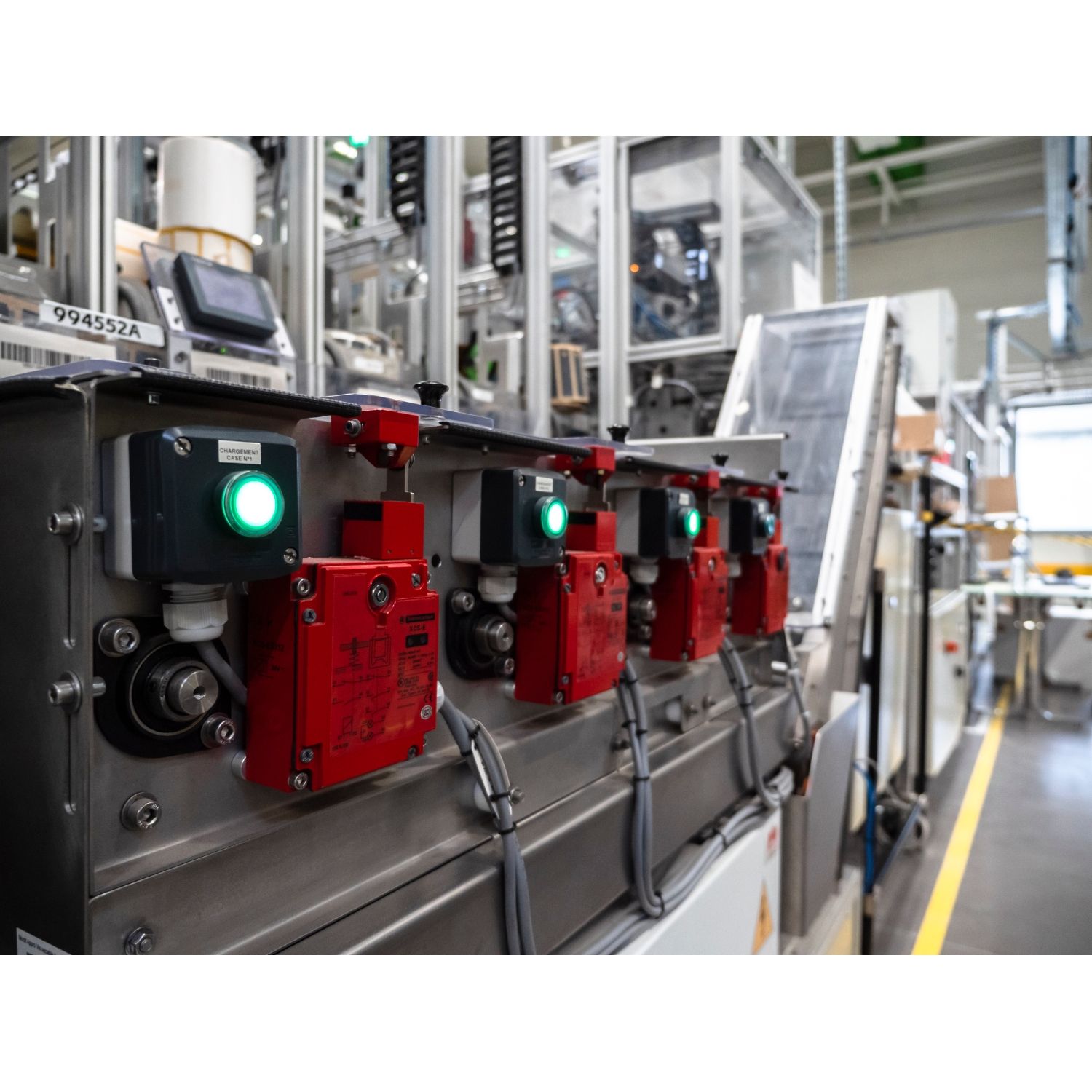

Image of product in real life situation
Declaration of conformity
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.

Products specifications

Attribute name Attribute value
Main
Bulb base BA 9s
Device short name ZB5
Contact operation slow-break
Sale per indivisible quantity 1
Contacts type and composition 1 NO + 1 NC
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Head type standard
Fixing collar material plastic
Product or component type complete body/contact assembly and light block
Light block supply direct <2.4 W
Light source bulb not included
Range of product Harmony XB5
Complementary
[Us] rated supply voltage <= 250 V, 250 V
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
CAD overall depth 32 mm
CAD overall width 30 mm
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Electrical reliability λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4, λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4
Customizable no, 0
Compatibility code ZB5
Mechanical durability 5000000 cycles
[Ie] rated operational current 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1, 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1, 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
Operating torque 0.05 N.m NO changing electrical state
Signalling type steady
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Electrical durability 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation basic sub-assemblies
CAD overall height 42 mm
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.041 kg
[Ith] conventional free air thermal current 10 A conforming to IEC 60947-5-1
Positive opening with conforming to IEC 60947-5-1 appendix K
Contacts material silver alloy (Ag/Ni)
Operating travel 4.3 mm (total travel), 2.6 mm (NO changing electrical state), 1.5 mm (NC changing electrical state)
Short-circuit protection 10 A cartridge fuse type gG conforming to IEC 60947-5-1
Operating force 2.3 N NO changing electrical state, 2 N NC changing electrical state

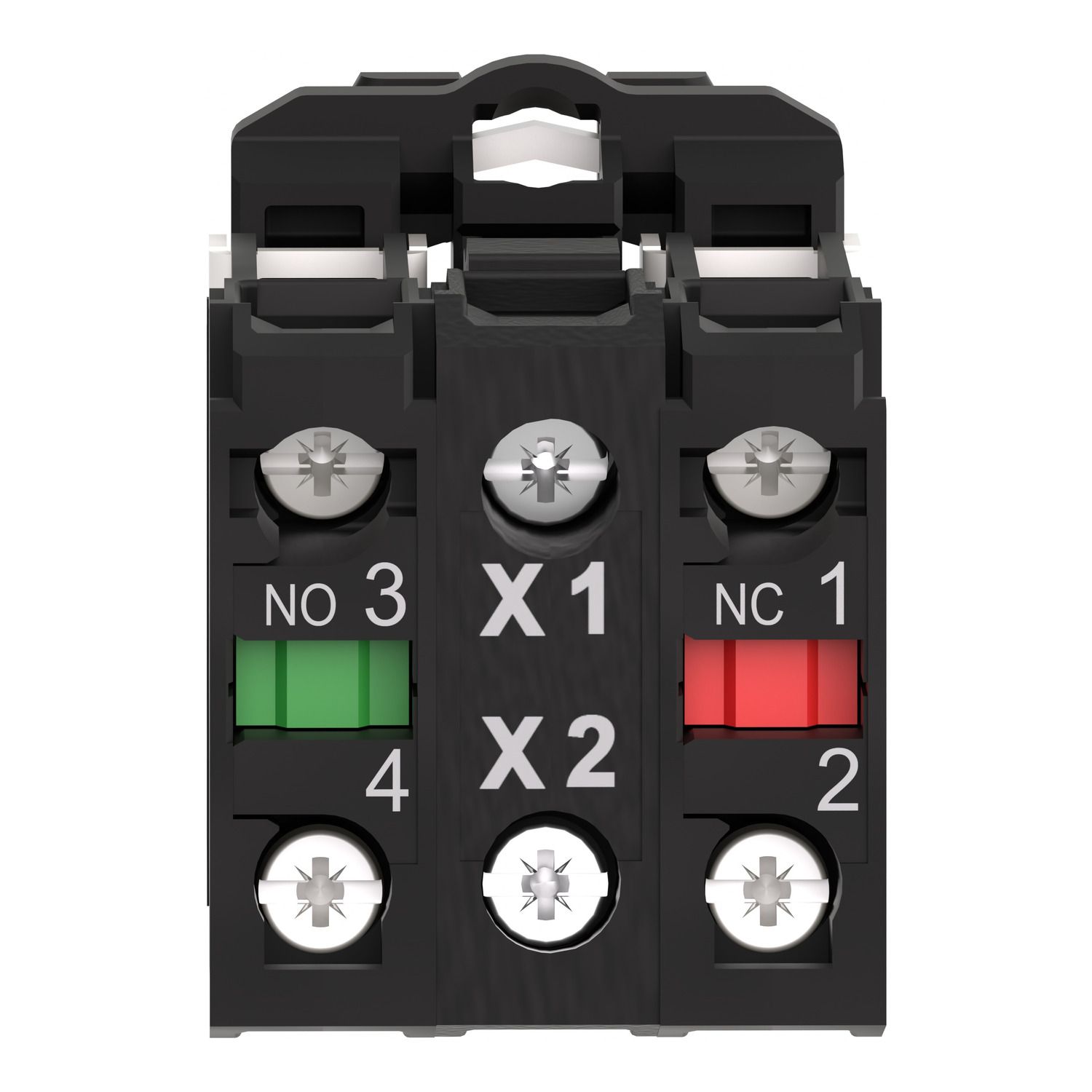

Terminals description ISO n°1 (11-12)NC, (13-14)NO
Contacts usage standard
Environment
Protective treatment TH
Electrical shock protection class class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60947-5-1, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-4, JIS C8201-5-1, UL 508
Ambient air temperature for operation -40-70 °C
Product certifications BV, UL listed, CSA, GL, DNV, LROS (Lloyds register of shipping)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 4.600 cm
Package 1 Length 5.400 cm
Package 1 Weight 37.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 4.500 cm
Package 2 Width 3.400 cm
Package 2 Length 26.500 cm
Package 2 Weight 189.000 g
Unit Type of Package 3 3
Number of Units in Package 3 200
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 8.088 kg
Unit Type of Package 4 4
Number of Units in Package 4 1600
Package 4 Height 75.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 74.684 kg

Related products

Tightening tool for fixing nut, Harmony XB5, plastic, black

ZB5AZ905
$19.22 INC GST $24.64 INC GST
View Detail

Legend holder, Harmony XB4, Legend holder 30 x 40mm, plastic, with legend 8x27mm, unmarked

ZBY2101
$5.19 INC GST $6.66 INC GST
View Detail
