SKU:

ZB5AVB1

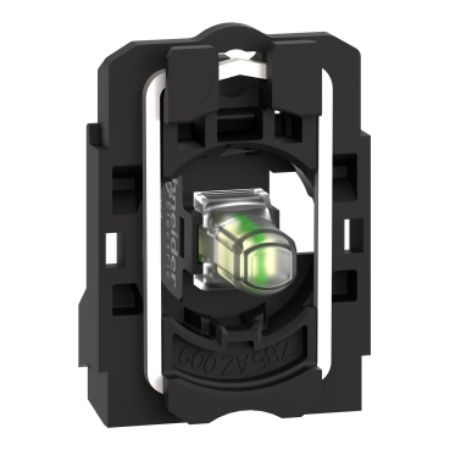

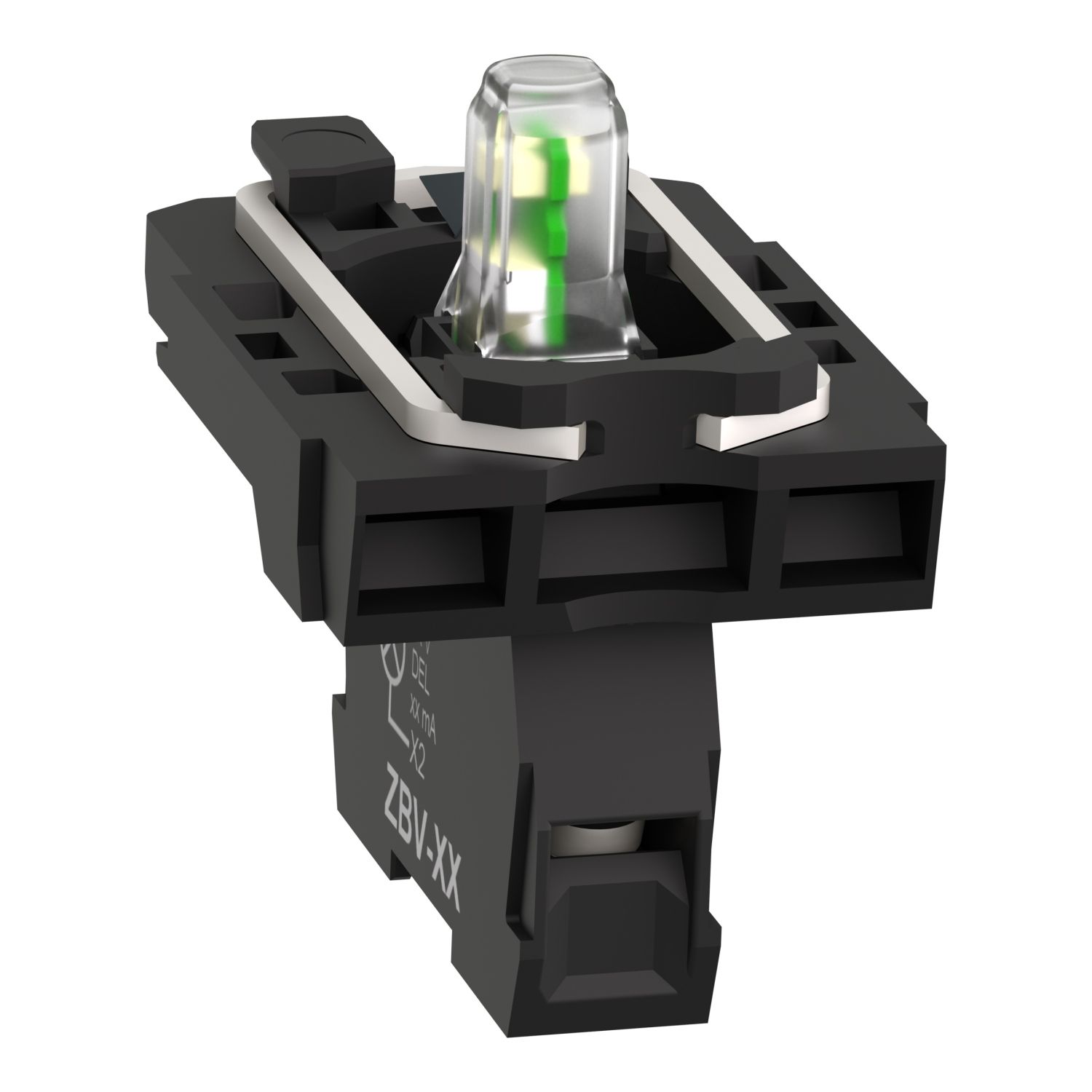

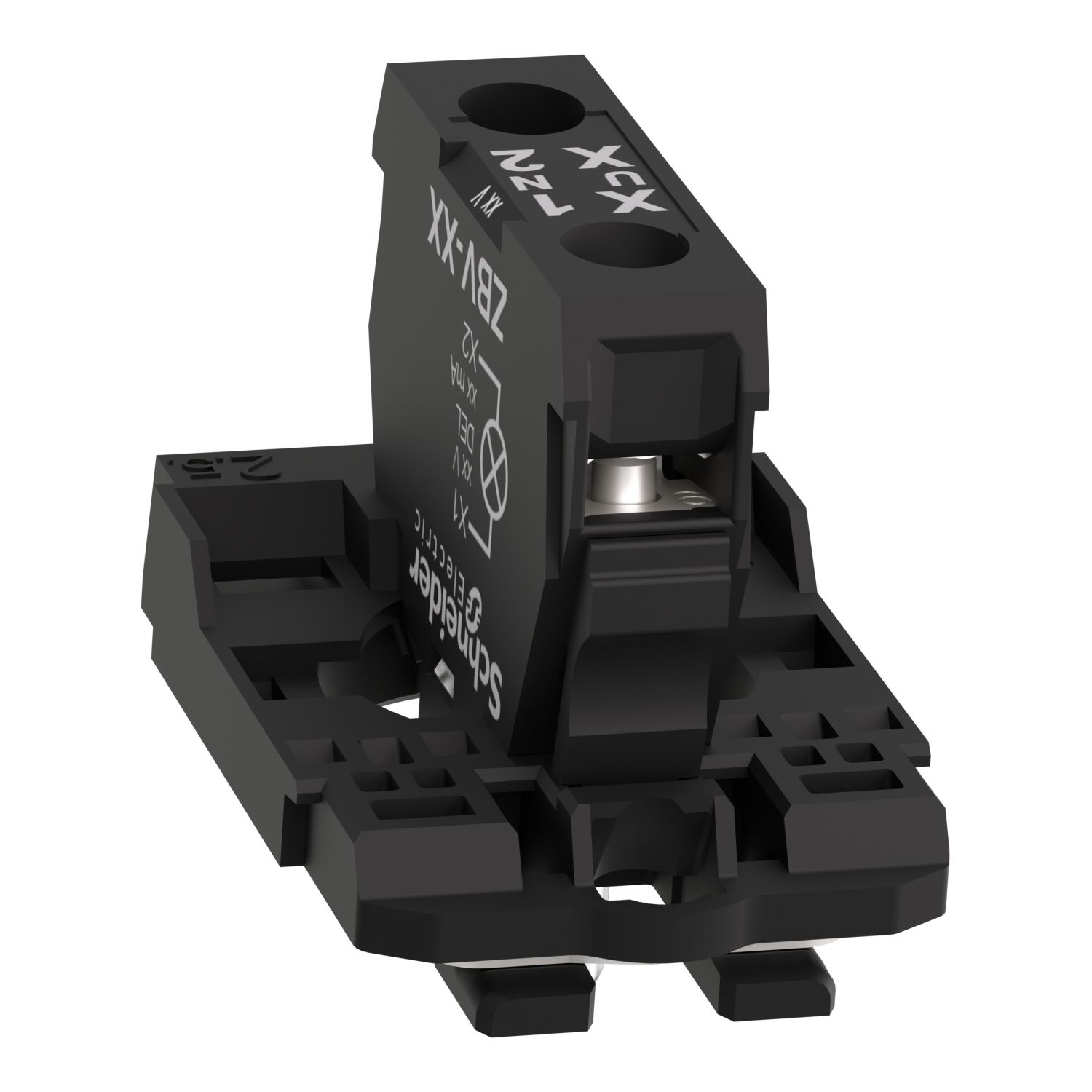

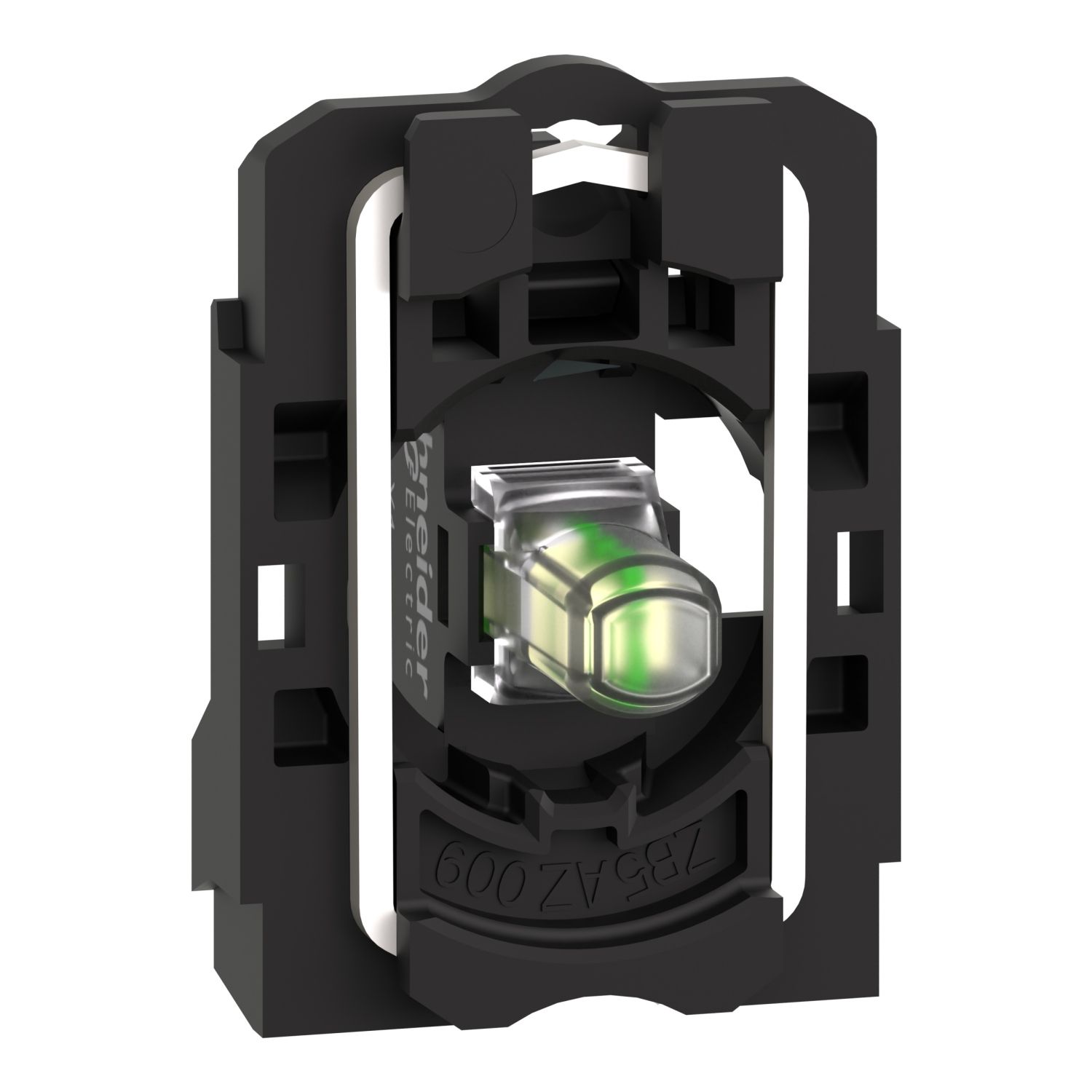

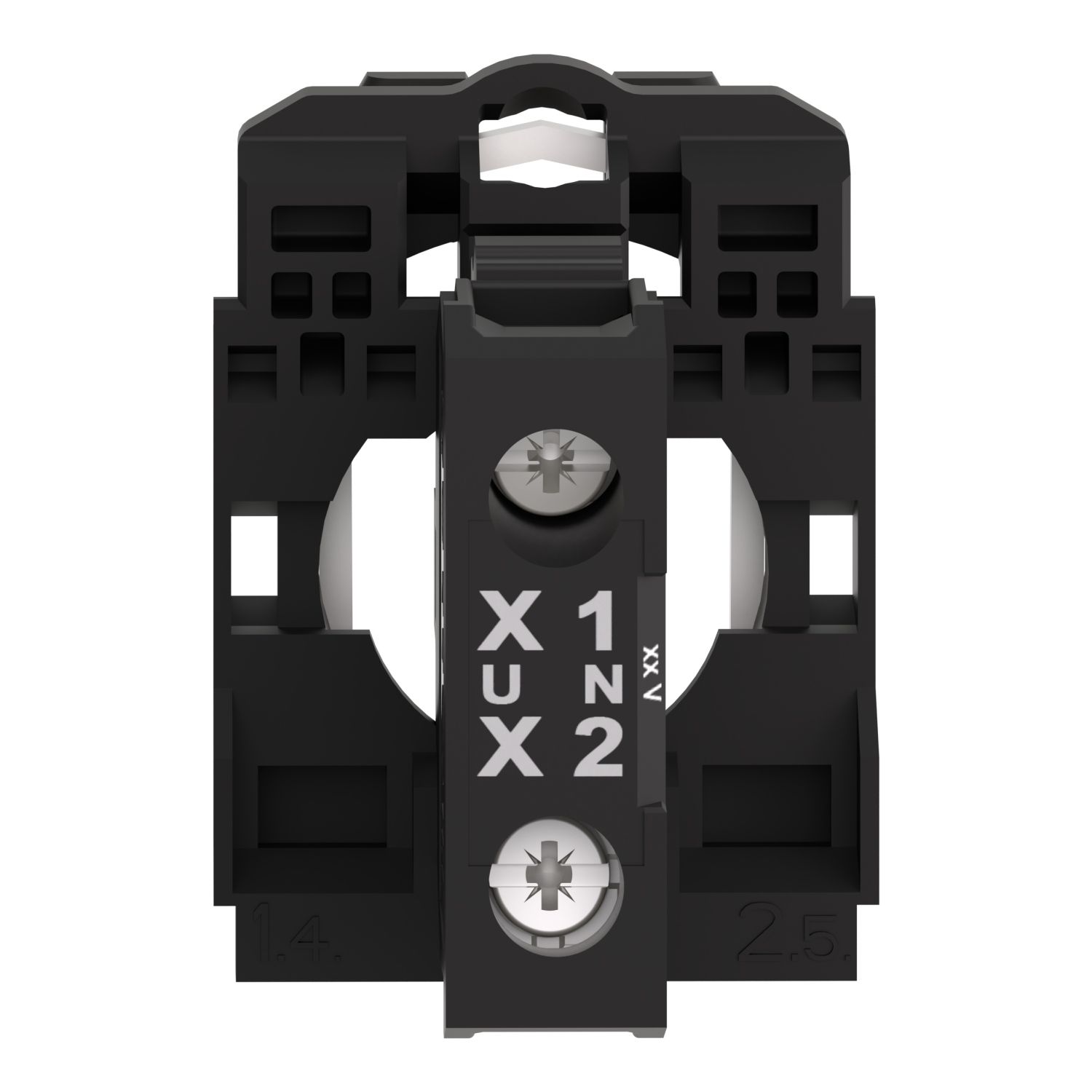

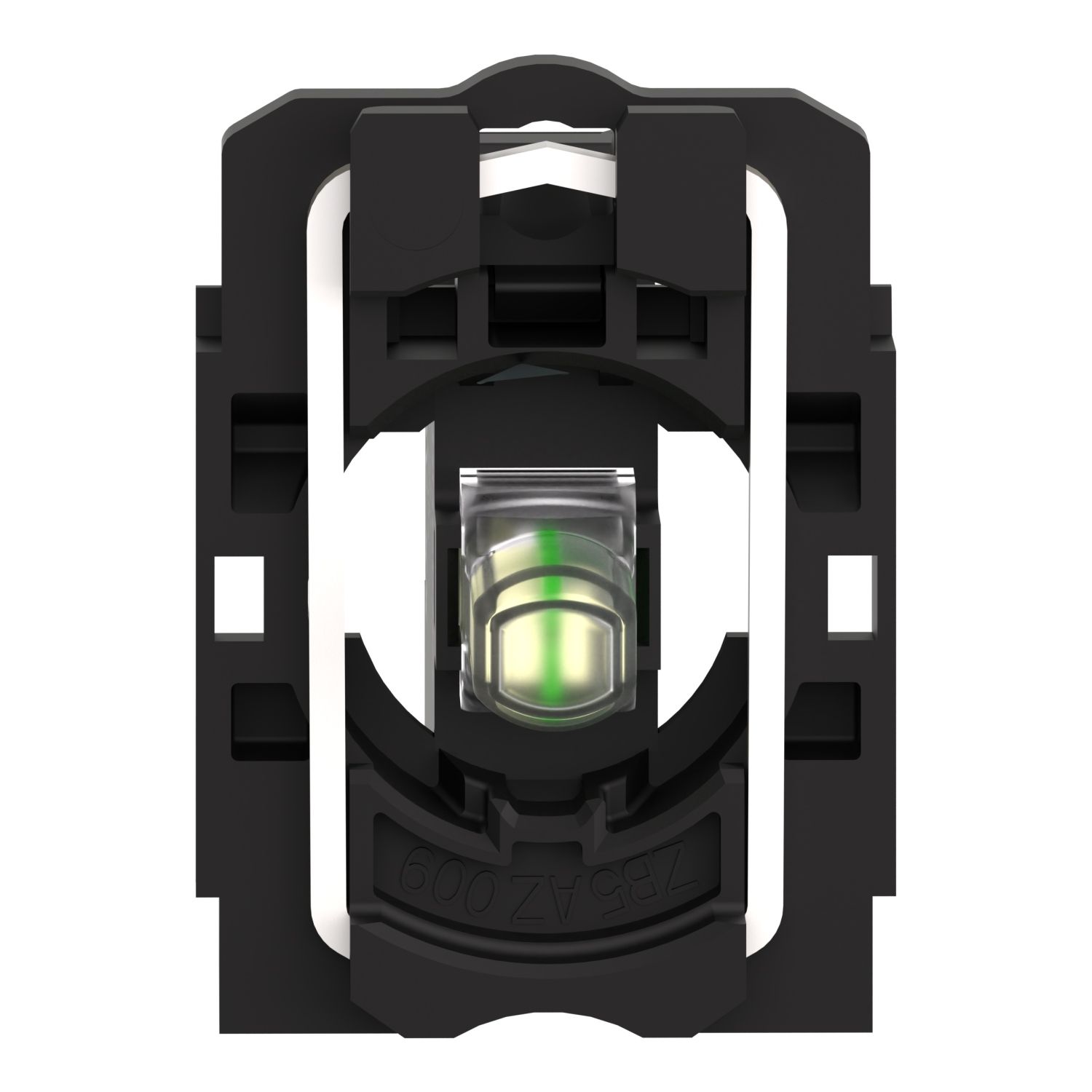

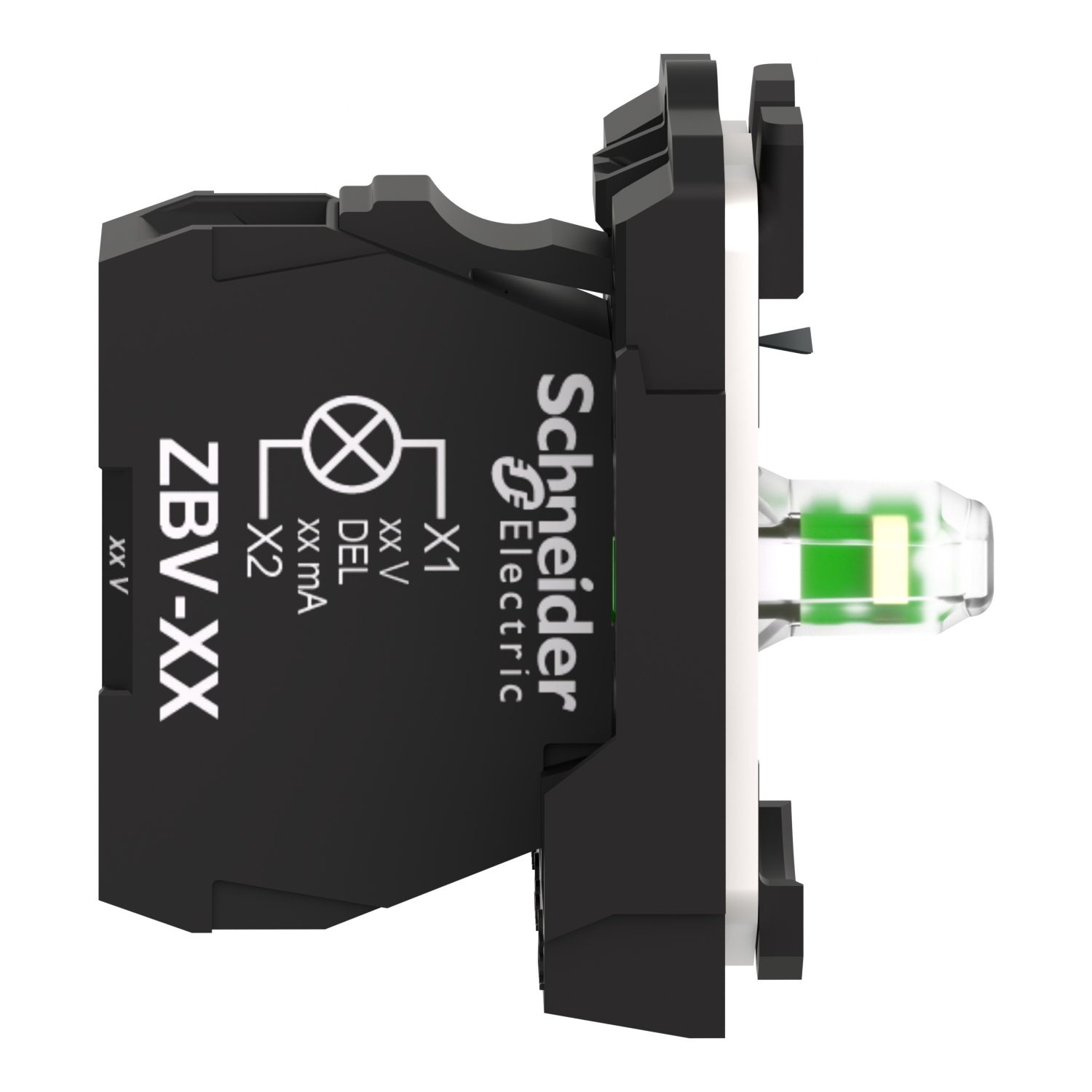

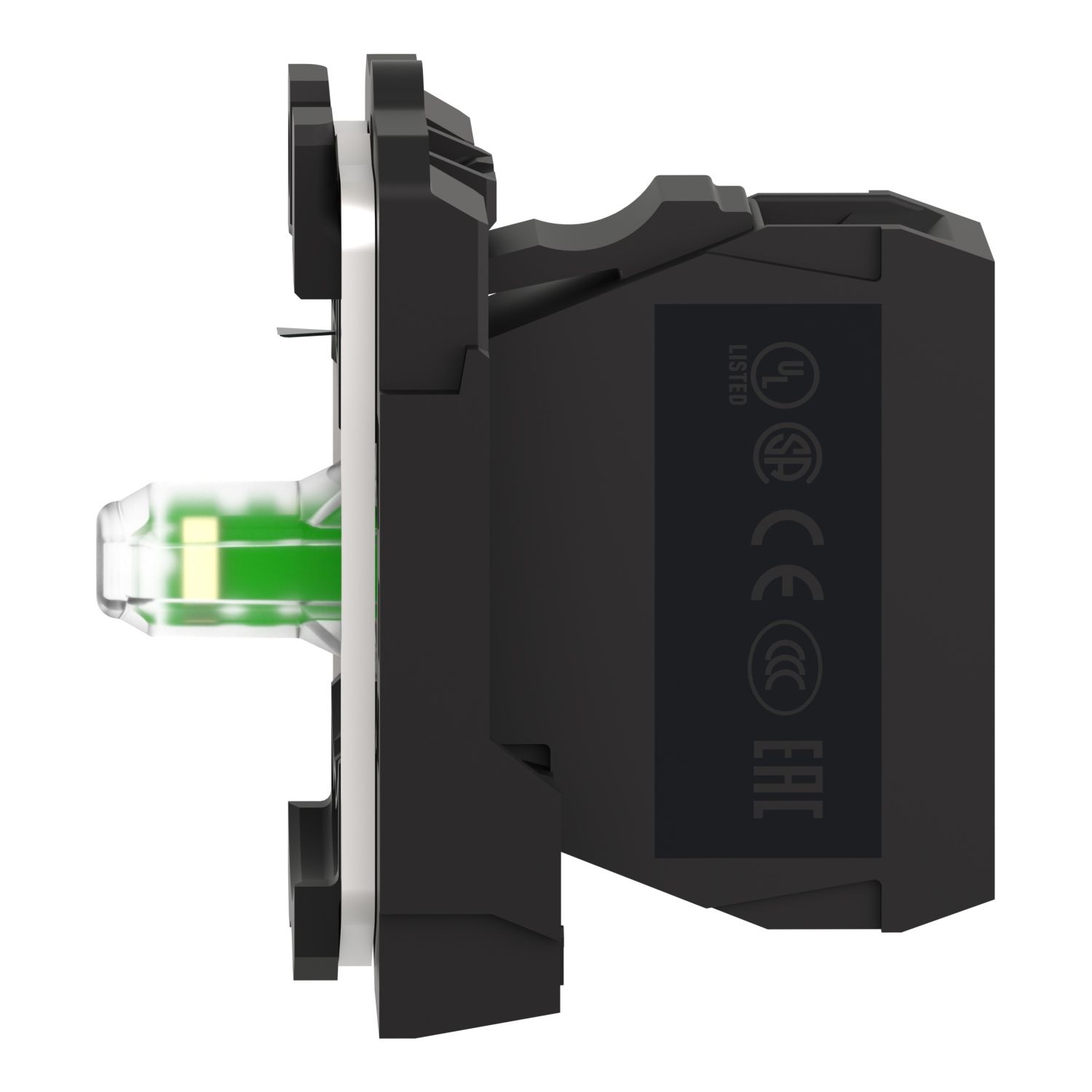

Complete body light block assembly, Harmony XB5, plastic, universal LED, body fixing collar, 24V AC DC

Old price: $49.83 INC GST
$38.87 INC GST
Available for Shipping : 10-Dec-2025
Product Selector
Complete body light block assembly, Harmony XB5, plastic, universal LED, body fixing collar, 24V AC DC
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 10-Dec-2025
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Environmental Disclosure
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
CAD
Instruction sheet
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Circularity Profile
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Declaration of conformity
Image of product in real life situation
Catalog
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XB5, light block with body/fixing collar operates with an integral LED. It has a plastic body and is compatible with Harmony XB5 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Light source colour white
Sale per indivisible quantity 1
Fixing collar material plastic
Range of product Harmony XB5
Bulb base integral LED
Connections - terminals screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
Product or component type complete body/light block assembly
Light source universal LED
Complementary
Shape of screw head slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with pozidriv No 1 screwdriver, cross compatible with Philips no 1 screwdriver
Tightening torque 0.8-1.2 N.m conforming to IEC 60947-1
Compatibility code ZB5
Supply voltage limits 21.6-26.4 V AC, 19.2-30 V DC
Surge withstand 1 kV conforming to IEC 61000-4-5
Device presentation basic sub-assemblies
CAD overall height 42 mm
Customizable 0, no
[Us] rated supply voltage 24 V, 24 V AC/DC at 50/60 Hz
CAD overall depth 32 mm
CAD overall width 30 mm
Signalling type steady
[Ui] rated insulation voltage 600 V (pollution degree 3) conforming to IEC 60947-1
Service life 100000 h at rated voltage and 25 °C
Current consumption 18 mA
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Net weight 0.022 kg
Terminals description ISO n°1 (X1-X2)PL
Environment
Resistance to fast transients 2 kV conforming to IEC 61000-4-4
Protective treatment TH
Resistance to electrostatic discharge 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6, 6 kV on contact (on metal parts) conforming to IEC 61000-2-6
Ambient air temperature for storage -40-70 °C
Resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3
Ambient air temperature for operation -40-70 °C
Electromagnetic emission class B conforming to IEC 55011
Electrical shock protection class class II conforming to IEC 60536
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, CSA C22.2 No 14, IEC 60947-1, UL 508, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-5-1
Product certifications UL listed, DNV, CSA, BV, GL, LROS (Lloyds register of shipping)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.600 cm
Package 1 Width 3.400 cm
Package 1 Length 5.400 cm
Package 1 Weight 20.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 5.600 cm
Package 2 Width 3.400 cm
Package 2 Length 26.500 cm
Package 2 Weight 100.000 g
Unit Type of Package 3 3
Number of Units in Package 3 200
Package 3 Height 30.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 4.489 kg
Unit Type of Package 4 4
Number of Units in Package 4 1600
Package 4 Height 75.000 cm
Package 4 Width 60.000 cm
Package 4 Length 80.000 cm
Package 4 Weight 50.220 kg

Related products

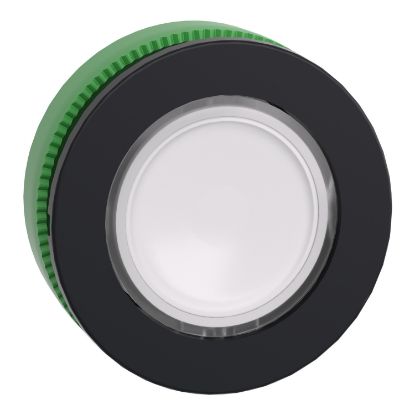

Head for pilot light, Harmony XB5, antimicrobial, plastic, white, 30mm, universal LED, plain lens

ZB5FV013
$18.79 INC GST $24.09 INC GST
View Detail
