SKU:

ZB5AV063

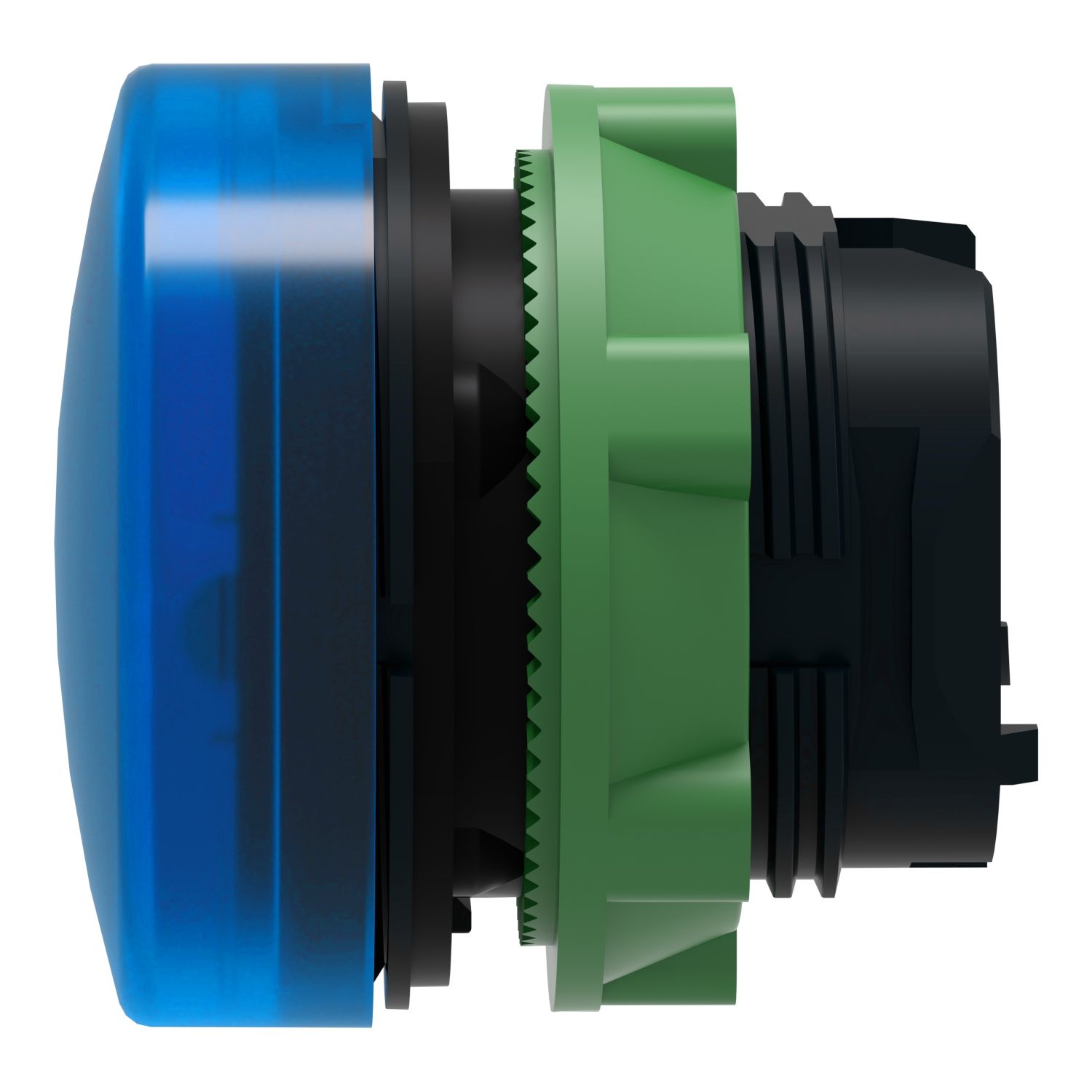

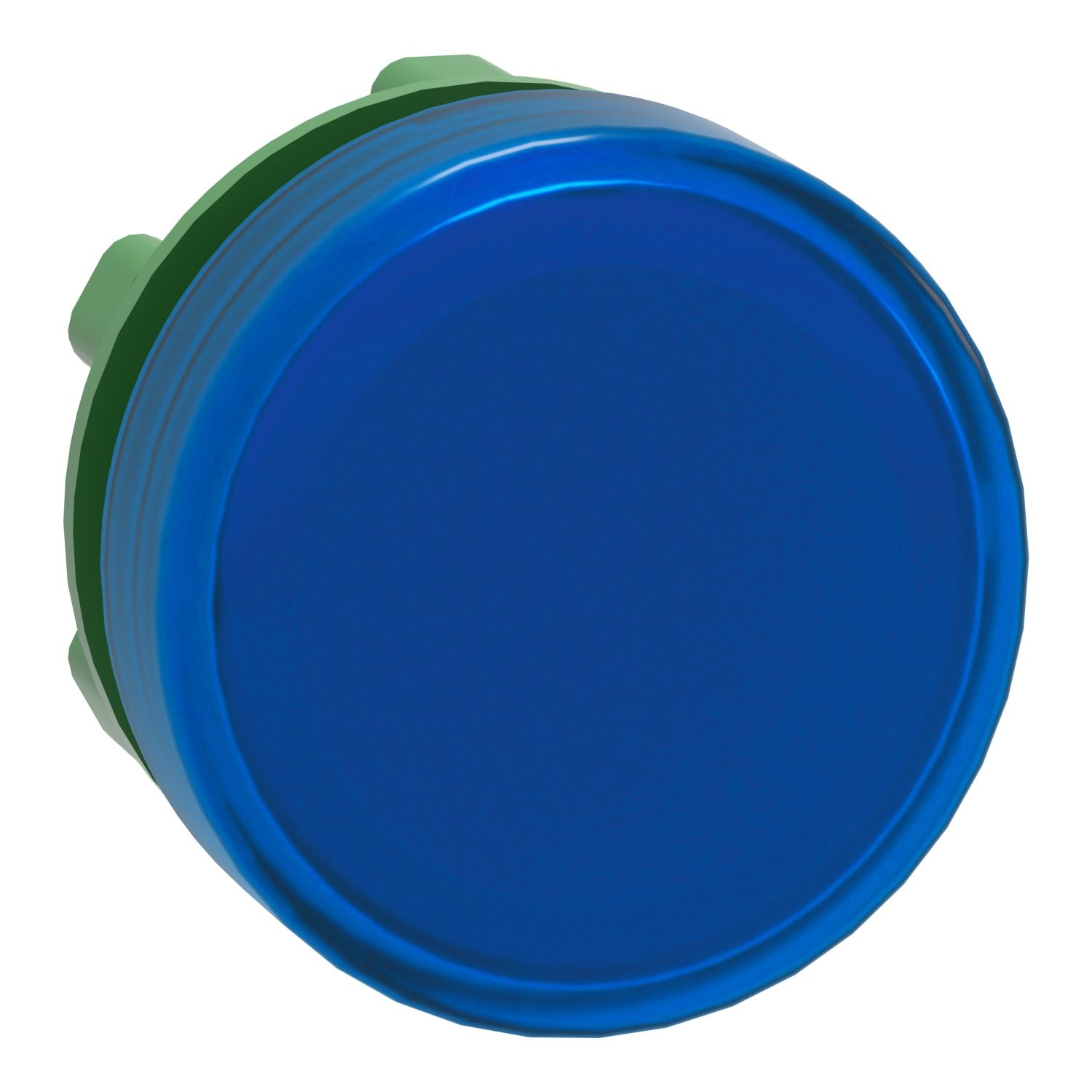

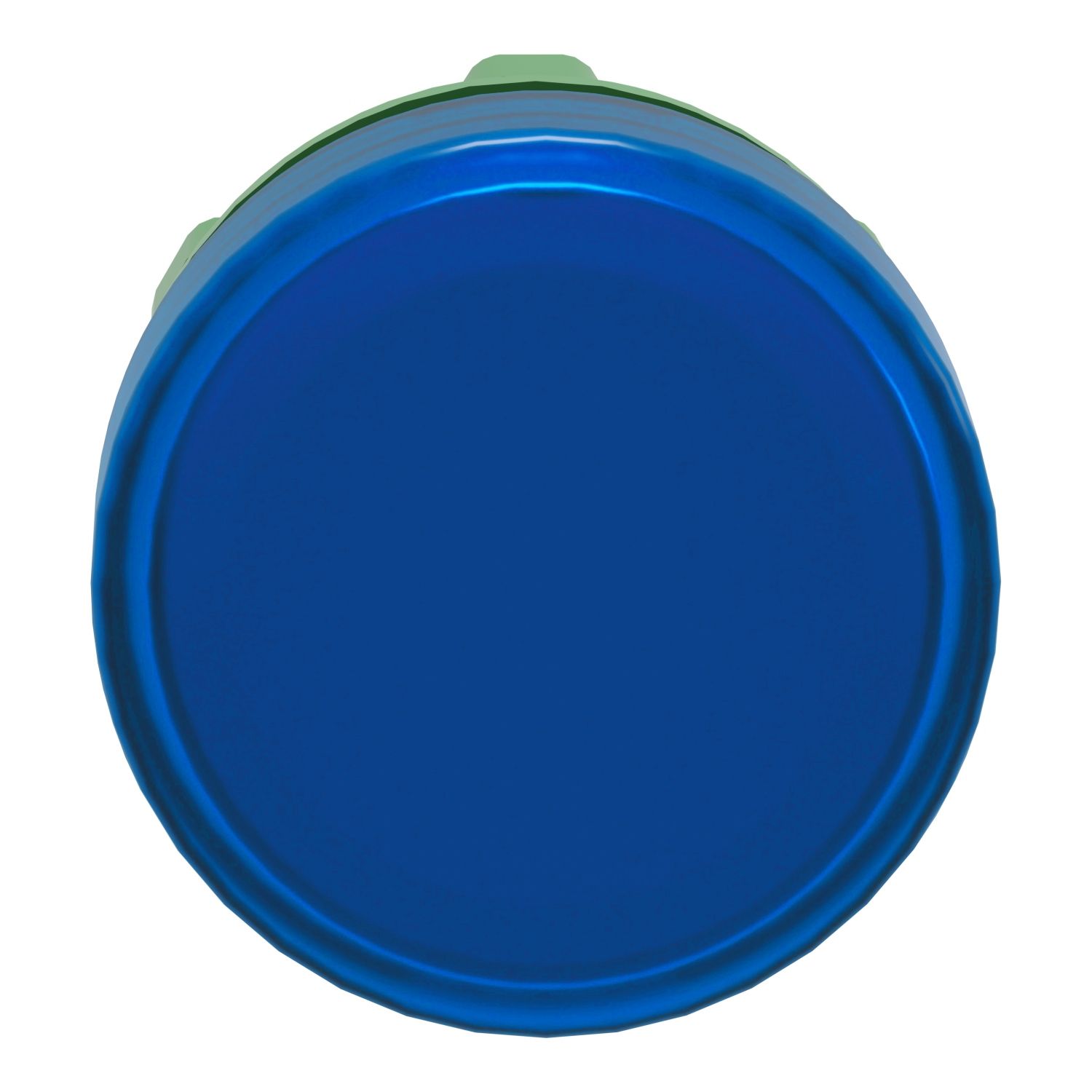

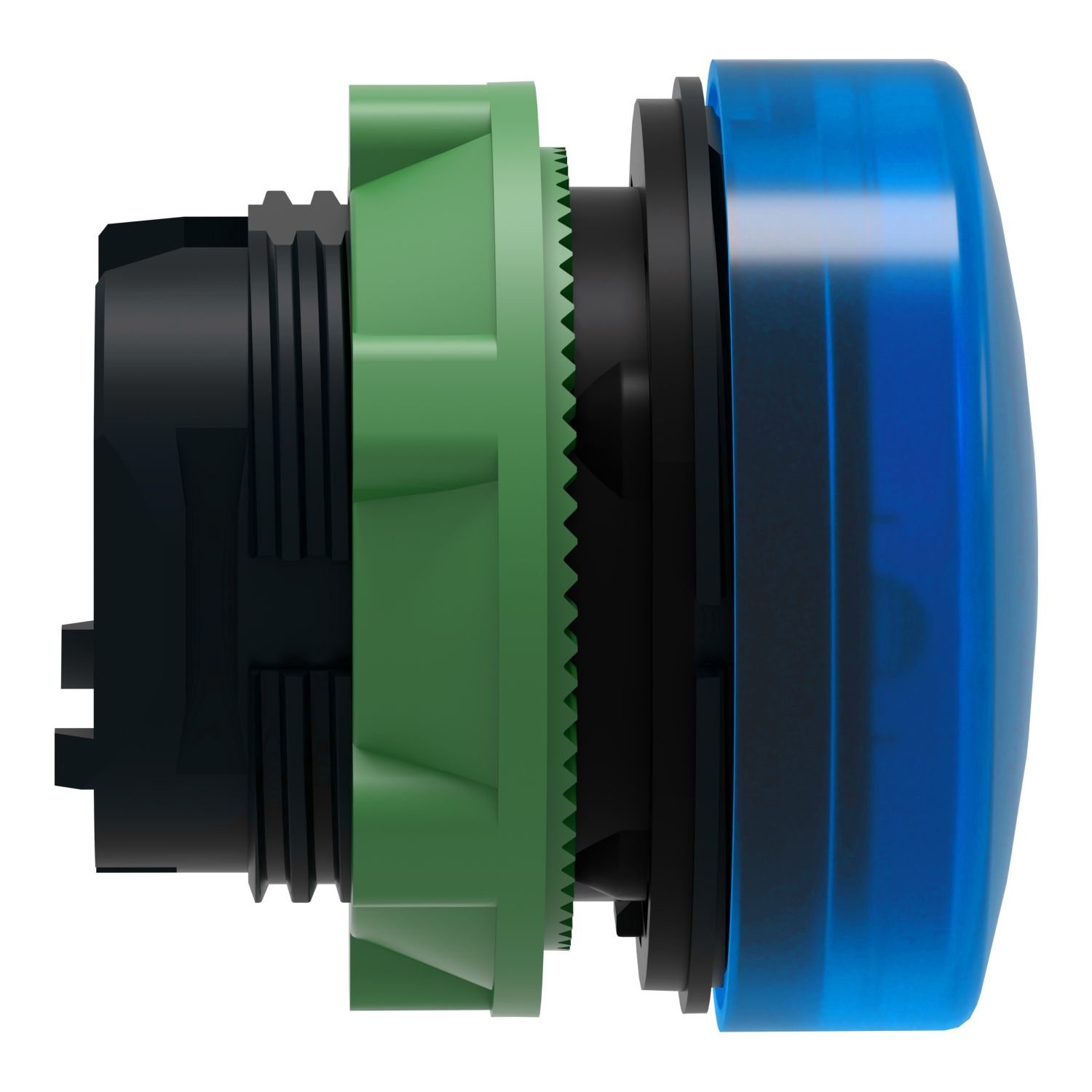

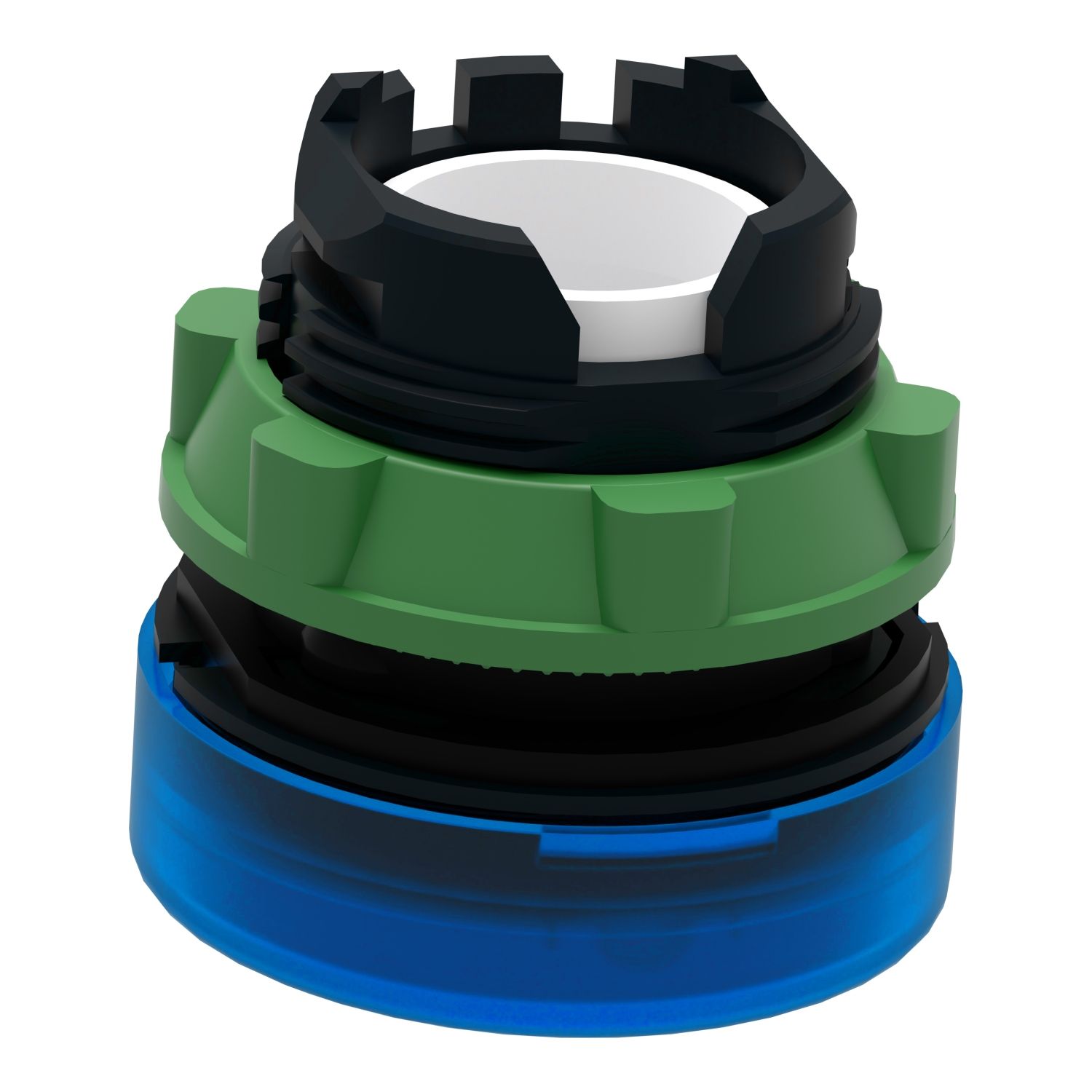

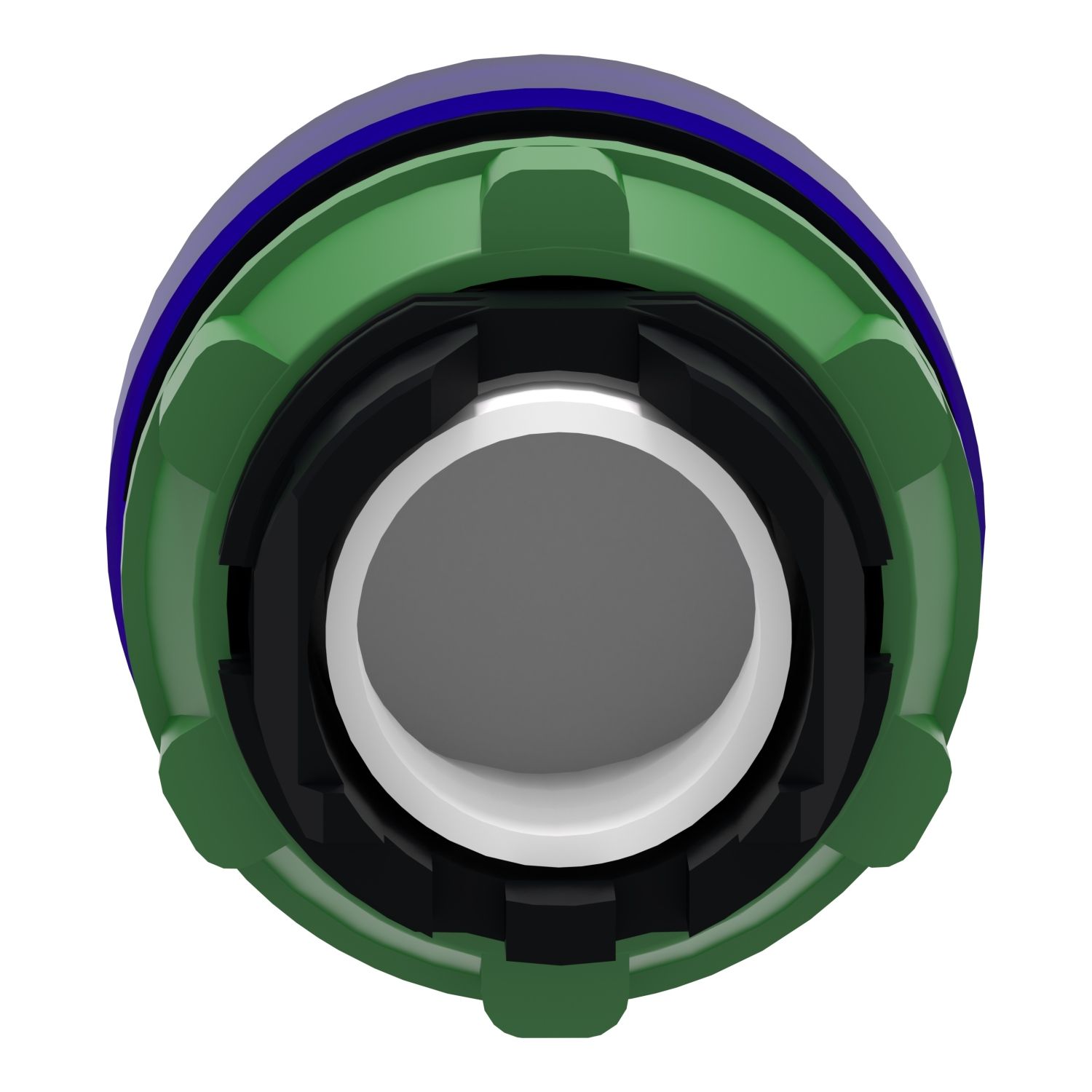

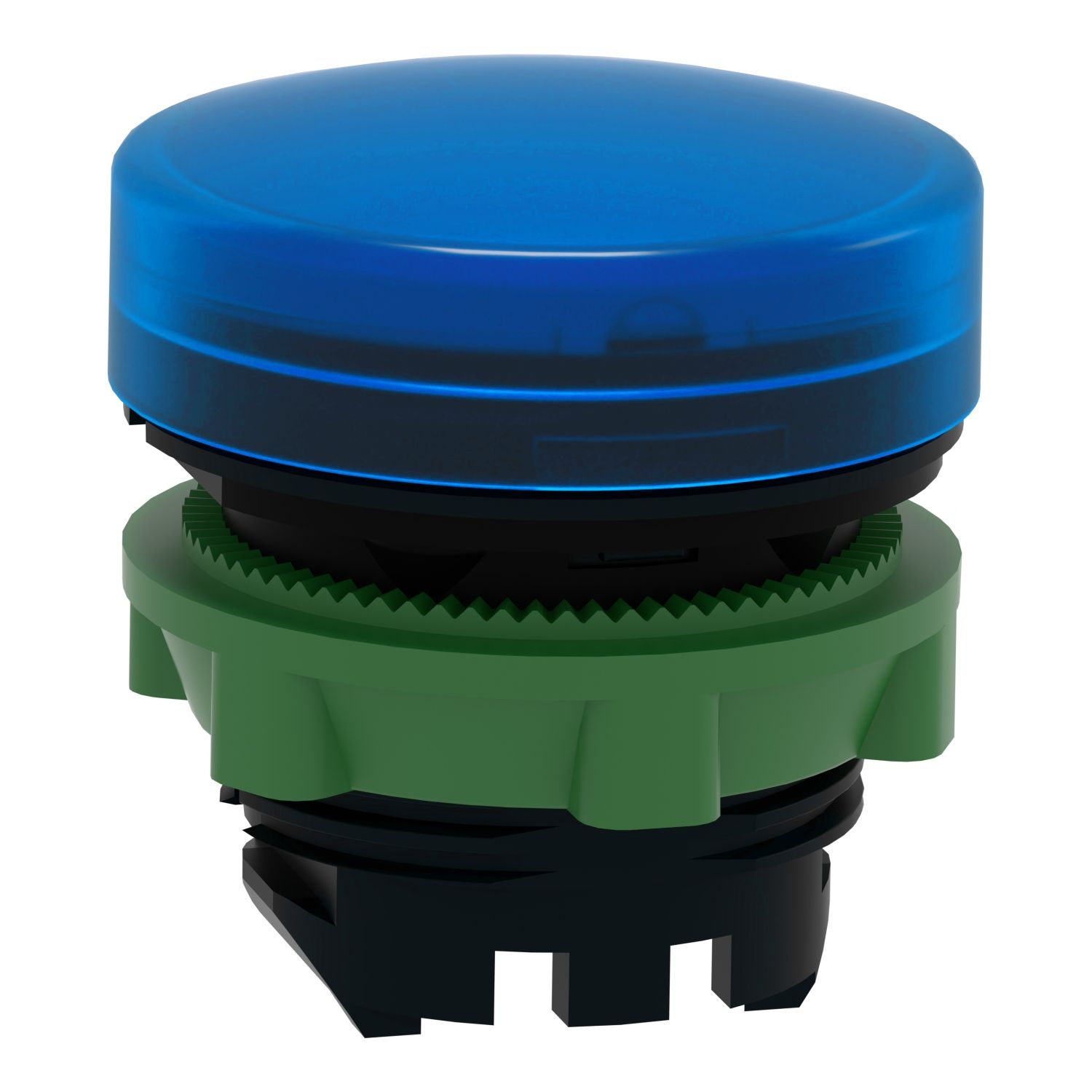

Harmony XB5, Head for Pilot light, plastic, blue, 22mm, universal LED, plain lens

Old price: $20.02 INC GST
$15.62 INC GST
Available for Shipping : 10-Dec-2025
Product Selector
Harmony XB5, Head for Pilot light, plastic, blue, 22mm, universal LED, plain lens
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 10-Dec-2025
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Environmental Disclosure
Image of product in real life situation
CAD
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Instruction sheet
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Circularity Profile
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Declaration of conformity
Image of product in real life situation
Catalog
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This Harmony XB5, plain lens head for pilot light with integral LED is blue. This head for integral LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Product compatibility universal LED
Sale per indivisible quantity 1
Head type standard
Cap/operator or lens colour blue
Range of product Harmony XB5
Bezel material dark grey plastic
Shape of signaling unit head round
Product or component type head for pilot light
Mounting diameter 22 mm
Operator additional information with plain lens
Complementary
Group of product lens fitted integral LED
Station name XALK 2...5 cut-outs, XALD 1...5 cut-outs
Compatibility code ZB5
Device presentation basic element
CAD overall height 29 mm
Customizable 1, no
Electrical composition code PR1 in rear mounting with integral LED, PF1 in front mounting with integral LED, P2 in front mounting with integral LED and transformer, P1 in front mounting with integral LED
Main group pilot light
CAD overall depth 31 mm
CAD overall width 29 mm
Cap/operator or lens colour blue
GCR BRIDGE ZB5AVCUST01
Net weight 0.017 kg
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Standards JIS C8201-1, EN/IEC 60947-1, EN/IEC 60947-5-4, JIS C8201-5-1, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-5, UL 508
Ambient air temperature for operation -40-70 °C
IK degree of protection IK05 conforming to IEC 50102
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.500 cm
Package 1 Width 3.400 cm
Package 1 Length 5.400 cm
Package 1 Weight 16.000 g
Unit Type of Package 2 2
Number of Units in Package 2 300
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 5.304 kg
Unit Type of Package 3 3
Number of Units in Package 3 2400
Package 3 Height 75.000 cm
Package 3 Width 60.000 cm
Package 3 Length 80.000 cm
Package 3 Weight 50.432 kg
