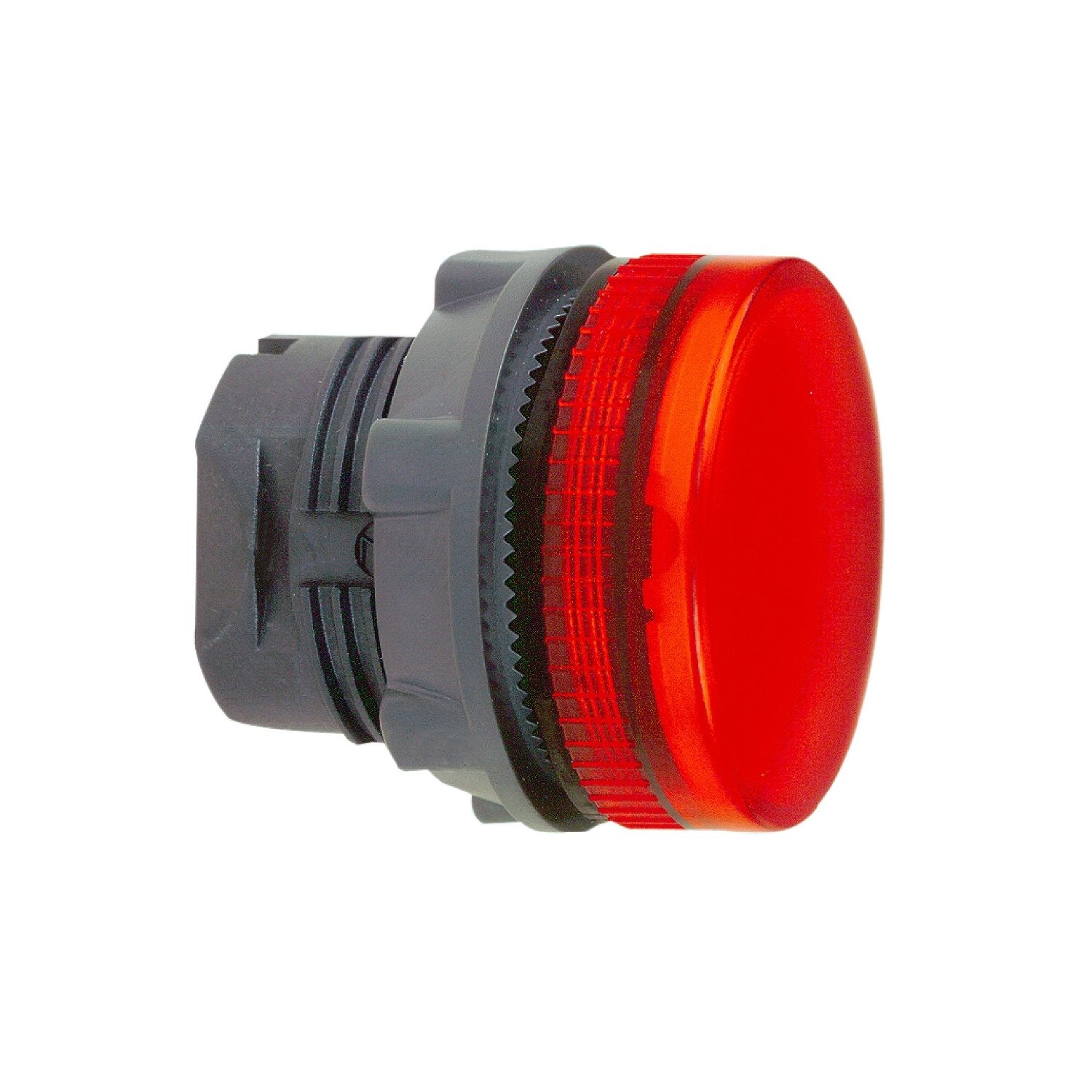

Picture of Head for pilot light, Harmony XB5, red Ø22 mm grooved lens ba9s bulb
SKU:

ZB5AV04S

Head for pilot light, Harmony XB5, red Ø22 mm grooved lens ba9s bulb

Old price: $20.02 INC GST
$15.62 INC GST
Available for Shipping : 15-Jan-2026
Product Selector
Head for pilot light, Harmony XB5, red Ø22 mm grooved lens ba9s bulb
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Jan-2026
Declaration of conformity
CAD
Circularity Profile
Catalog
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet
This Harmony XB5 grooved lens red head for pilot light is supplied with BA9s base. It offers a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of lens. It enables complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Product compatibility BA 9s
Bezel material dark grey plastic
Sale per indivisible quantity 1
Head type standard
Cap/operator or lens colour red
Shape of signaling unit head round
Product or component type head for pilot light
Mounting diameter 22 mm
Range of product Harmony XB5
Operator additional information with grooved lens
Complementary
Group of product lens fitted BA9s
CAD overall depth 31 mm
CAD overall width 29 mm
Station name XALK 2...5 cut-outs, XALD 1...5 cut-outs
Customizable no, 1
Compatibility code ZB5
Cap/operator or lens colour red
GCR BRIDGE ZB5AVCUST01
Device presentation basic element
CAD overall height 29 mm
Net weight 0.017 kg
Electrical composition code PF2 in front mounting with BA 9s, P4 in front mounting with BA 9s and transformer, P3 in front mounting with BA 9s
Main group pilot light
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Environmental characteristic high ambient lighting environment
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-5-1, UL 508, CSA C22.2 No 14, EN/IEC 60947-1
Ambient air temperature for operation -40-70 °C
IK degree of protection IK05 conforming to IEC 50102
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.400 cm
Package 1 Width 3.400 cm
Package 1 Length 4.400 cm
Package 1 Weight 16.000 g
Unit Type of Package 2 2
Number of Units in Package 2 150
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.820 kg
Unit Type of Package 3 3
Number of Units in Package 3 1200
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 30.560 kg
