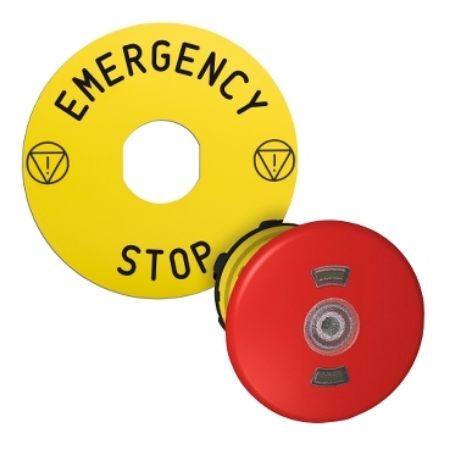

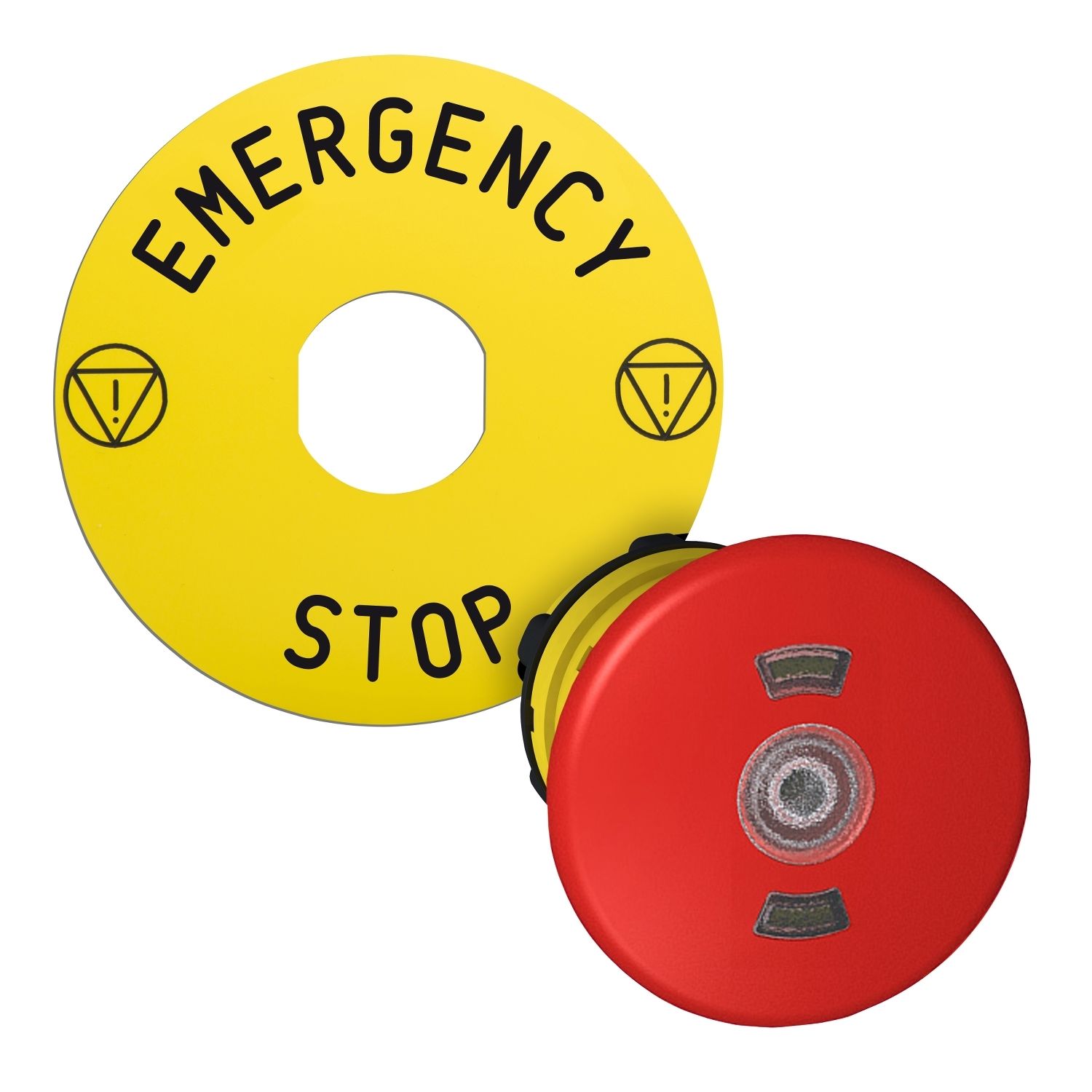

Picture of red Ø40 illum Emergency stop pushbutton head with yellow legend plate
SKU:

ZB5AT8643M330

red Ø40 illum Emergency stop pushbutton head with yellow legend plate

Old price: $59.07 INC GST
$46.07 INC GST
Available for Shipping : 19-Jan-2026
red Ø40 illum Emergency stop pushbutton head with yellow legend plate
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 19-Jan-2026
Declaration of conformity
Circularity Profile
Catalog
Instruction sheet
Environmental Disclosure
Product Page Link
Product Data Sheet

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Operator profile red mushroom Ø 40 mm, unmarked
Bezel material plastic
Sale per indivisible quantity 1
Shape of signaling unit head round
Product or component type head for illuminated emergency stop push-button
Type of operator trigger action and mechanical latching with mechanical state indicator
Mounting diameter 22 mm
Range of product Harmony XB5, Harmony XALF
Reset push-pull
Complementary
Group of product emergency stop illuminated
CAD overall depth 59 mm
CAD overall width 40 mm
Product compatibility integral LED
Station name XALK 1 cut-out, XALD 1 cut-out
Marking unmarked
Compatibility code ZB5
Mechanical durability 500000 cycles
Cap/operator or lens colour red
CAD overall height 40 mm
Net weight 0.034 kg
Electrical composition code MR1 for <2 contacts using single blocks in rear mounting with integral LED, MF1 for <2 contacts using single blocks in front mounting with integral LED, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer
Main group E-stop
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP54 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, IEC 60204-1, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-5-1, ISO 13850, IEC 60947-5-4, UL 508, GB 14048.5, IEC 60947-1
Ambient air temperature for operation -40-70 °C
IK degree of protection IK05 conforming to IEC 50102
Product certifications UL listed, LROS (Lloyds register of shipping), BV, GL, DNV, CSA
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.100 cm
Package 1 Width 7.400 cm
Package 1 Length 9.400 cm
Package 1 Weight 52.000 g
