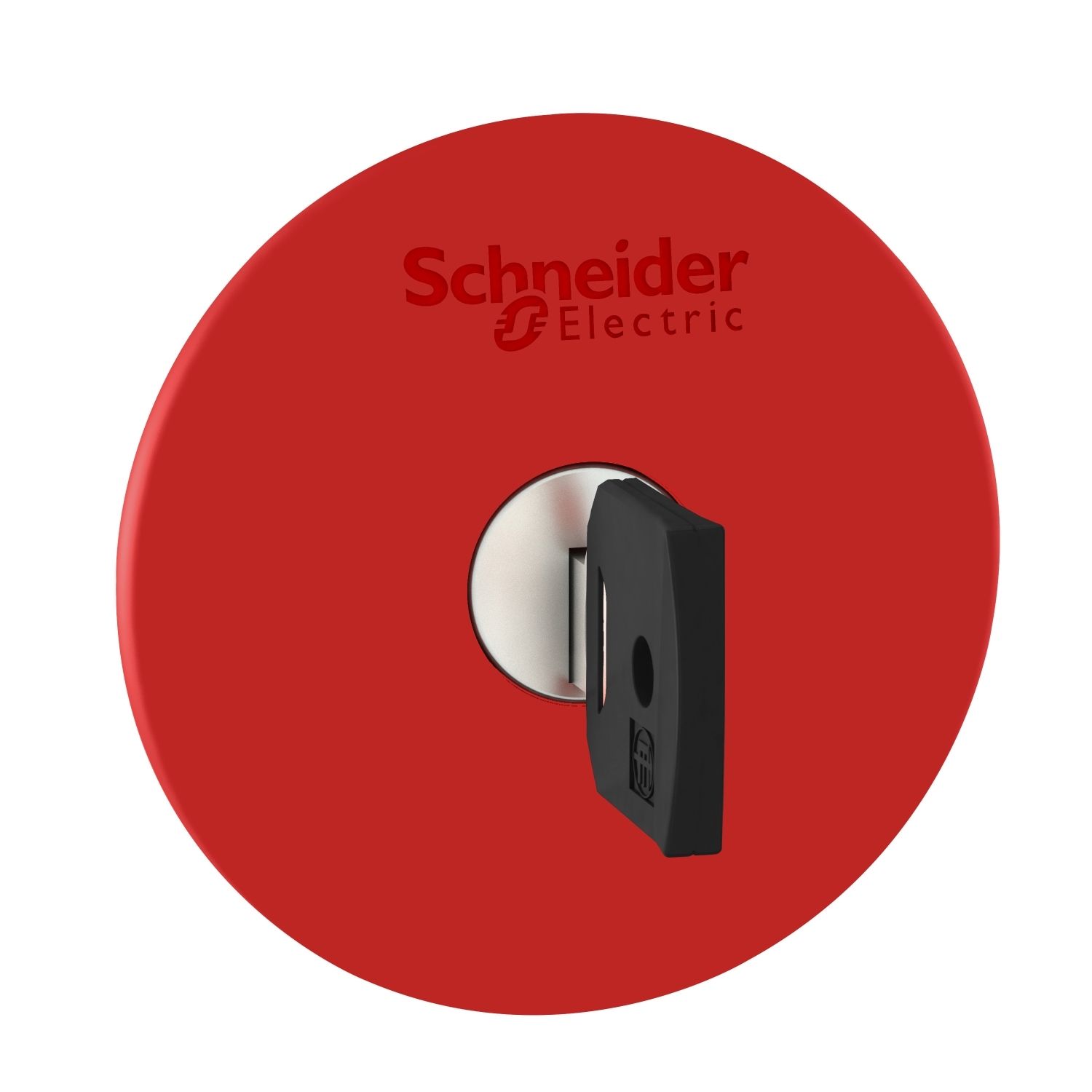

Picture of Head for emergency stop push button, Harmony XB5, switching off, plastic, red mushroom 60mm, 22mm, trigger/latching key release, key 455
SKU:

ZB5AS964

Head for emergency stop push button, Harmony XB5, switching off, plastic, red mushroom 60mm, 22mm, trigger/latching key release, key 455

Old price: $168.96 INC GST
$131.79 INC GST
Available for Shipping : 19-Jan-2026
Product Selector
Head for emergency stop push button, Harmony XB5, switching off, plastic, red mushroom 60mm, 22mm, trigger/latching key release, key 455
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 19-Jan-2026
CAD
Declaration of conformity
Environmental Disclosure
Circularity Profile
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XB5 emergency stop / shutdown 60mm mushroom red button head operates with a latched key release (key no.455) mechanism. It provides an ergonomic interface for controlling your machines. It is easily installed on compatible complete emergency stop and switching off push buttons. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 60mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Type of keylock key 455
Device short name ZB5
Operator profile red mushroom Ø 60 mm, unmarked
Bezel material dark grey plastic
Sale per indivisible quantity 1
Key withdrawal position center
Device presentation basic element
Head type standard
Shape of signaling unit head round
Product or component type head for emergency stop push-button
Type of operator trigger action and mechanical latching
Mounting diameter 22 mm
Range of product Harmony XB5
Reset key release
Product destination emergency stop push-button
Complementary
Group of product emergency stop key release
CAD overall depth 79 mm
CAD overall width 60 mm
Station name XALK 1 cut-out, XALD 1 cut-out
Customizable no, 0
Marking unmarked
Compatibility code ZB5
Mechanical durability 300000 cycles
Cap/operator or lens colour red
CAD overall height 60 mm
Net weight 0.092 kg
Electrical composition code C10 for <4 contacts using single and double blocks in front mounting, SR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting
Main group E-stop
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, EN/IEC 60947-5-4, CSA C22.2 No 14, JIS C8201-5-1, EN/IEC 60947-1, GB 14048.5, EN/IEC 60204-1, UL 508, EN/IEC 60947-5-5, EN/IEC 60947-5-1, IEC 60364-5-53, EN/ISO 13850
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications CSA, LROS (Lloyds register of shipping), BV, GL, DNV, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 7.366 cm
Package 1 Width 7.366 cm
Package 1 Length 9.398 cm
Package 1 Weight 81.647 g
