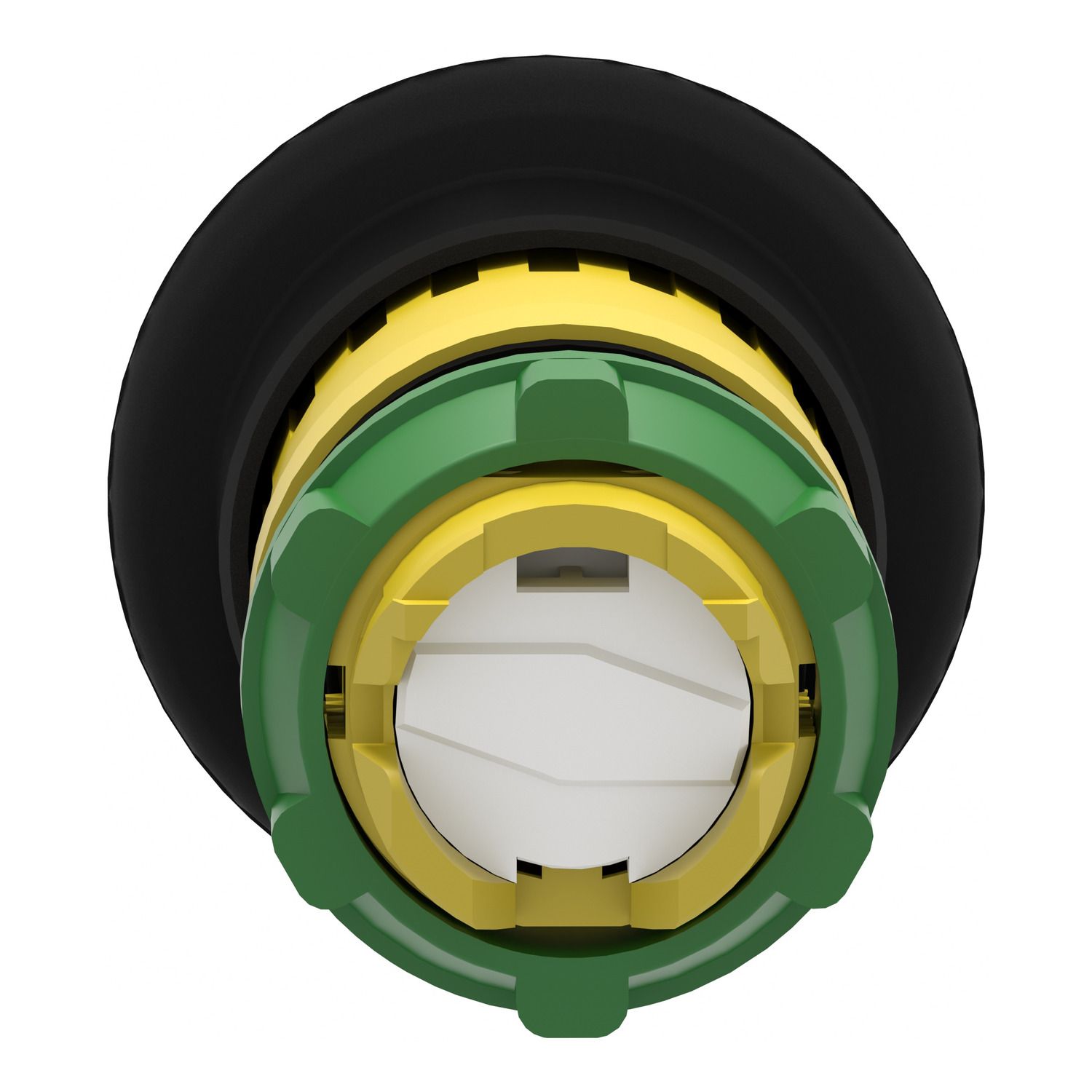

Picture of head for non illuminated push button, Harmony XB5, black, 40mm mushroom pushbutton, 22mm latching key release

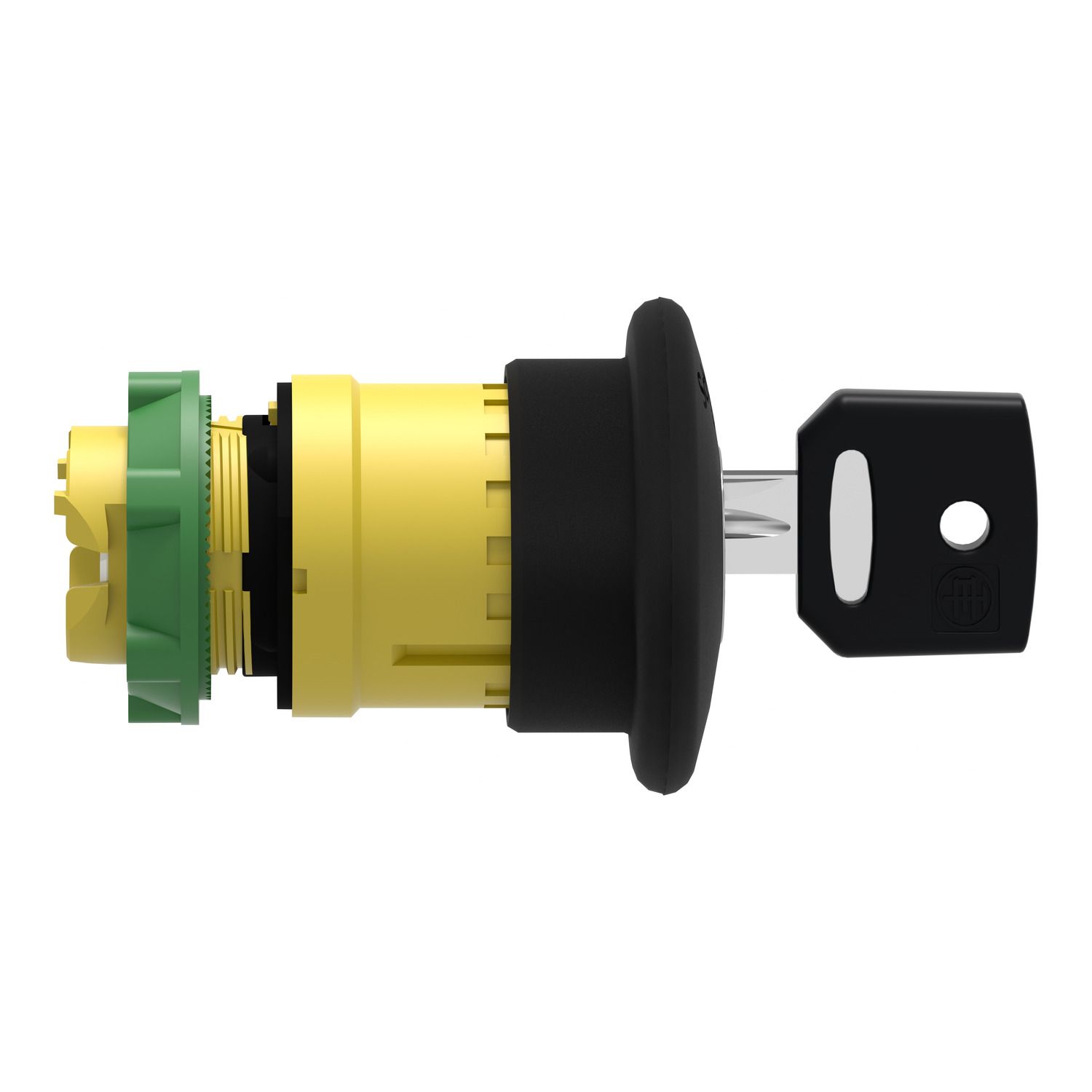

Picture of head for non illuminated push button, Harmony XB5, black, 40mm mushroom pushbutton, 22mm latching key release

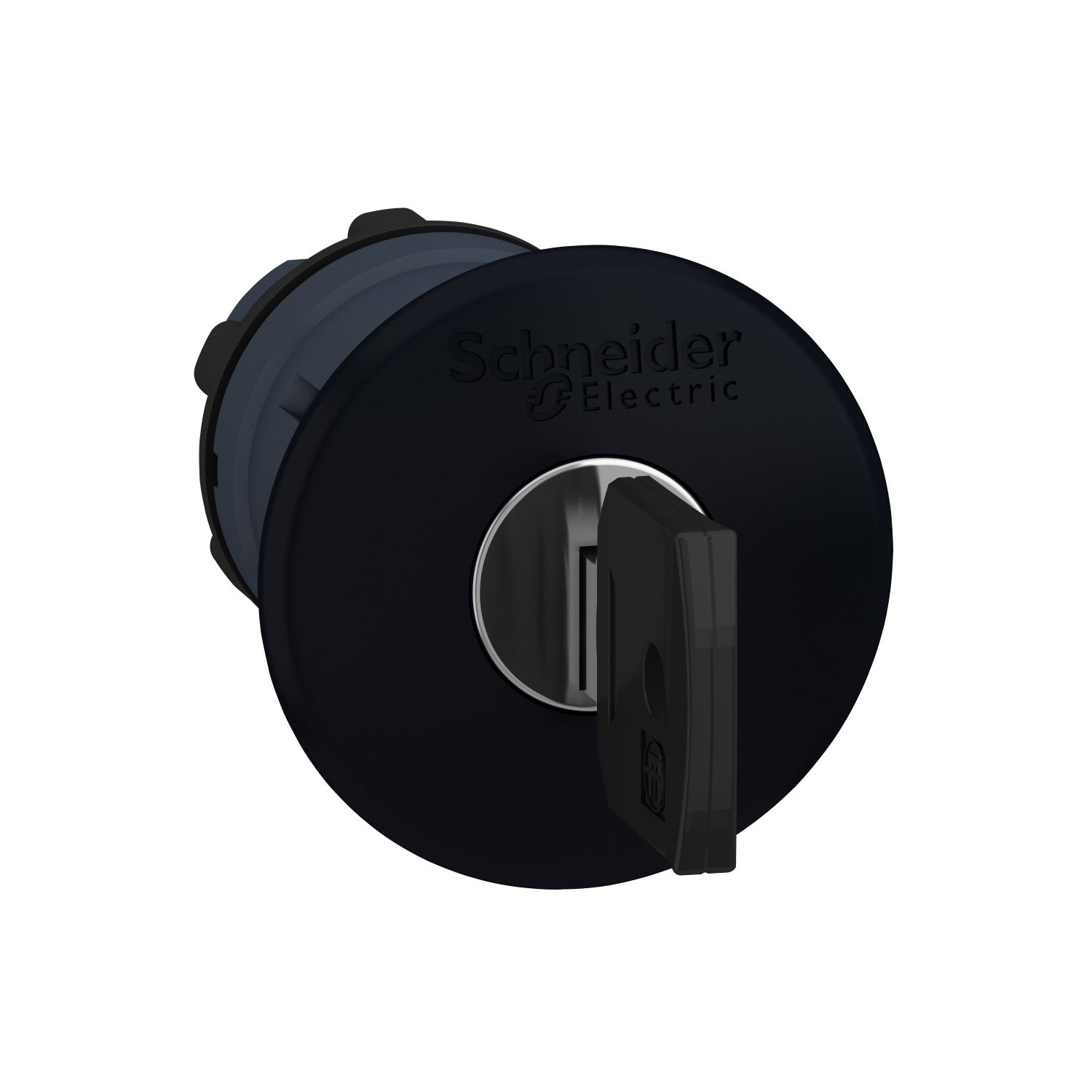

Picture of head for non illuminated push button, Harmony XB5, black, 40mm mushroom pushbutton, 22mm latching key release

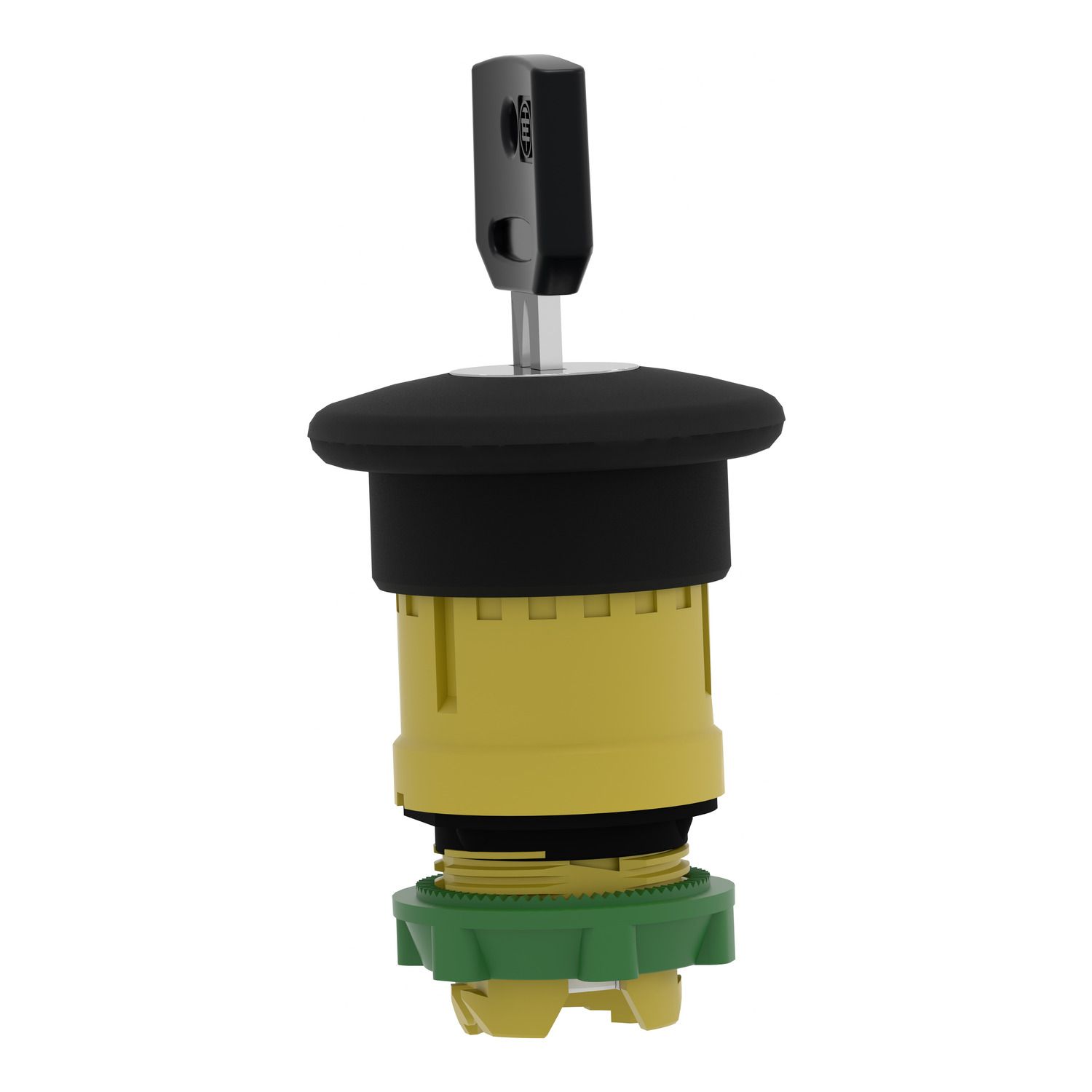

Picture of head for non illuminated push button, Harmony XB5, black, 40mm mushroom pushbutton, 22mm latching key release

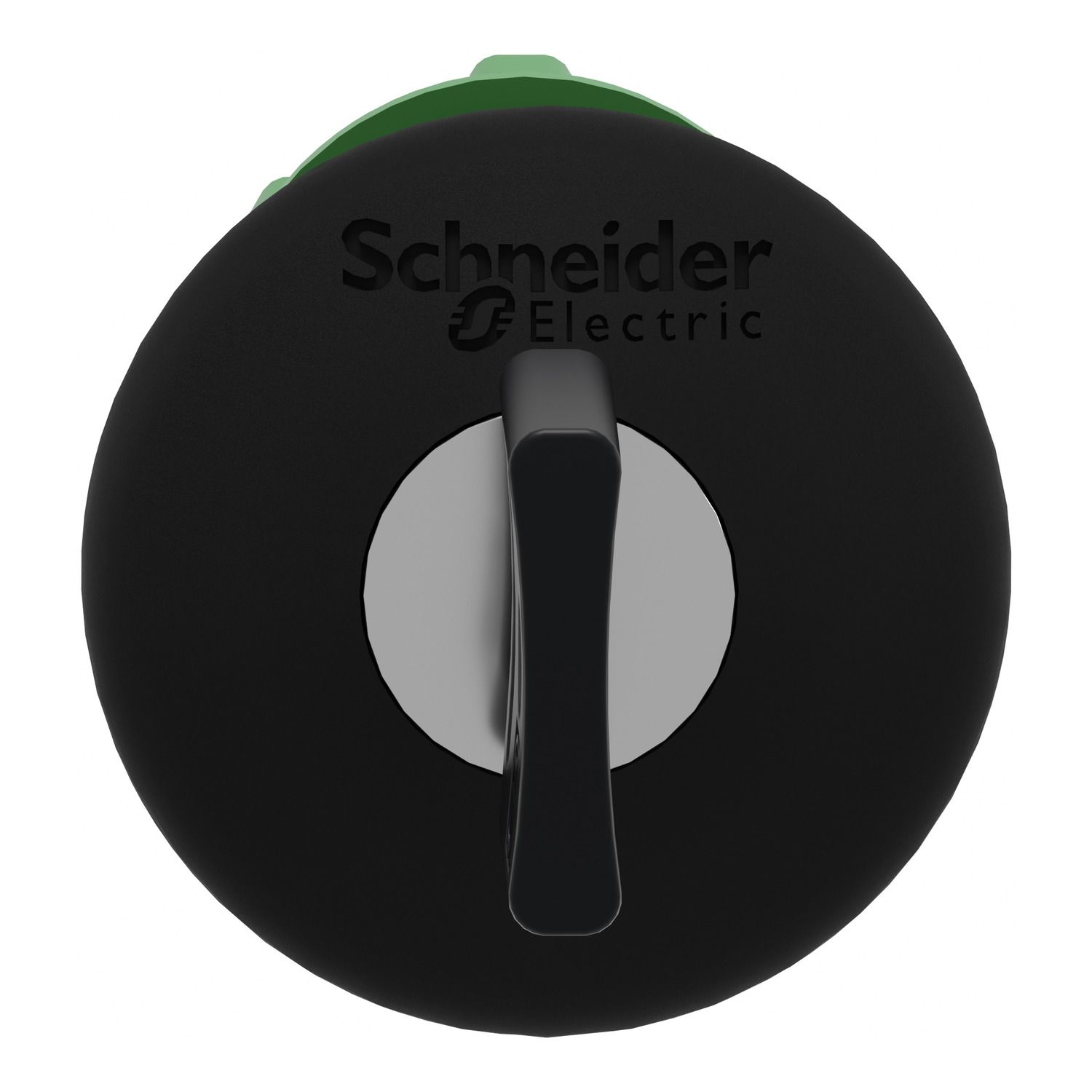

Picture of head for non illuminated push button, Harmony XB5, black, 40mm mushroom pushbutton, 22mm latching key release
Picture of head for non illuminated push button, Harmony XB5, black, 40mm mushroom pushbutton, 22mm latching key release
Picture of head for non illuminated push button, Harmony XB5, black, 40mm mushroom pushbutton, 22mm latching key release
Picture of head for non illuminated push button, Harmony XB5, black, 40mm mushroom pushbutton, 22mm latching key release
SKU:

ZB5AS12

head for non illuminated push button, Harmony XB5, black, 40mm mushroom pushbutton, 22mm latching key release

Old price: $174.24 INC GST
$135.91 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
head for non illuminated push button, Harmony XB5, black, 40mm mushroom pushbutton, 22mm latching key release
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
CAD

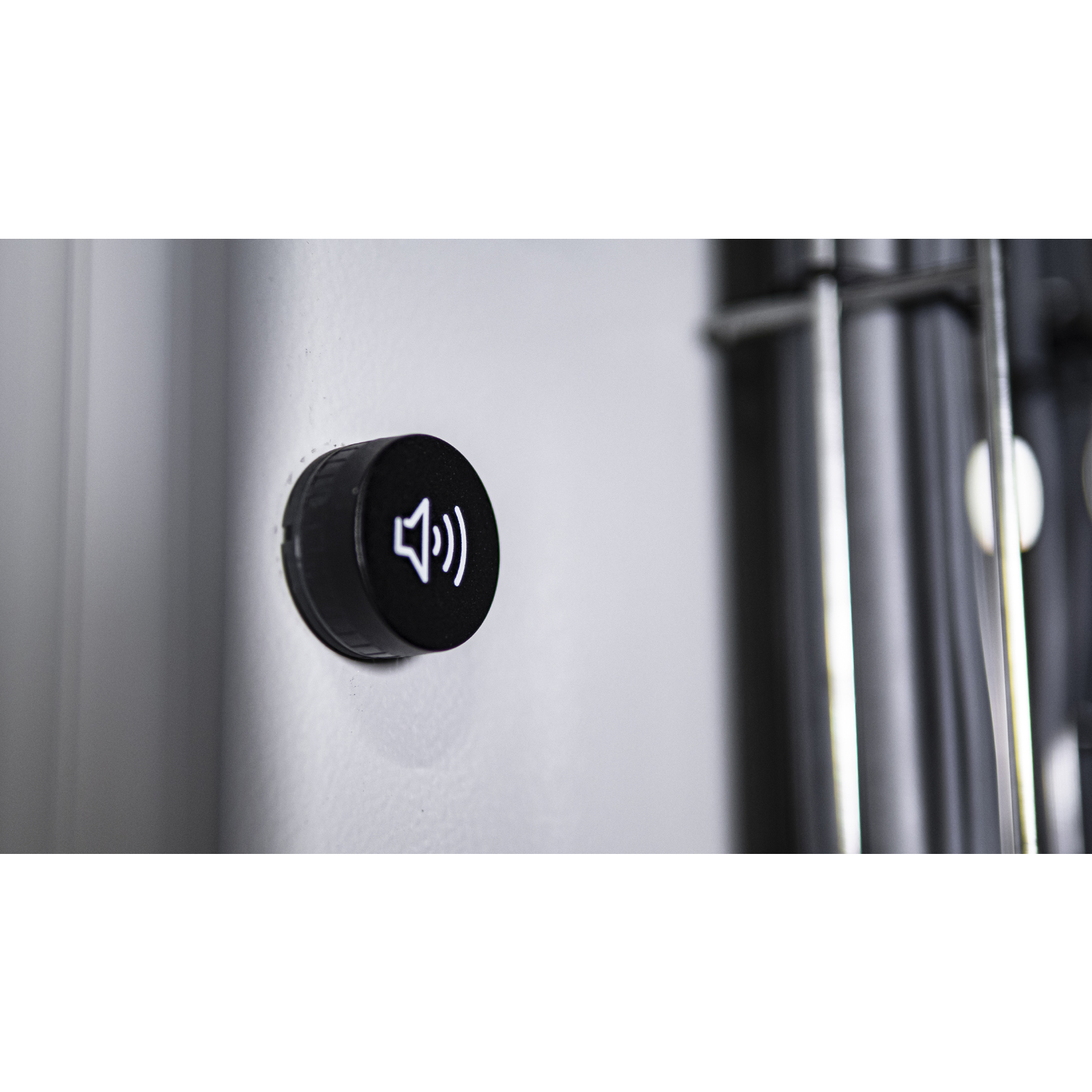

Image of product in real life situation
Environmental Disclosure
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Catalog
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Circularity Profile
Instruction sheet
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Declaration of conformity
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This black 40mm mushroom shaped push button head is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Type of keylock key 455
Device short name ZB5
Operator profile black mushroom Ø 40 mm, unmarked
Bezel material dark grey plastic
Sale per indivisible quantity 1
Key withdrawal position center
Device presentation basic element
Head type standard
Shape of signaling unit head round
Product or component type head for non-illuminated push-button
Type of operator latching
Mounting diameter 22 mm
Range of product Harmony XB5
Reset key release
Complementary
Group of product mushroom key release
CAD overall depth 79 mm
CAD overall width 40 mm
Station name XALK 1 cut-out, XALD 1 cut-out
Customizable no, 0
Marking unmarked
Compatibility code ZB5
Mechanical durability 500000 cycles
Cap/operator or lens colour black
CAD overall height 40 mm
Net weight 0.044 kg
Electrical composition code C10 for <4 contacts using single and double blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting, SR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting
Main group mushroom head
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, UL 508, EN/IEC 60947-1, CSA C22.2 No 14, JIS C8201-5-1
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications CSA, GL, BV, LROS (Lloyds register of shipping), DNV, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.5 cm
Package 1 Width 5.3 cm
Package 1 Length 8.8 cm
Package 1 Weight 69.0 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 7.302 kg
