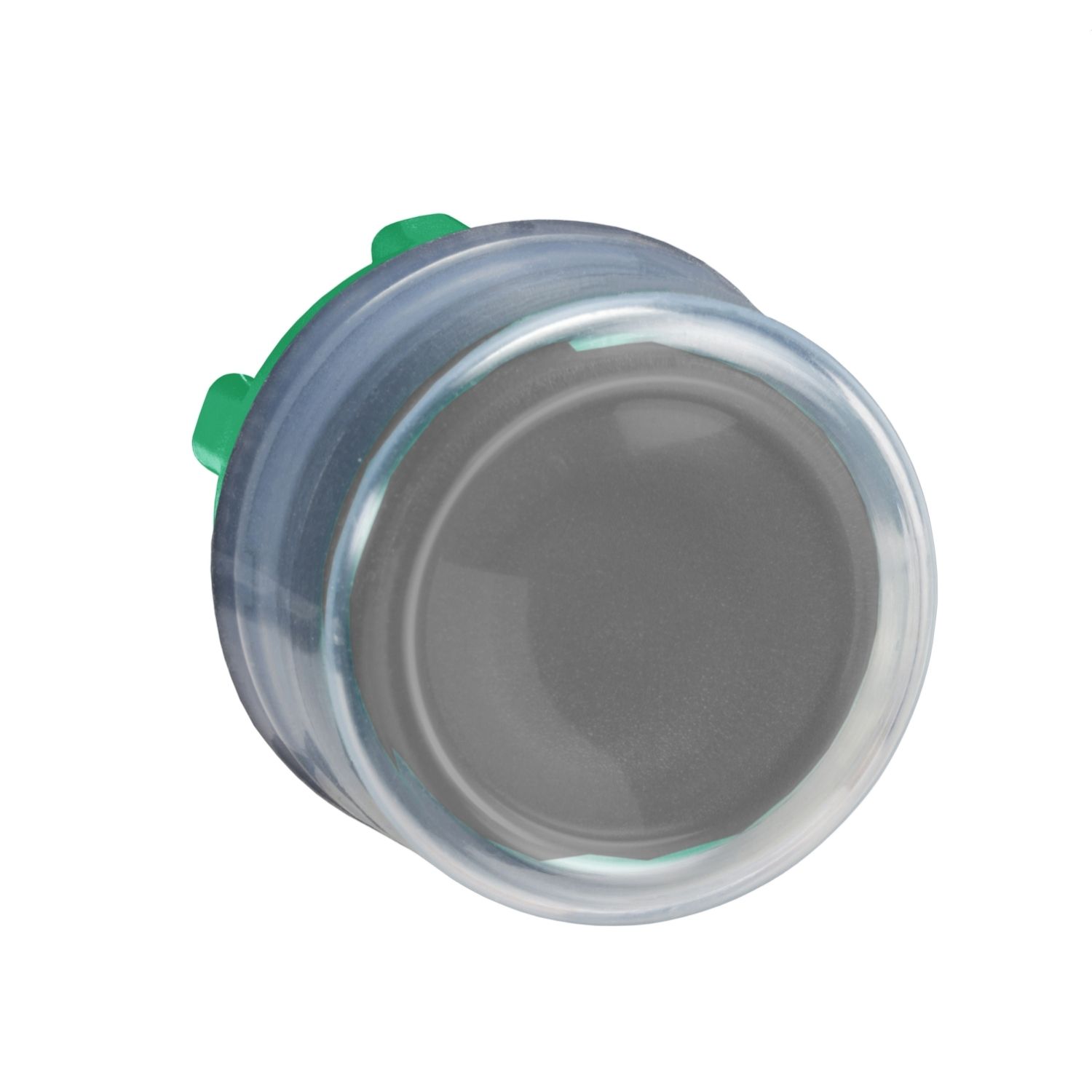

Picture of Head for non illuminated push button, Harmony XB5, XB4, black flush pushbutton Ø22 mm spring return unmarked
SKU:

ZB5APA2

Head for non illuminated push button, Harmony XB5, XB4, black flush pushbutton Ø22 mm spring return unmarked

Old price: $35.75 INC GST
$27.88 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
Head for non illuminated push button, Harmony XB5, XB4, black flush pushbutton Ø22 mm spring return unmarked
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026
Environmental Disclosure
Declaration of conformity
Catalog
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
This clear silicone booted black button head provides a simple solution to comply with hygiene requirement. This makes it ideal in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Product compatibility not compatible with legend holder
Operator profile black flush, unmarked
Bezel material dark grey plastic
Sale per indivisible quantity 1
Head type standard
Shape of signaling unit head round
Product or component type head for non-illuminated push-button
Type of operator spring return
Mounting diameter 22 mm
Range of product Harmony XB5
Operator additional information clear boot
Complementary
CAD overall depth 37 mm
CAD overall width 30 mm
Customizable no, 1
Compatibility code ZB5
Mechanical durability 10000000 cycles
GCR BRIDGE ZB5APCUST01
Device presentation basic element
CAD overall height 30 mm
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, CSA C22.2 No 14, JIS C8201-5-1, UL 508, IEC 60947-5-4, IEC 60947-5-1, IEC 60947-1
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications BV, CSA, GL, DNV, UL listed, LROS (Lloyds register of shipping)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.5 cm
Package 1 Width 3.4 cm
Package 1 Length 5.4 cm
Package 1 Weight 19 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 4.5 cm
Package 2 Width 3.4 cm
Package 2 Length 26.5 cm
Package 2 Weight 98 g
Unit Type of Package 3 3
Number of Units in Package 3 200
Package 3 Height 30 cm
Package 3 Width 30 cm
Package 3 Length 40 cm
Package 3 Weight 4.404 kg
