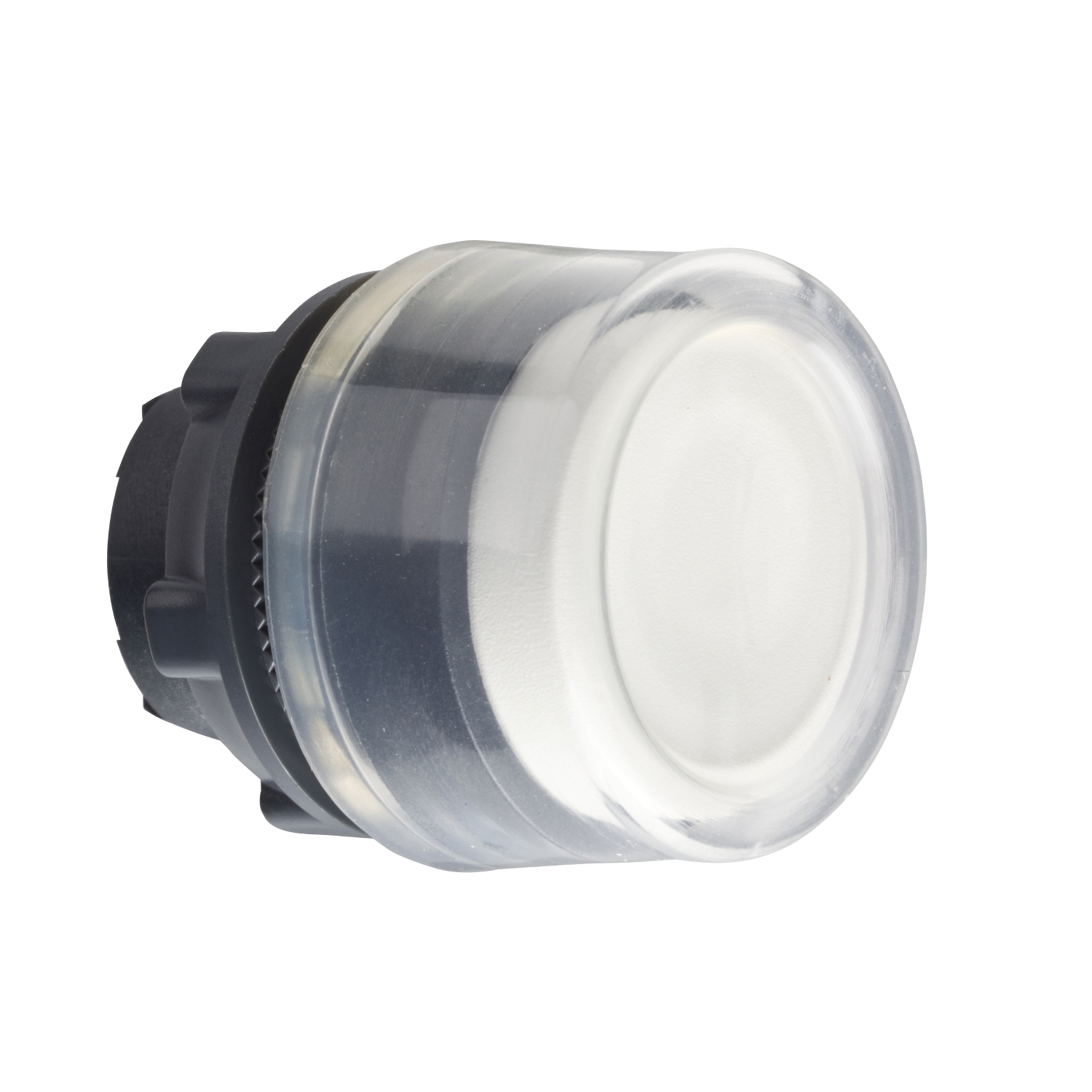

Picture of Head for non illuminated push button, Harmony XB5, XB4, white flush pushbutton Ø22 mm spring return unmarked
SKU:

ZB5AP18

Head for non illuminated push button, Harmony XB5, XB4, white flush pushbutton Ø22 mm spring return unmarked

Old price: $35.75 INC GST
$27.88 INC GST
Available for Shipping : 18-Jan-2026
Product Selector
Head for non illuminated push button, Harmony XB5, XB4, white flush pushbutton Ø22 mm spring return unmarked
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 18-Jan-2026
Environmental Disclosure
Declaration of conformity
Catalog
Instruction sheet
CAD
Circularity Profile
Product Page Link
Product Data Sheet
This white flush button head with clear membrane silicone boot provides an ergonomic interface for controlling your machine. It provides also a simple solution to prevent dirt and other contaminants. It is used for insertion of protected legend within head and is easily installed on compatible complete push button units. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Product compatibility not compatible with legend holder
Operator profile white flush, unmarked
Bezel material dark grey plastic
Sale per indivisible quantity 1
Head type standard
Shape of signaling unit head round
Product or component type head for non-illuminated push-button
Type of operator spring return
Mounting diameter 22 mm
Range of product Harmony XB5
Operator additional information clear boot for insertion of protected legend within head
Complementary
Group of product silicone boot push
CAD overall depth 37 mm
CAD overall width 30 mm
Station name XALK 2...5 cut-outs, XALD 1...5 cut-outs
Customizable yes, 1
Marking unmarked
Compatibility code ZB5
Mechanical durability 10000000 cycles
Cap/operator or lens colour white
GCR BRIDGE ZB5APCUST01
Device presentation basic element
CAD overall height 30 mm
Net weight 0.023 kg
Electrical composition code SR2 for <2 contacts using single blocks in rear mounting, SF2 for <2 contacts using single blocks in front mounting, C14 for <2 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C3 for <6 contacts using single blocks in front mounting
Main group push-button
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Ambient air temperature for operation -40-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications BV, CSA, GL, LROS (Lloyds register of shipping), DNV, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.400 cm
Package 1 Width 5.300 cm
Package 1 Length 9.000 cm
Package 1 Weight 22.000 g
