SKU:

ZB5AL7341

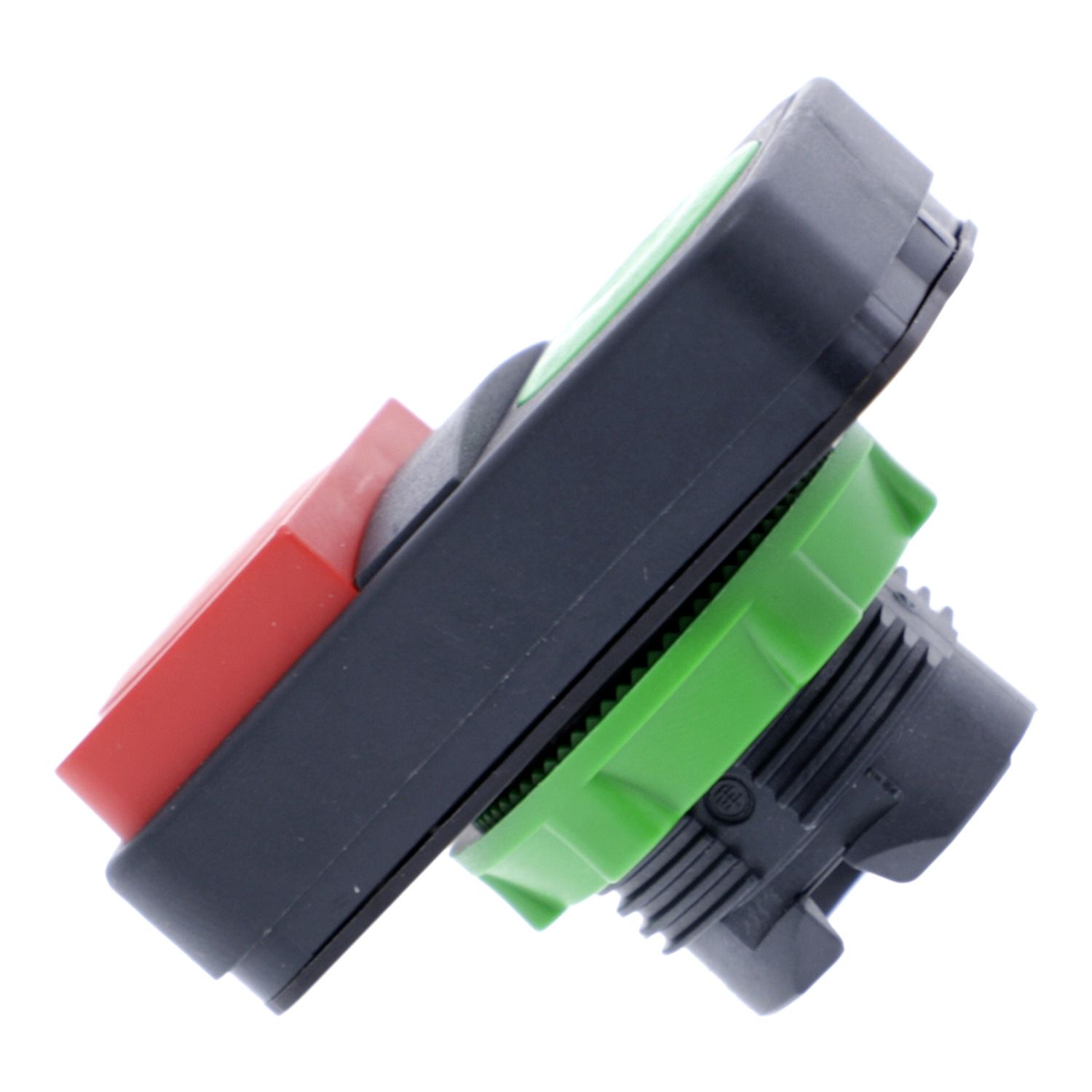

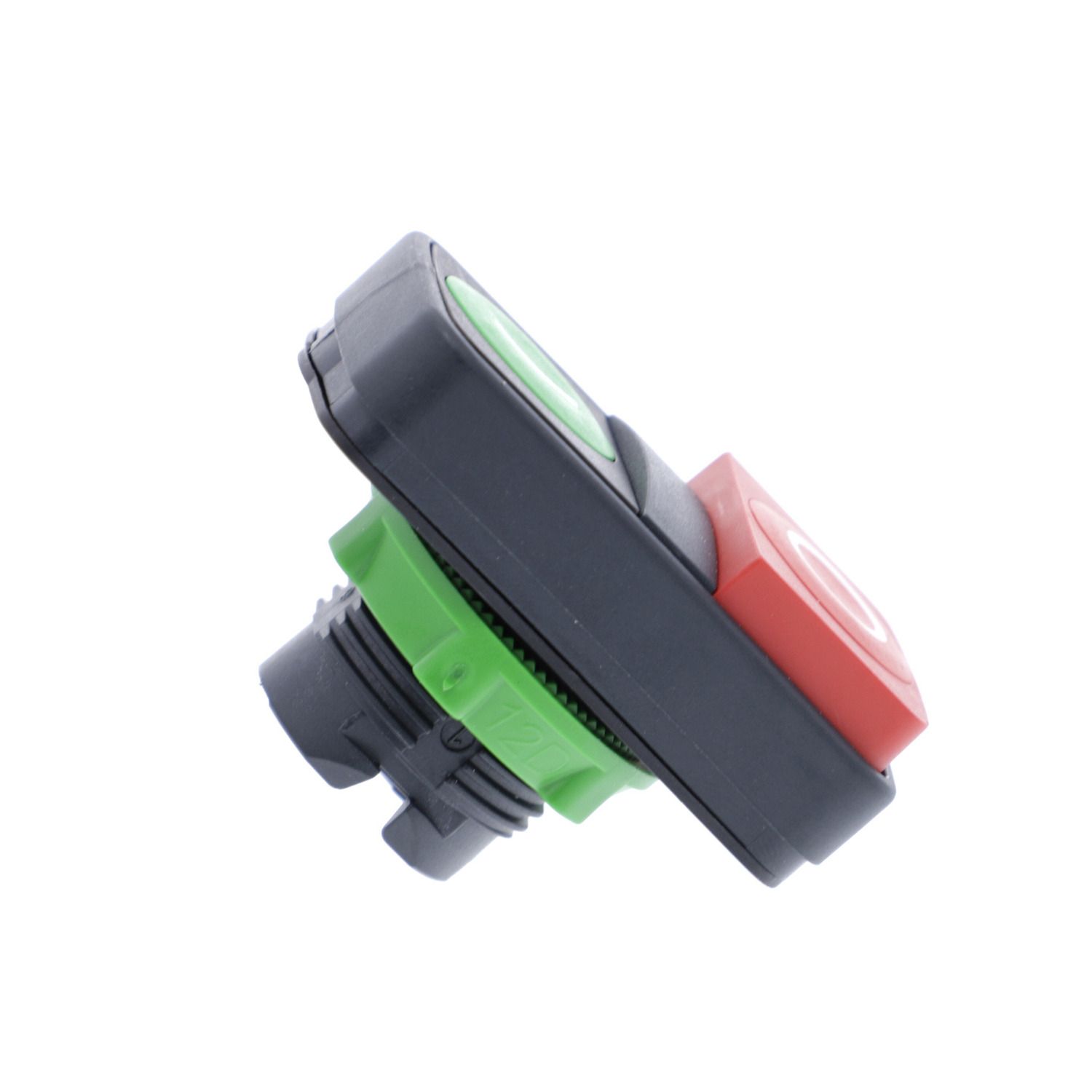

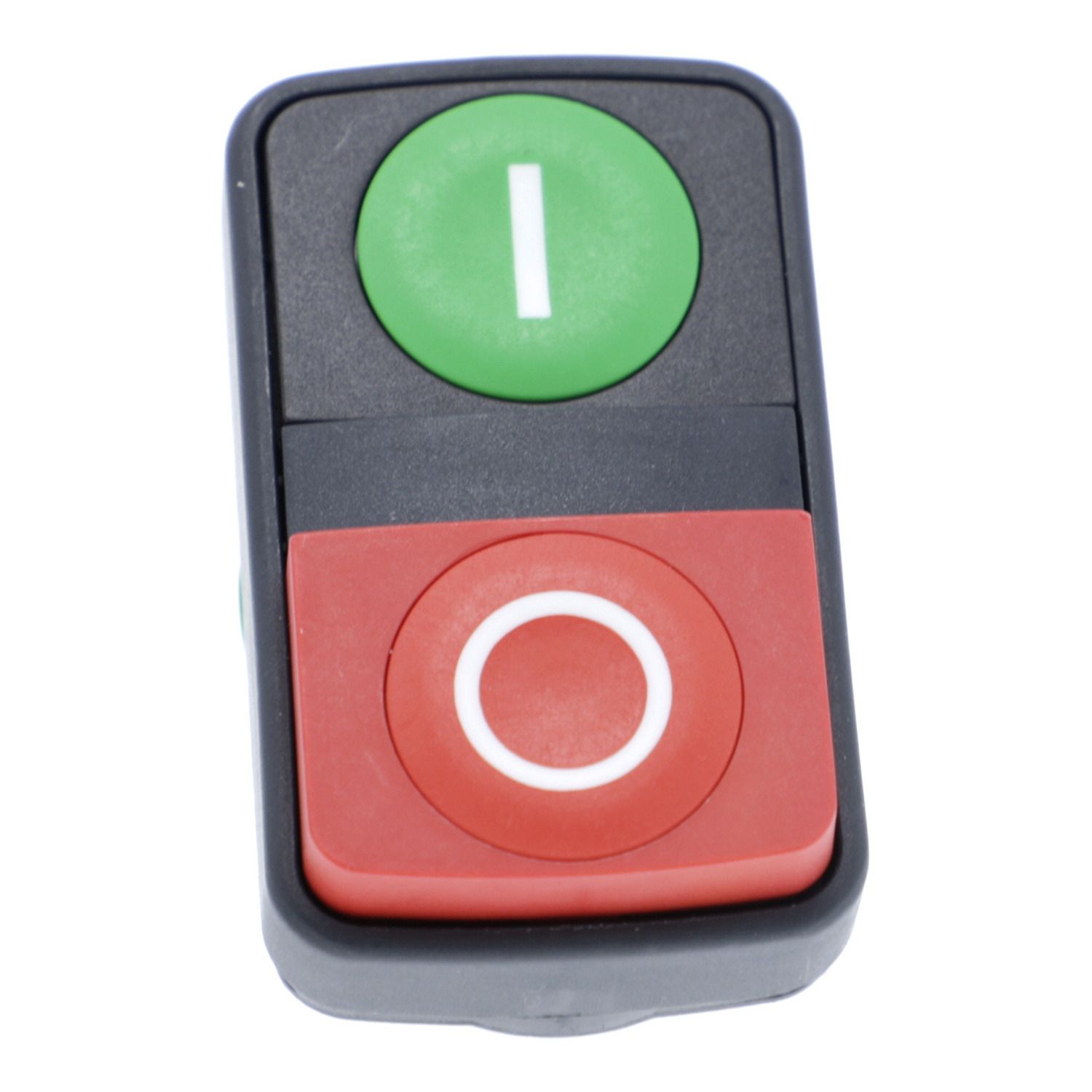

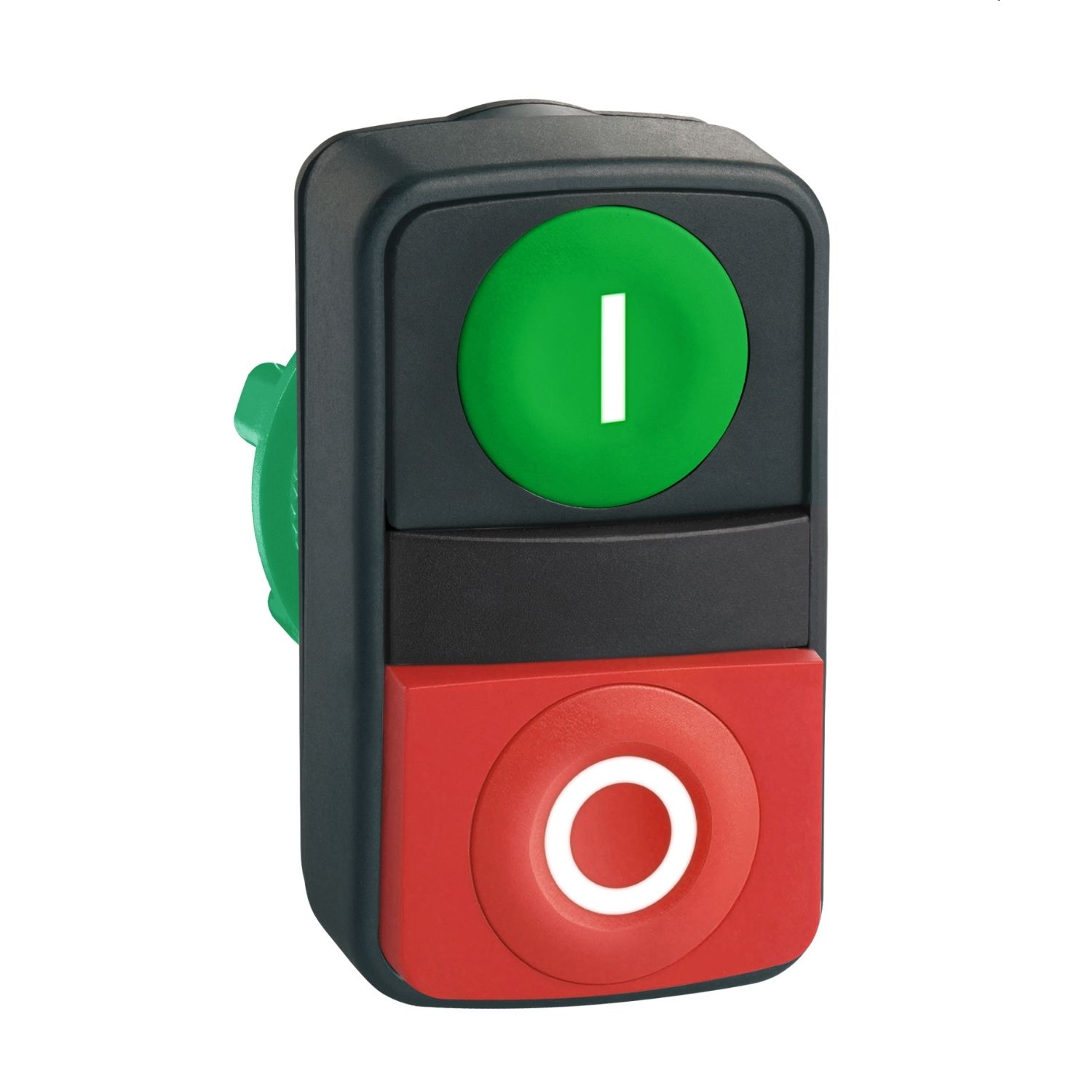

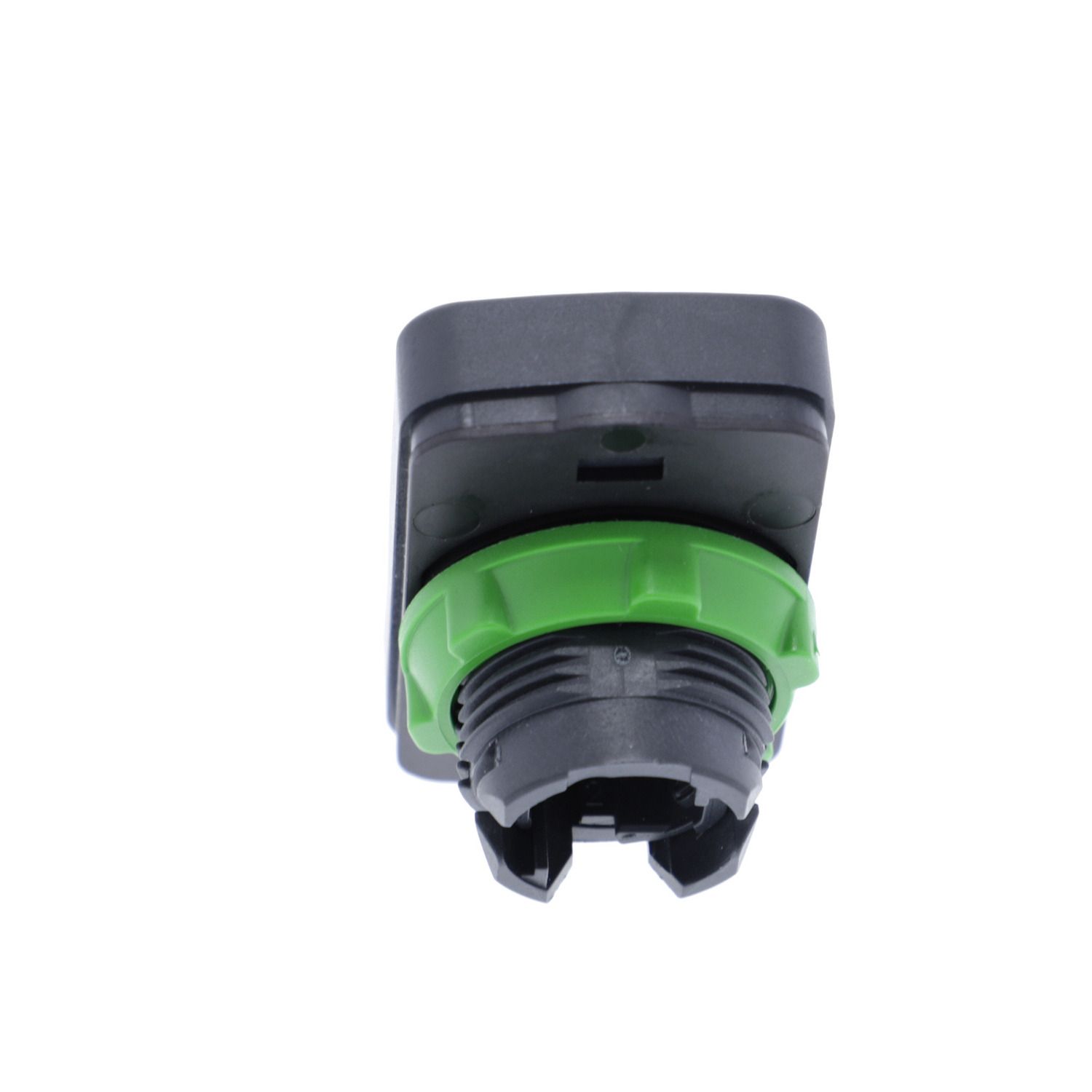

Head for double headed push button, Harmony XB5, plastic, 22mm, 1 green flush marked I + 1 red projecting marked O

Old price: $53.02 INC GST
$41.36 INC GST
Available for Shipping : 15-Dec-2025
Product Selector
Head for double headed push button, Harmony XB5, plastic, 22mm, 1 green flush marked I + 1 red projecting marked O
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025

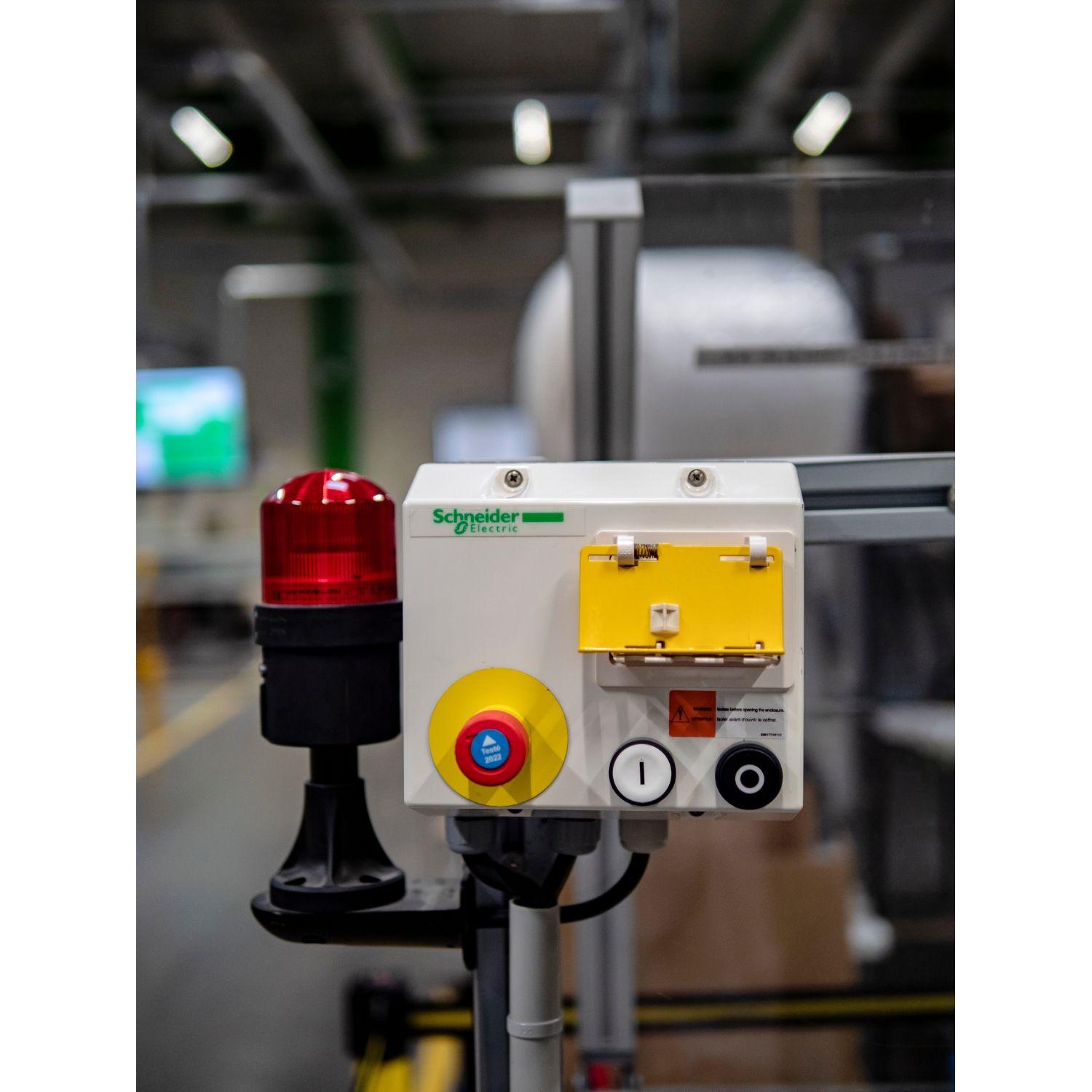

Image of product in real life situation
Circularity Profile
Environmental Disclosure
Declaration of conformity
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This Harmony XB5, double head has 1 red and 1 green button, operates with a spring return mechanism. It is marked with "I" and "O" symbols. This double-head button provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Sale per indivisible quantity 1
Head type standard
Operators description green ''I'' - red ''O''
Type of operator spring return
Range of product Harmony XB5
Bezel material dark grey plastic
Operator profile 1 flush - 1 projecting push-buttons
Shape of signaling unit head rectangular
Product or component type head for double-headed push-button
Mounting diameter 22 mm
Complementary
Group of product flush/proj marked
Station name XALD 1 cut-out
Compatibility code ZB5
Mechanical durability 1000000 cycles
Device presentation basic element
CAD overall height 50 mm
Customizable 0, no
Colour of marking white/white, black marking when white caps, white marking when green, red or black caps
Electrical composition code SR2 for <2 contacts using single blocks in rear mounting, SF2 for <2 contacts using single blocks in front mounting, C14 for <2 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C3 for <6 contacts using single blocks in front mounting
Main group double head
CAD overall depth 35 mm
CAD overall width 30 mm
Marking I-O
Operator profile red projecting, O (white), green flush, I (white)
Cap/operator or lens colour green/red
Net weight 0.023 kg
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K conforming to IEC 60529, IP66 conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
IK degree of protection IK03 conforming to IEC 50102
Electrical shock protection class class II conforming to IEC 60536
NEMA degree of protection NEMA 4X, NEMA 13
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, UL 508, JIS C8201-5-1, IEC 60947-5-1, CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-4
Product certifications UL listed, DNV, CSA, LROS (Lloyds register of shipping), BV, GL
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.5 cm
Package 1 Width 3.3 cm
Package 1 Length 5.3 cm
Package 1 Weight 26.0 g
Unit Type of Package 2 2
Number of Units in Package 2 200
Package 2 Height 30 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 5.742 kg
