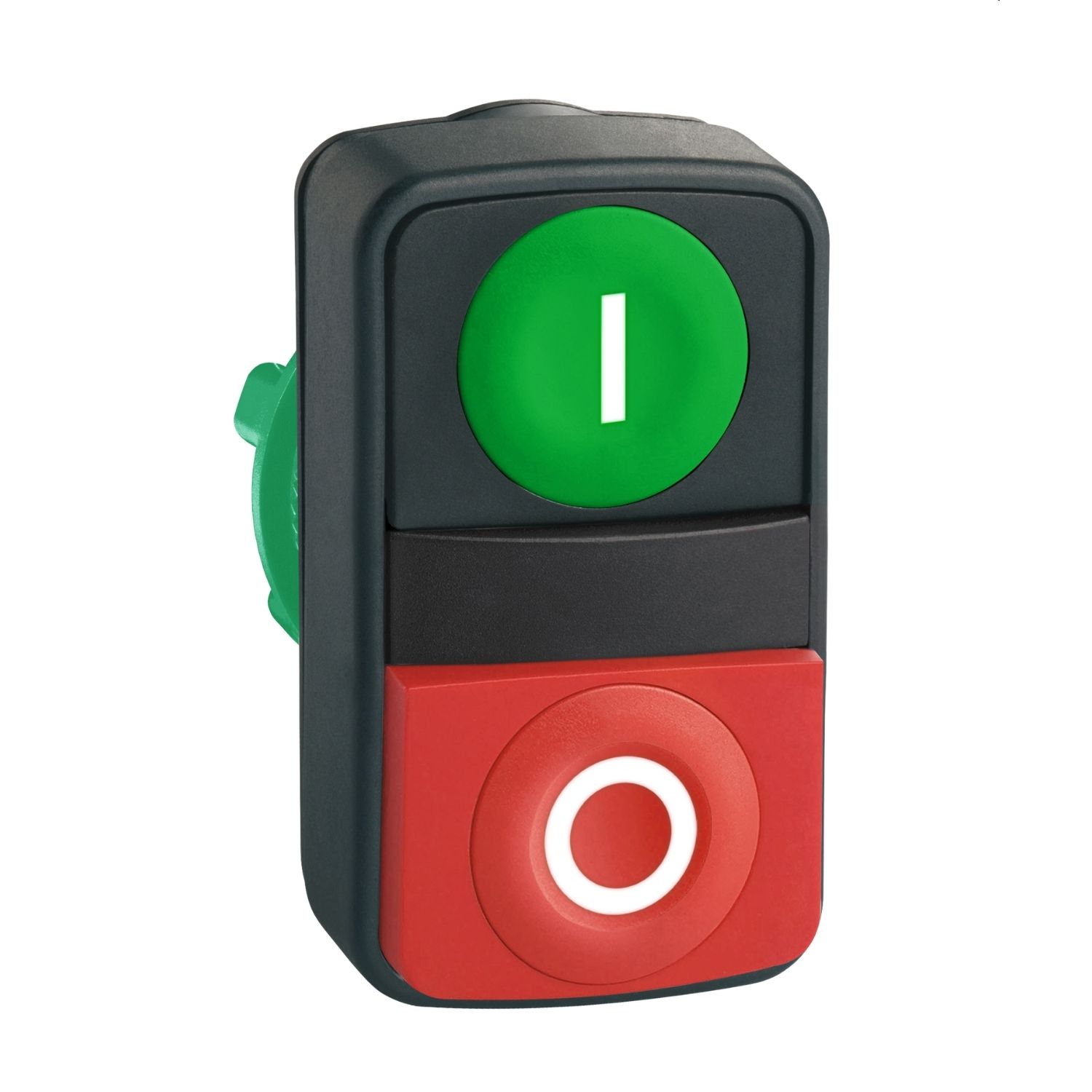

Picture of Head for double headed push button, Harmony XB5, 1 green flush, 1 red projecting, 22mm, spring return, unmarked
SKU:

ZB5AL7340

Head for double headed push button, Harmony XB5, 1 green flush, 1 red projecting, 22mm, spring return, unmarked

Old price: $53.02 INC GST
$41.36 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Head for double headed push button, Harmony XB5, 1 green flush, 1 red projecting, 22mm, spring return, unmarked
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Environmental Disclosure
Declaration of conformity
Catalog
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
This double head has 1 green and 1 red button and provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements. It minimizes errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Bezel material dark grey plastic
Sale per indivisible quantity 1
Head type standard
Operator profile 1 flush - 1 projecting push-buttons
Shape of signaling unit head rectangular
Product or component type head for double-headed push-button
Operators description green unmarked - red unmarked
Type of operator spring return
Mounting diameter 22 mm
Range of product Harmony XB5
Complementary
Group of product flush/proj unmarked
CAD overall depth 35 mm
CAD overall width 30 mm
Station name XALD 1 cut-out
Customizable no, 0
Marking unmarked
Compatibility code ZB5
Mechanical durability 1000000 cycles
Operator profile red projecting, unmarked, green flush, unmarked
Cap/operator or lens colour green/red
Device presentation basic element
CAD overall height 50 mm
Net weight 0.023 kg
Colour of marking black marking when white caps, white marking when green, red or black caps
Electrical composition code SR2 for <2 contacts using single blocks in rear mounting, SF2 for <2 contacts using single blocks in front mounting, C14 for <2 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting, C3 for <6 contacts using single blocks in front mounting
Main group double head
Environment
Protective treatment TH
Electrical shock protection class class II conforming to IEC 60536
NEMA degree of protection NEMA 4X, NEMA 13
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP69K conforming to IEC 60529, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, JIS C8201-5-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4
Ambient air temperature for operation -25-70 °C
IK degree of protection IK03 conforming to IEC 50102
Product certifications UL listed, LROS (Lloyds register of shipping), GL, CSA, DNV, BV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.400 cm
Package 1 Width 4.600 cm
Package 1 Length 5.300 cm
Package 1 Weight 24.000 g
Unit Type of Package 2 2
Number of Units in Package 2 75
Package 2 Height 15.000 cm
Package 2 Width 15.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 2.100 kg
