SKU:

ZB5AK1343

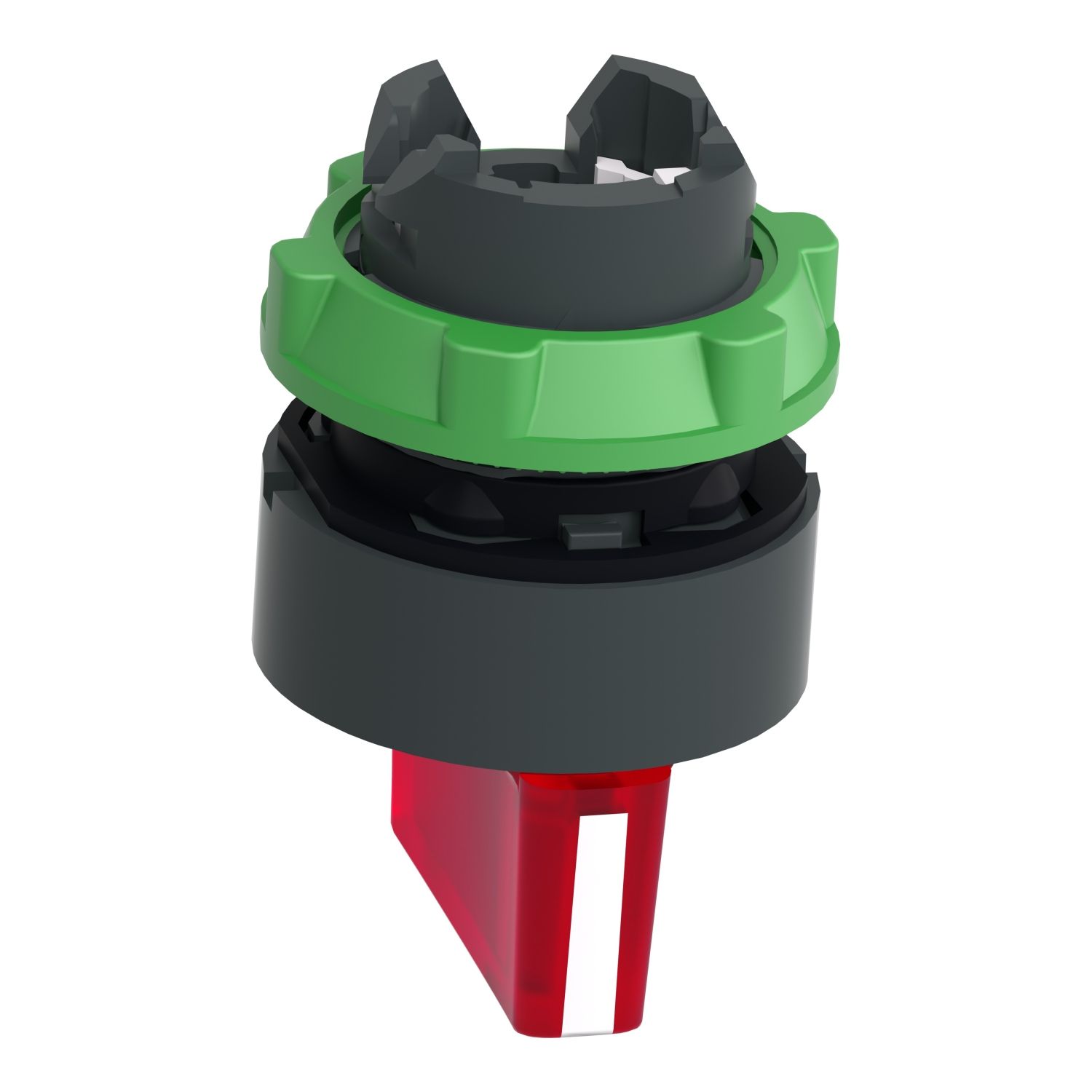

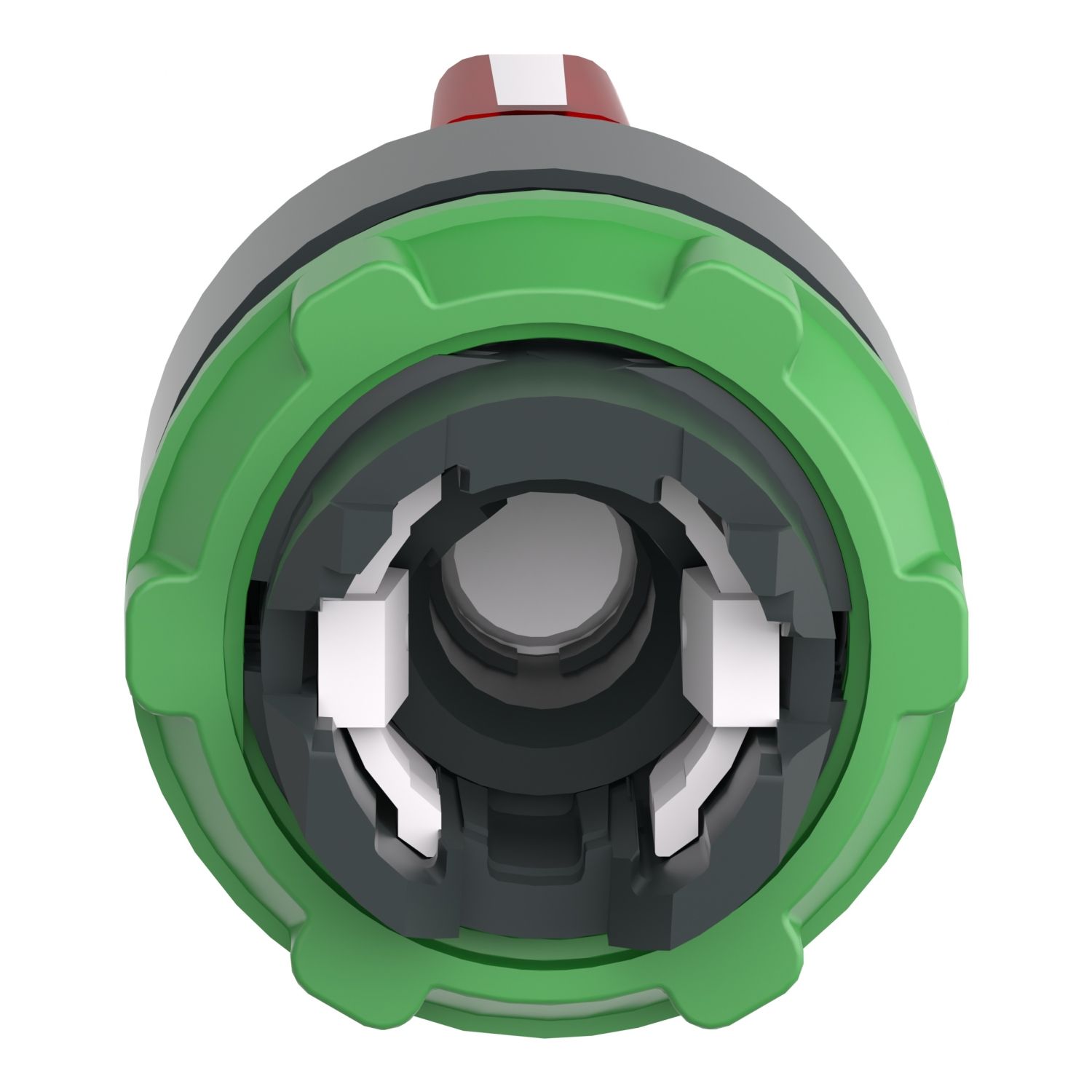

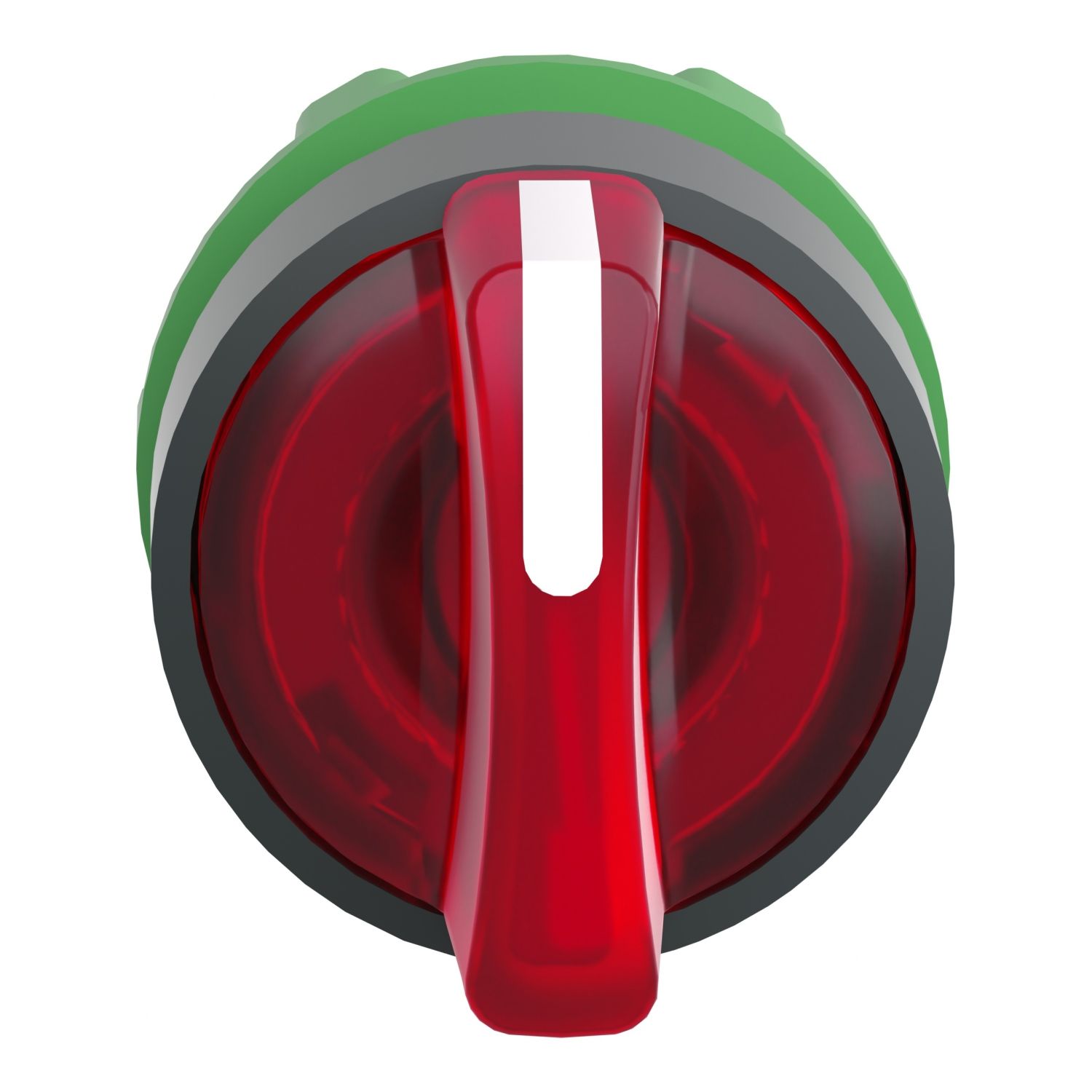

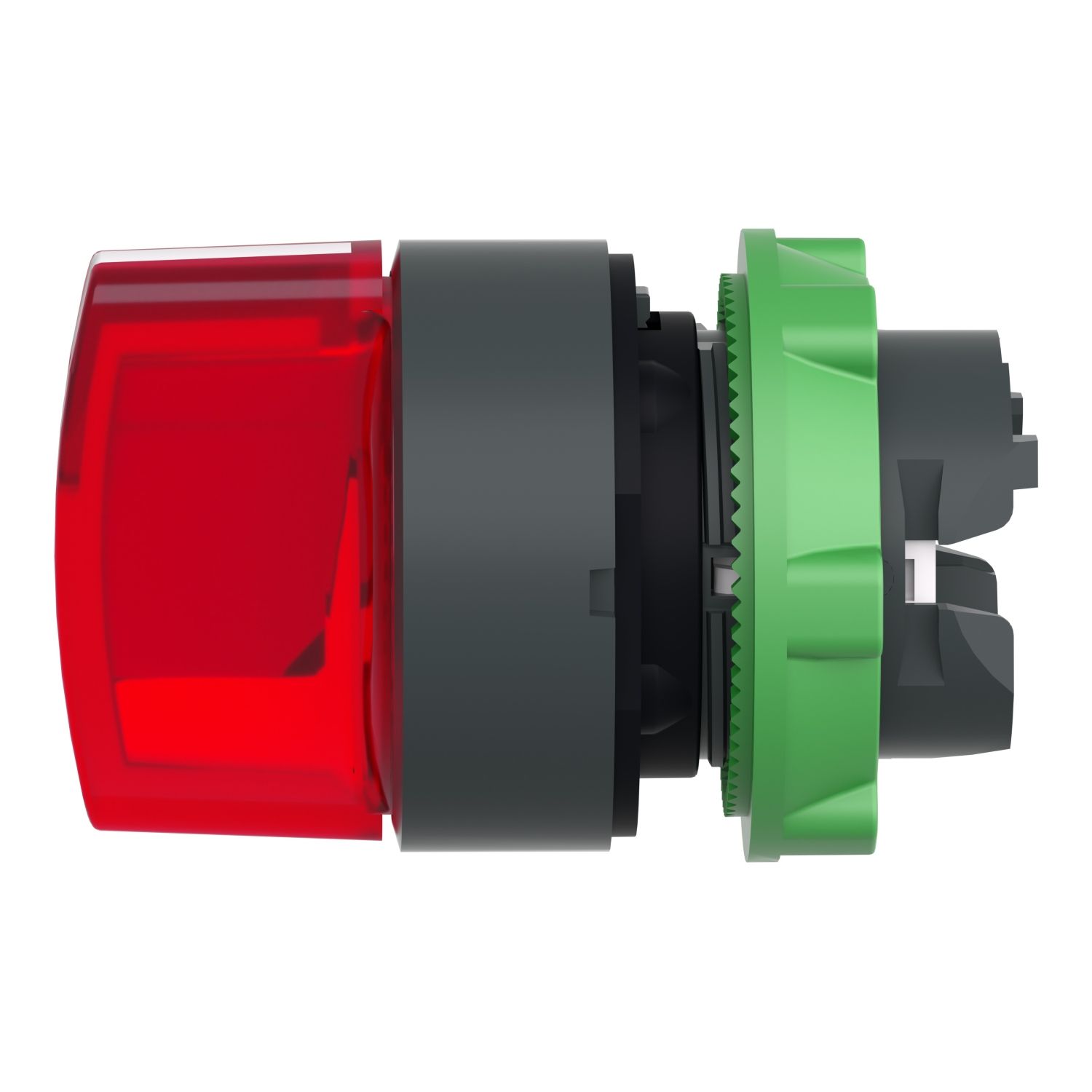

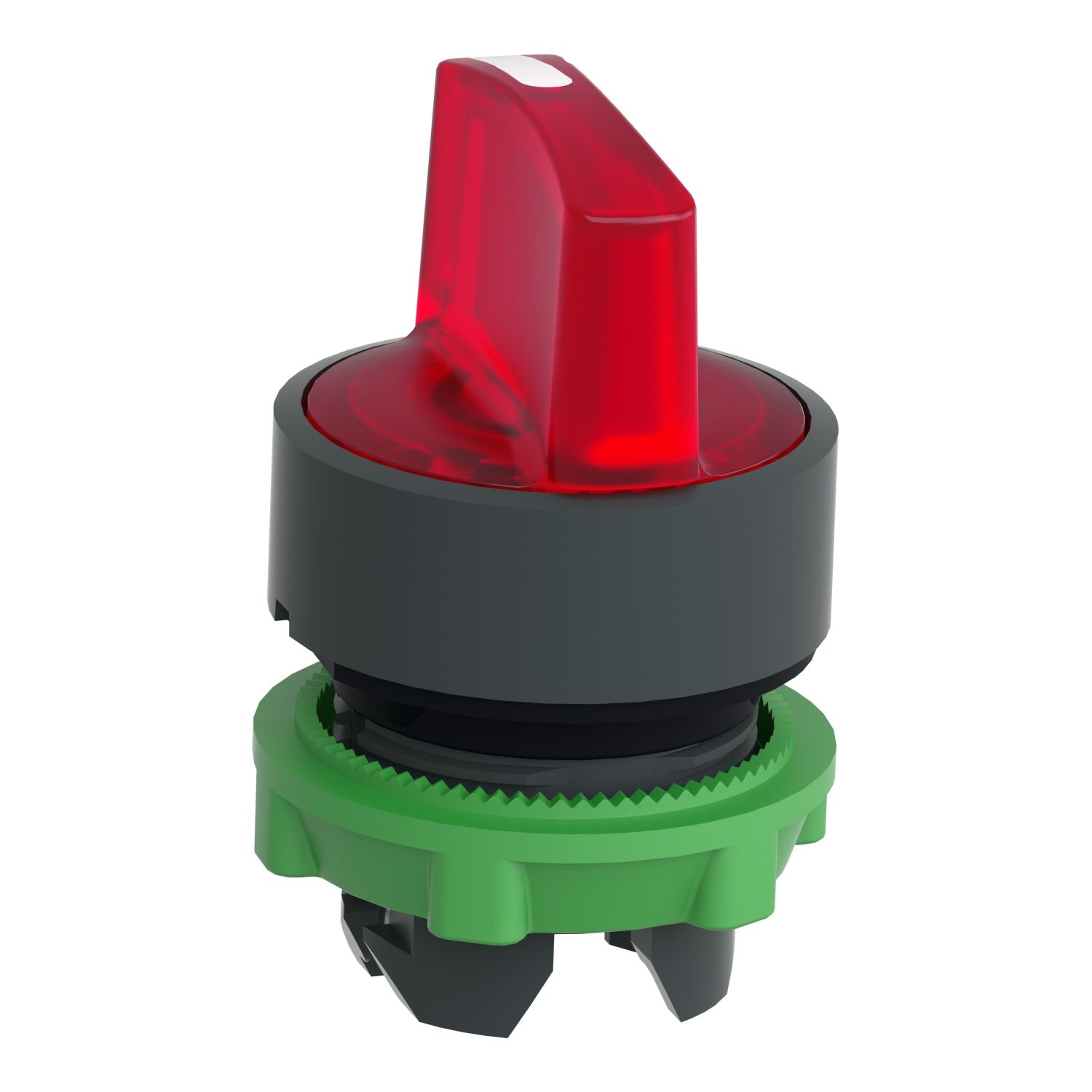

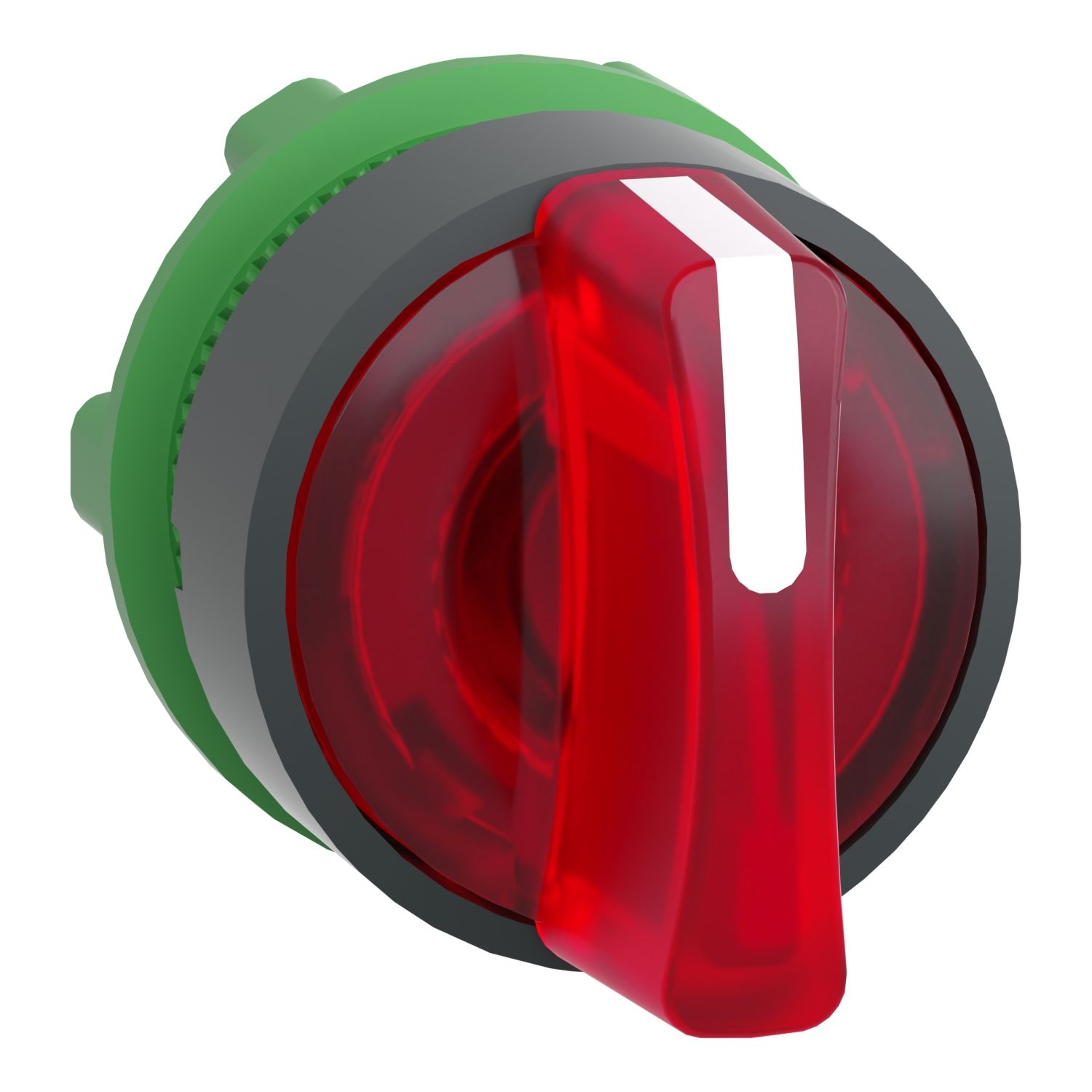

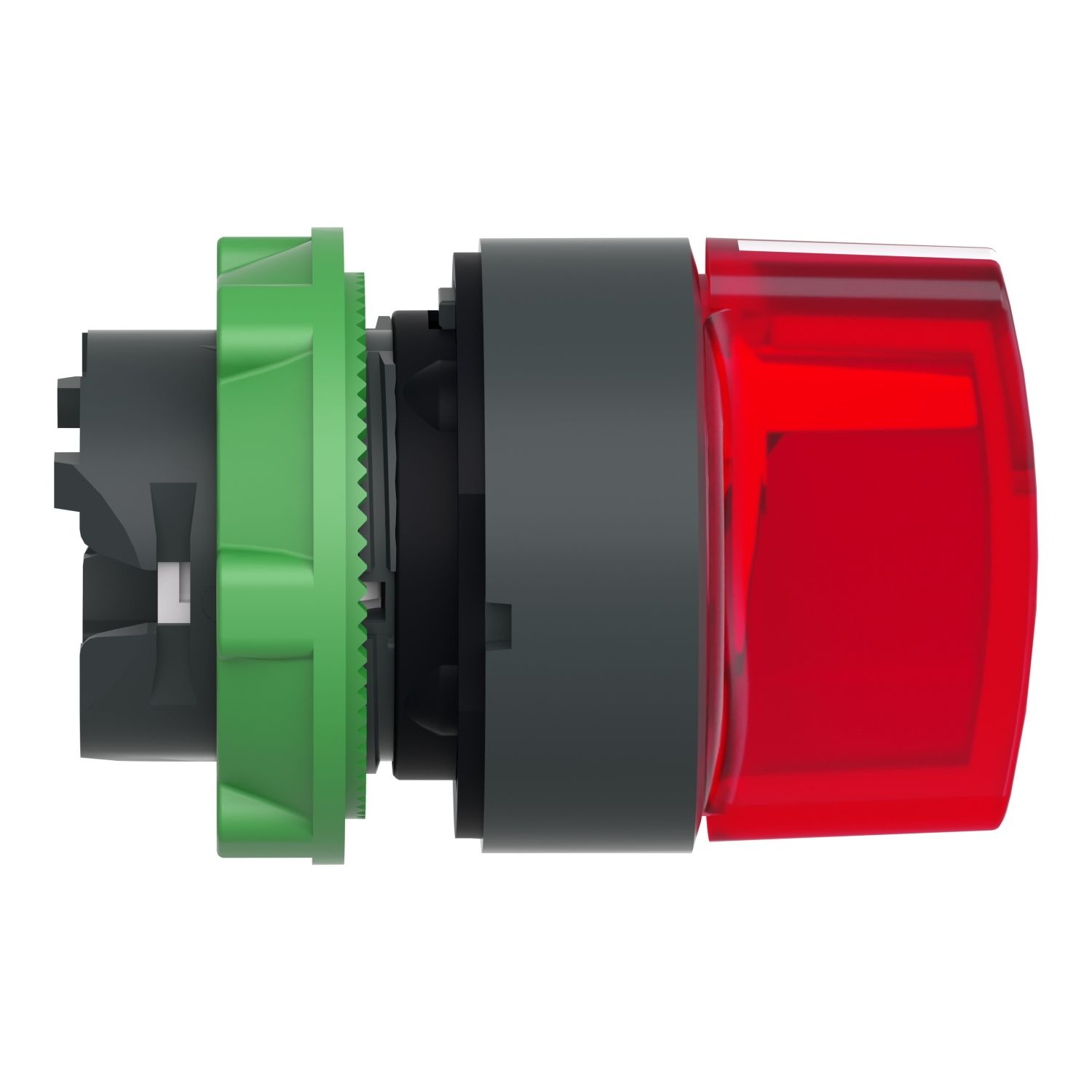

Head for illuminated selector switch, Harmony XB5, universal LED, red handle, 22mm, 3 positions, stay put

Old price: $74.69 INC GST
$58.26 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Head for illuminated selector switch, Harmony XB5, universal LED, red handle, 22mm, 3 positions, stay put
  • Chromium plated metal bezel
  • Wide range of operating temperature from -40°C to 70°C
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Circularity Profile
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Instruction sheet
Environmental Disclosure
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Declaration of conformity
Image of product in real life situation
Catalog
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Image of product in real life situation
Product Page Link
Product Data Sheet
This red illuminated switch head for integral LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms. It offers a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Product compatibility universal LED
Operator position information 3 positions +/- 45°
Operator profile red standard handle
Bezel material dark grey plastic
Sale per indivisible quantity 1
Head type standard
Shape of signaling unit head round
Product or component type head for illuminated selector switch
Type of operator stay put
Mounting diameter 22 mm
Range of product Harmony XB5
Complementary
Group of product illum. integral LED
CAD overall depth 43 mm
CAD overall width 29 mm
Station name XALK 2...5 cut-outs, XALD 1...5 cut-outs
Customizable no, 0
Compatibility code ZB5
Mechanical durability 500000 cycles
Cap/operator or lens colour red
Device presentation basic element
CAD overall height 29 mm
Net weight 0.016 kg
Electrical composition code M4 for <4 contacts using single and double blocks in front mounting with integral LED, MR1 for <2 contacts using single blocks in rear mounting with integral LED, MF1 for <2 contacts using single blocks in front mounting with integral LED, M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M3 for <4 contacts using single blocks in front mounting with integral LED
Main group illum select switch
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, EN/IEC 60947-5-5, EN/IEC 60947-5-4, CSA C22.2 No 14, EN/IEC 60947-1, JIS C8201-5-1, EN/IEC 60947-5-1, UL 508
Ambient air temperature for operation -40-70 °C
IK degree of protection IK04 conforming to IEC 50102
Product certifications LROS (Lloyds register of shipping), CSA, BV, DNV, GL, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.2 cm
Package 1 Width 4.8 cm
Package 1 Length 5.2 cm
Package 1 Weight 24 g
Unit Type of Package 2 2
Number of Units in Package 2 100
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 2.708 kg
