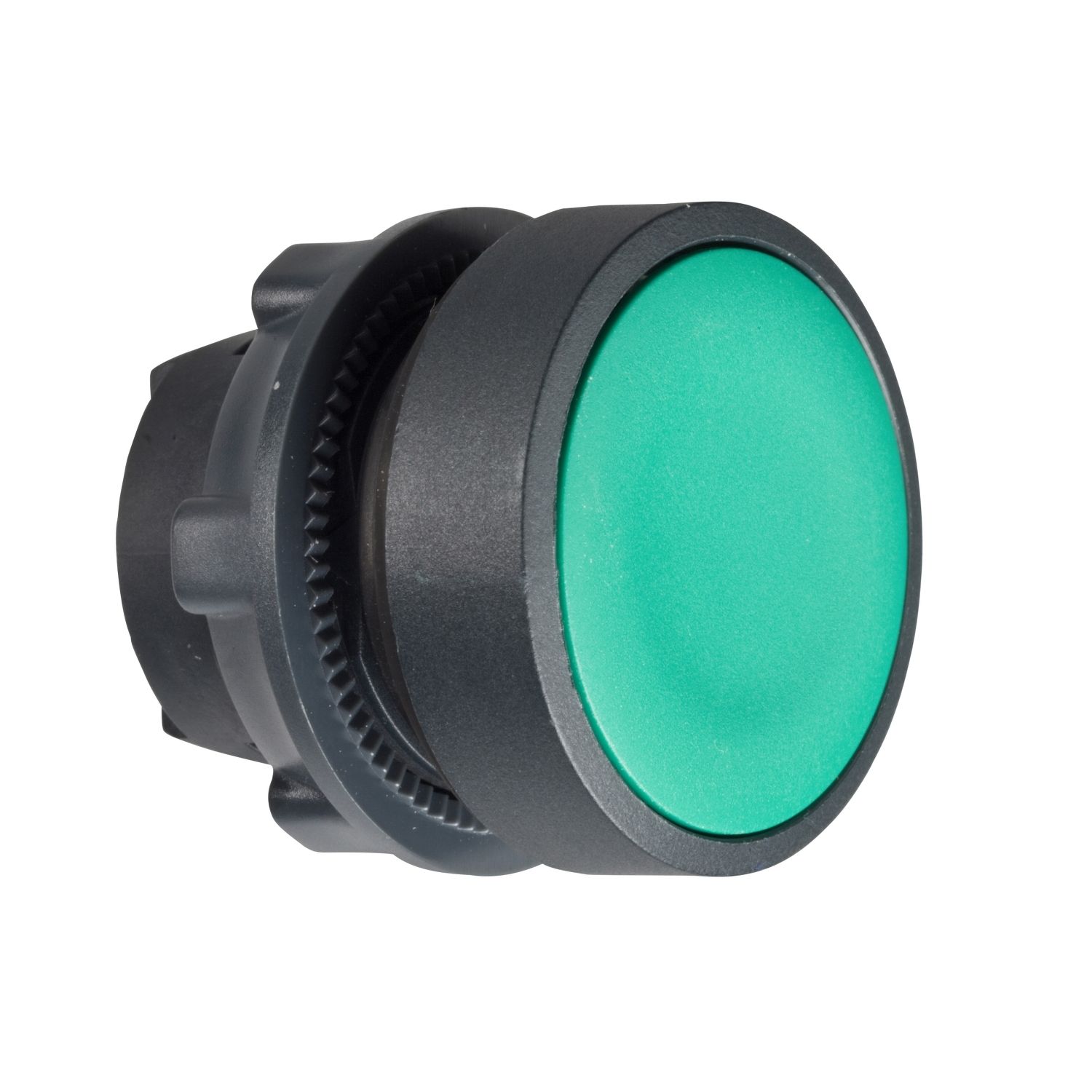

Picture of Head for non illuminated push button, Harmony XB5, green flush, 22mm, spring return, unmarked
SKU:

ZB5AH03

Head for non illuminated push button, Harmony XB5, green flush, 22mm, spring return, unmarked

Old price: $39.82 INC GST
$31.06 INC GST
Available for Shipping : 18-Dec-2025
Product Selector
Head for non illuminated push button, Harmony XB5, green flush, 22mm, spring return, unmarked
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 18-Dec-2025
Environmental Disclosure
Declaration of conformity
CAD
Catalog
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
This green flush button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Operator profile green flush, unmarked
Bezel material dark grey plastic
Sale per indivisible quantity 1
Head type standard
Shape of signaling unit head round
Product or component type head for non-illuminated push-button
Type of operator push-push
Mounting diameter 22 mm
Range of product Harmony XB5
Complementary
Group of product flush push-push non illum
CAD overall depth 28 mm
CAD overall width 29 mm
Station name XALK 2...5 cut-outs, XALD 1...5 cut-outs
Customizable no, 1
Marking unmarked
Compatibility code ZB5
Mechanical durability 500000 cycles
Cap/operator or lens colour green
GCR BRIDGE ZB5AHCUST01
Device presentation basic element
CAD overall height 29 mm
Net weight 0.018 kg
Electrical composition code C9 for <3 contacts using single blocks in front mounting, SR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting
Main group push-button
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP69K, IP69, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, EN/IEC 60947-5-4, CSA C22.2 No 14, EN/IEC 60947-5-1, JIS C8201-5-1, EN/IEC 60947-1, UL 508
Ambient air temperature for operation -40-70 °C
IK degree of protection IK05 conforming to IEC 50102
Product certifications CSA, LROS (Lloyds register of shipping), BV, GL, UL listed, DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 4.400 cm
Package 1 Width 3.400 cm
Package 1 Length 5.300 cm
Package 1 Weight 18.000 g
Unit Type of Package 2 2
Number of Units in Package 2 5
Package 2 Height 4.400 cm
Package 2 Width 3.400 cm
Package 2 Length 26.500 cm
Package 2 Weight 92.000 g
Unit Type of Package 3 3
Number of Units in Package 3 100
Package 3 Height 15.000 cm
Package 3 Width 30.000 cm
Package 3 Length 40.000 cm
Package 3 Weight 2.123 kg
