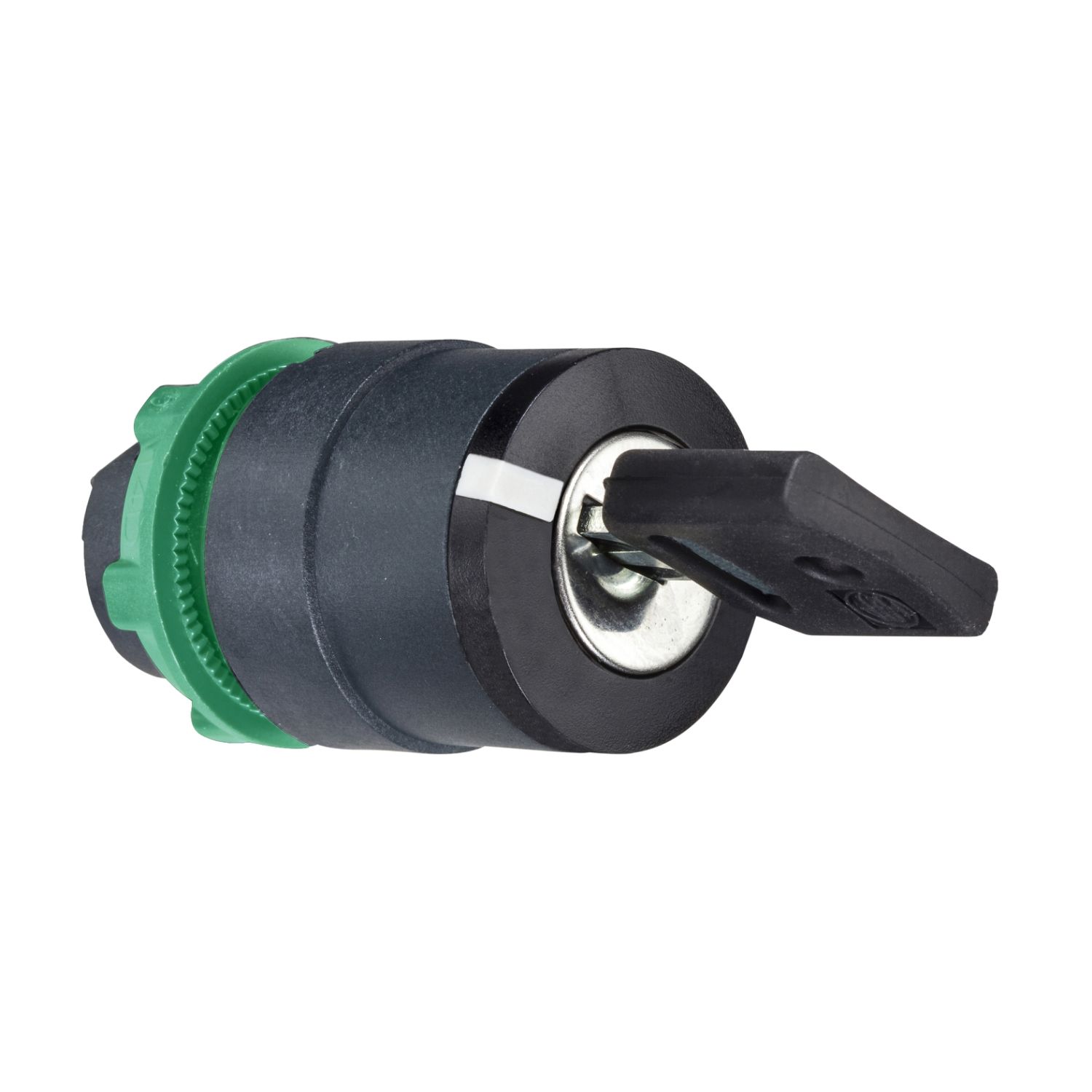

Picture of Head for key selector switch, Harmony XB5, 22mm 3 positions stay put key 455
SKU:

ZB5AG09

Head for key selector switch, Harmony XB5, 22mm 3 positions stay put key 455

Old price: $132.66 INC GST
$103.47 INC GST
Availability: Please contact our sales team on 1300 724 622.
Product Selector
Head for key selector switch, Harmony XB5, 22mm 3 positions stay put key 455
Be the first to review this product
Manufacturer: Schneider Electric
Environmental Disclosure
Declaration of conformity
CAD
Catalog
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
This head with key (key no.455) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Type of keylock key 455
Device short name ZB5
Operator position information 3 positions +/- 45°
Operator profile black key switch
Bezel material dark grey plastic
Sale per indivisible quantity 1
Key withdrawal position right
Head type standard
Shape of signaling unit head round
Product or component type head for key selector switch
Type of operator stay put
Mounting diameter 22 mm
Range of product Harmony XB5
Complementary
Group of product key switch
CAD overall depth 72 mm
CAD overall width 29 mm
Station name XALK 2...5 cut-outs, XALD 1...5 cut-outs
Customizable no, 0
Compatibility code ZB5
Mechanical durability 1000000 cycles
Cap/operator or lens colour black
Device presentation basic element
CAD overall height 29 mm
Net weight 0.057 kg
Electrical composition code SR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C3 for <6 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C8 for <4 contacts using single and double blocks in front mounting, C7 for <4 contacts using single blocks in front mounting, C6 for <5 contacts using single and double blocks in front mounting, C5 for <5 contacts using single blocks in front mounting, C4 for <6 contacts using single and double blocks in front mounting
Main group selector switch
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP69K, IP69, IP67, IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, UL 508, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-1, JIS C8201-5-1, CSA C22.2 No 14
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to IEC 50102
Product certifications GL, BV, UL listed, DNV, CSA, LROS (Lloyds register of shipping)
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 5.200 cm
Package 1 Length 8.500 cm
Package 1 Weight 67.000 g
Unit Type of Package 2 2
Number of Units in Package 2 60
Package 2 Height 15 cm
Package 2 Width 30 cm
Package 2 Length 40 cm
Package 2 Weight 4.270 kg
Unit Type of Package 3 3
Number of Units in Package 3 960
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 76.320 kg
