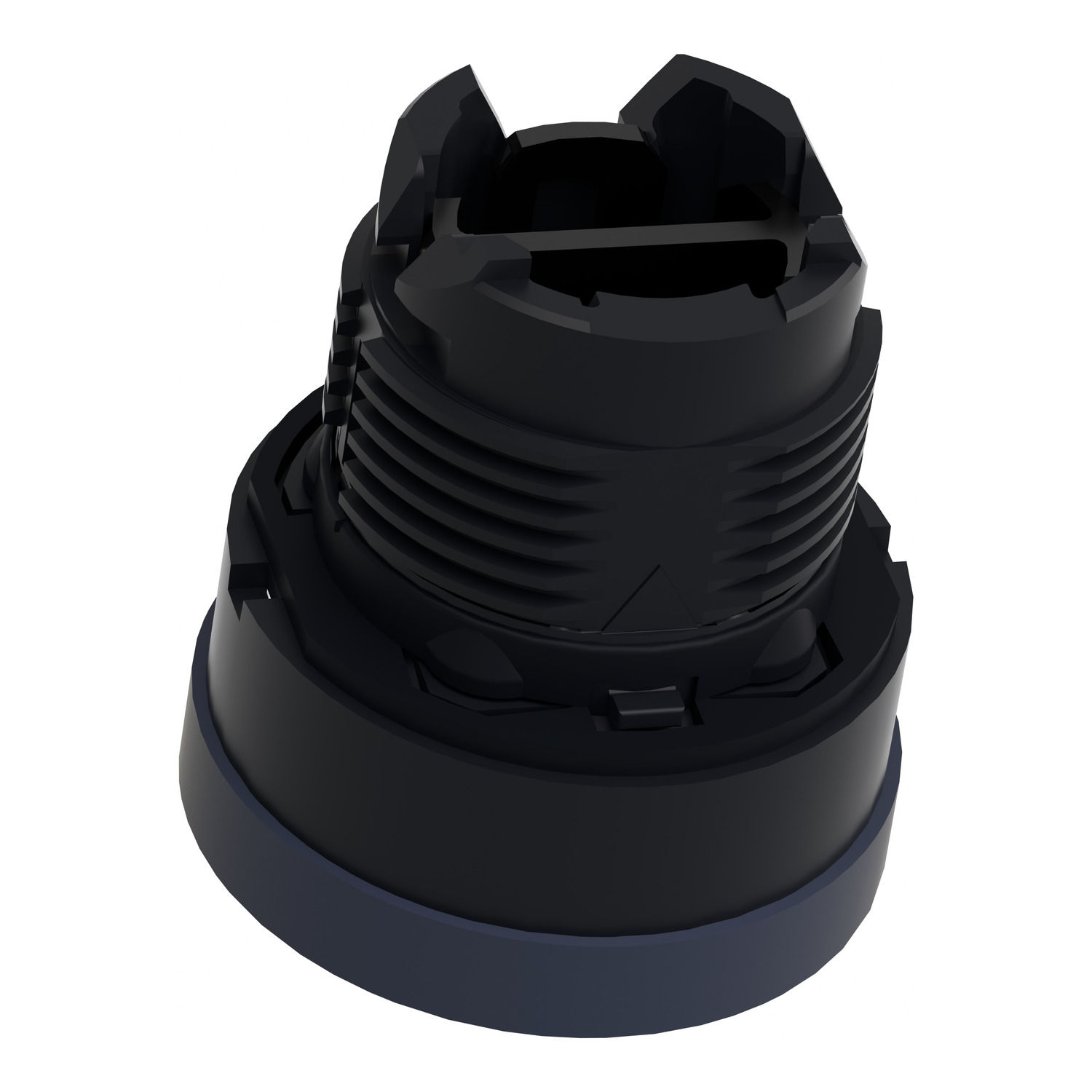

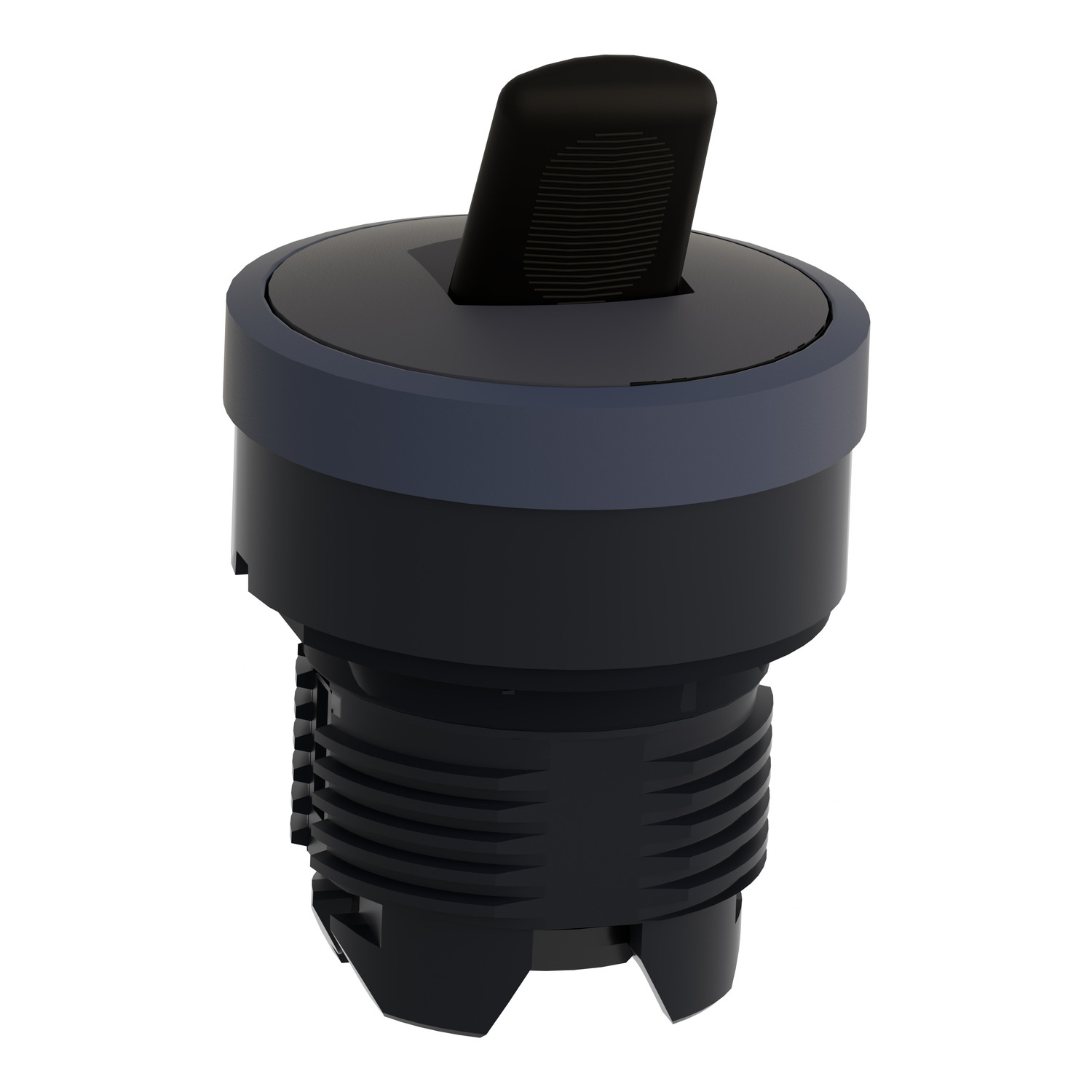

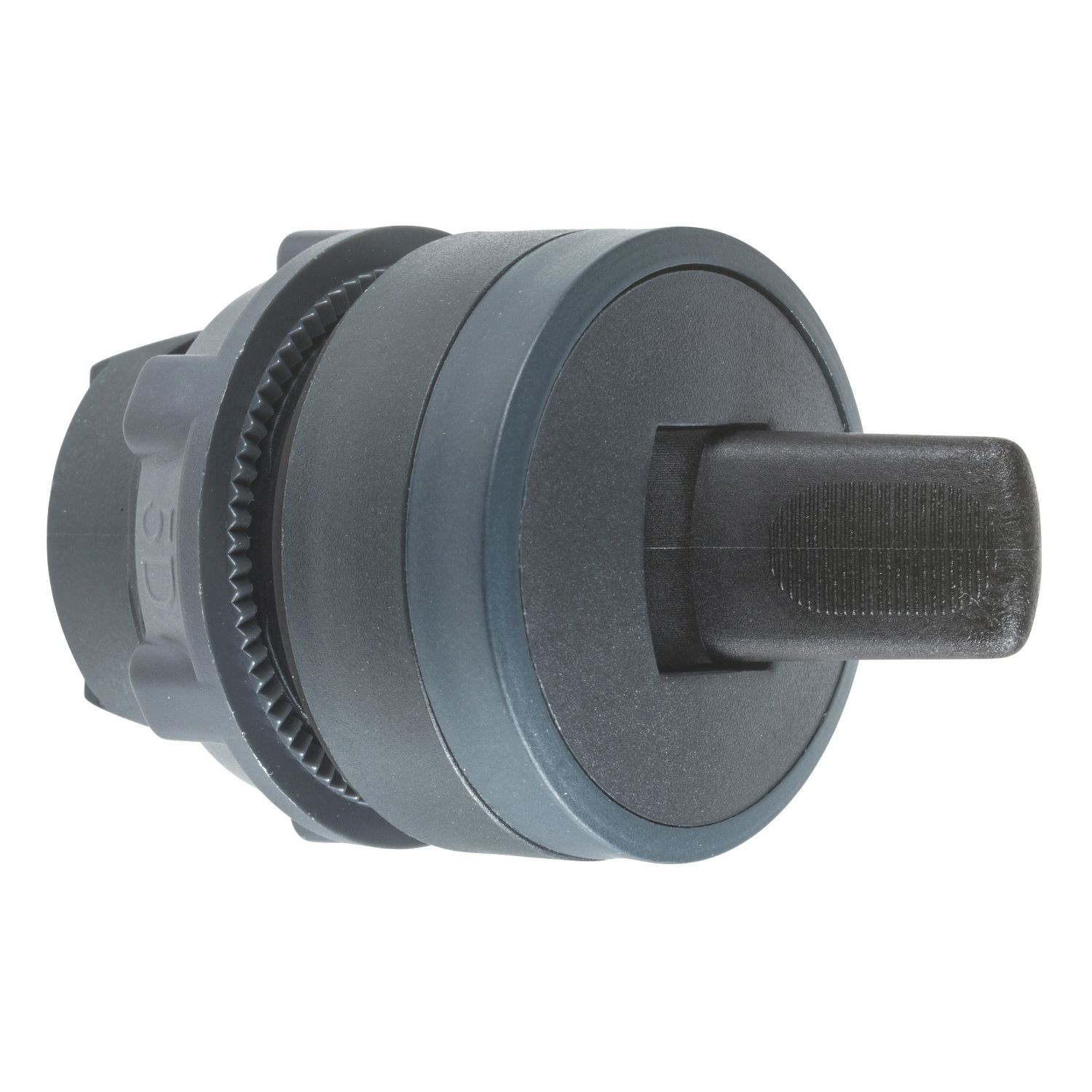

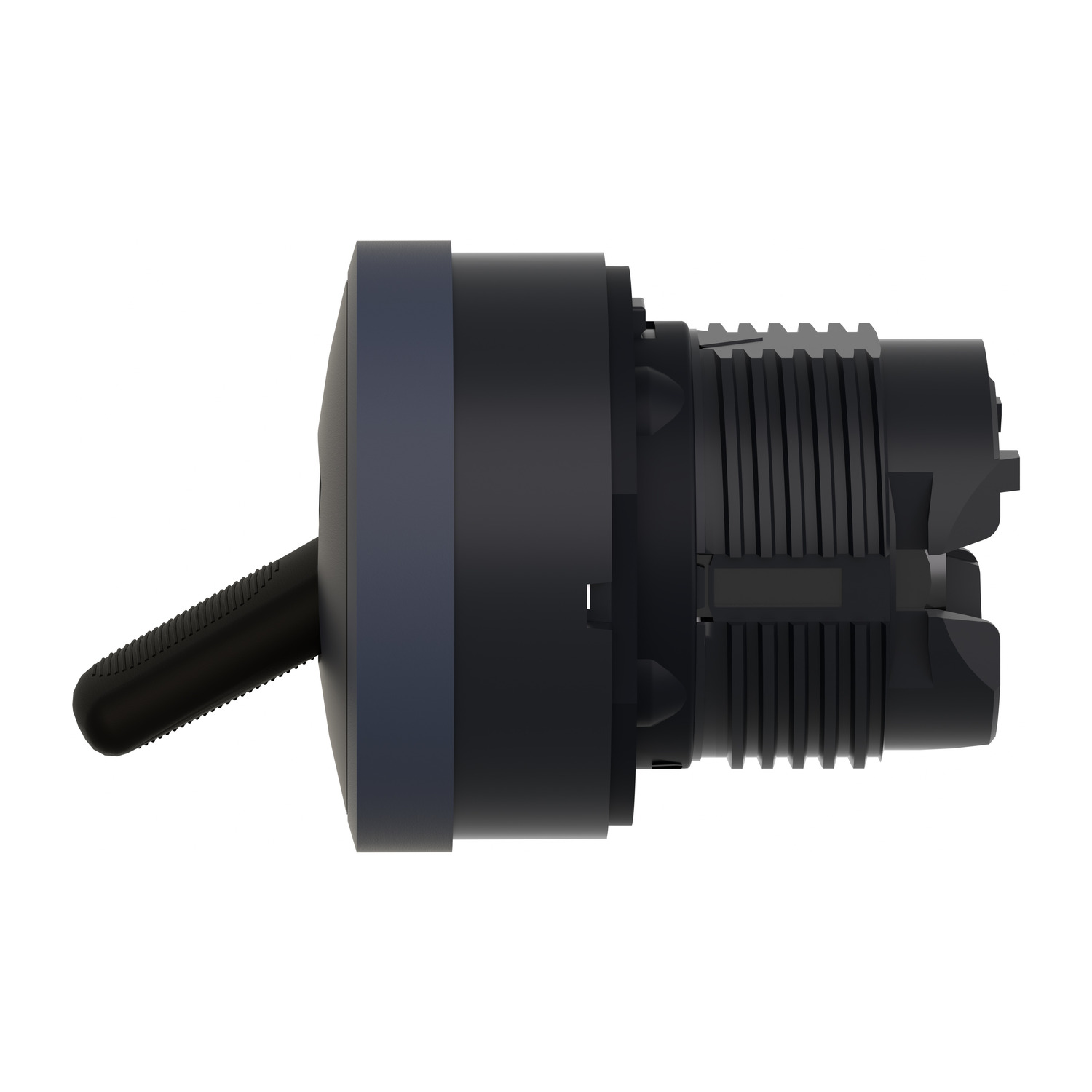

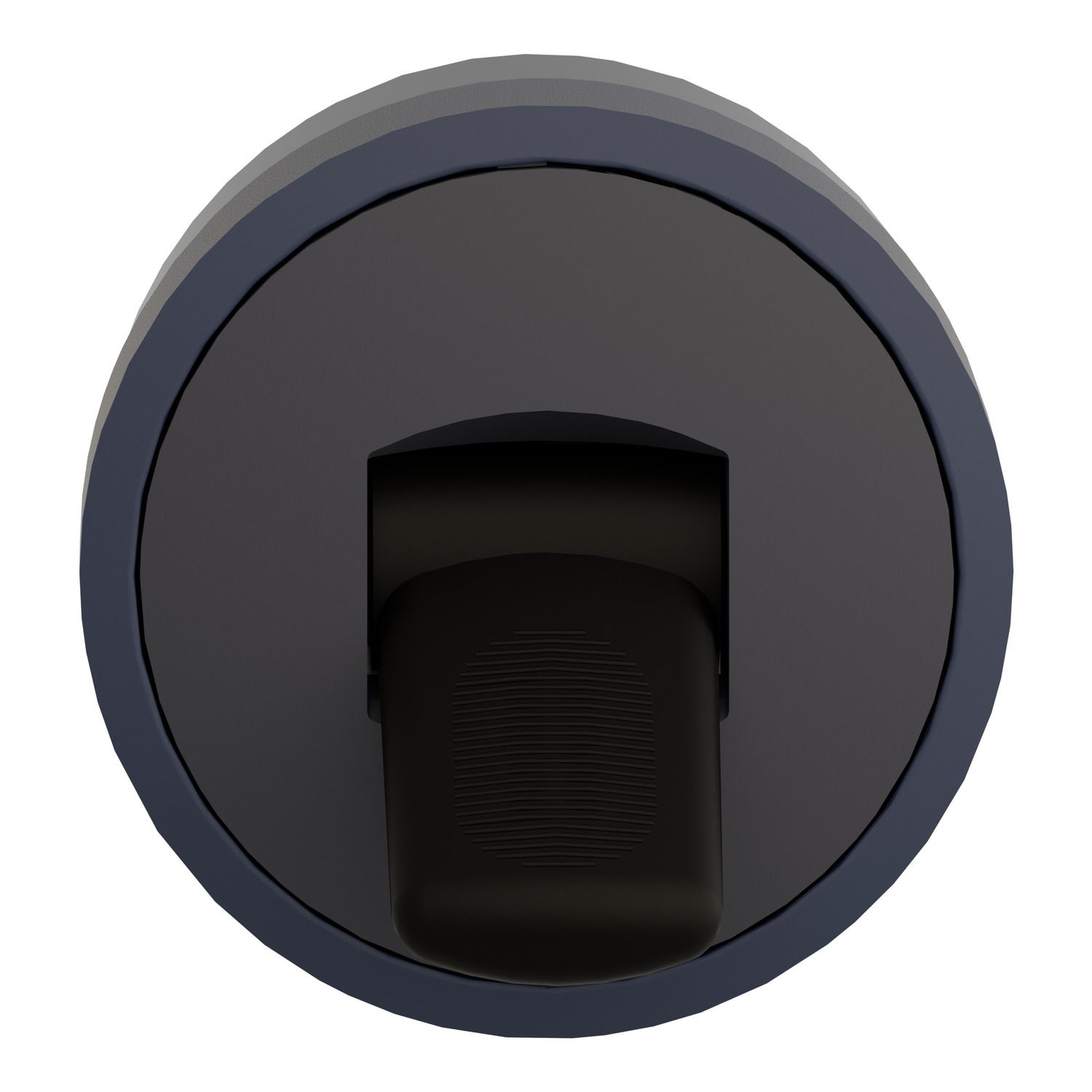

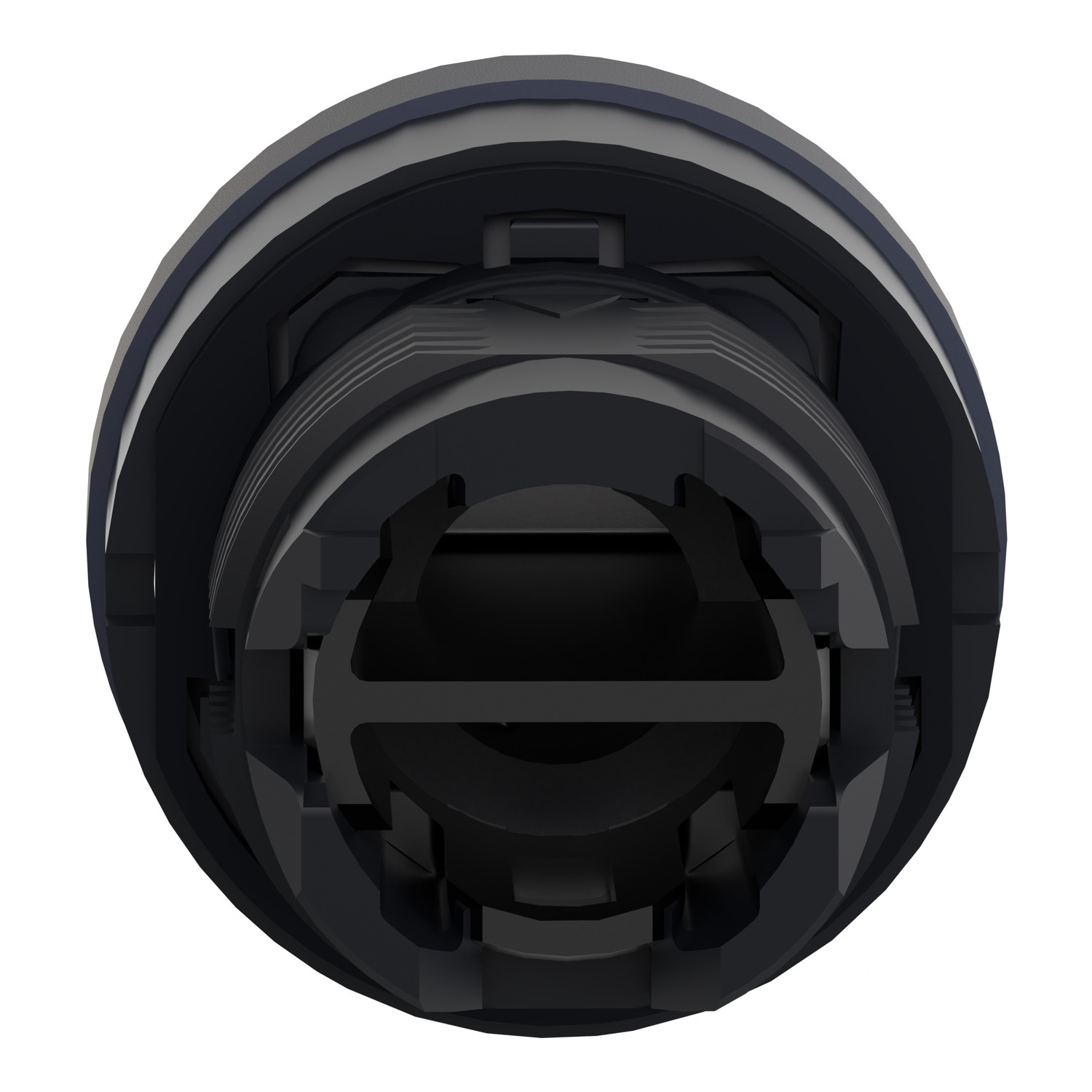

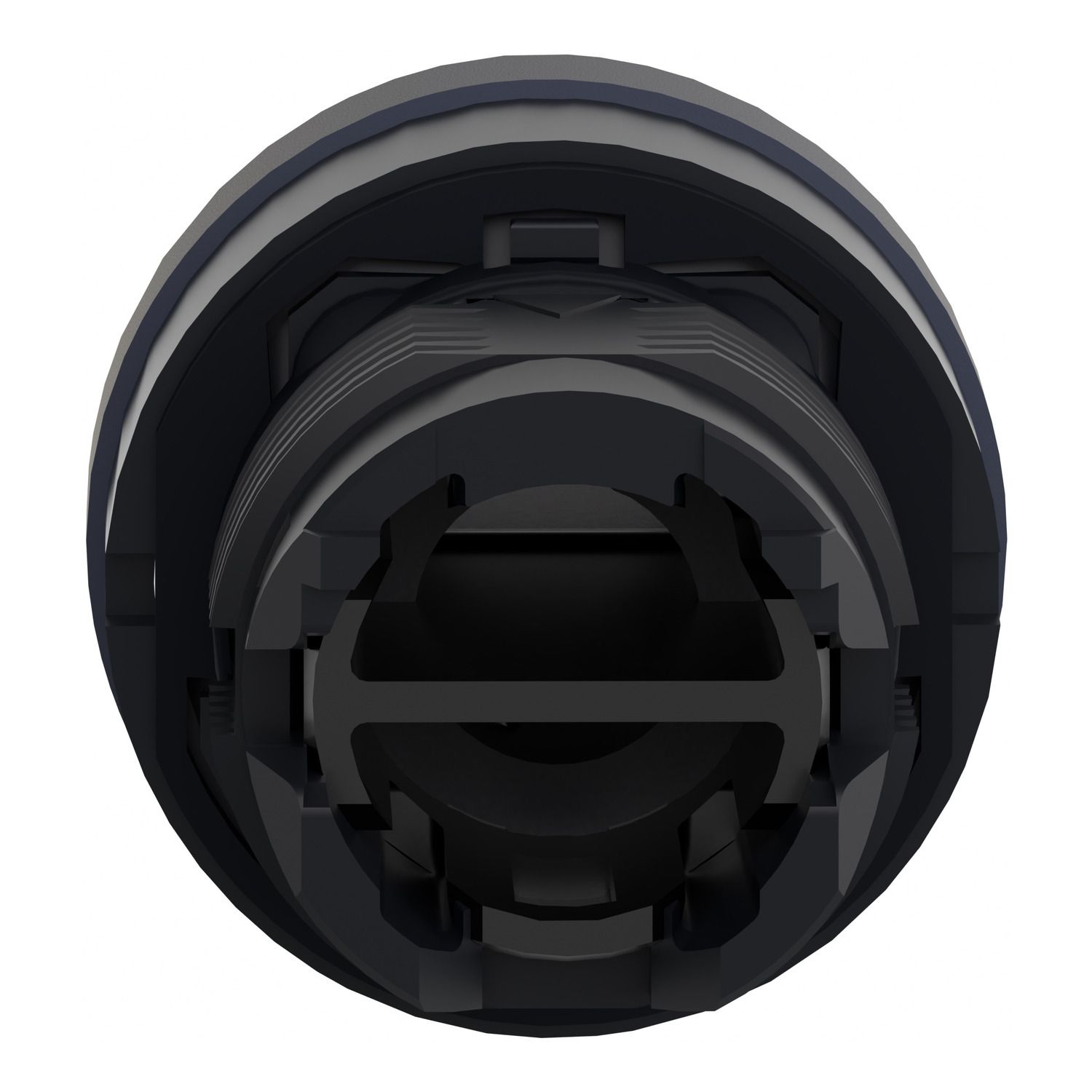

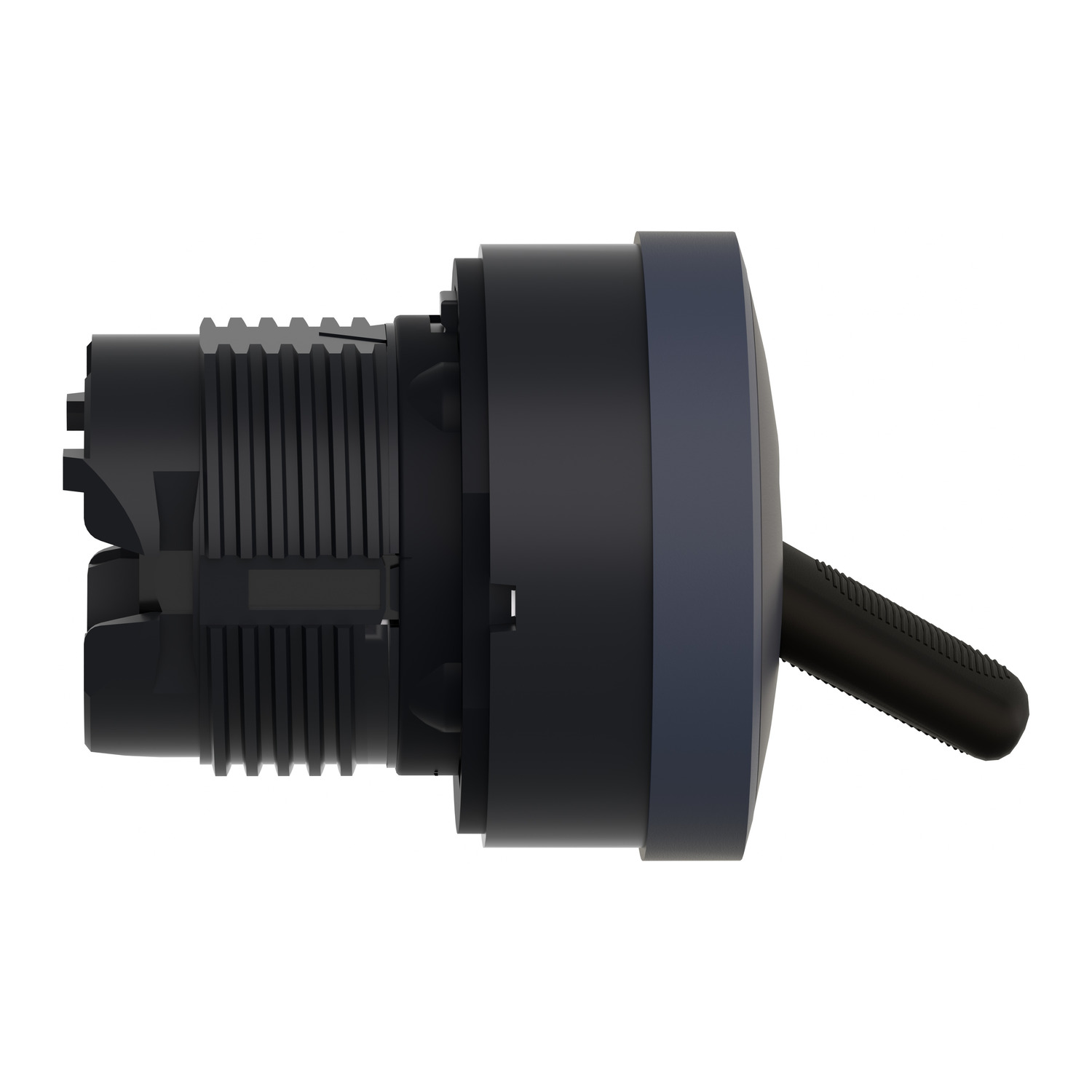

Picture of Toggle switch head, Harmony XB5, plastic, black, 22mm, 2 positions, stay put
Picture of Toggle switch head, Harmony XB5, plastic, black, 22mm, 2 positions, stay put
Picture of Toggle switch head, Harmony XB5, plastic, black, 22mm, 2 positions, stay put
Picture of Toggle switch head, Harmony XB5, plastic, black, 22mm, 2 positions, stay put
Picture of Toggle switch head, Harmony XB5, plastic, black, 22mm, 2 positions, stay put
Picture of Toggle switch head, Harmony XB5, plastic, black, 22mm, 2 positions, stay put
Picture of Toggle switch head, Harmony XB5, plastic, black, 22mm, 2 positions, stay put
Picture of Toggle switch head, Harmony XB5, plastic, black, 22mm, 2 positions, stay put
Picture of Toggle switch head, Harmony XB5, plastic, black, 22mm, 2 positions, stay put
SKU:

ZB5AD28

Toggle switch head, Harmony XB5, plastic, black, 22mm, 2 positions, stay put

Old price: $53.02 INC GST
$41.36 INC GST
Available for Shipping : 06-Jan-2026
Product Selector
Toggle switch head, Harmony XB5, plastic, black, 22mm, 2 positions, stay put
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 06-Jan-2026

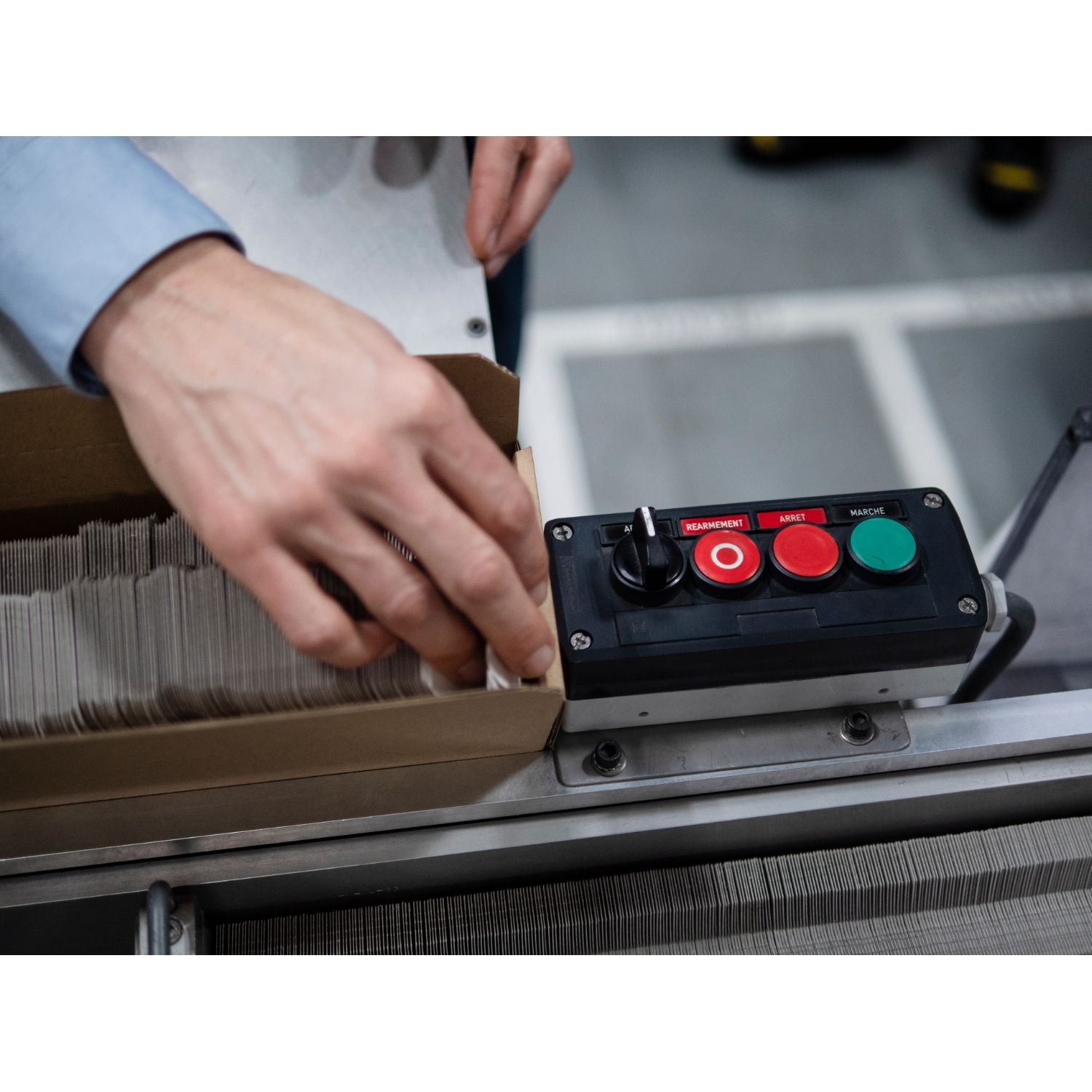

Image of product in real life situation
Circularity Profile
Declaration of conformity
CAD
Environmental Disclosure
Catalog
Instruction sheet
Product Page Link
Product Data Sheet
This switch head provides an ergonomic interface for controlling your machines. It is supplied with toggle switch with black lever and can easily be installed on compatible selector switch units. It provides an effective manner to switch between two conditions in various operating modes and numerous applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB5
Operator position information 2 positions 90°
Operator profile black toggle switch
Bezel material dark grey plastic
Sale per indivisible quantity 1
Head type standard
Shape of signaling unit head round
Product or component type head for selector switch
Type of operator stay put
Mounting diameter 22 mm
Range of product Harmony XB5
Operator additional information black lever
Complementary
Group of product selec. switches 2 posi. lever
CAD overall depth 45 mm
CAD overall width 29 mm
Station name XALK 2...5 cut-outs, XALD 1...5 cut-outs
Customizable no, 0
Compatibility code ZB5
Mechanical durability 500000 cycles
Cap/operator or lens colour black
Device presentation basic element
CAD overall height 29 mm
Net weight 0.023 kg
Electrical composition code C13 for <6 contacts using single and double blocks in front mounting, SR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C15 for <1 contacts using single blocks in front mounting, C12 for <6 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting
Main group selector switch
Environment
Protective treatment TH
NEMA degree of protection NEMA 4X, NEMA 13
Overvoltage category class II conforming to IEC 60536
Ambient air temperature for storage -40-70 °C
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
IP degree of protection IP66 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, JIS C8201-5-1, IEC 60947-1, UL 508, CSA C22.2 No 14, IEC 60947-5-4, IEC 60947-5-1
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06
Product certifications LROS (Lloyds register of shipping), CSA, BV, UL listed, GL, DNV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.500 cm
Package 1 Width 4.500 cm
Package 1 Length 5.500 cm
Package 1 Weight 22.000 g
Unit Type of Package 2 2
Number of Units in Package 2 200
Package 2 Height 30.000 cm
Package 2 Width 30.000 cm
Package 2 Length 40.000 cm
Package 2 Weight 4.774 kg
Unit Type of Package 3 3
Number of Units in Package 3 1600
Package 3 Height 75.000 cm
Package 3 Width 80.000 cm
Package 3 Length 60.000 cm
Package 3 Weight 46.192 kg
