Picture of Head for triple headed push button, Harmony XB5, XB4, white flush/red projecting/white flush pushbutton Ø22 mm with marking
SKU:

ZB5AA71114

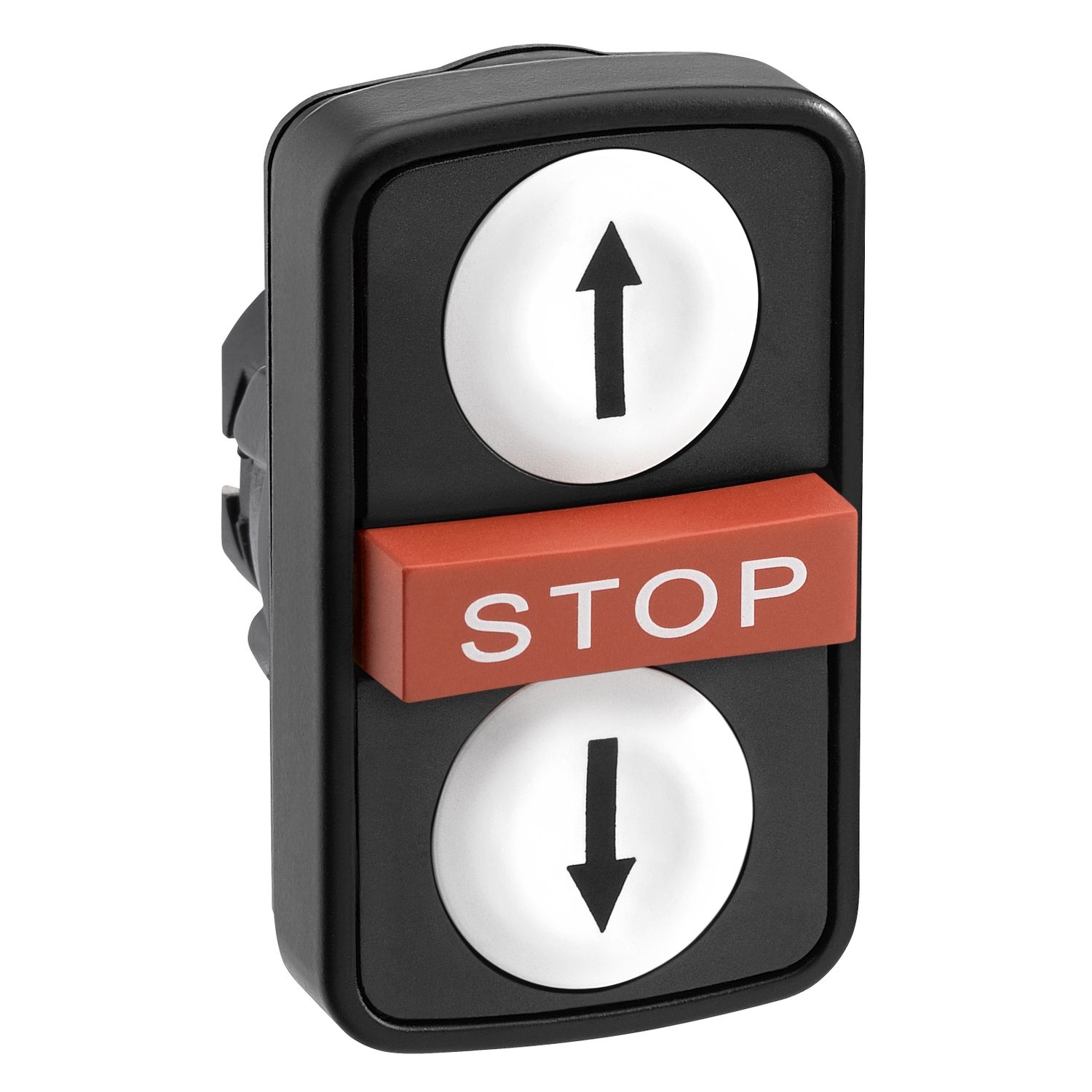

Head for triple headed push button, Harmony XB5, XB4, white flush/red projecting/white flush pushbutton Ø22 mm with marking

Old price: $71.39 INC GST
$55.68 INC GST
Available for Shipping : 15-Dec-2025
Product Selector
Head for triple headed push button, Harmony XB5, XB4, white flush/red projecting/white flush pushbutton Ø22 mm with marking
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 15-Dec-2025
Environmental Disclosure
Declaration of conformity
Instruction sheet
Circularity Profile
Product Page Link
Product Data Sheet
This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out, it has 1 red and 2 white buttons. It is easily installed into a standard 22mm diameter cut-outs. It is assembled with a collar and contact blocks to fulfill a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP67 and IP69K. It makes it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name XB5
Bezel material dark grey plastic
Head type standard
Operator profile 2 flush - 1 central projecting STOP push-buttons
Shape of signaling unit head rectangular
Product or component type head for triple-headed push-button
Operators description white ''up arrow'' - white ''down arrow'' - red ''STOP''
Type of operator spring return
Mounting diameter 22 mm
Range of product Harmony XB5
Complementary
Group of product flush/proj/flush marked
CAD overall depth 35 mm
CAD overall width 30 mm
Station name XALD 1 cut-out
Customizable no, 0
Marking up arrow/STOP/down arrow
Compatibility code XB5
Mechanical durability 1000000 cycles
Operator profile white flush, up arrow (black), white flush, down arrow (black), red projecting, STOP (white)
Cap/operator or lens colour white/red/white
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Device presentation basic element
CAD overall height 50 mm
Net weight 0.023 kg
Colour of marking white marking when green, red or black caps, black marking when white caps, black/white/black
Electrical composition code SR1 for <3 contacts using single blocks in rear mounting, SF1 for <3 contacts using single blocks in front mounting, C11 for <3 contacts using single blocks in front mounting, C2 for <9 contacts using single and double blocks in front mounting, C1 for <9 contacts using single blocks in front mounting
Main group triple head push-button
Environment
Electrical shock protection class class II conforming to IEC 61140
NEMA degree of protection NEMA 4X, NEMA 13
Ambient air temperature for storage -40-70 °C
IP degree of protection IP69K, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, JIS C8201-5-1, IEC 60947-1, CSA C22.2 No 14, IEC 60947-5-1, UL 508, IEC 60947-5-4
Ambient air temperature for operation -25-70 °C
IK degree of protection IK05 conforming to IEC 50102
Product certifications UL listed, GL, DNV, LROS (Lloyds register of shipping), CSA, BV
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 3.2 cm
Package 1 Width 4.8 cm
Package 1 Length 5.2 cm
Package 1 Weight 24.0 g
Unit Type of Package 2 2
Number of Units in Package 2 200
Package 2 Height 30.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 5.748 kg

Related products

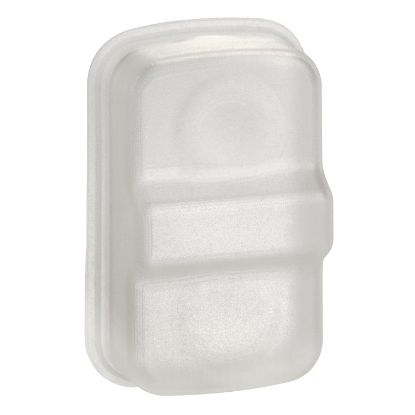

Silicone boot, Harmony XB4, for 22mm triple headed push button, clear

ZBA709
$25.31 INC GST $32.45 INC GST
View Detail

Tightening tool for fixing nut, Harmony XB5, plastic, black

ZB5AZ905
$19.22 INC GST $24.64 INC GST
View Detail

Legend holder, Harmony XB4, Legend holder 30 x 40mm, plastic, with legend 8x27mm, unmarked

ZBY2101
$5.19 INC GST $6.66 INC GST
View Detail
