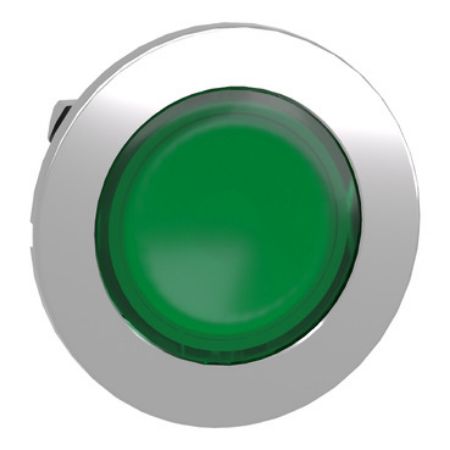

Picture of Head for illuminated push button, Harmony XB4, metal, green flush, 30mm, spring return, universal LED, unmarked

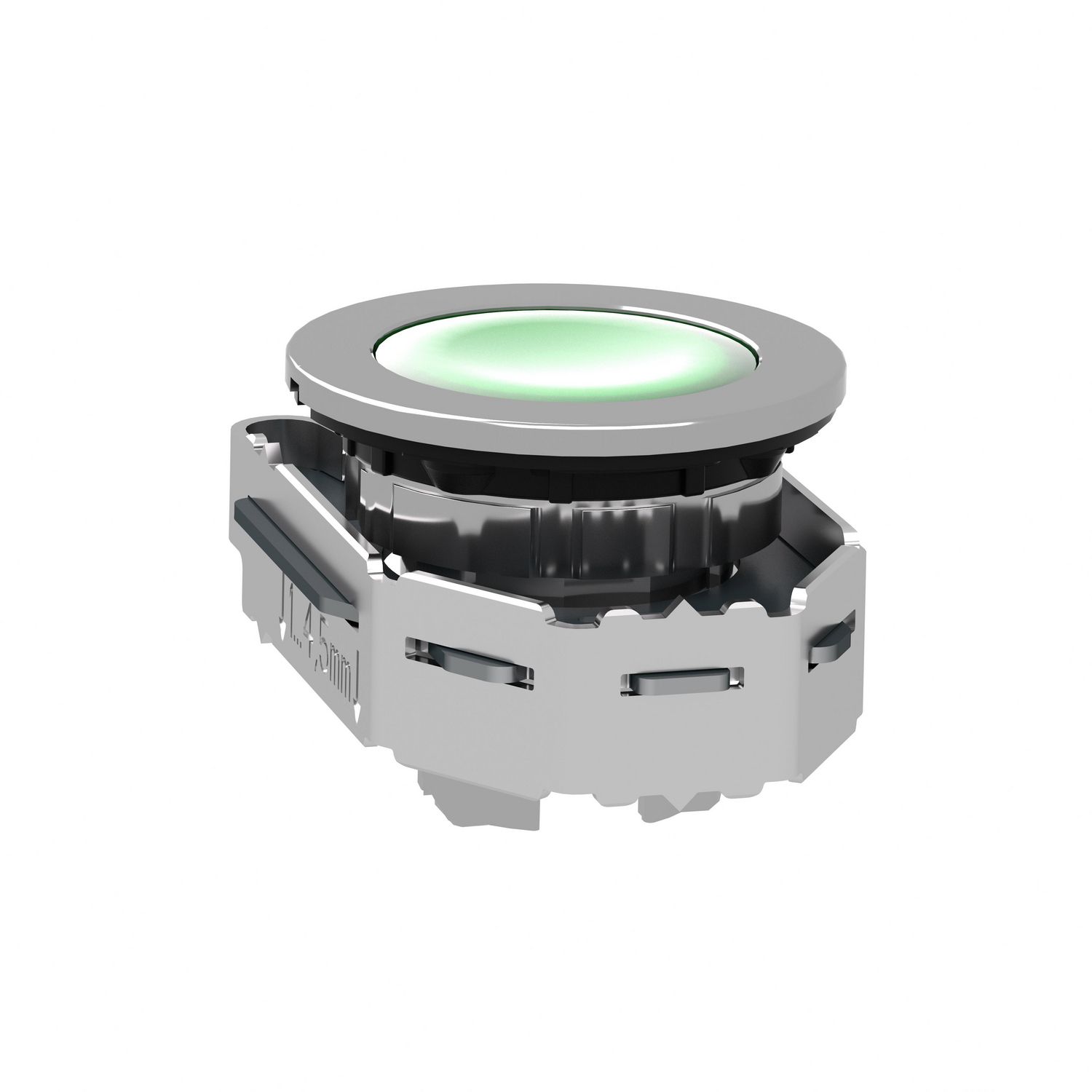

Picture of Head for illuminated push button, Harmony XB4, metal, green flush, 30mm, spring return, universal LED, unmarked

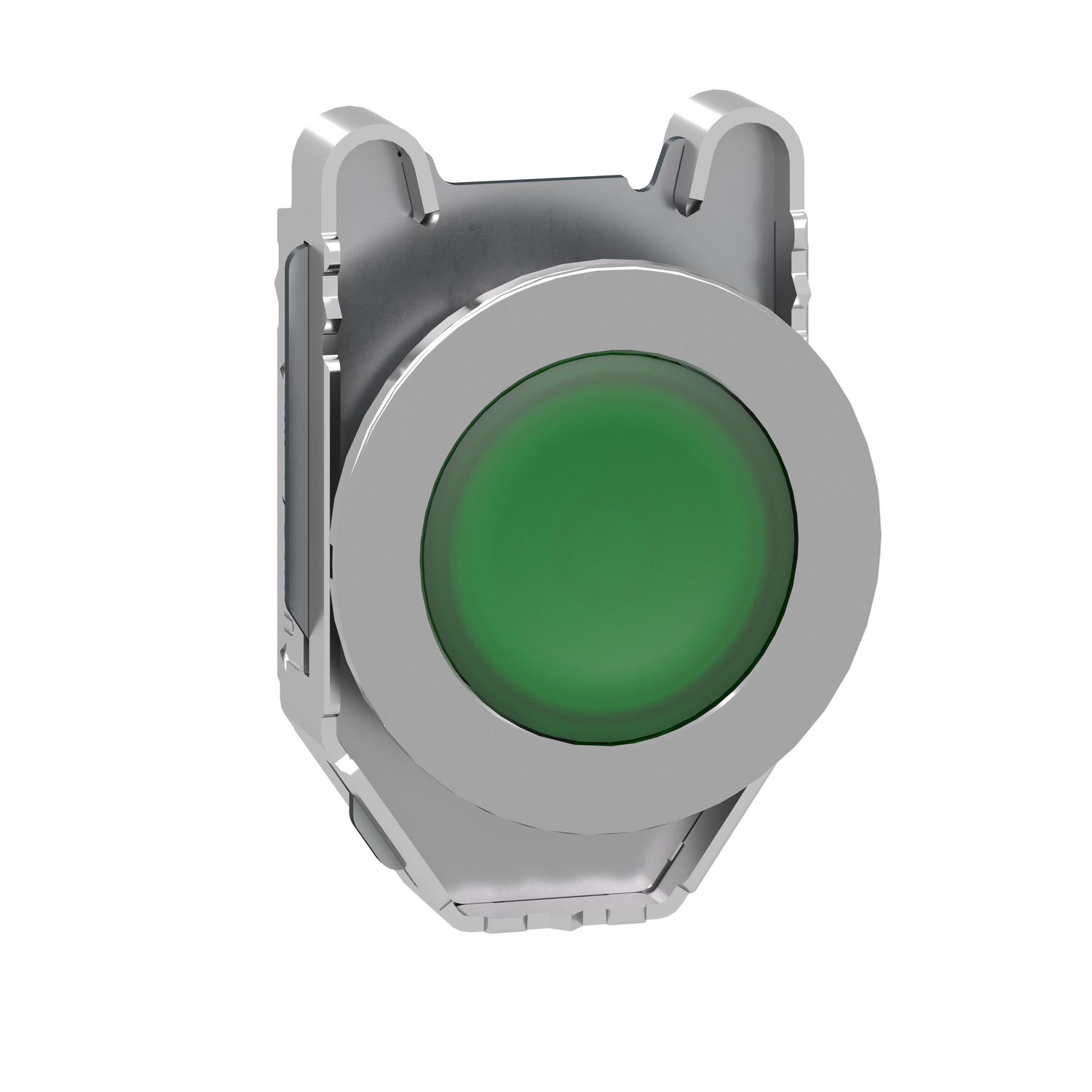

Picture of Head for illuminated push button, Harmony XB4, metal, green flush, 30mm, spring return, universal LED, unmarked

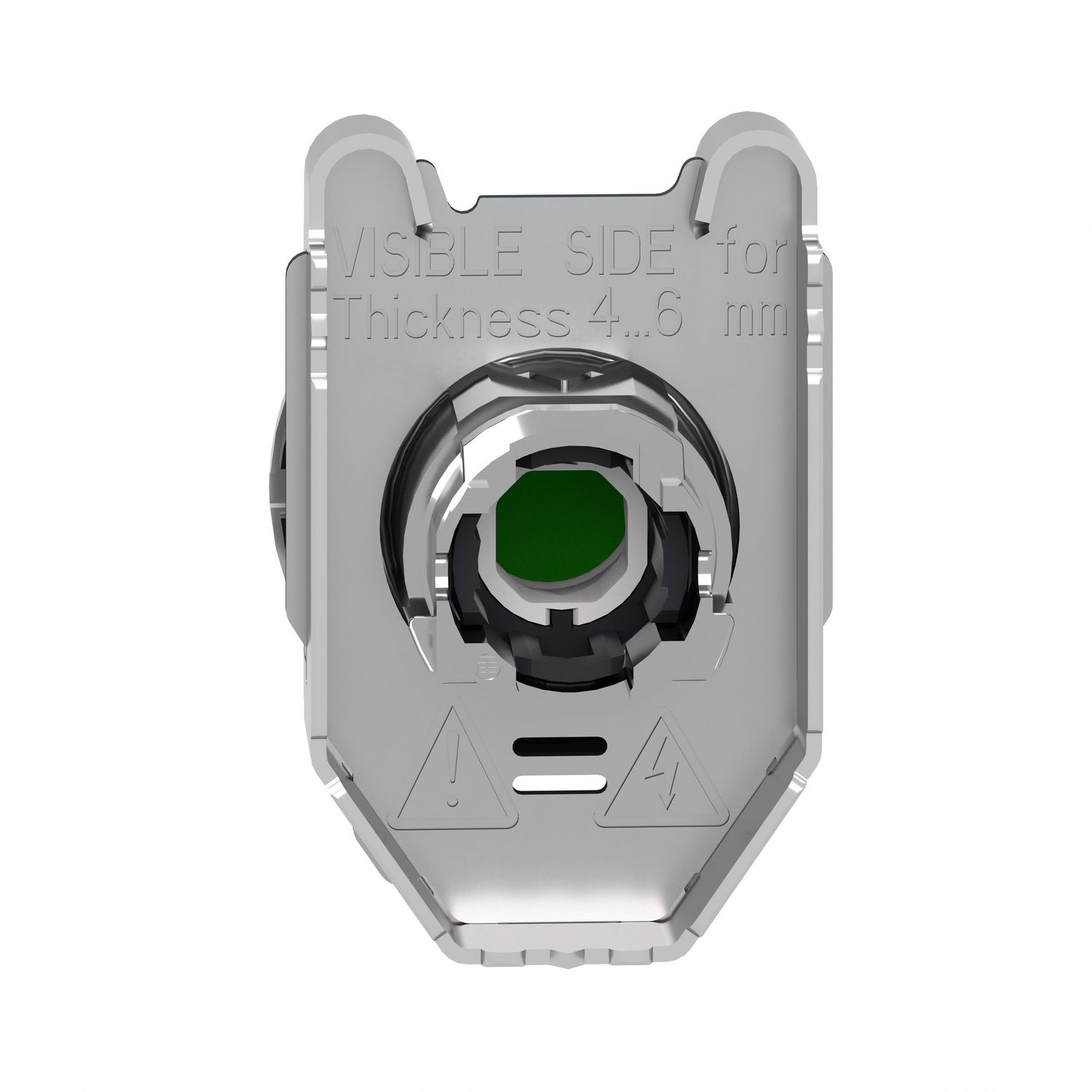

Picture of Head for illuminated push button, Harmony XB4, metal, green flush, 30mm, spring return, universal LED, unmarked

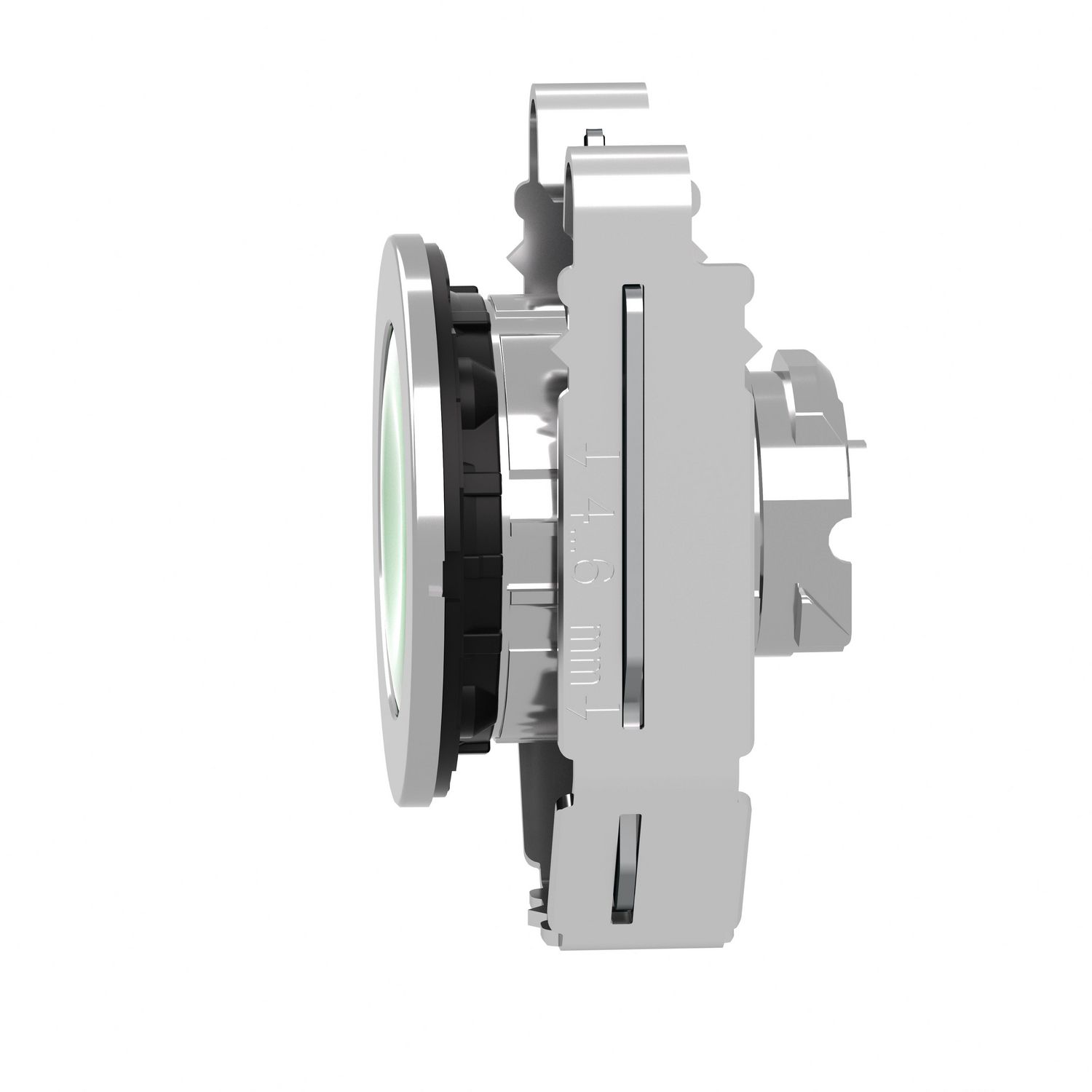

Picture of Head for illuminated push button, Harmony XB4, metal, green flush, 30mm, spring return, universal LED, unmarked

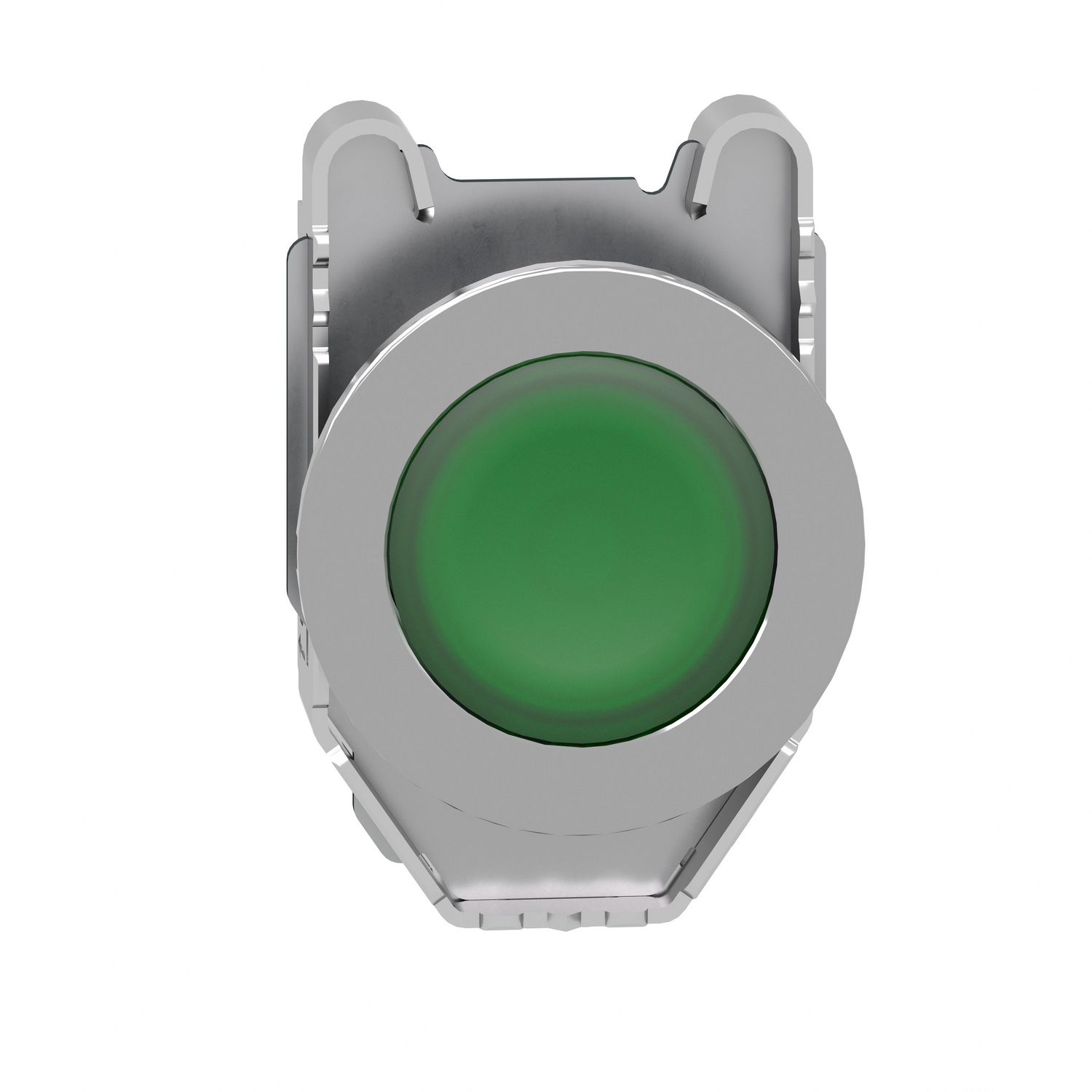

Picture of Head for illuminated push button, Harmony XB4, metal, green flush, 30mm, spring return, universal LED, unmarked

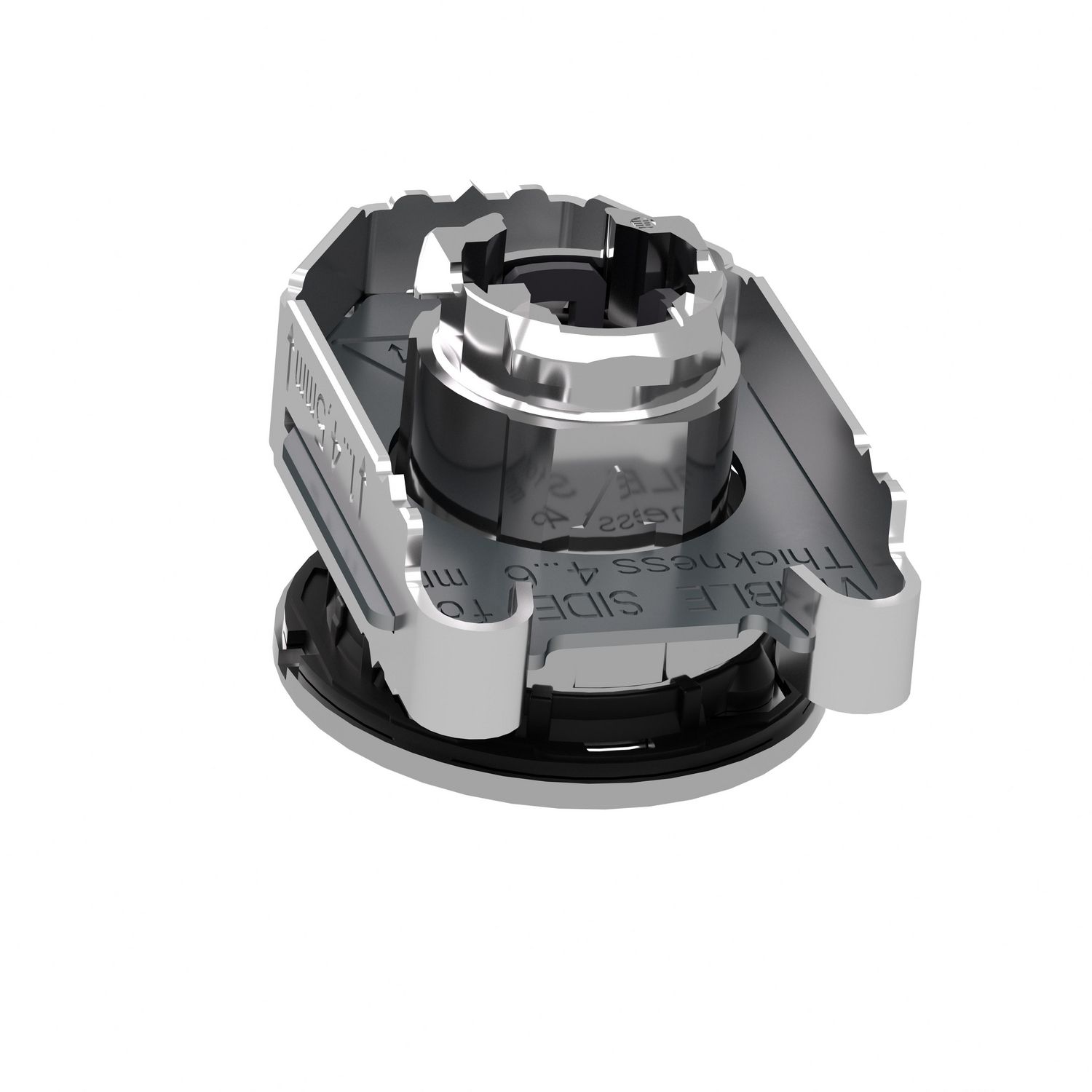

Picture of Head for illuminated push button, Harmony XB4, metal, green flush, 30mm, spring return, universal LED, unmarked

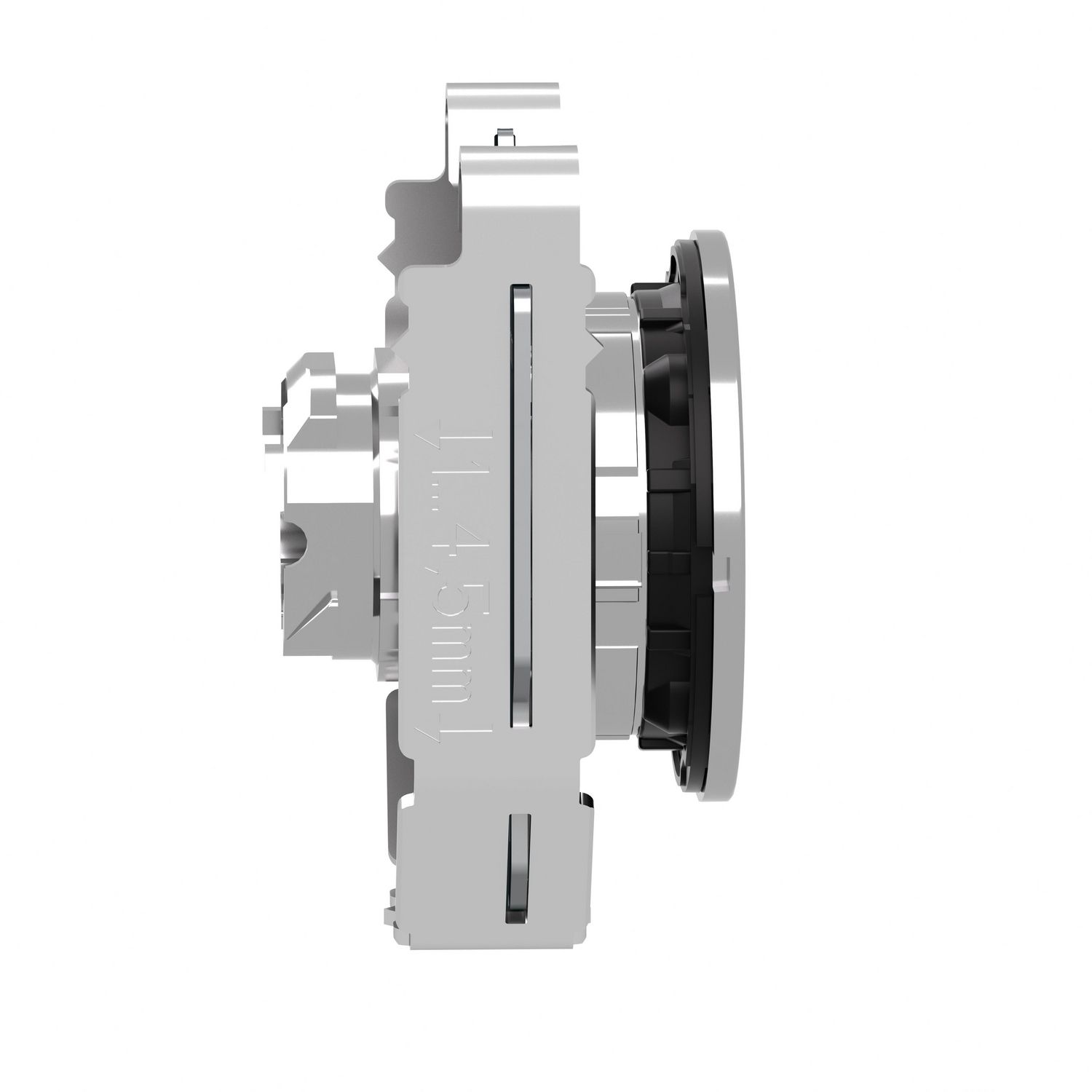

Picture of Head for illuminated push button, Harmony XB4, metal, green flush, 30mm, spring return, universal LED, unmarked
Picture of Head for illuminated push button, Harmony XB4, metal, green flush, 30mm, spring return, universal LED, unmarked
Picture of Head for illuminated push button, Harmony XB4, metal, green flush, 30mm, spring return, universal LED, unmarked
Picture of Head for illuminated push button, Harmony XB4, metal, green flush, 30mm, spring return, universal LED, unmarked
SKU:

ZB4FW333

Head for illuminated push button, Harmony XB4, metal, green flush, 30mm, spring return, universal LED, unmarked

Old price: $55.33 INC GST
$43.16 INC GST
Available for Shipping : 12-Jan-2026
Product Selector
Head for illuminated push button, Harmony XB4, metal, green flush, 30mm, spring return, universal LED, unmarked
Be the first to review this product
Manufacturer: Schneider Electric
Delivery date: 12-Jan-2026
Image of product in real life situation
Environmental Disclosure
Image of product in real life situation
Circularity Profile
Catalog
Declaration of conformity
Instruction sheet
Image of product in real life situation
Product Page Link
Product Data Sheet
This 30.5 mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its illuminated clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.

Products specifications

Attribute name Attribute value
Main
Device short name ZB4F
Product compatibility universal LED
Sale per indivisible quantity 1
Head type built-in-flush
Type of operator spring return
Range of product Harmony XB4
Operator profile green flush, unmarked
Bezel material chromium plated metal
Shape of signaling unit head round
Product or component type head for illuminated push-button
Mounting diameter 30.5 mm
Operator additional information with plain lens
Complementary
Group of product flush push integral LED
Compatibility code ZB4
Mechanical durability 10000000 cycles
Device presentation basic element
CAD overall height 36.6 mm
Customizable 1, no
Electrical composition code M10 for <2 contacts using single blocks in front mounting with integral LED, M6 for <2 contacts using single blocks in front mounting with integral LED and transformer, M2 for <6 contacts using single and double blocks in front mounting with integral LED, M1 for <6 contacts using single blocks in front mounting with integral LED
Main group illum push-button
CAD overall depth 31 mm
CAD overall width 36.6 mm
Marking unmarked
Cap/operator or lens colour green
GCR BRIDGE ZB4FWCUST02
Resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m
Net weight 0.06 kg
Environment
Protective treatment TH
Ambient air temperature for storage -40-70 °C
IP degree of protection Type 4X conforming to UL 50 E, Type 4 conforming to UL 50 E, Type 12 conforming to UL 50 E, Type 13 conforming to UL 50 E, IP69K conforming to ISO 20653, IP69 conforming to IEC 60529, IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
Ambient air temperature for operation -40-70 °C
IK degree of protection IK06 conforming to EN 50102
Overvoltage category class I conforming to IEC 60536
Vibration resistance 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Standards JIS C8201-1, CE, JIS C8201-5-1, EN/IEC 60947-1, UL 508, EN/IEC 60947-5-4, EN/IEC 60947-5-1, CSA C22.2 No 14
Product certifications EAC, CCC, CSA, UL listed
Packing Units
Unit Type of Package 1 1
Number of Units in Package 1 1
Package 1 Height 5.3 cm
Package 1 Width 4.3 cm
Package 1 Length 5.8 cm
Package 1 Weight 58.0 g
Unit Type of Package 2 2
Number of Units in Package 2 80
Package 2 Height 15.0 cm
Package 2 Width 30.0 cm
Package 2 Length 40.0 cm
Package 2 Weight 4.952 kg
